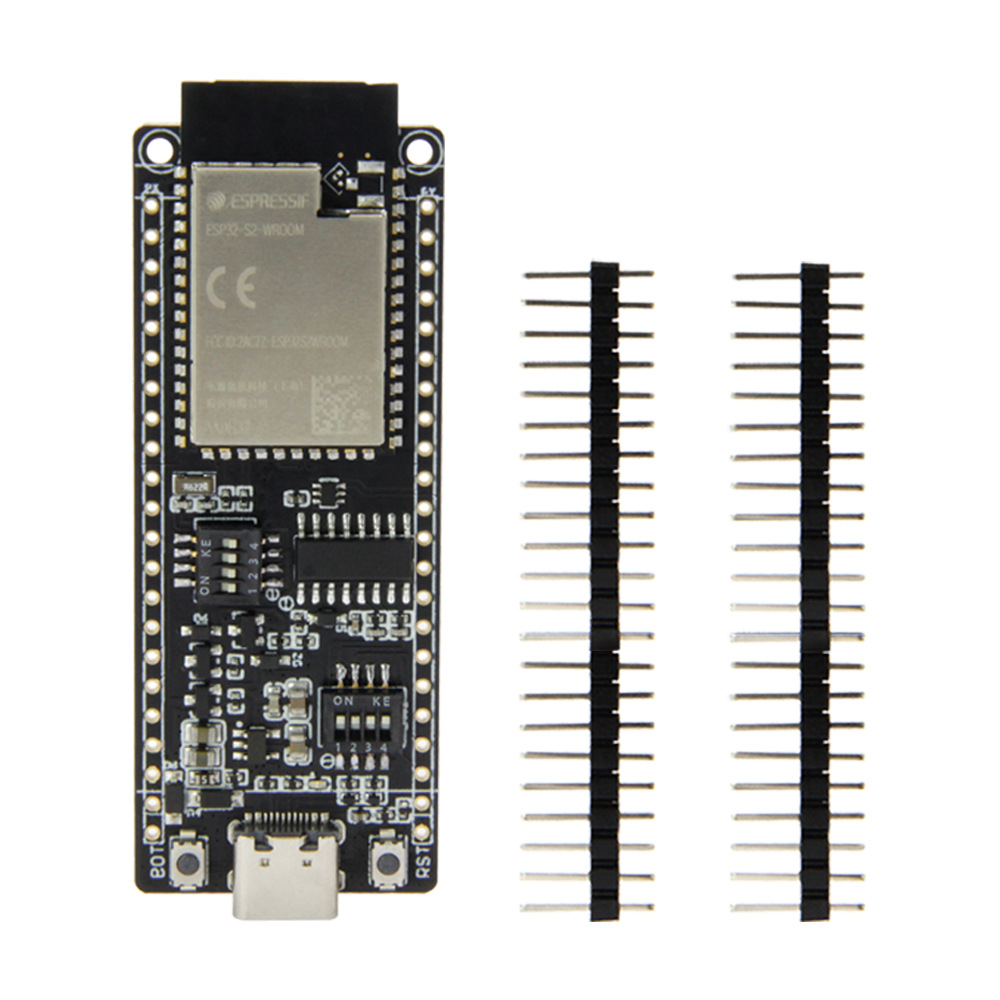

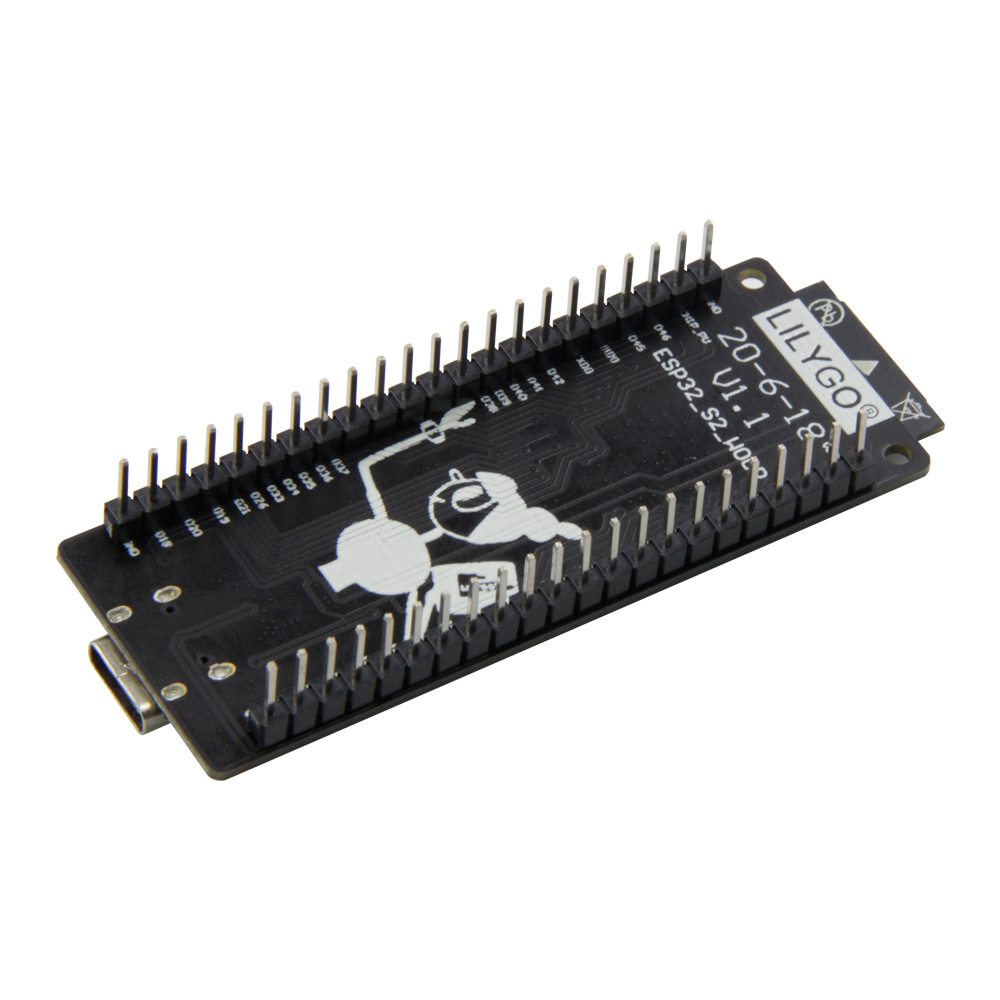

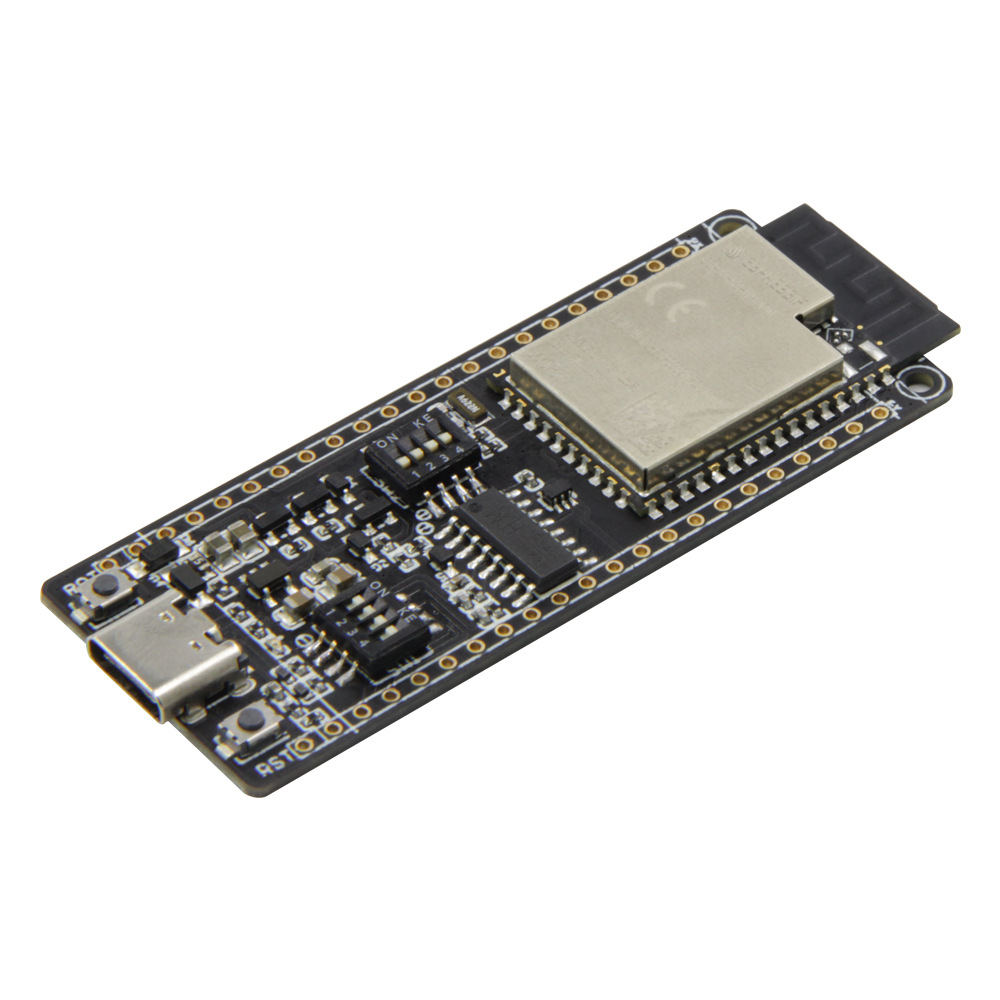

ESP32-S2 ESP32-S2-WOOR V1.1 WIFI Wireless Module Type-C Development Board

ESP32-S2 ESP32-S2-WOOR V1.1 WIFI Wireless Module Type-C Development Board

SKU:XF0064
Regular price $12.99

Product Description:

Hardware Specifications



Chipset

ESPRESSIF-ESP32-S2-WROOM

FLASH

4MB

PSRAM

8MB

SRAM

520 kB SRAM

Button

BOOT,REST,SMD DIP Switch

USB to TTL

CH340C

Modular interface

 SD card、UART、SPI、I2C、PWM、I2S、ADC

On-board clock

32.768KHz crystal oscillator

Working voltage

2.7V-3.6V

Working temperature range

 -40℃ ~ +85℃

Weight

8g

Size

65.48*26.02*4.5mm



Power Supply Specifications



Power Supply Input

USB 5V/1A

Charging current

500mA

Battery Input

3.7-4.2V

USB

Type-C USB



Wi-Fi



Standard

FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)

Protocol

802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval

Frequency range

2.4GHz~2.5GHz(2400M~2483.5M)

Transmit Power

22dBm

Communication distance

300m
