ESP32 Test Board Burner Burner Fixture One Click Download FORESP-WROOM-32 Module 8266

ESP32 Test Board Burner Burner Fixture One Click Download FORESP-WROOM-32 Module 8266

SKU:XF0081
Regular price $10.99

Reference description:
Overview:

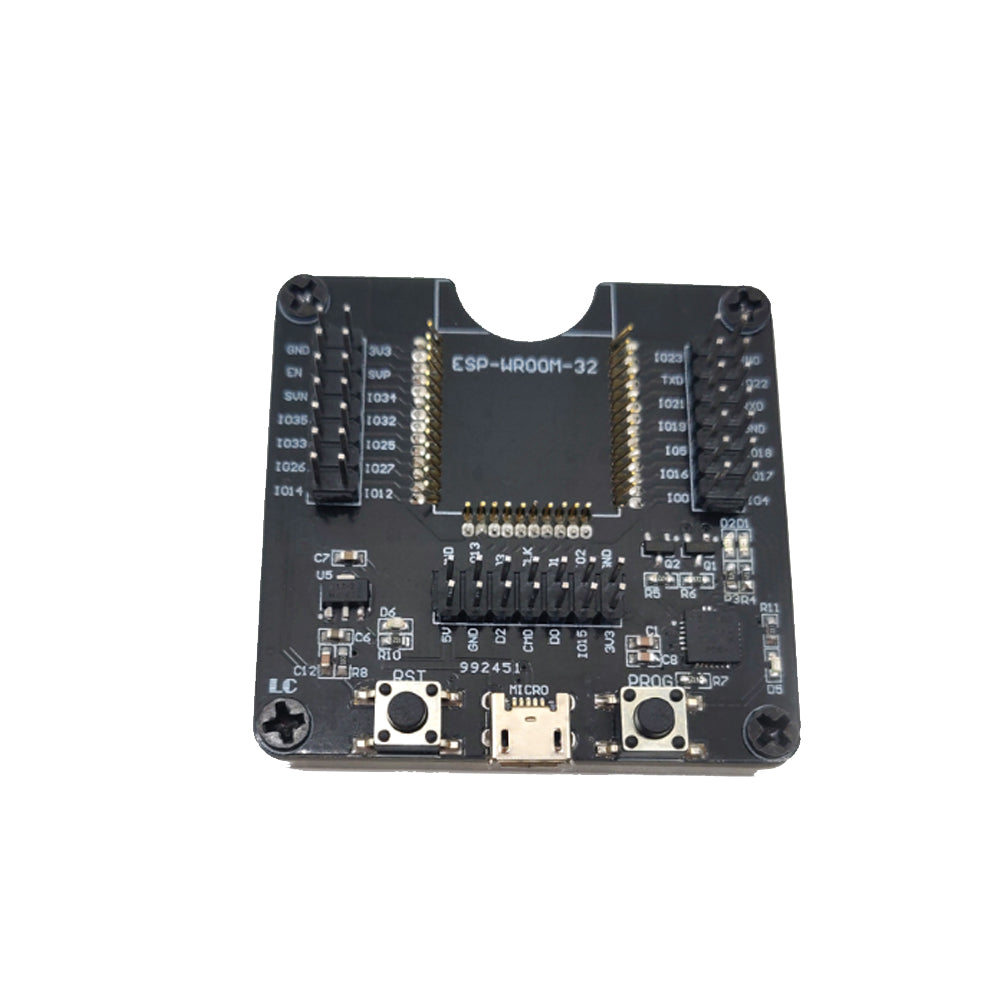

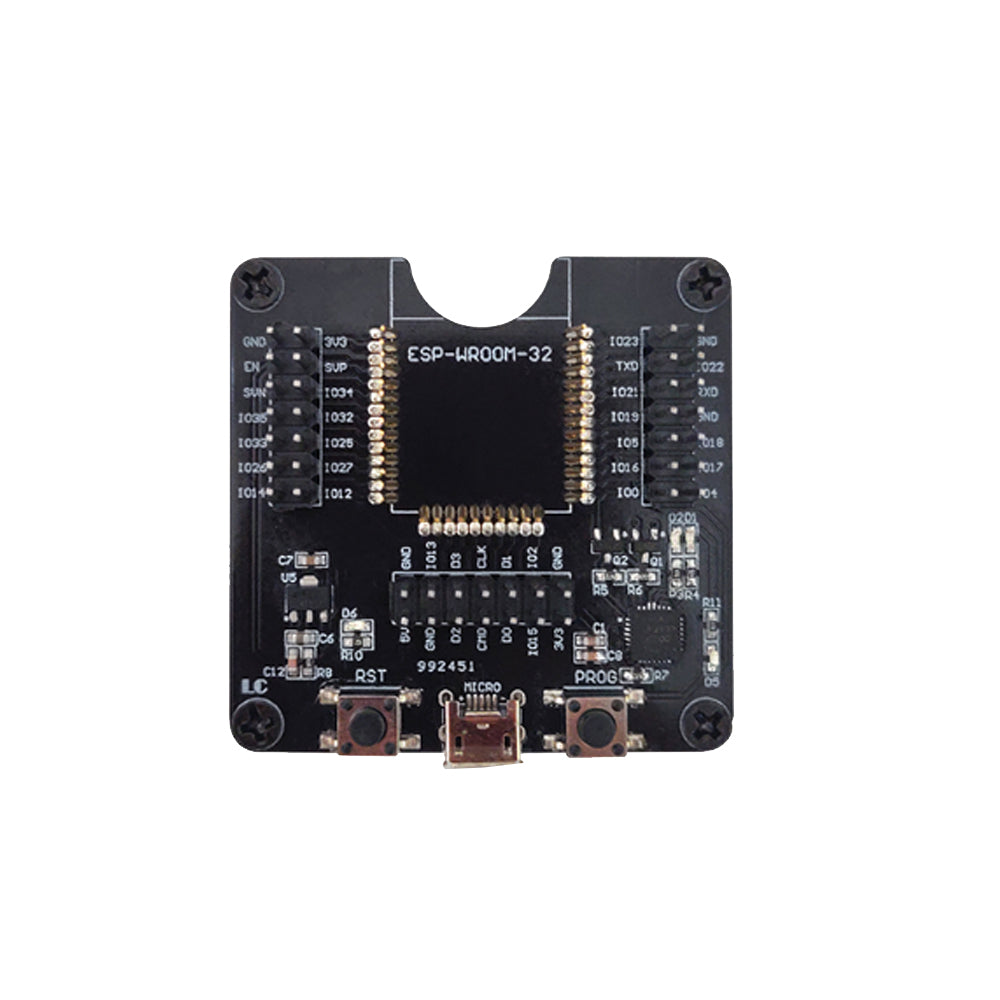

  • Airsay ESP32 programmer is suitable for the firmware burning test of ESP-WROOM-32, ESP-WROOM-32D, ESP-WROOM-32U, ESP32-SOLO-1 four modules, all IO ports have been introduced, It can be used as a minimum system development board or a fixture for small batch programming.
Features
  • Applicable to the firmware burning test of four modules: ESP-WROOM-32, ESP-WROOM-32D, ESP-WROOM-32U, ESP32-SOLO-1
  • Support one-click firmware download function
  • Safe and reliable, small size, long service life
  • And has power indicator light, burning indicator light, serial port communication indicator light
  • Lead out all IO ports, which can be used as the smallest system development board or a fixture for small batch programming
  • Three, hardware introduction and description

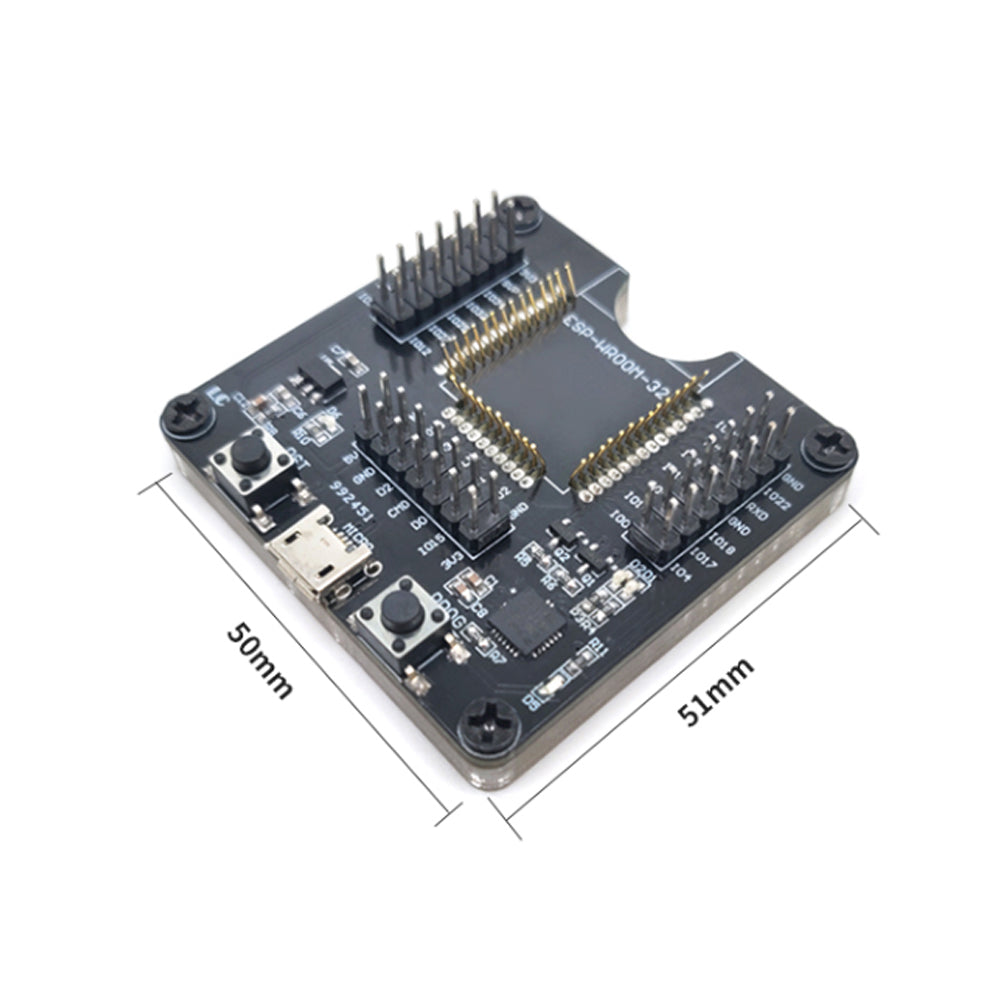

  • Board size: 50*51mm
  • Board weight: 24g
Board function description:
  • Interface description:
  • Download the corresponding CP2102 serial chip driver according to the operating system and install it.
  • Download the official Flash download tool ESPFlashDownloadTool
  • Automatically download firmware: press in the module, insert the USB cable for power supply, cooperate with the Flash download tool, configure the corresponding burning parameters, click START to download, and then start the firmware burning, the downloader will automatically reset and make the module enter the burning mode.
  • Manually download the firmware: press in the module, plug in the USB cable to supply power, open the burning software, configure the corresponding burning parameters, press and hold the burning button, then short press the reset button, and click START to download to start the firmware burning
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Reference description:
Overview:
  • Airsay ESP32 programmer is suitable for the firmware burning test of ESP-WROOM-32, ESP-WROOM-32D, ESP-WROOM-32U, ESP32-SOLO-1 four modules, all IO ports have been introduced, It can be used as a minimum system development board or a fixture for small batch programming.
Features
  • Applicable to the firmware burning test of four modules: ESP-WROOM-32, ESP-WROOM-32D, ESP-WROOM-32U, ESP32-SOLO-1
  • Support one-click firmware download function
  • Safe and reliable, small size, long service life
  • And has power indicator light, burning indicator light, serial port communication indicator light
  • Lead out all IO ports, which can be used as the smallest system development board or a fixture for small batch programming
  • Three, hardware introduction and description
  • Board size: 50*51mm
  • Board weight: 24g
Board function description:
  • Interface description:
  • Download the corresponding CP2102 serial chip driver according to the operating system and install it.
  • Download the official Flash download tool ESPFlashDownloadTool
  • Automatically download firmware: press in the module, insert the USB cable for power supply, cooperate with the Flash download tool, configure the corresponding burning parameters, click START to download, and then start the firmware burning, the downloader will automatically reset and make the module enter the burning mode.
  • Manually download the firmware: press in the module, plug in the USB cable to supply power, open the burning software, configure the corresponding burning parameters, press and hold the burning button, then short press the reset button, and click START to download to start the firmware burning
