ESP8266 0.96 Inch OLED Clock Module Weather PM2.5 Perpetual Calendar ESP-12F LCD Development Board
ESP8266 0.96 Inch OLED Clock Module Weather PM2.5 Perpetual Calendar ESP-12F LCD Development Board
SKU:XF0073
Regular price
$10.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Interface Description:

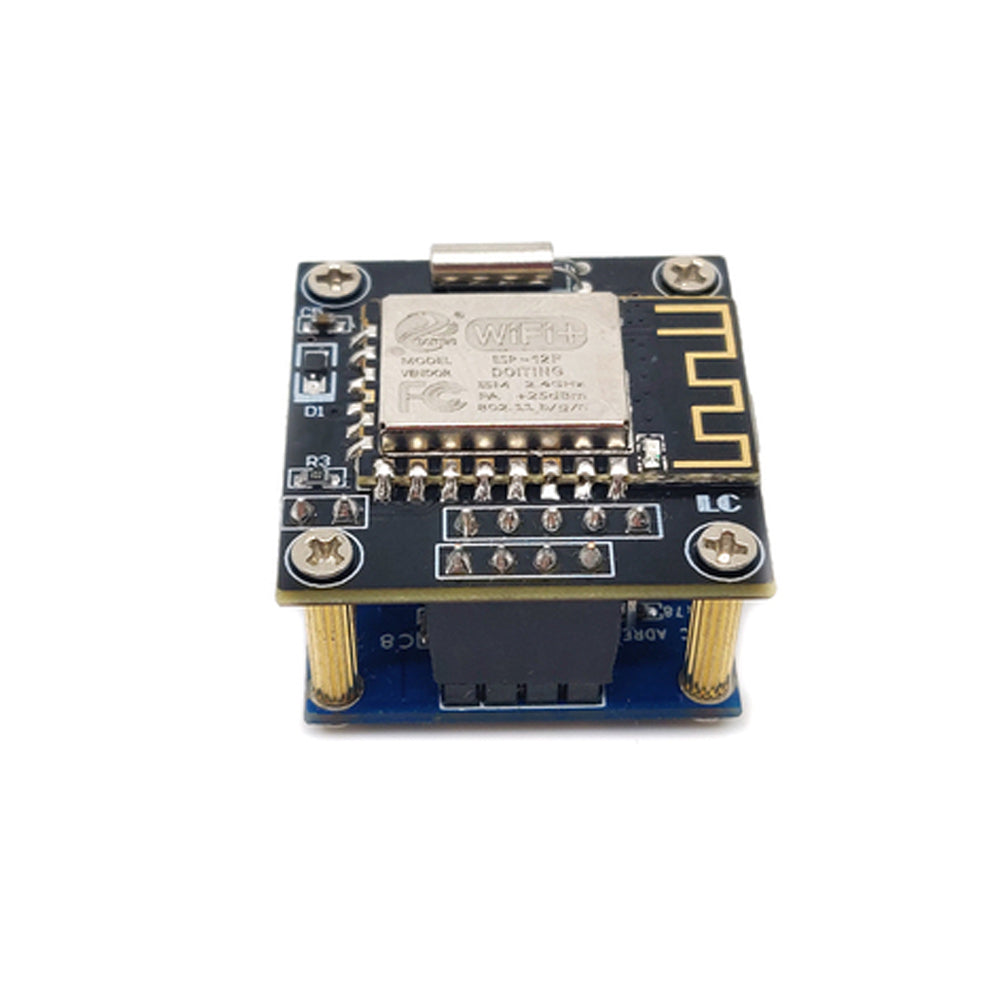

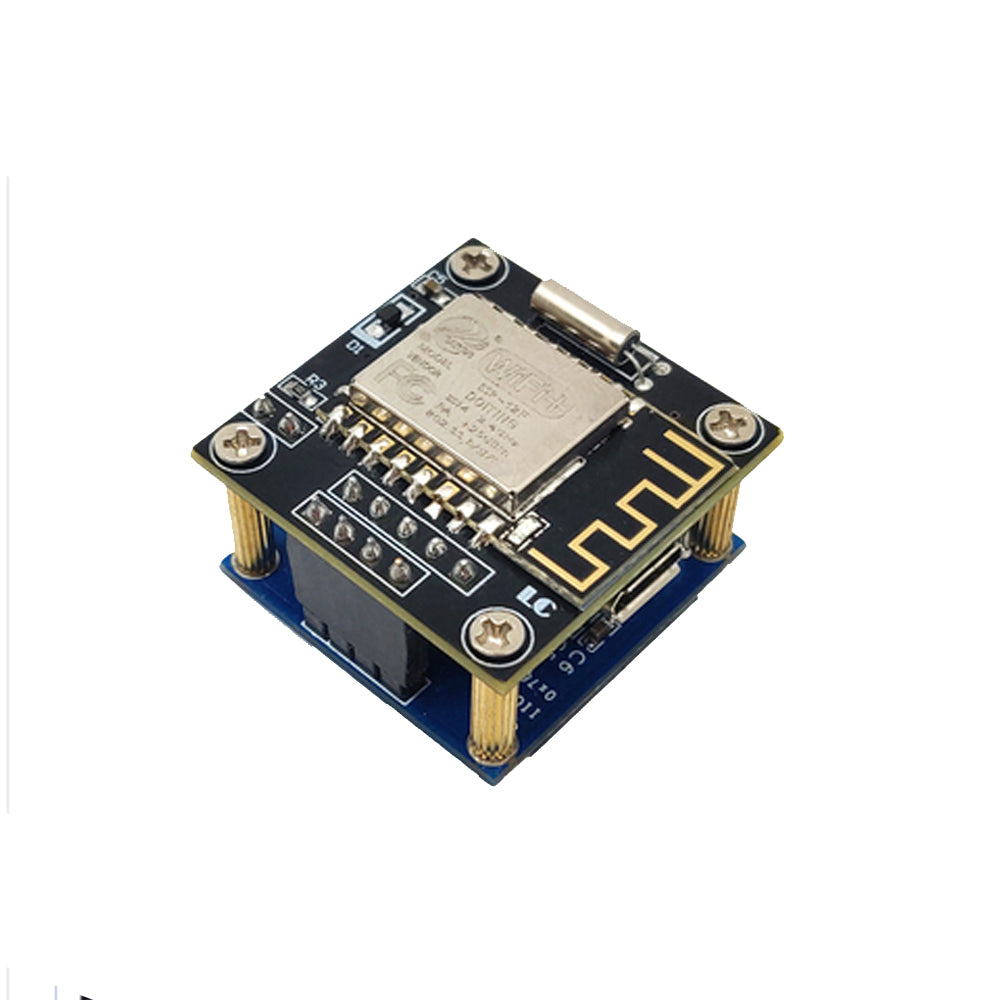

- Onboard mature and stable ESP-12F WIFI module, large capacity 4M BYTE FLASH;
- Onboard I2C communication interface 0.96 inch OLED display;
- Onboard PCF8563T clock circuit, it can run normally even if the power is off;
- The ESP8266 UART interface is reserved to support the second time and write your own firmware;
- Power supply: MICRO USB 5V power supply;
- Double-layer structure design, small size and good appearance, the best choice for DIY WIFI clock

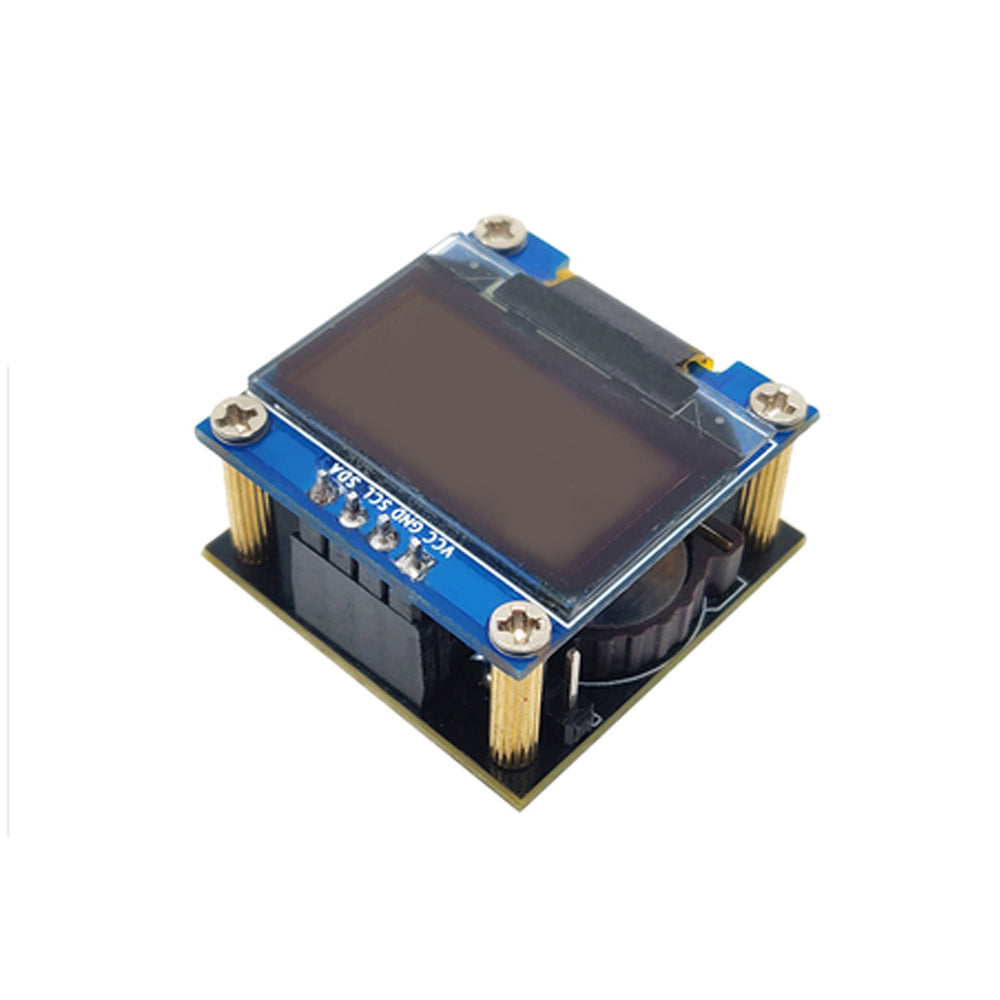

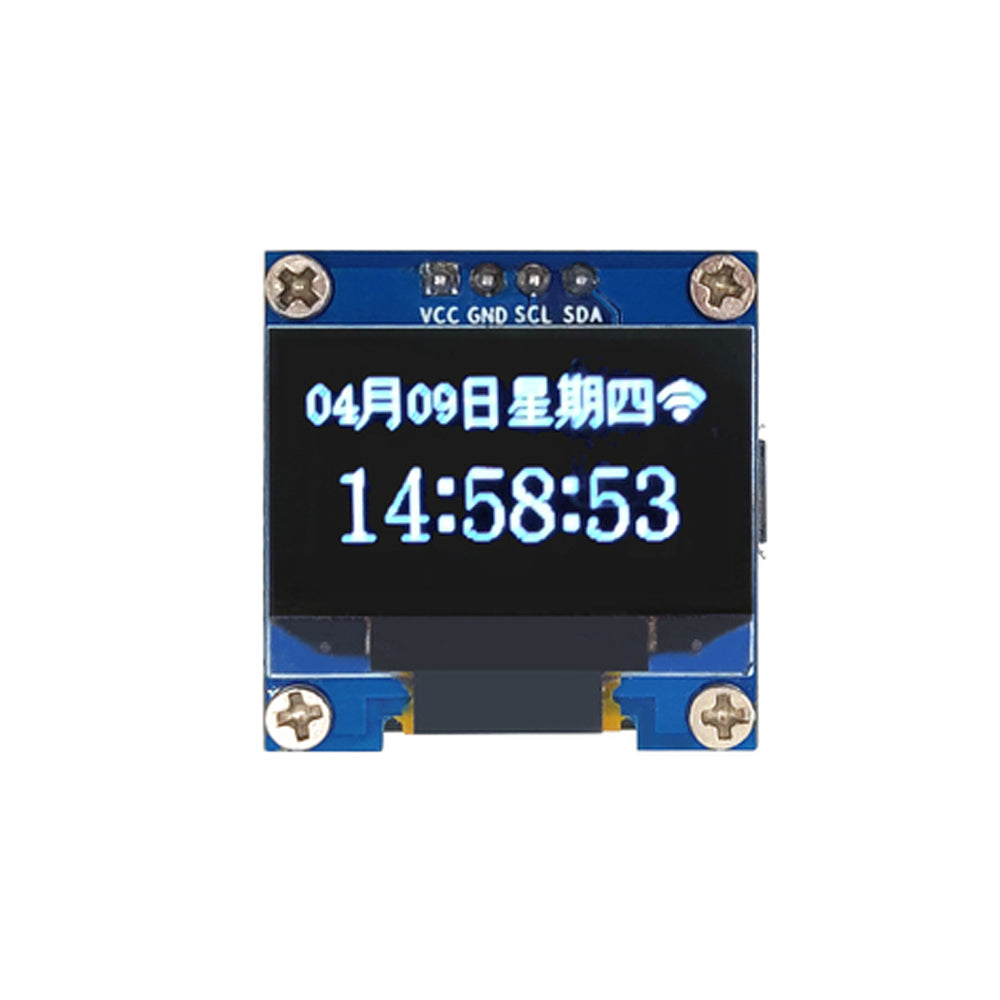

- ① 0.96 inch OLED display: the driver IC is SSD1306;
- ② ESP12FWF module: FLASH capacity is 4 MBYTE;
- ③ MICRO USB5V power supply interface;
- ④ PCF8563T clock chip;
- ⑤ CR1220 button battery; supply power to clock circuit after power off
- ⑤ UART program download interface: IO0 and GND are shorted when downloading, 3V3, TXD, RXD, GND are respectively
- Connect to 3V3, RXD, TXD, GND of external TTL serial port module (such as FT232 module), download
