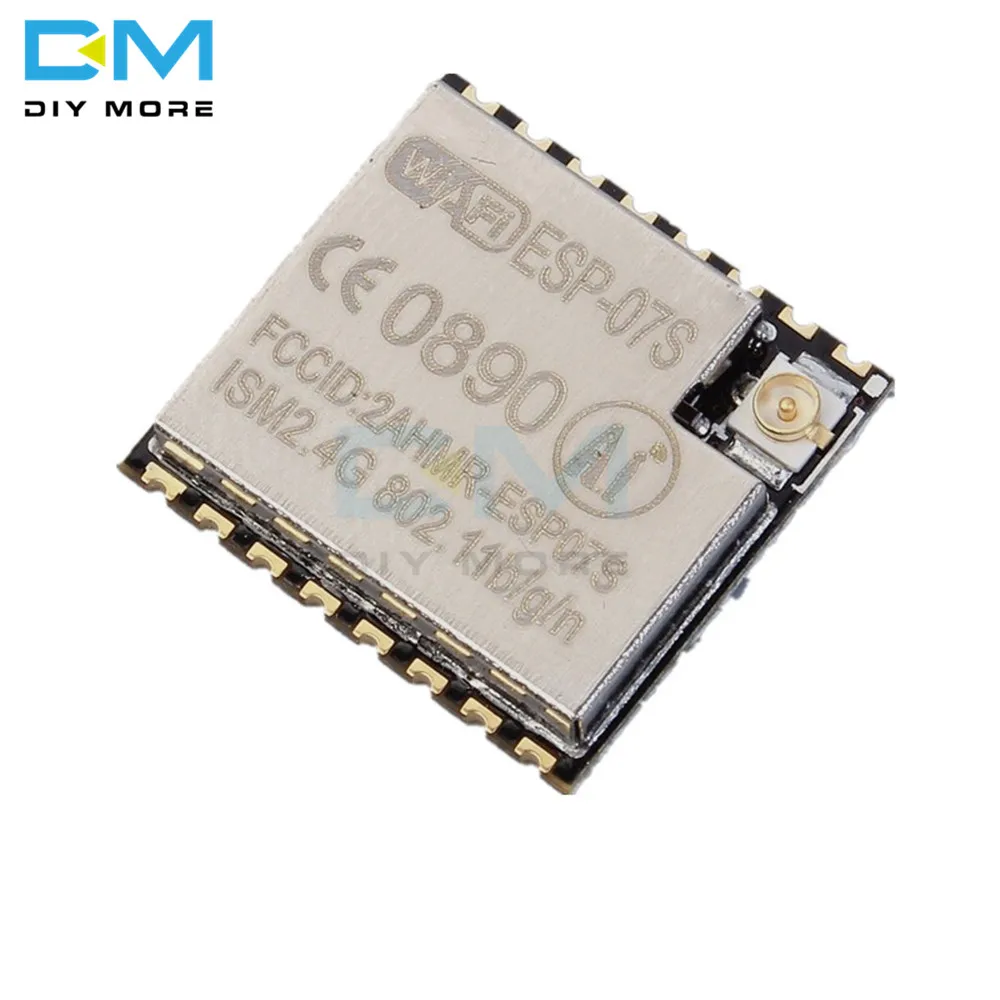

ESP8266 ESP-07 ESP-07S Updated version Serial WIFI Wireless Modules Industrial Transmission WPA2 WPA

Esp8266 Esp-07 Esp-07S Updated Version Serial Wifi Wireless Modules Industrial Transmission Wpa2 Wpa

ESP8266 ESP-07 ESP-07S Updated version Serial WIFI Wireless Modules Industrial Transmission WPA2 WPA

SKU:011818
Regular price $4.99













Main Parameter:

1.Wireless Standard:802.11 b/g/n
2.Frequency Range:2.4GHz-2.5GHz (2400M-2483.5M)
3.Data Interface:UART/HSPI/I2C/I2S/Ir Remote Contorl
4.Operating Voltage:GPIO/PWM 3.0-3.6V
5.Operating Current:80mA (average)
6.Operating Temperature:-40°~125°
7.Storage Temperature:normal temperature
8.External Interface:N/A
9.Wireless Network Mode:station/softAP/SoftAP+station
10.Security Mechanism:WPA/WPA2
11.Encryption Type:WEP/TKIP/AES
12.Upgrade Firmware:local serial port download/cloud upgrade/mainframe download
13.Software Development:support custome server,provide SDK for customer secondary development
14.Network Protocol:IPv4,TCP/UDP/HTTP/FTP
15.User Configuration:AT instruction set,cloud server,adroid/iOS APP
16.Size:17*16*3mm


Features:

1.Support 802.11 b/g/n standard
2.Built-in Tensilica L106 low power consumption 32 bit MCU,primary frequency supports 80 MHz and 160 MHz,support RTOS
3.Built-in 10 bit high-precision ADC
4.Built-in TCP/IP protocol stack
5.Built-in TR switch,balun,LNA,power amplifier and matching network
6.Built-in PLL,AVR and power management component,802.11b mode +20dBm output power
7.A-MPDU,A-MSDU polymerization and 0.4s guard interval
8.WiFi 2.4 GHz,support WPA/WPA2 security mode
9.Support AT remote upgrade and cloud OTA upgrade
10.Support STA/AP/STA+AP operating mode
11.Support Smart Config function (include Android and iOS device)
12.HSPI,UART,I2C,I2S,IR Remote Control,PWM,GPIO
13.Deep sleep holding current is 10uA,power off current is less than 5uA
14.Within 2ms awakening,connect and transfer data package
15.Standby state power consumption is less than 1.0 mW (DTIM3)
16.Operating Temperature Range:-40°~125°


Pin Definition:

1.RST:reset module
2.ADC:A/D conversion result,input voltage range is 0-1V;value range:0?1024
3.CH_PD:high level operate;low level module power off
4.GPIO16:connect with RST pin can achieve deep sleep awakenning
5.GPIO14:HSPI_CLK
6.GPIO12:HSPI_MISO
7.GPIO13:HSPI_MOSI; UART0_CTS
8.VCC:3.3V power supply
9.GND:GND
10.GPIO15:MTDO;HSPICS;UART0_RTS
11.GPIO2:UART1_TXD
12.GPIO0:GPIO0
13.GPIO4:GPIO4
14.GPIO5:GPIO5
15.RXD0:UART0_RXD;GPIO3
16.TXD0:UART0_TXD;GPIO1


Package Included:

  1 x ESP8266 ESP-07 ESP-07S Updated version Serial WIFI Wireless Modules
