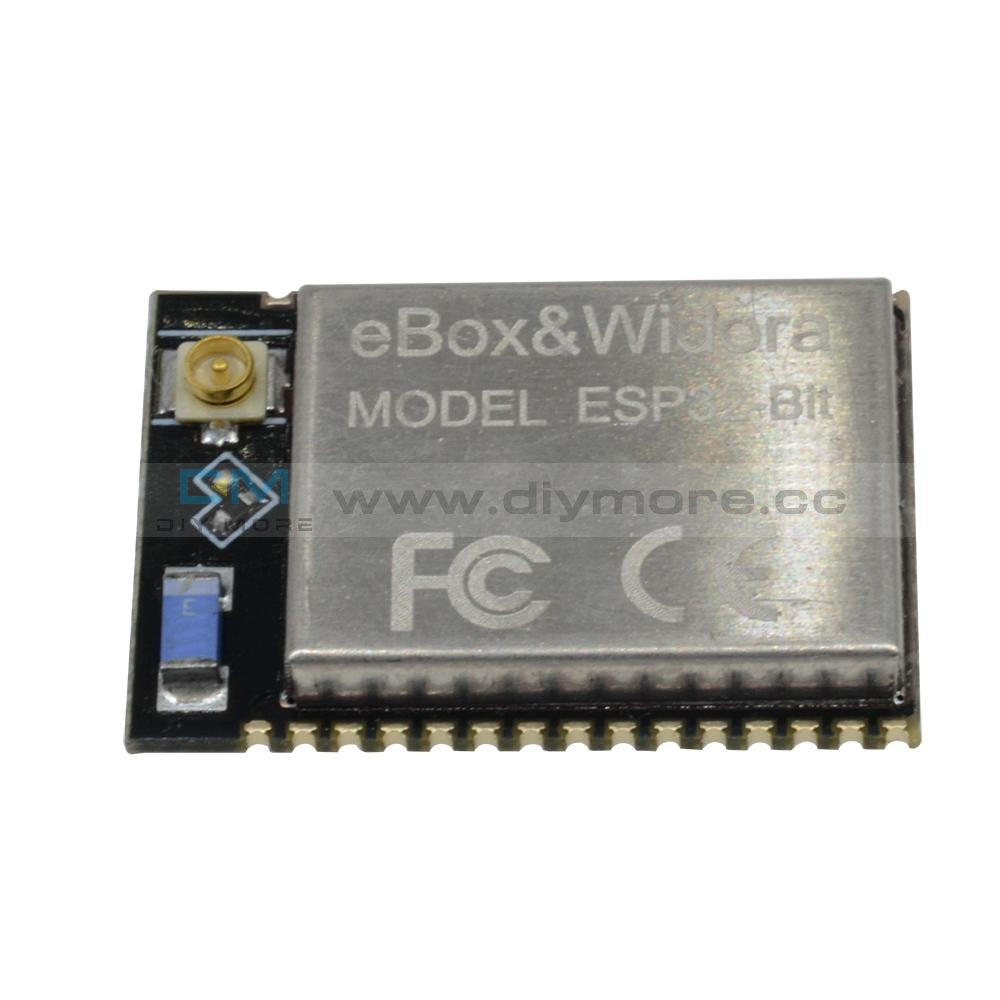

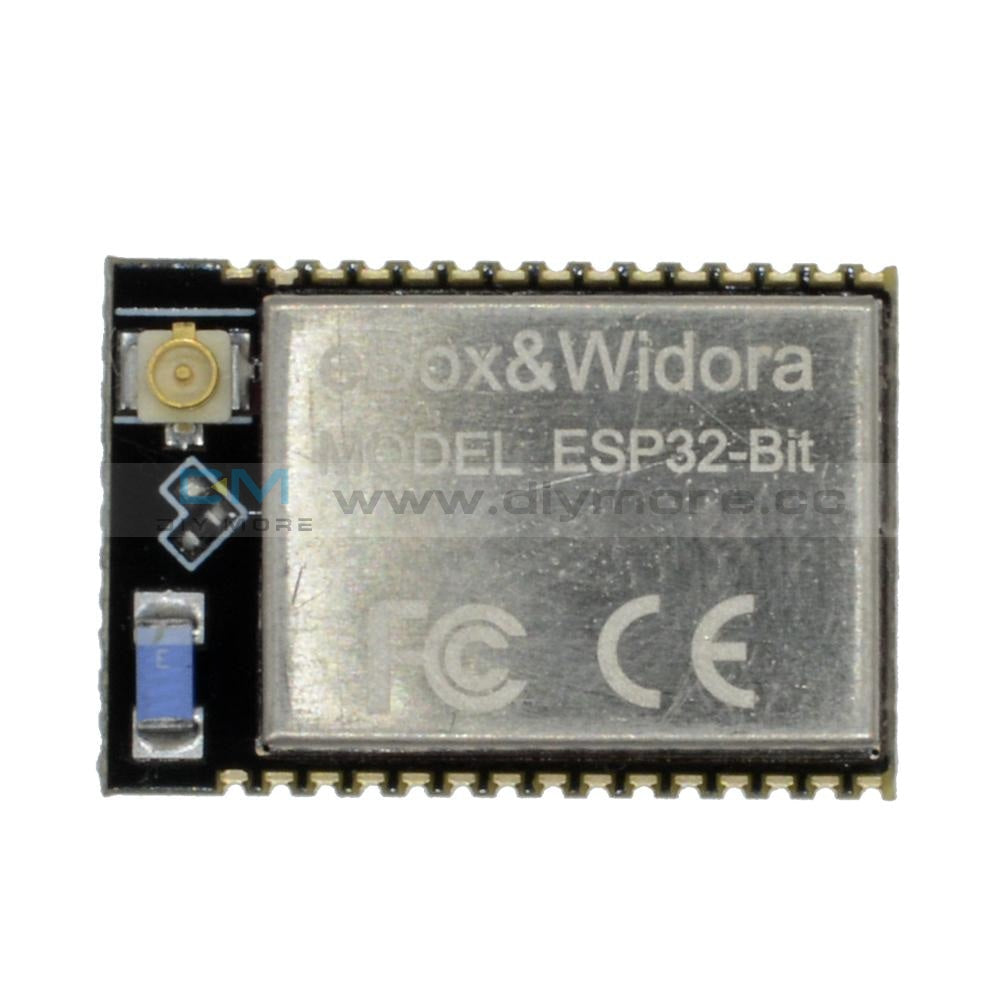

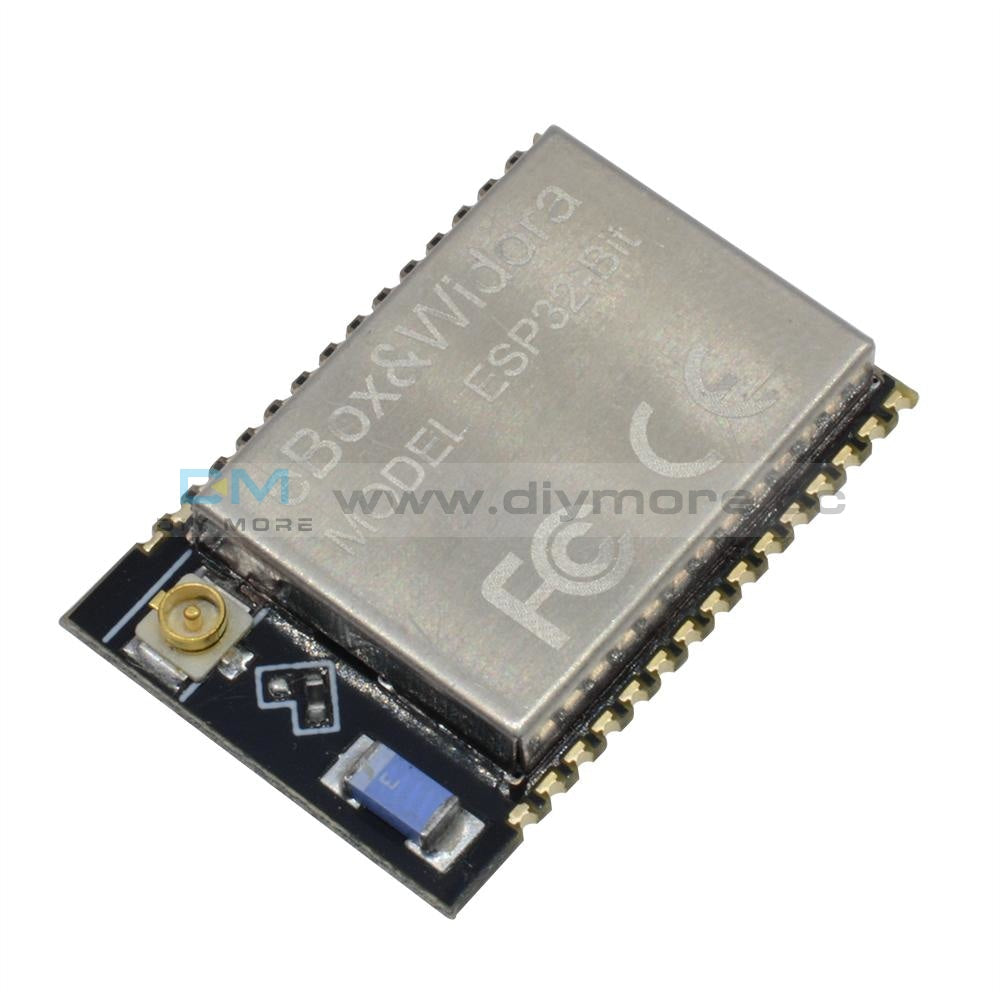

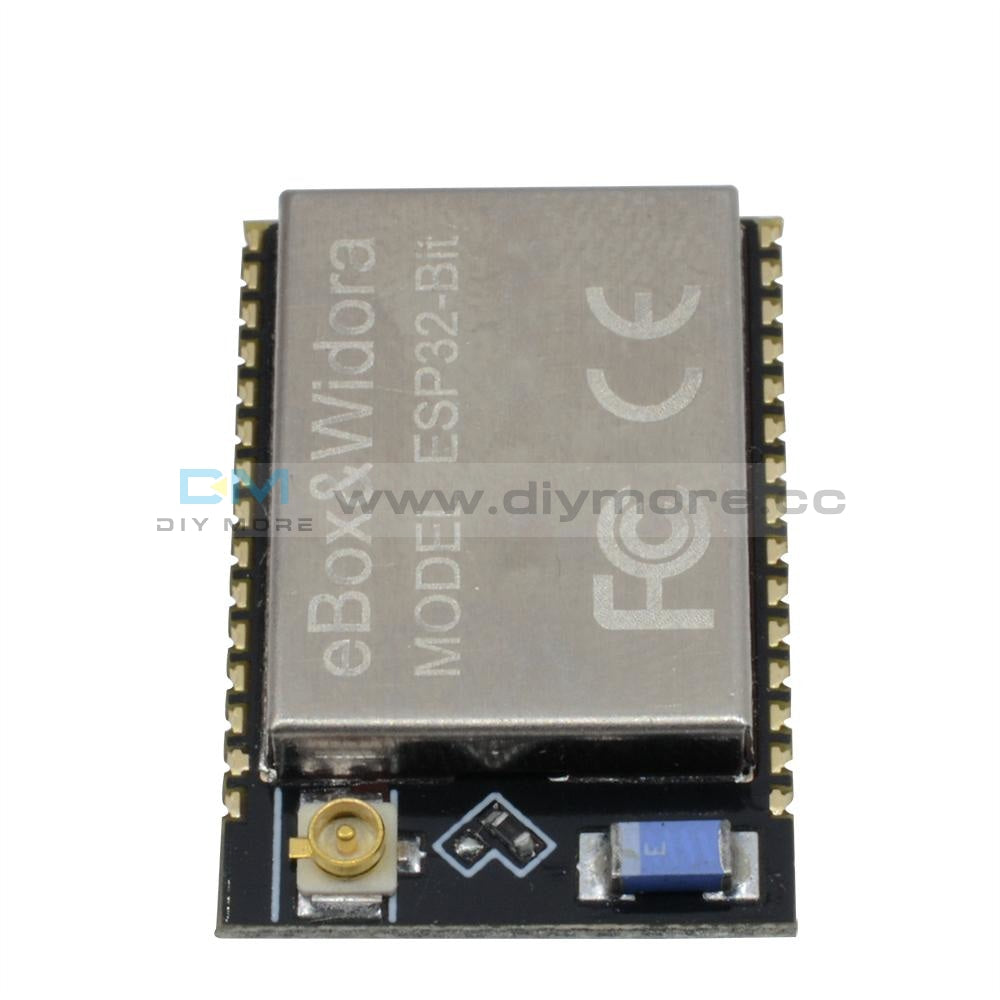

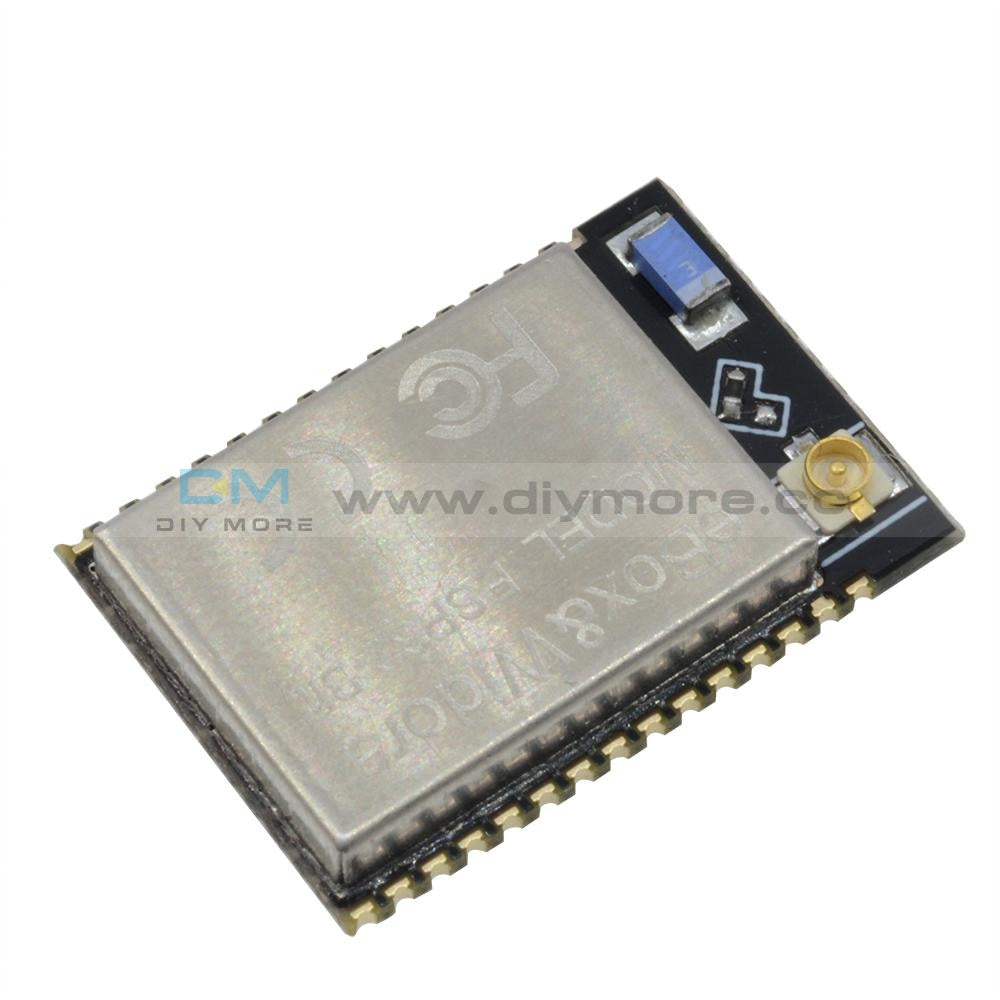

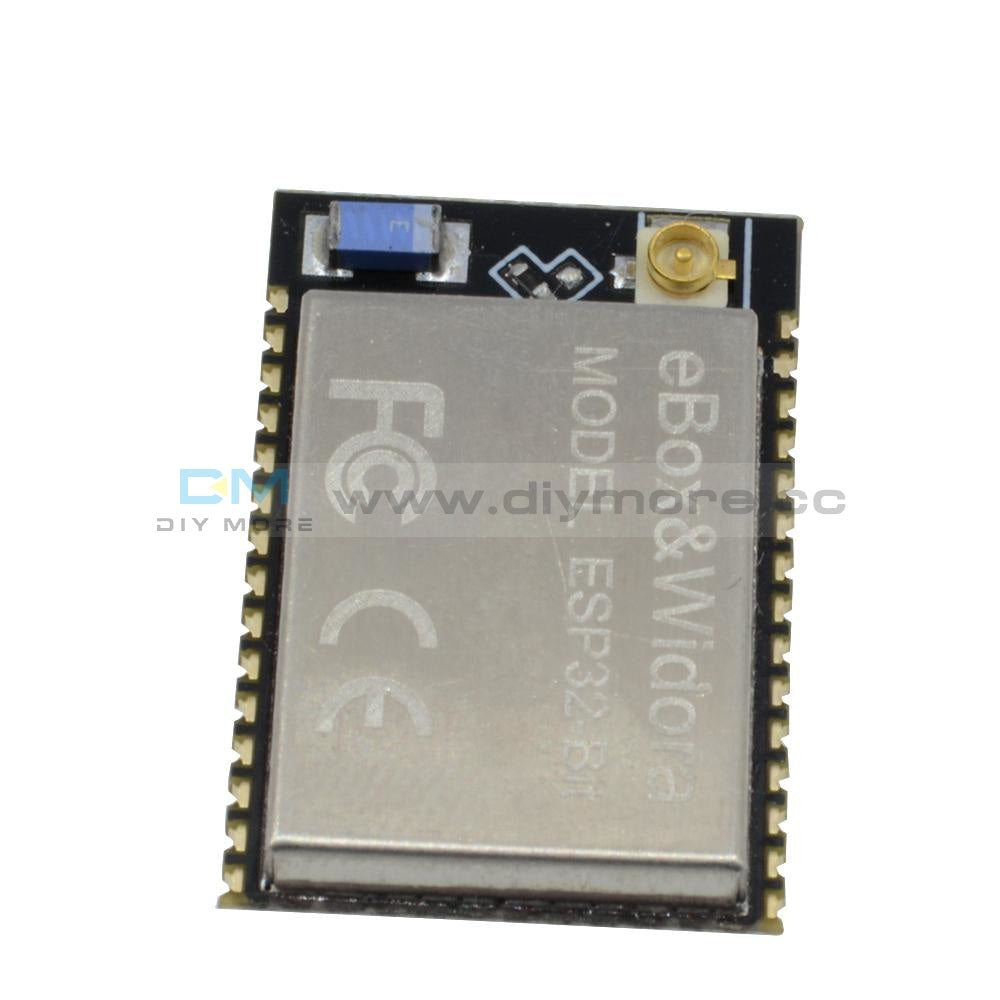

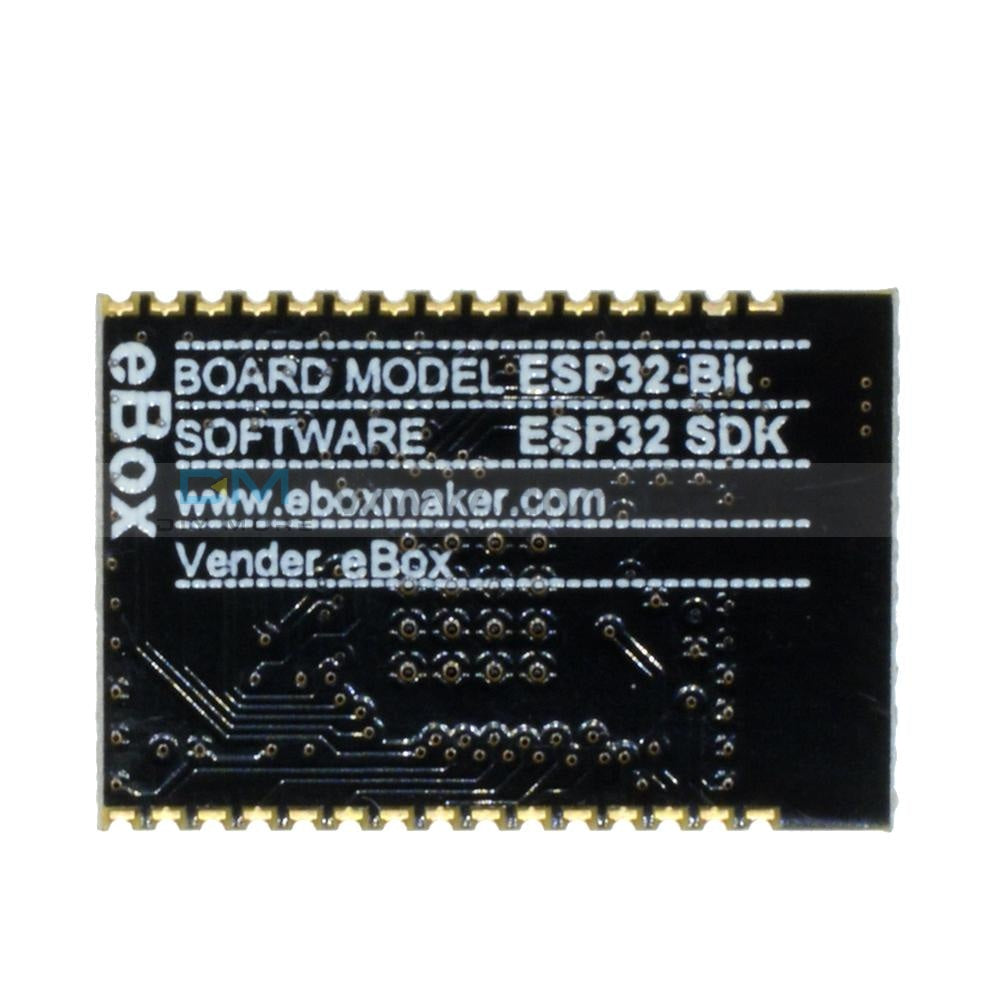

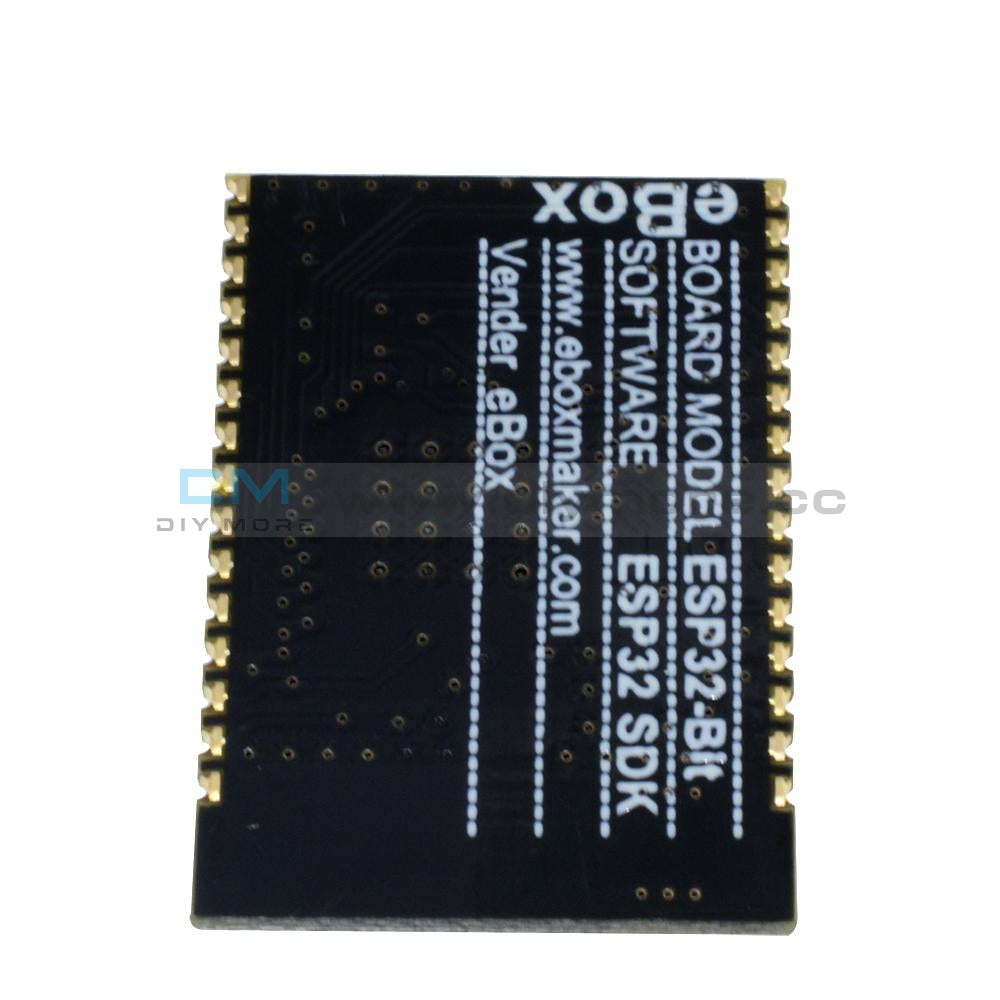

ESP8266 ESP32 Module ESP3212 ESP32-Bit Bluetooth 4.2 Wifi Support Linux Window

ESP8266 ESP32 Module ESP3212 ESP32-Bit Bluetooth 4.2 Wifi Support Linux Window

SKU:040203
Regular price $12.00 Sale price $6.99

shipped within one bussiness day

ESP8266 ESP32-Bit ESP32 ESP32S Module ESP-32
Dual-core processor, clocked at 240MHz, computing power of up to 600DMIPS. Built-in 520 KB SRAM.
Built-in 802.11BGNHT40Wi-F transceiver, baseband, protocol stack and LWIP
Integrated dual-mode Bluetooth (traditional Bluetooth and low-power Bluetooth), it is important that Bluetooth and WiFi can coexist

It has many external interface
3 x UARTs, including hardware flow control
3 x SPI
2 x I2S
12 x ADC input channels
2 x DAC
2 x I2C
PWM/timer input/output availabe on every GPIO pin
OpenOCD debug interface with 32 kB TRAX buffer
SDIO master/slave 50 MHz
Supports external SPI flash up to 16 MB
SD-card interface support

Key Feature:
Support Linux, Windows, Mac multi-platform development
Size is very small, 21.5 * 15mm
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna / IPEX connector for external antenna

Sensor
Ultra-low noise analog amplifier
Hall sensor
10x capacitive touch interface
32 kHz crystal oscillator

Security Related
WEP, WPA/WPA2 PSK/Enterprise
Hardware accelerated encryption: AES / SHA2 / Elliptical Curve Cryptography / RSA-4096

Performance
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 μA deep sleep current


Package Included:

1 X   ESP8266 ESP32 Module ESP3212 ESP32-Bit Bluetooth 4.2 Wifi Support Linux Window

trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155

ESP8266 ESP32-Bit ESP32 ESP32S Module ESP-32
Dual-core processor, clocked at 240MHz, computing power of up to 600DMIPS. Built-in 520 KB SRAM.
Built-in 802.11BGNHT40Wi-F transceiver, baseband, protocol stack and LWIP
Integrated dual-mode Bluetooth (traditional Bluetooth and low-power Bluetooth), it is important that Bluetooth and WiFi can coexist

It has many external interface
3 x UARTs, including hardware flow control
3 x SPI
2 x I2S
12 x ADC input channels
2 x DAC
2 x I2C
PWM/timer input/output availabe on every GPIO pin
OpenOCD debug interface with 32 kB TRAX buffer
SDIO master/slave 50 MHz
Supports external SPI flash up to 16 MB
SD-card interface support

Key Feature:
Support Linux, Windows, Mac multi-platform development
Size is very small, 21.5 * 15mm
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna / IPEX connector for external antenna

Sensor
Ultra-low noise analog amplifier
Hall sensor
10x capacitive touch interface
32 kHz crystal oscillator

Security Related
WEP, WPA/WPA2 PSK/Enterprise
Hardware accelerated encryption: AES / SHA2 / Elliptical Curve Cryptography / RSA-4096

Performance
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 μA deep sleep current


Package Included:

1 X   ESP8266 ESP32 Module ESP3212 ESP32-Bit Bluetooth 4.2 Wifi Support Linux Window
