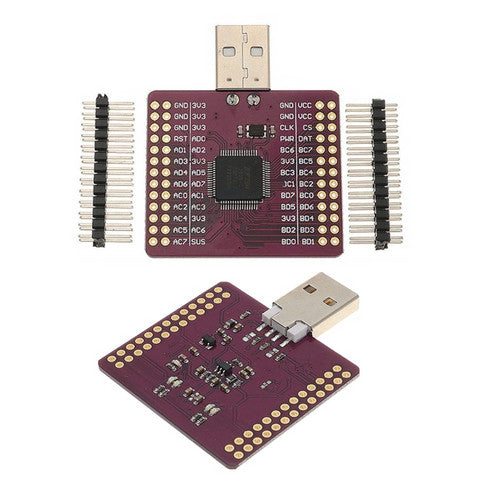

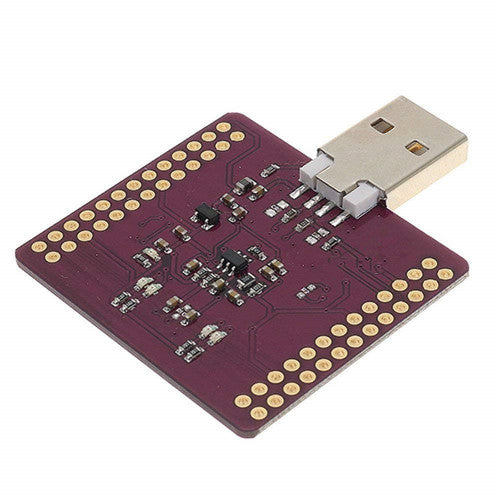

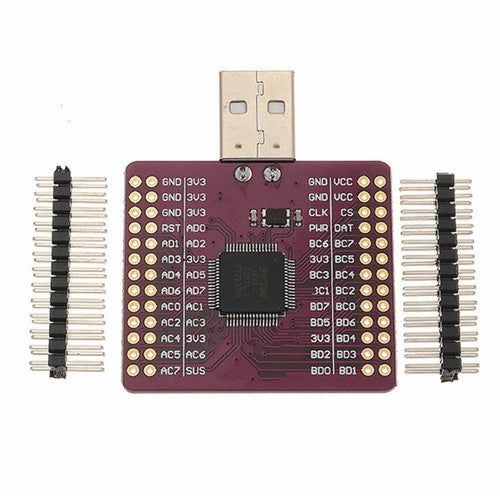

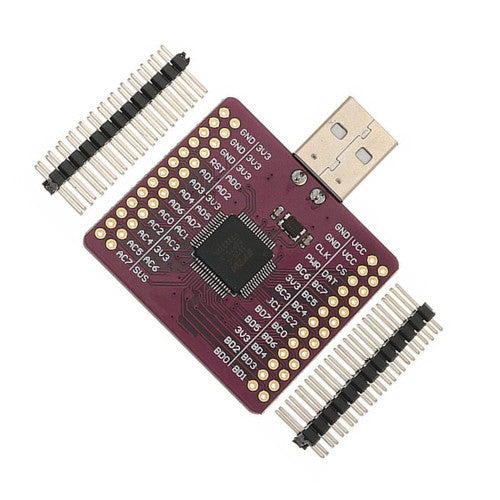

FT2232 HL USB to UART FIFO SPI I2C JTAG RS232/ RS422/ RS485 Module

FT2232 HL USB to UART FIFO SPI I2C JTAG RS232/ RS422/ RS485 Module

SKU:X13182
Regular price $12.99

Features:
  • Module size: 42mm * 37mm
  • Typical Applications:
  • Single chip USB to dual channel UART (RS232, RS422 or RS485). Single chip USB to dual channel FIFO. Single chip USB to dual channel JTAG.
  • Single chip USB to dual channel SPI. Single chip USB to dual channel I2C.
  • Single chip USB to dual channel Bit-Bang. Single chip USB to dual combination of any of above interfaces. Single chip USB to Fast Serial Optic Interface. Single chip USB to CPU target interface (as memory), double and independent.
  • This allows the user to communicate with the USB interface via a standard PC serial emulation port (for example TTY).
  • Another FTDI USB driver, the D2XX driver, can also be used with application software to directly access the FT2232H through a DLL.
  • color:purple
  • Material:Metal
Package Contents:
  • 1x module
Note:
  • Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
