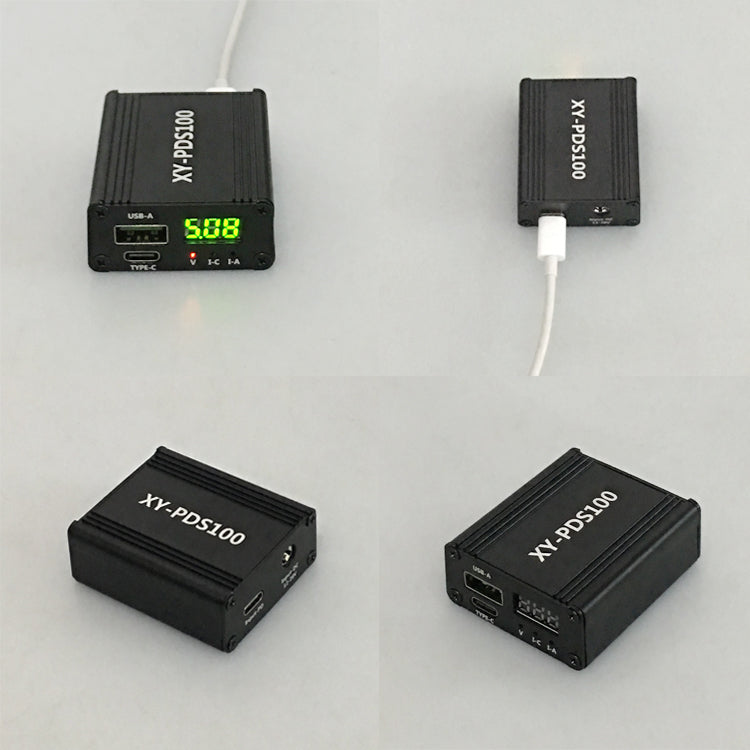

Full Protocol Mobile Phone Fast Charge Charger Module QC4.0pd3.0 Flash Charge
Full Protocol Mobile Phone Fast Charge Charger Module QC4.0pd3.0 Flash Charge
SKU:XJ0028
Regular price
$15.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Reference description:
- High compatibility: support the following fast charging protocols
- PD2.0PD3.0PPS
- Qualcomm QC4+/QC3.0
- Huawei SCP/FCP
- OPPOVOOC
- OnePlus DASH
- Apple2.4A
- Samsung AFC
- VIVO9V2A dual engine
- MediaTek PE2.0
- The maximum withstand voltage of this product is 32V, and it is recommended to use it within 28V! This module is a pure step-down module and has no boost function. If you want to use 20V output, you must use a DC power supply above 21V;

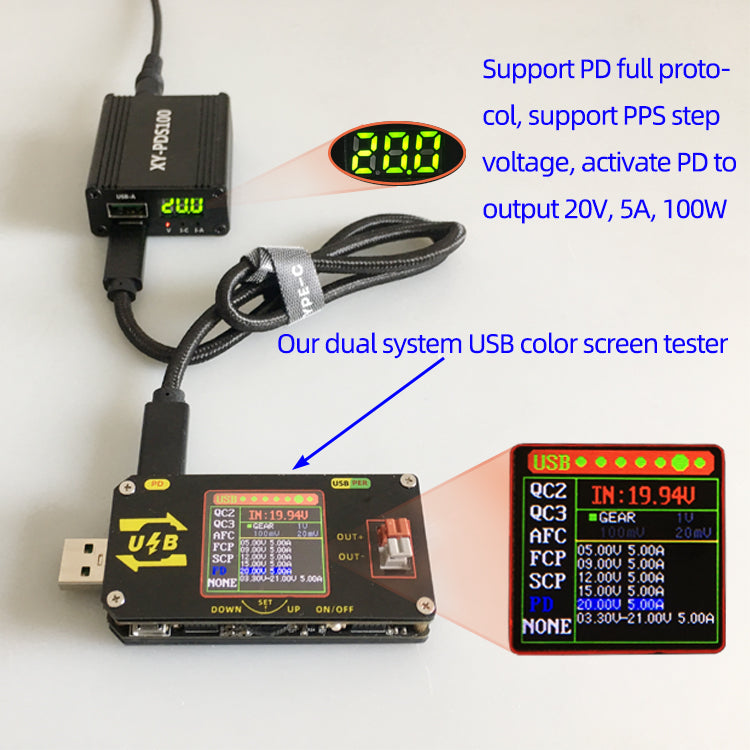

- The low voltage of the product can reach 6V, but most fast charging will not be activated at 6V; the output power of 100W can only be reached when the PD is output (PD20V, 5A)
- For low-voltage and high-current fast charging, please use the original data cable. If you want to measure the charging voltage and current, you must use a low-resistance USB meter! Otherwise it will affect the charging current!
- USB port is required to charge OPPO and OnePlus phones!
- QC4+/QC4.0/PD3.0 and other protocols must use TYPE_C port!
- When the USB port and TYPE_C port are plugged into the phone at the same time, both ports are 5V output!
- Five, multi-brand mobile phone charging test
- Charging Huawei Mate20 (56% battery): Turn on SCP fast charging mode
- Voltage 4.89V, current 4.59A
- Charging Huawei P20Pro (12% battery): Turn on SCP fast charging mode
- Voltage 5.03V, current 4.25A
- Charge Honor V20 (43% battery): Turn on SCP fast charge mode
- Voltage 5.13V, current 4.5A
- Charge Xiaomi Mi 8 (18% power): turn on QC3.0 fast charge mode
- Voltage 6.44V, current 2.79A
- Charge OPPOR17 (43% power): turn on VOOC flash charge mode
- Voltage 4.8V, current 3.8A
- Charge iPhoneXS (5% battery): turn on APPLE2.4A mode
- Voltage 5.22V, current 2.37A
- Charge OnePlus 6T (15% power): Turn on DASH flash charging mode
- Voltage 4.7V, current 3.8A
- Charge iPhoneXR (7% battery): turn on PD
- Voltage 9.17V, current 1.91A
- Charge iPhoneX (7% battery): turn on PD
- Voltage 9.17V, current 1.6A
- Charge Huawei Mate20Pro (55% battery): turn on PD
- Voltage 9.20V, current 1.58A
- Charge Huawei P20Pro (10% power): turn on PD
- Voltage 9.17V, current 1.69A
- Charge Honor V20 (40% power): Turn on PD
- Voltage 9.05V, current 1.7A
- Charge Mi 8 (with 6% power): turn on fast charge
- Voltage 6.1V, current 2.63A
