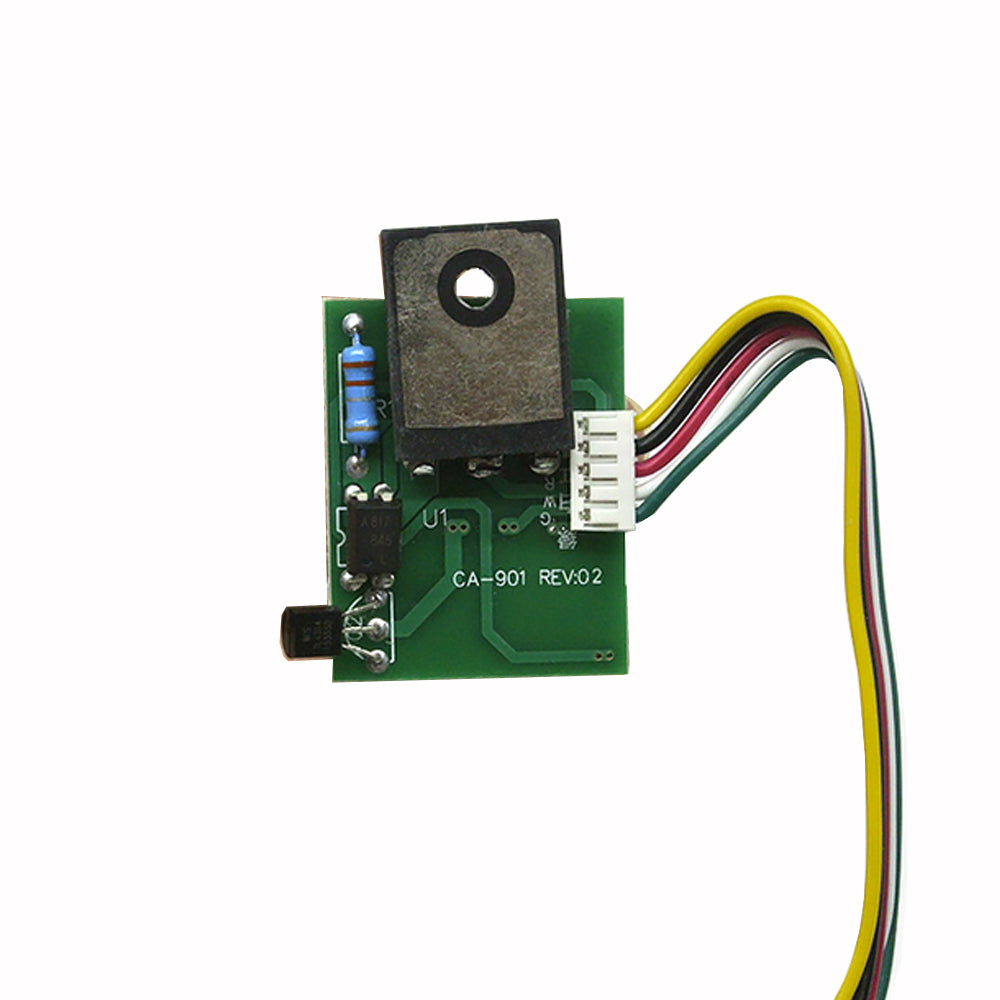

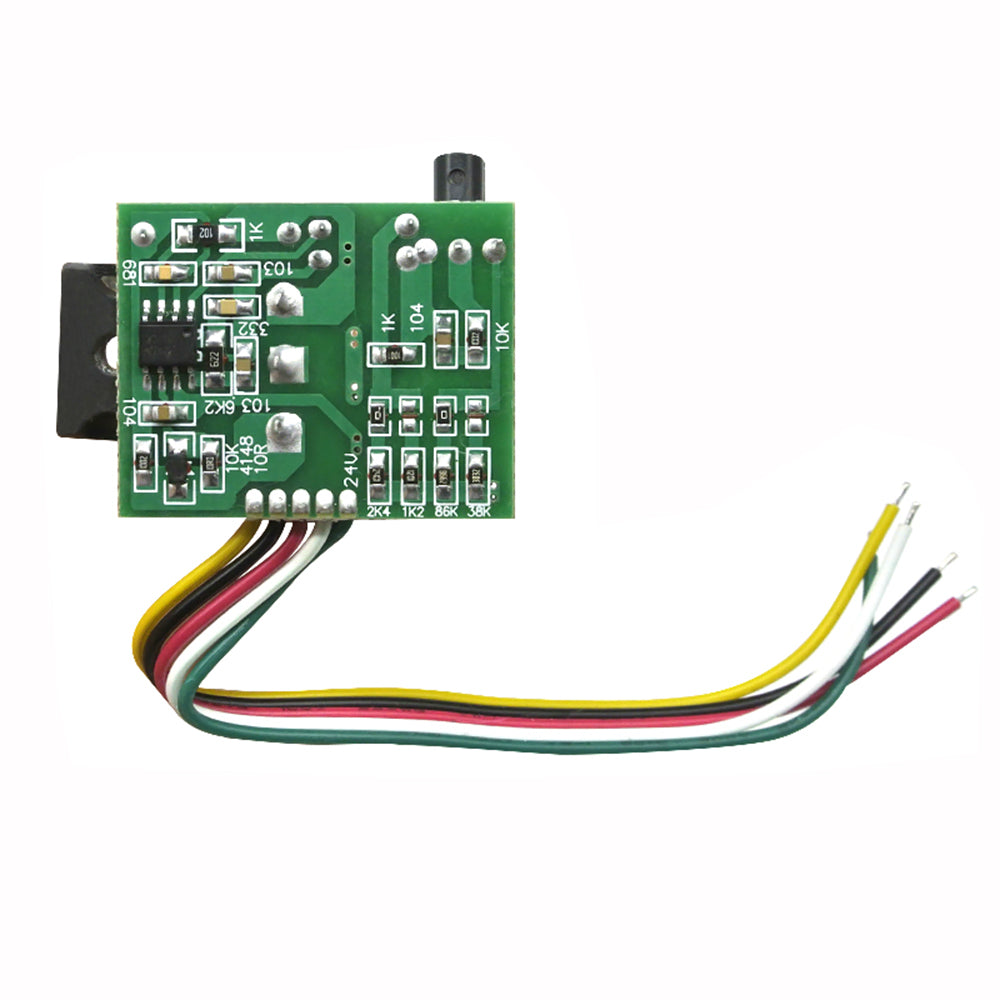

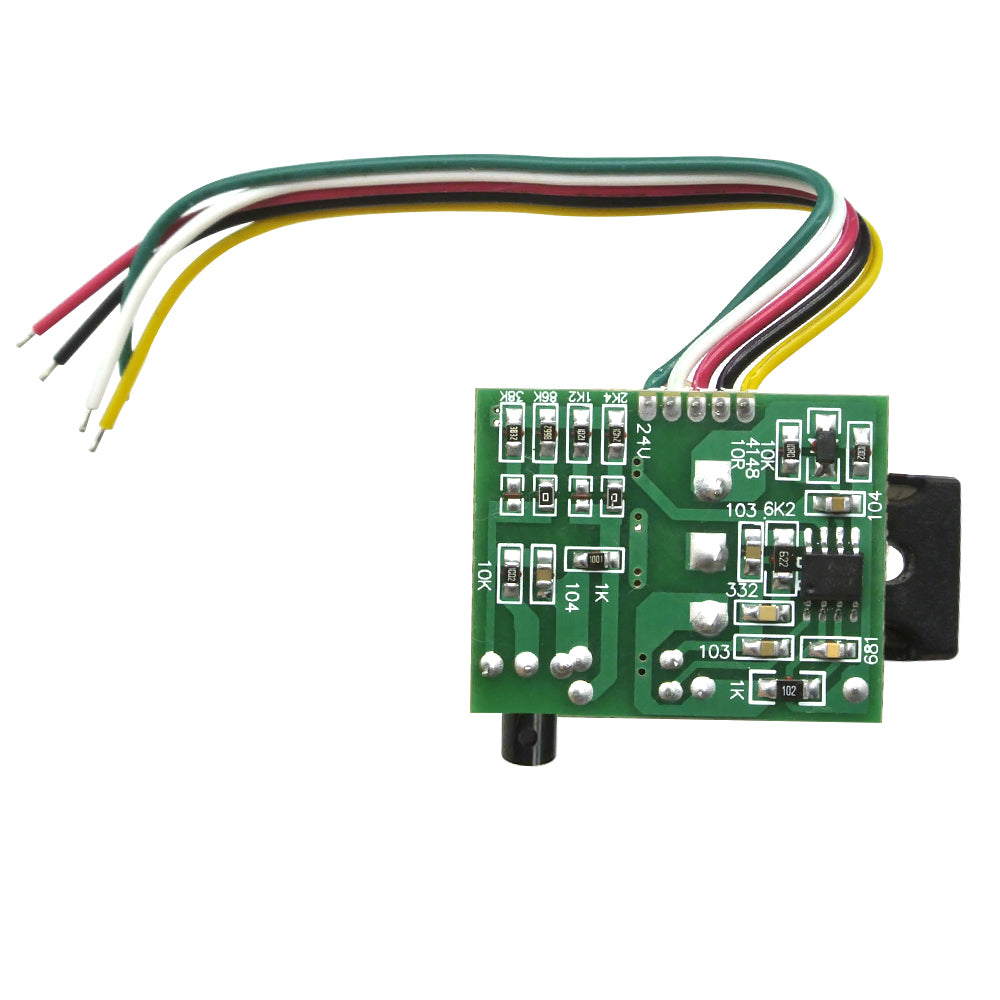

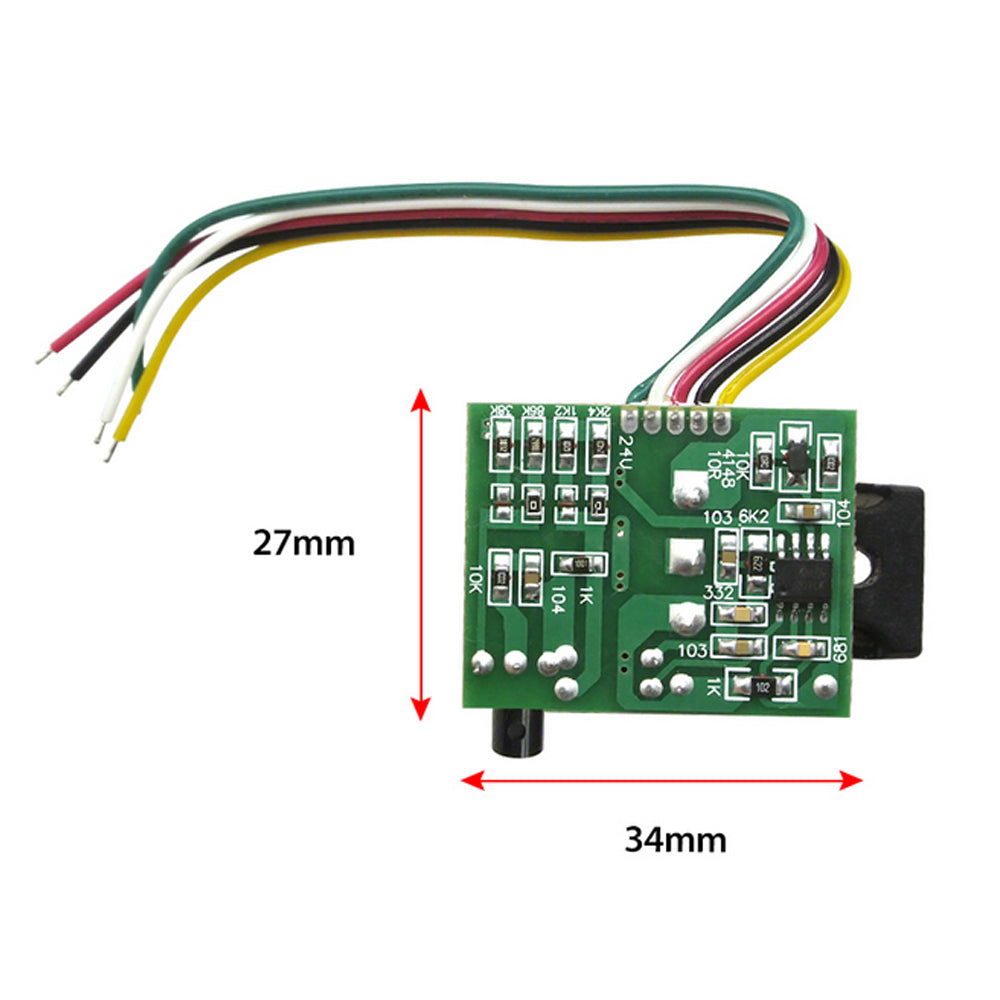

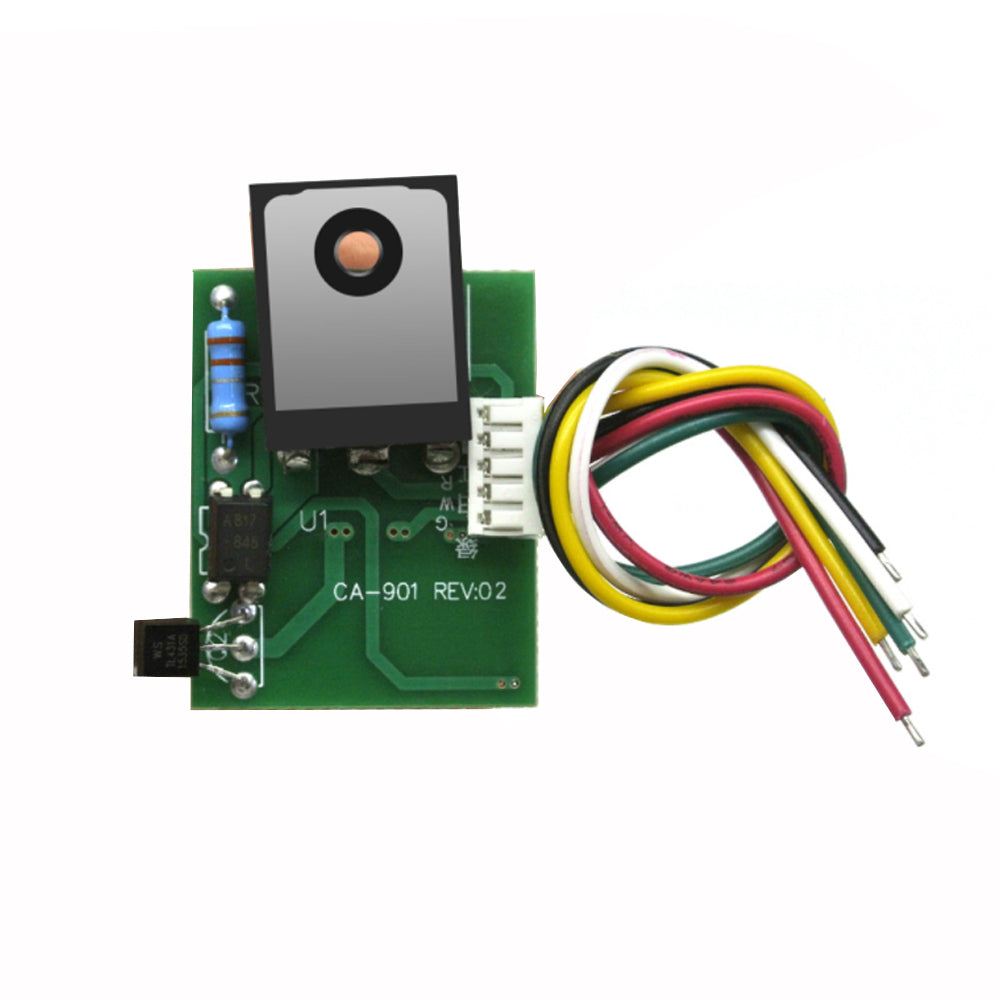

General LCD TV Switching Power Supply Module Below 46 Inches Stable And Easy To Install CA-901
General LCD TV Switching Power Supply Module Below 46 Inches Stable And Easy To Install CA-901
SKU:XJ0046
Regular price
$5.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Reference description:
- Universal LCD TV switch module below 46 inches
- Input: 12V 24V selective output
- High performance, low power consumption, small size and easy installation
- Red line = input
- Black wire = ground wire
- Yellow line = switch/brightness adjustment
- Remove the original power switch tube or thick module, and fix the module firmly on the original heat sink. 2: Check whether the anti-peak absorption circuit is normal and whether the secondary loads of the transformer are short-circuited.
- Connect the red wire of this module to the C pole solder joint of the original power switch tube (the field effect tube is the D pole, and the thick mold is the C pole of the inner power tube). 4: Connect the black wire to the hot zone (the negative pole of the large power supply filter capacitor).
- The yellow wire is connected to the anode of the main power supply (12V or 24V) filter capacitor (main power supply) at the negative pole of the transformer secondary rectifier diode
