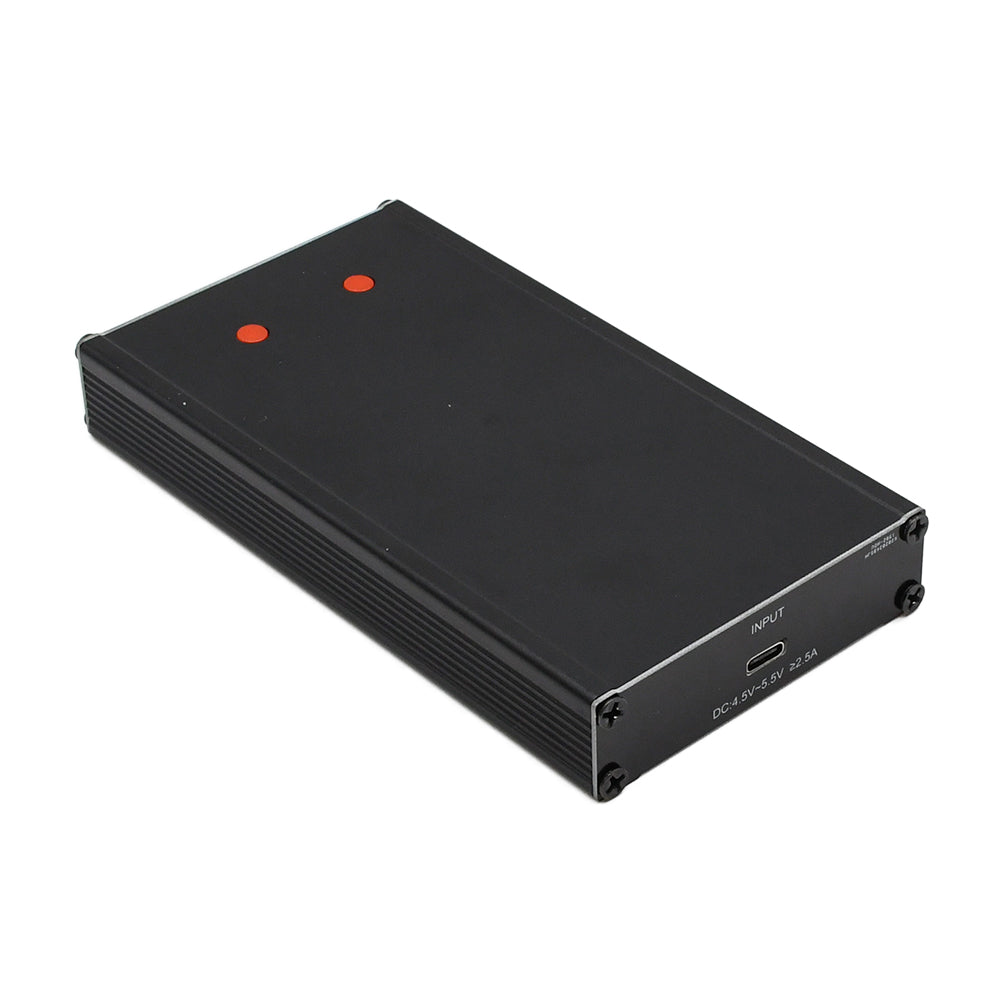

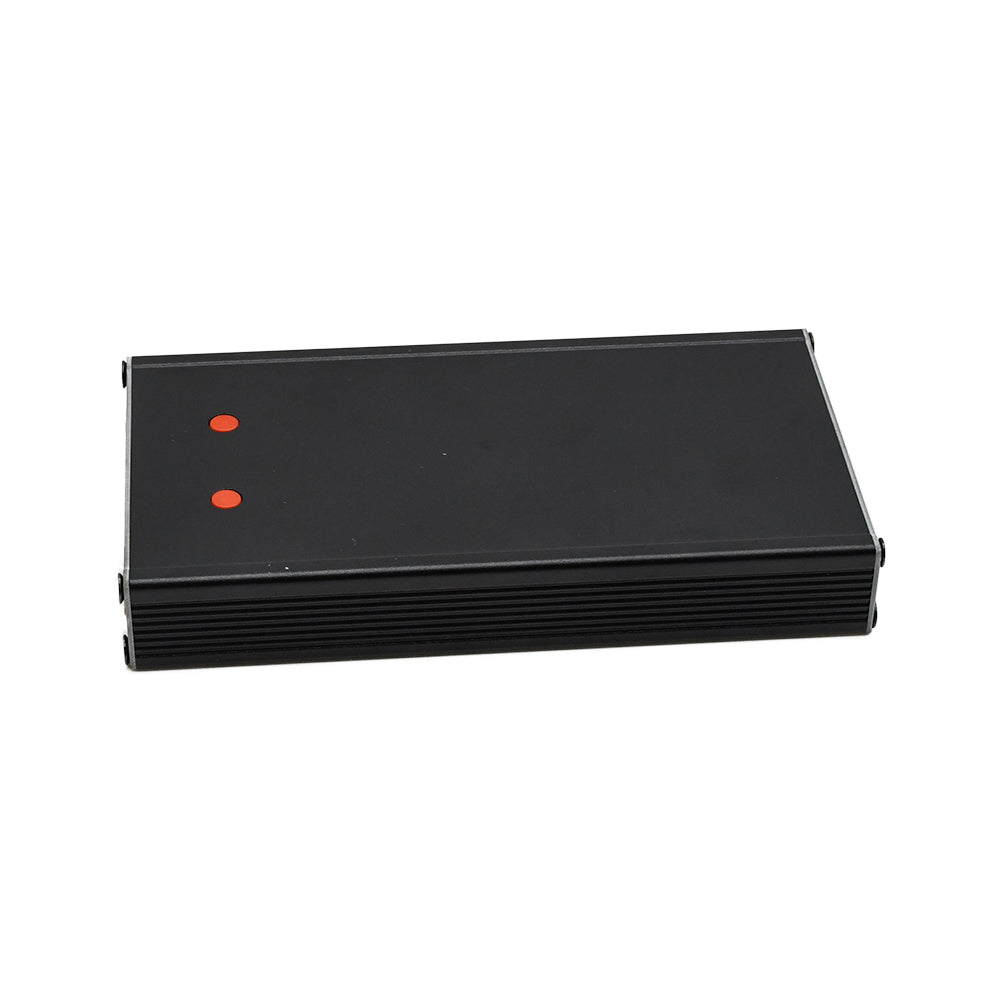

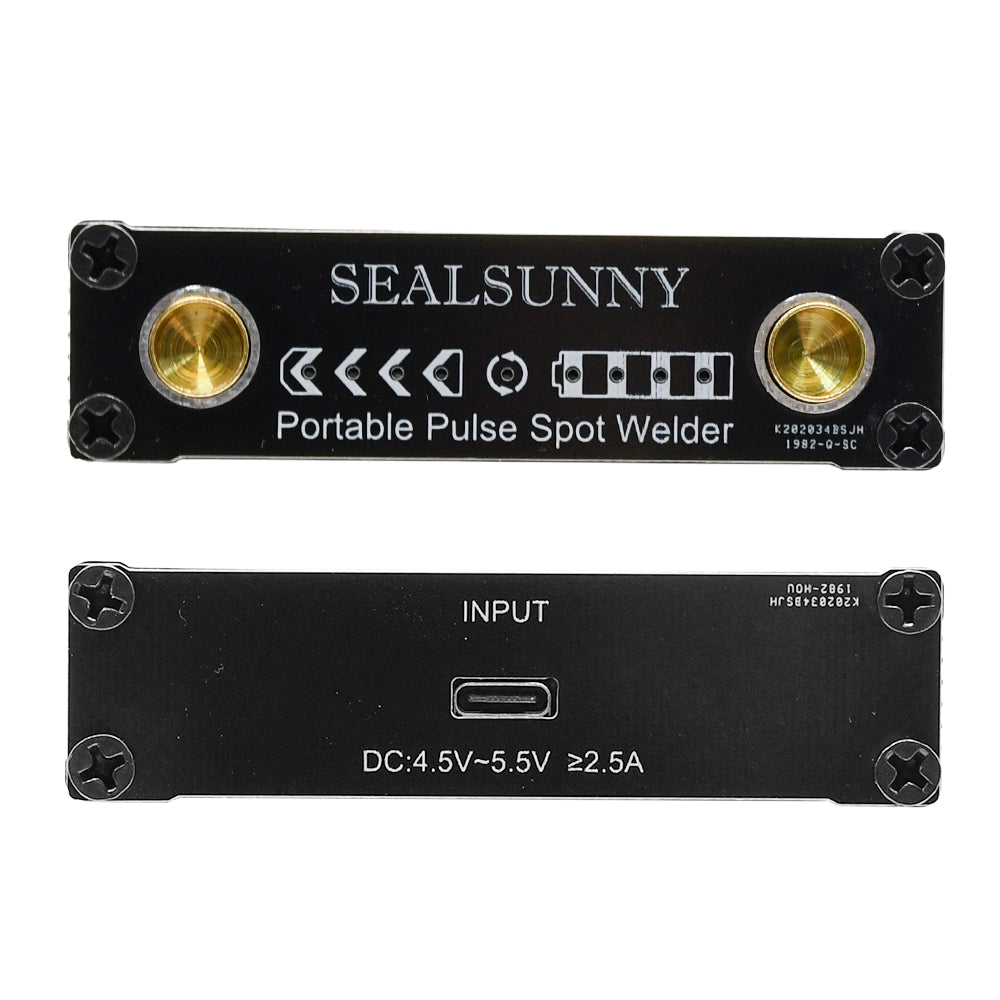

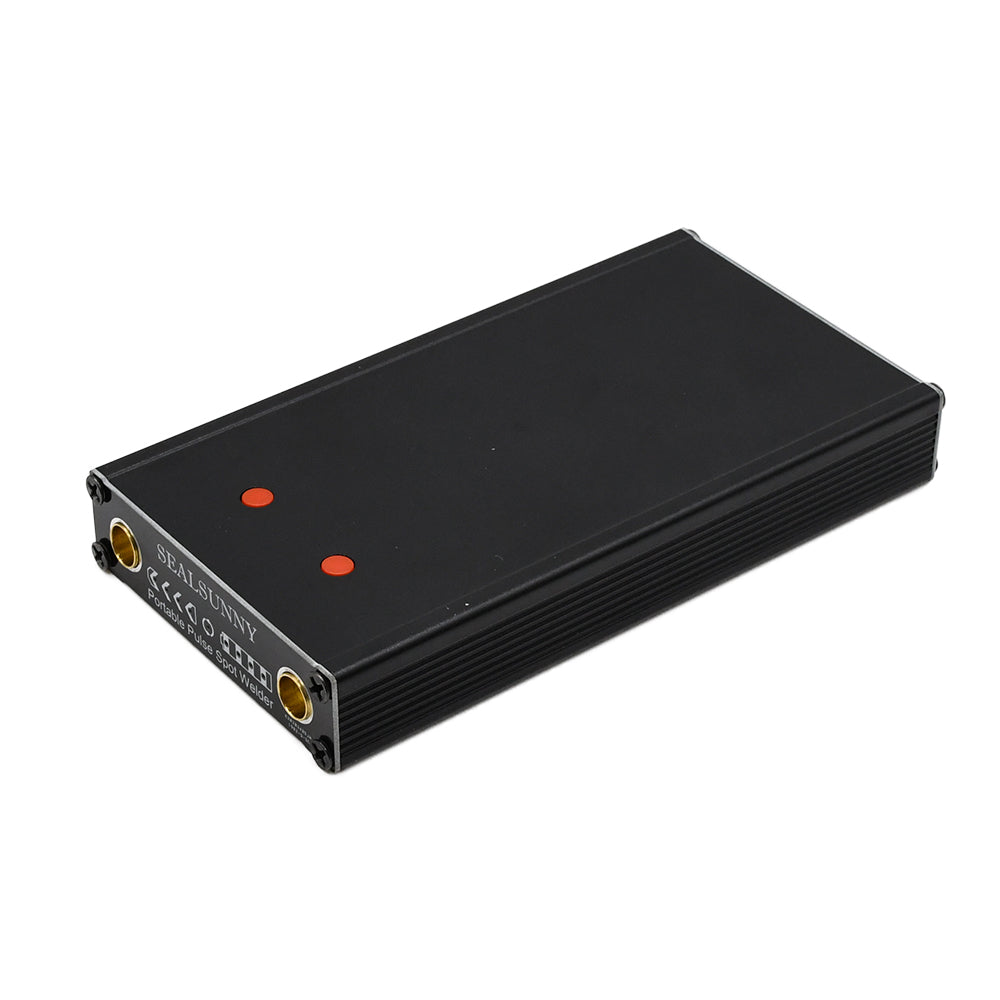

Hand-held Desktop DIY Battery Portable Mini Spot Welder Welding Machine
Hand-held Desktop DIY Battery Portable Mini Spot Welder Welding Machine
SKU:YC0024
Regular price
$48.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Introduction
Components introduction
- This product is suitable for daily or small spot welding/butt welding work in the family. It is automatically triggered without a switch, and the operation is convenient and quick.
- Battery capacity: 5AH
- Output voltage: 4.2V max
- Output current: maximum 500A
- Design current: maximum 1000A
- Input parameters: 5V/2.1A
- Support welding: 0.1-0.2 nickel sheet, iron sheet, stainless steel
- Welding time: several milliseconds
- Charging voltage: 4.5~5.5V (current≥2.5A)
- Product size: 150*80*22MM
- Shell material: hard aluminum alloy
- Weight: a set of 467g
- Small size
- Simple operation
- Hard appearance
- Easy to use
Components introduction
How to use
| Power on | Click button 6 |
| Shut down |
Double-click the button6；
Automatically shut down after three minutes of standby
|
| Gear position adjustment | Button 7 is gear position adjustment, click to change gears, the cycle is first gear>second gear>third gear>fourth gear>standby |
| Standby |
After the fourth gear, click to enter the standby state;
It enters the standby state without spot welding for more than 30 minutes.
|
| Spot welding | After turning on the machine, select the required gear and touch the welding object with the welding pen to spot welding. |
| Precautions for spot welding | a. Please fix the spot welding items in the spot welding mode; b. Please keep the welding objects in a flat state; 3. Keep cooling time about 10S after welding |
Matters needing attention
- It can be operated while charging, and it will enter standby mode when charging
- It is recommended to charge it once half a year when it is not used for a long time, and the charge is 75%
- Continuous use of the soldering pen will cause hotness, it is recommended to wear gloves to operate
- Do not drop, flood, heat and other harmful operations to electronics
- The blackening of the tip of the soldering pen will affect the effect, which can be worn off with sandpaper
- If the spot welding is too long or the shutdown is caused by good contact, just restart it
Package Included:

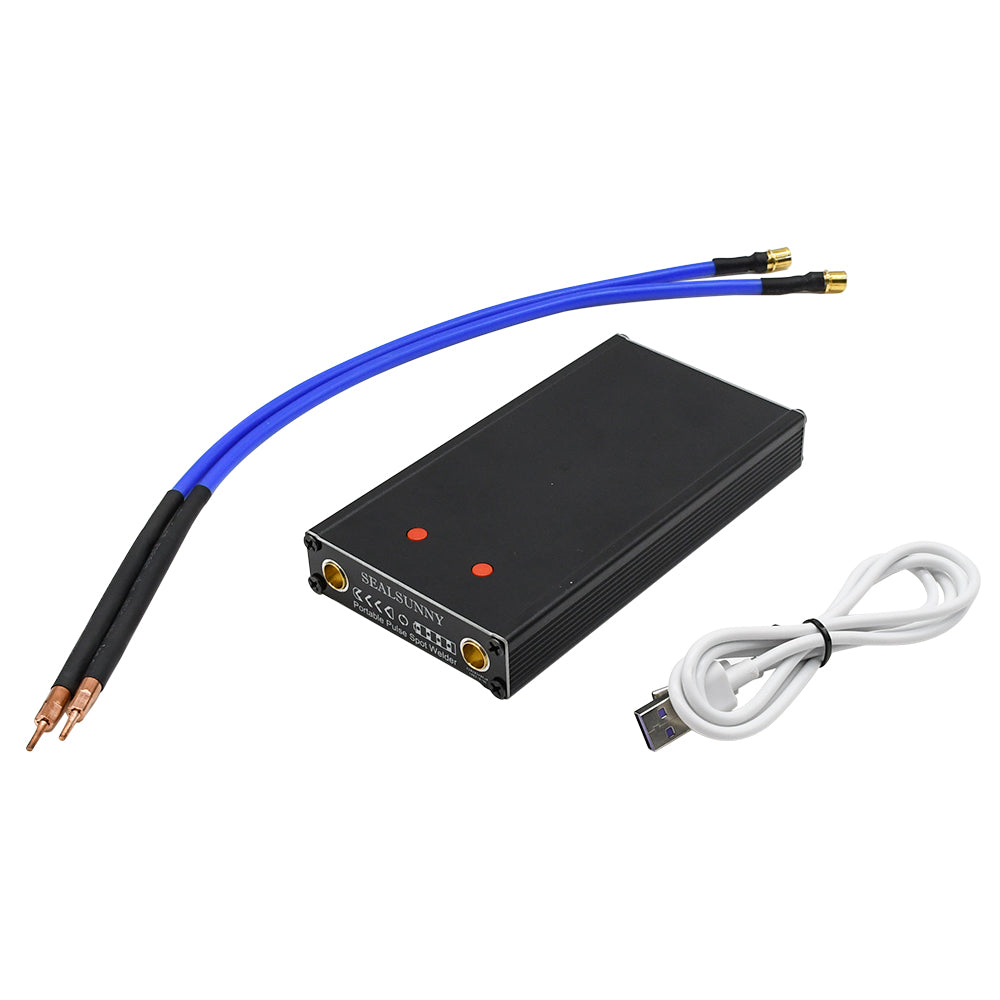

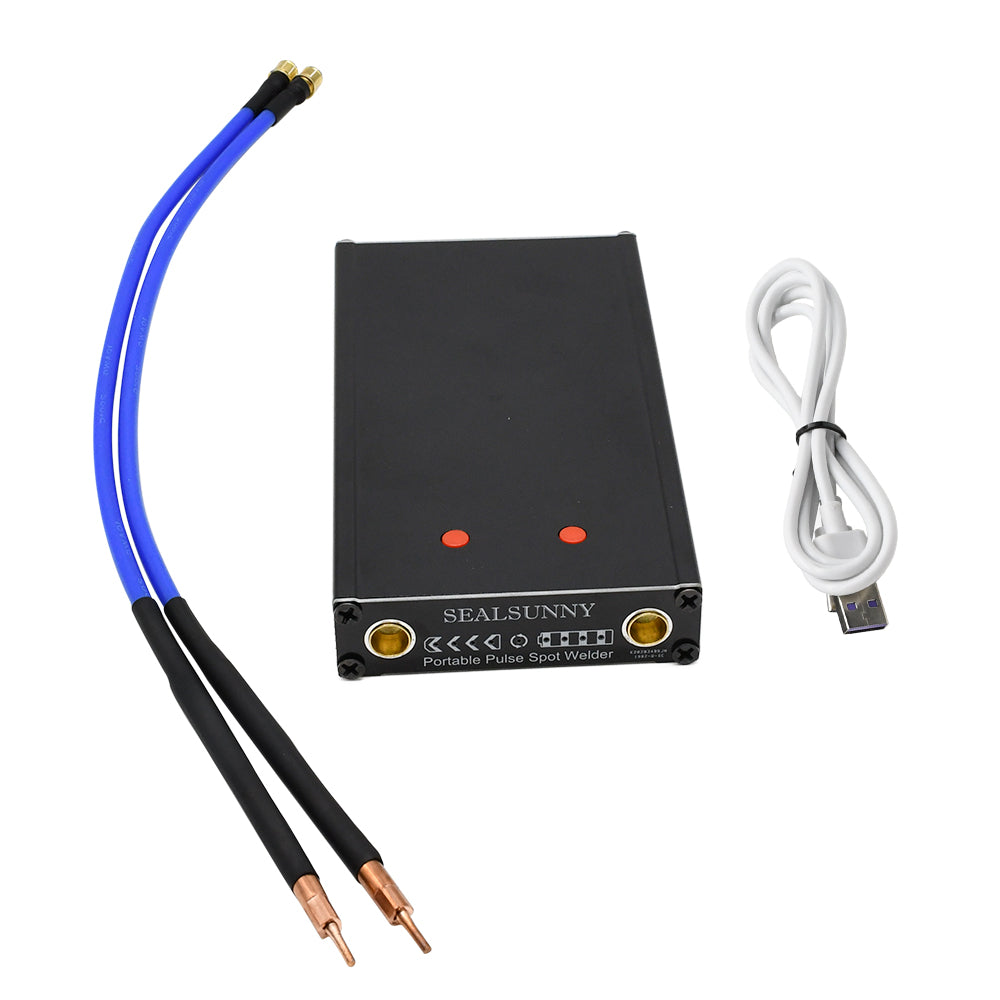

- 1PCS*Hand-held desktop mini portable spot welder
