HC-06 For Arduino Android Wireless Bluetooth RF Serial 5V Transceiver Module
HC-06 For Arduino Android Wireless Bluetooth RF Serial 5V Transceiver Module
SKU:010117
Regular price
$6.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
Works with any USB Bluetooth adapters.
Default Baud Rate: 9600,8,1,n.
Built in antenna.
Coverage up to 30ft.
Bluetooth version: V2.0+EDR
Operating voltage: 3.3V
Default Baud Rate: 9600,8,1,n.
Signal coverage: 30ft
Cable length: 21.5cm
Item size: 4.3 * 1.6 * 0.7cm
Item weight: 3g
Package size: 9 * 3 * 1cm
Package weight: 8g
Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.

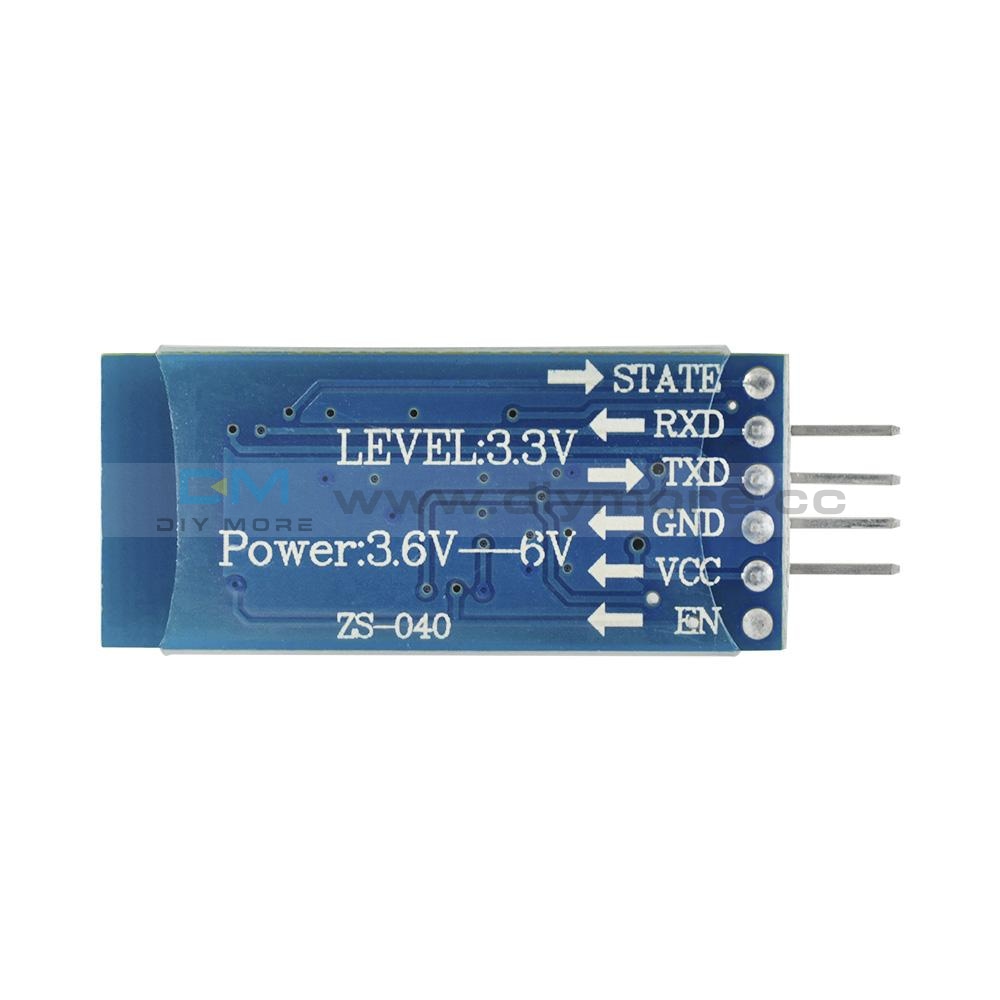

With VCC.GND.TXD.RXD foot for the Bluetooth
With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
Compatible with bluetooth master module".slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55cm*3.98cm
Note:
Input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
If only the board , No any "Bluetooth Function "
Package Included:
1 * HC-06 bluetooth module with backboard
