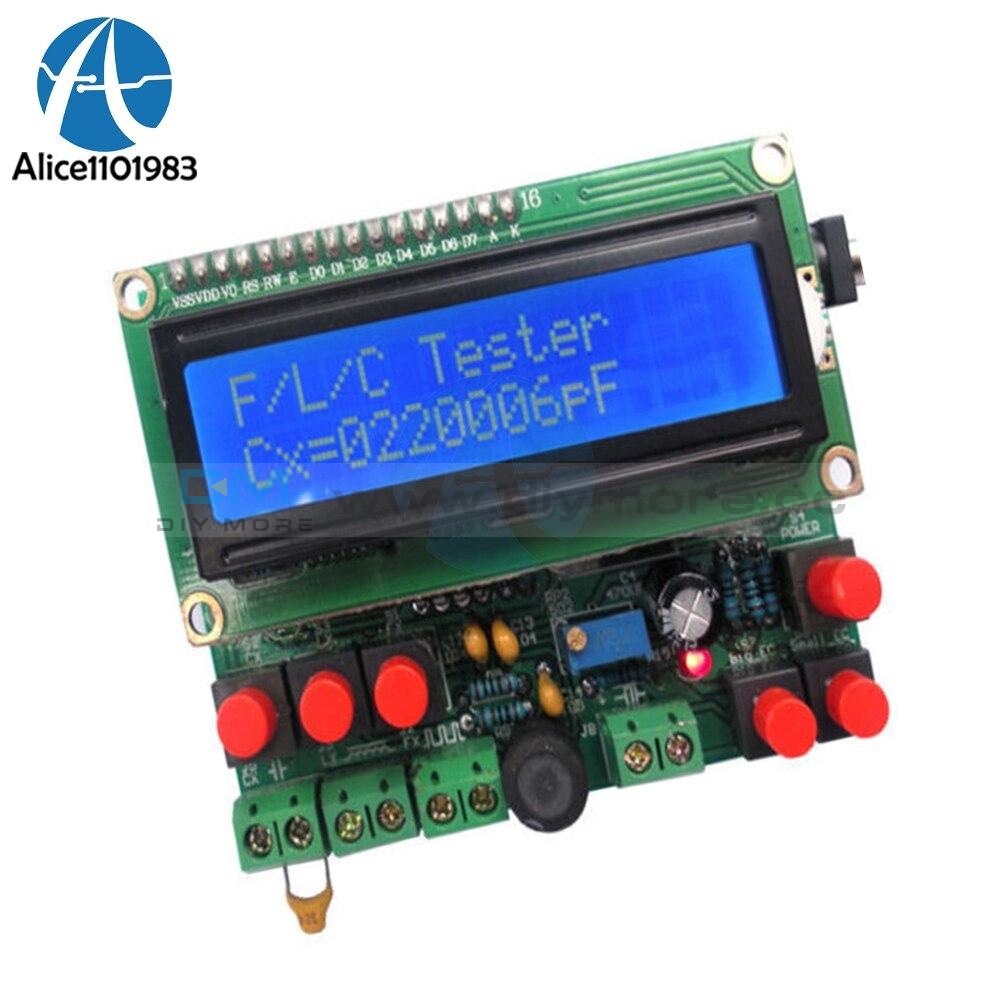

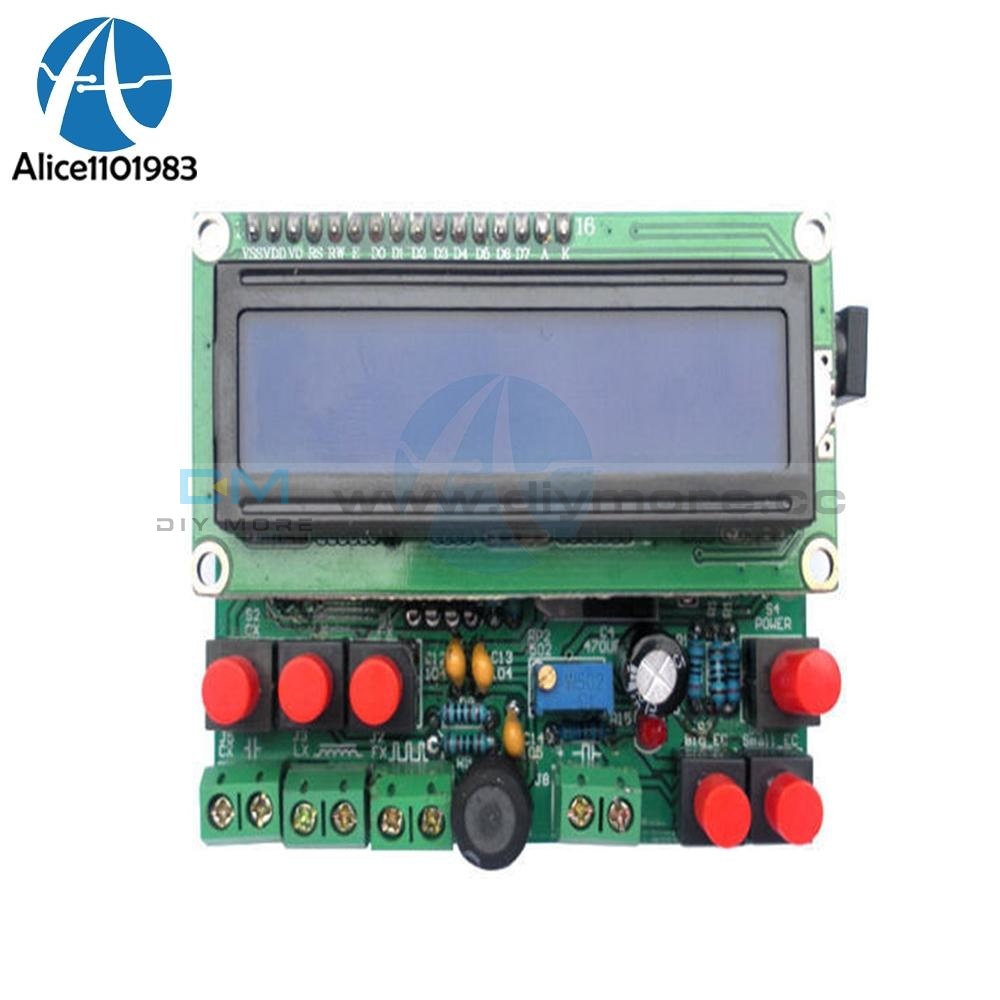

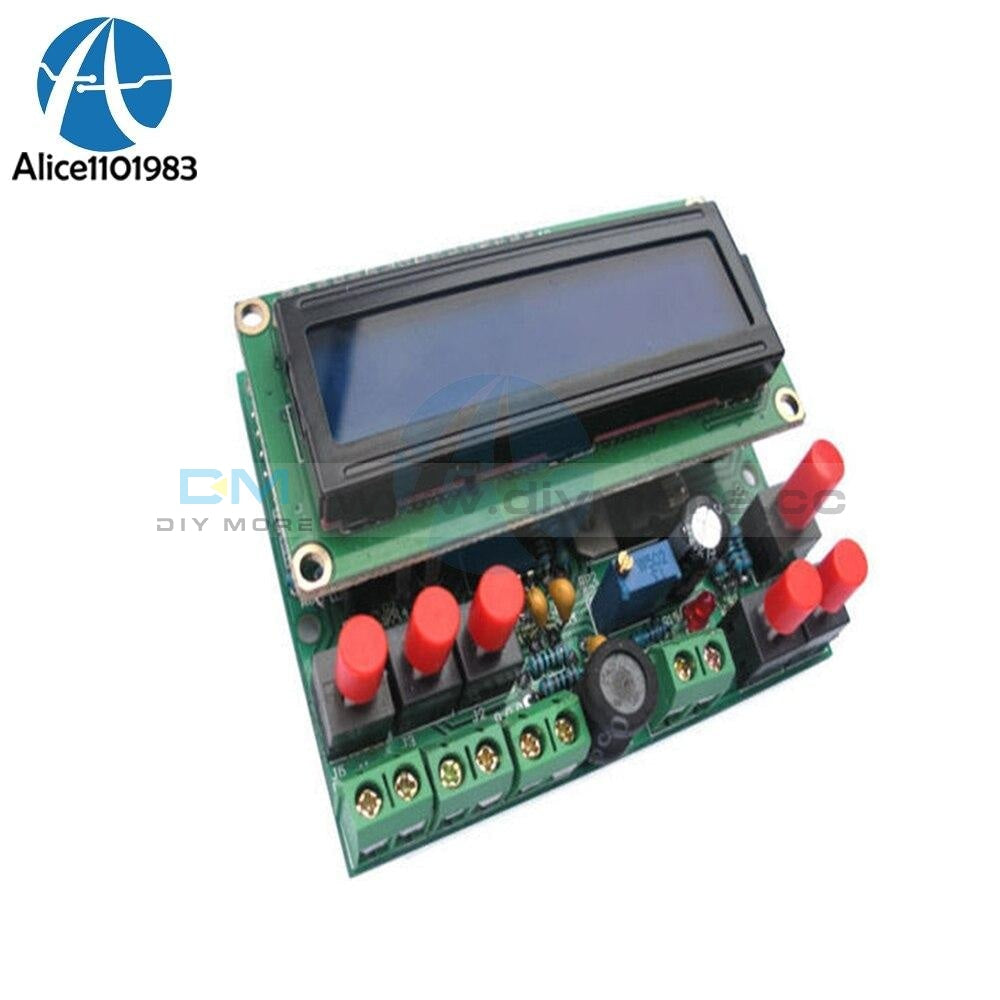

High Efficiency LED Capacitance Frequency Test Board Module For Testin

High Efficiency LED Capacitance Frequency Test Board Module For Testing Frequency Inductance Inductances 51 Microcontroller Diy

SKU:011580

$9.99

Features:

NOTE:

This is a DIY parts, it requires you to do it yourself installation is complete

Board size: 6.8 * 8.5CM;

Supply voltage:

DC5V or DC8-14V or AC7 to 10V are available (power range is quite wide)

Various stalls Range Description:

Inductance measuring range: 0.1μH-------- 1H

Small capacitance measuring range: 1pF ------- 2.2μF (non-polarized capacitors)

Frequency Range: 20Hz ------ 400KHz (small signal can be measured)

Electrolytic capacitor measuring range: 0.5μF--12000μF (electrolytic capacitors)

Listing:

PCB board*1
1CM studs +screw *4
16P FEMALE*1
40P pin straight *1
Bent pin 2-pin *1
LCD1602 *1
103 blue potentiometer *1
DC3-10 horns seat *1
40P IC Block *1
AT89S52 *1
8P IC Block *1
LM393 *1
8 * 8 self-locking switch *6
KF301-2P Terminal Blocks *4
DC005 seat *1
LM7805 *1
A09-103 exclusion *1
3296-502 potentiometer *1
22P ceramic capacitors *2
1N4007*4
12M crystal*1
470UF/16V capacitance *3
10UF/25V capacitance *4
3MM LED *1
100UH inductor *1
102 monolithic capacitors *2
105 monolithic capacitors *1
9014 triode *1
9015 triode *1
10K resistor *2
1K resistor *5
100K resistor *3
2K resistance error of 1% *3
47K resistor *1
5.6K resistor *1
100 ohm 1% error *1
