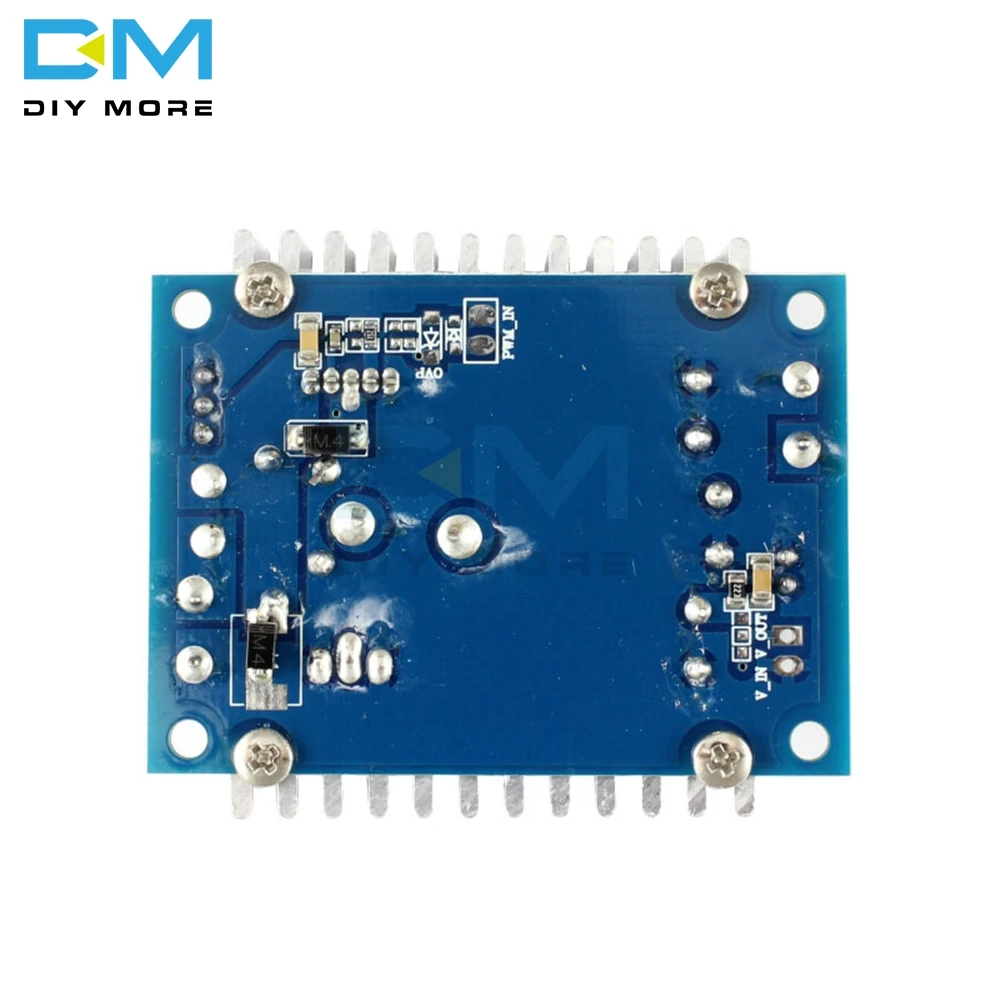

High Power DC-DC Buck Converter 5V-40V to 2V-36V 8A 100w 200w Adjustable Step Down For LED Car Laptop Power Supply Module Board

High Power Dc-Dc Buck Converter 5V-40V To 2V-36V 8A 100W 200W Adjustable Step Down For Led Car

High Power DC-DC Buck Converter 5V-40V to 2V-36V 8A 100w 200w Adjustable Step Down For LED Car Laptop Power Supply Module Board

SKU:012851
Regular price $7.99









Features:
  • Module properties: Non-isolated step-down module (BUCK)
  • Input Voltage: DC 5-40V (Input voltage can not higher than 40V)
  • Output Voltage: DC 1.2-36V(adjustable)
  • Output Current: 0-12A(Rated 8A,the MAX 12A)
  • Output Power:100W (if enhance heatsink, can reach 200W)
  • Operating temperature: -40°C to +85°C
  • Working frequency: 180KHz
  • Conversion efficiency: up to 95%
  • Short circuit protection: YES ( the Limit current is 12A)
  • Over-temperature protection: Yes (Over-temperature automatically shut down the output)
  • Input reverse polarity protection: None ( please install diode at input port )
  • Wiring: terminals, solderless. V-IN on board is stand for input, V-OUT is output.
  • Size: 60(L)*51(W)*22(H)mm
  • Testing for reference:
           Input 12V, Output 5V/10A,Efficiency 81%
           Input 12V, Output 5V/6A, Efficiency 86%
           Input 24V, Output 12V/8A,Efficiency 91%
           Input 24V, Output 19V/6A,Efficiency 94%


Some Applications:
  • When power supply voltage higher than your need, maybe you can use this module step down voltage. For example battery, power transformers, DIY adjustable voltage regulator. 24V car power laptop power supply. 12v to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V etc.

Package included:
  • 1 x DC-DC Buck Converter 100W
