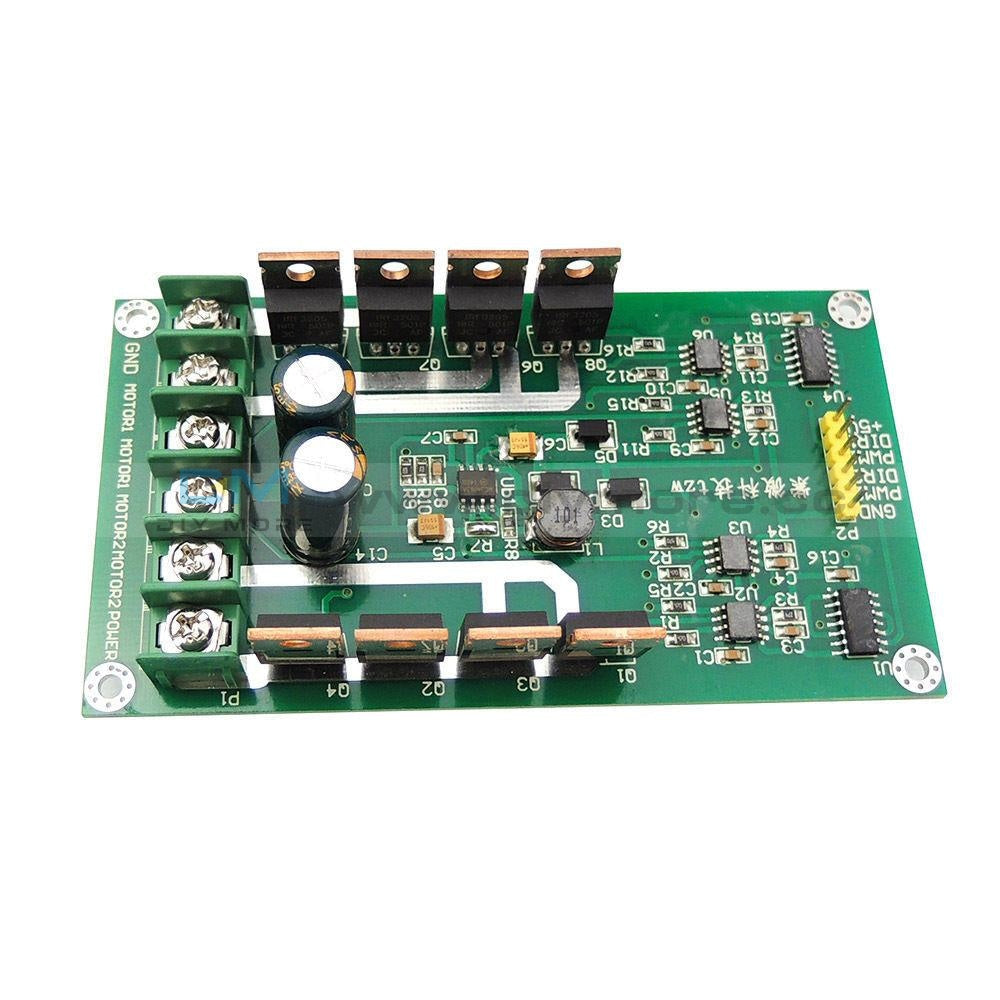

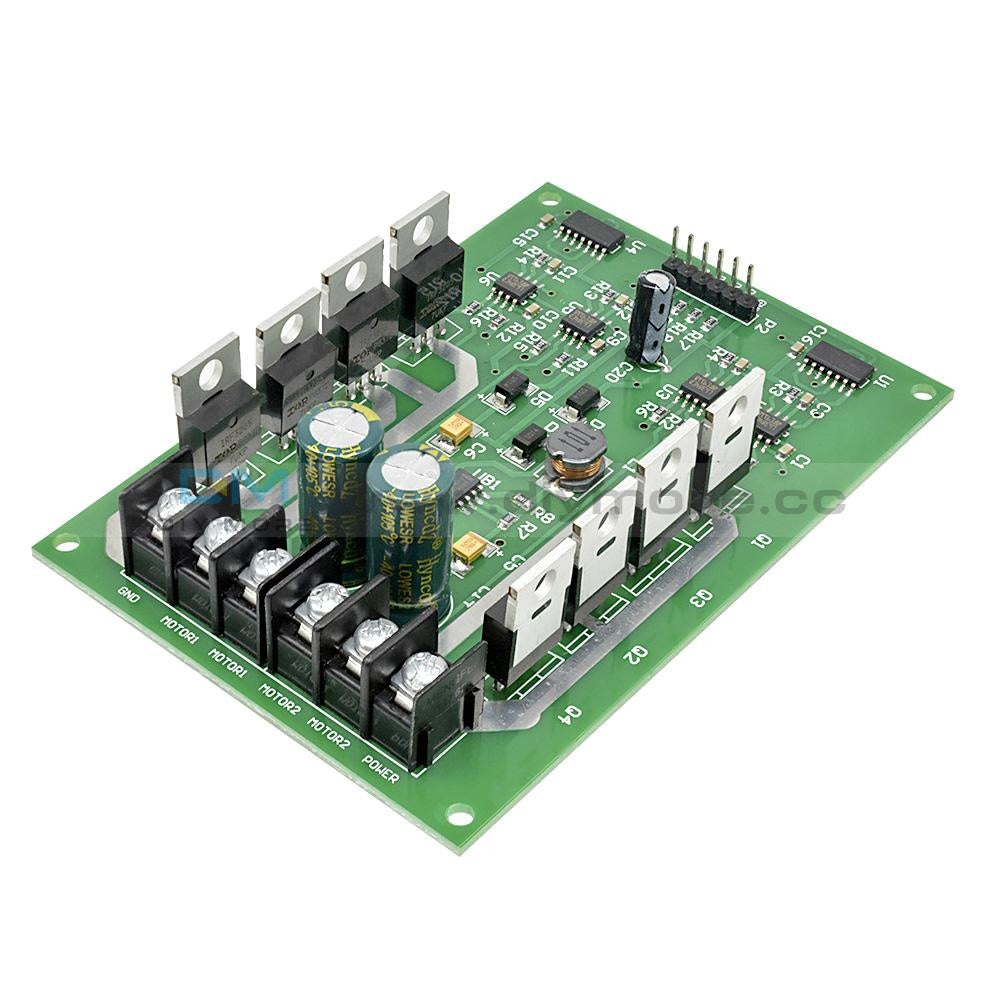

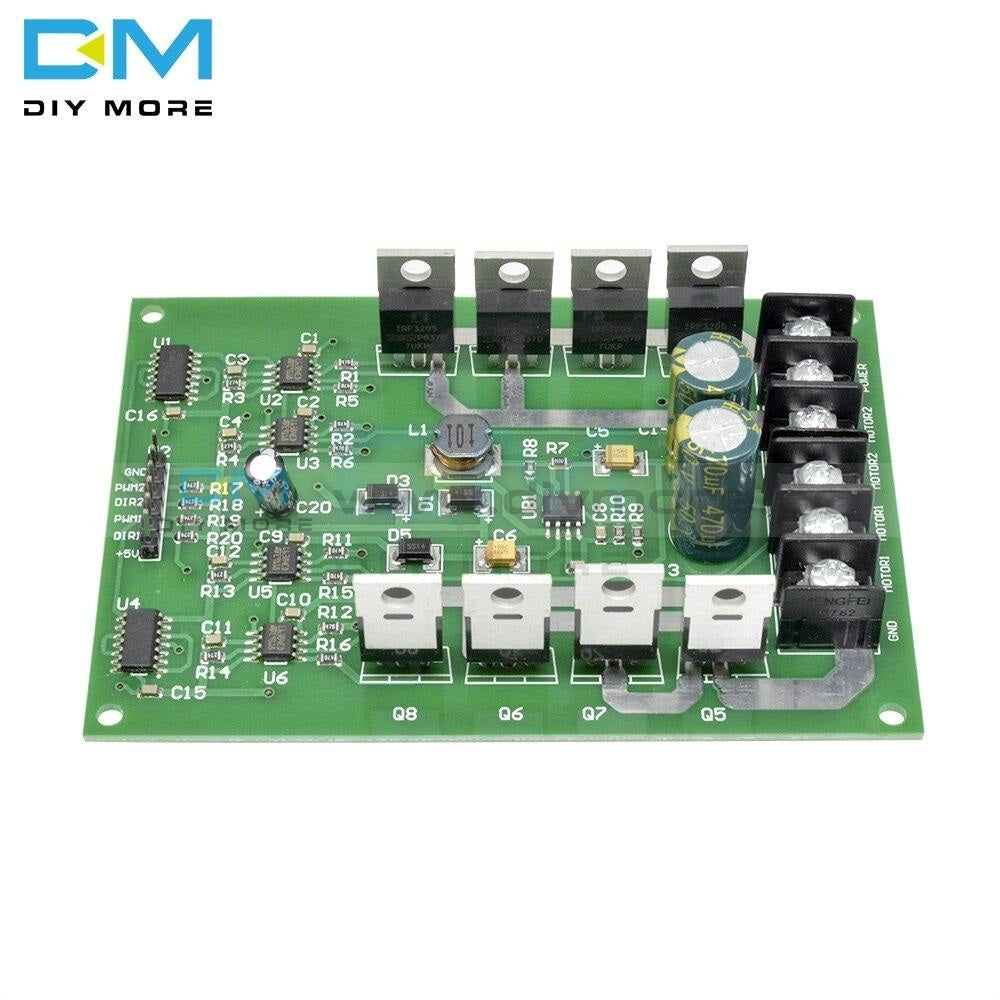

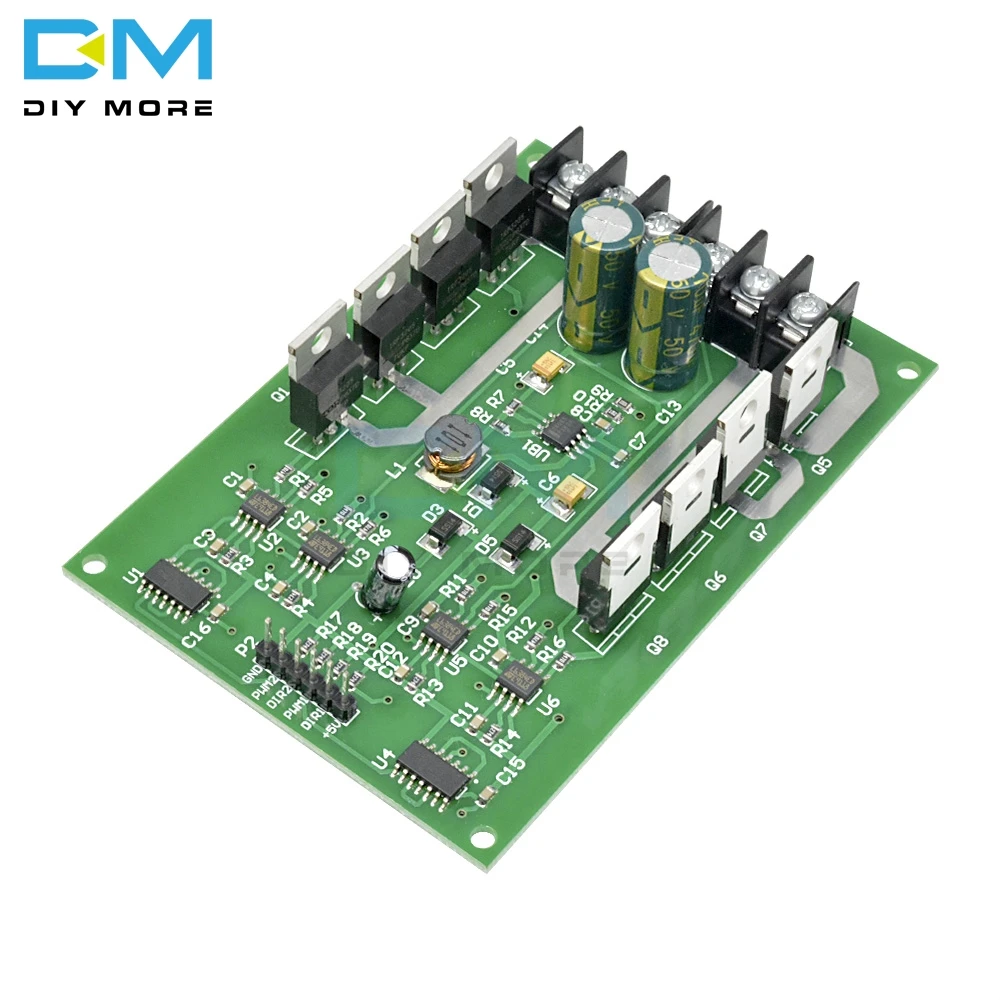

High Quality Newest H-Bridge Dual Motor Driver Drive Module Board DC MOSFET IRF3205 3V-36V 10A 30A Peak 30A Replace L298
High Quality Newest H-Bridge Dual Motor Driver Drive Module Board DC MOSFET IRF3205 3V-36V 10A 30A Peak 30A Replace L298
SKU:011948
Regular price
$14.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
The drive performance of these non-L298 motor driver chip can be compared.
The driver focus on current and efficiency, effectively motor power and battery life.
Can withstand high current overload, the maximum current up to 30A
This drive also has a brake function can be quickly stopped the motor, brake quickly, braking obvious, easy to implement this feature
The drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components.
Completer two half-bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization.
MOSFET driver chip comes with hardware brake function and power feedback.
This drive is superior integrated low power chip solution and the other half-bridge power margin in the coordinated combination of programs and complex issues and complementary drive problems

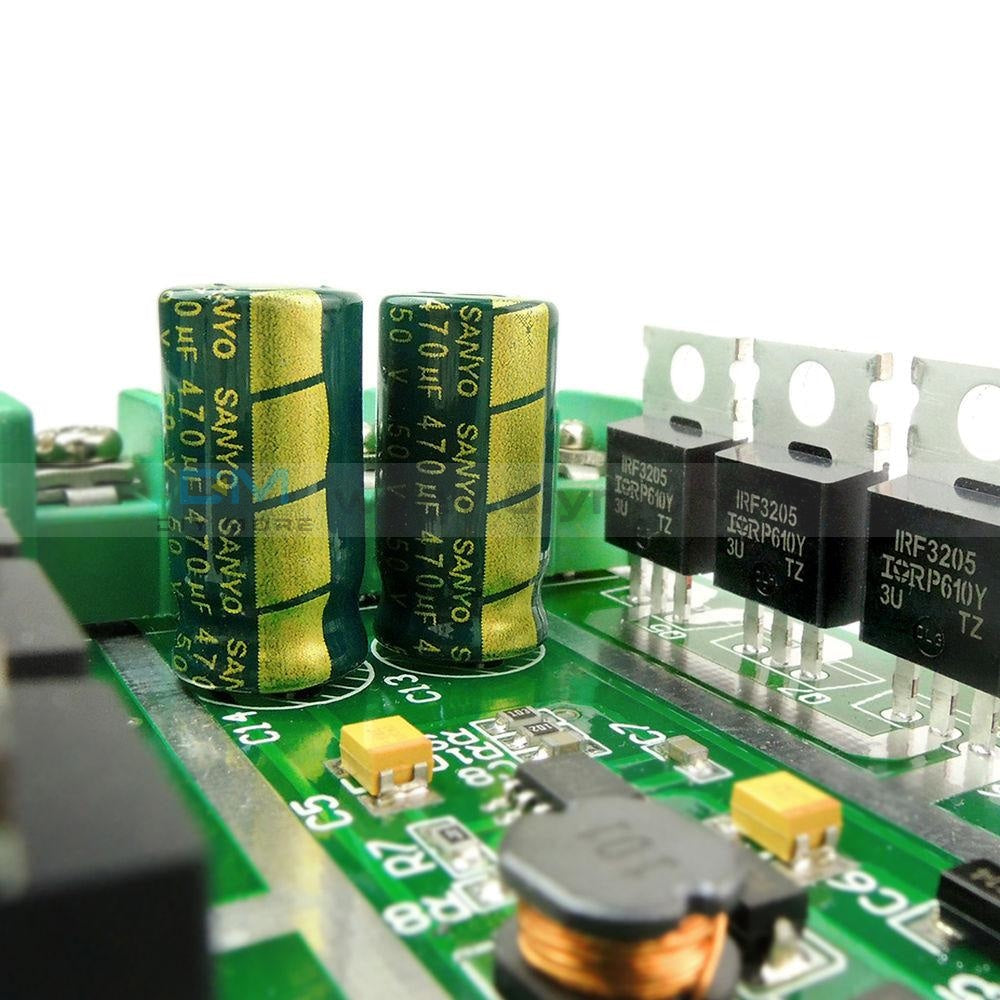

N-channel MOSFET IRF3205 MOSFET, use two dedicated half-bridge driver chip on the top tube using the boostrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car.
The driver can operate at 0-99% of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently.
Parameter
Motor forward: DIR = 1 PWM = PWM
Motor reversal: DIR = 0 PWM = PWM
Parking brake: DIR = X PWM = 0 (X is an arbitrary state)
Motor and power connections

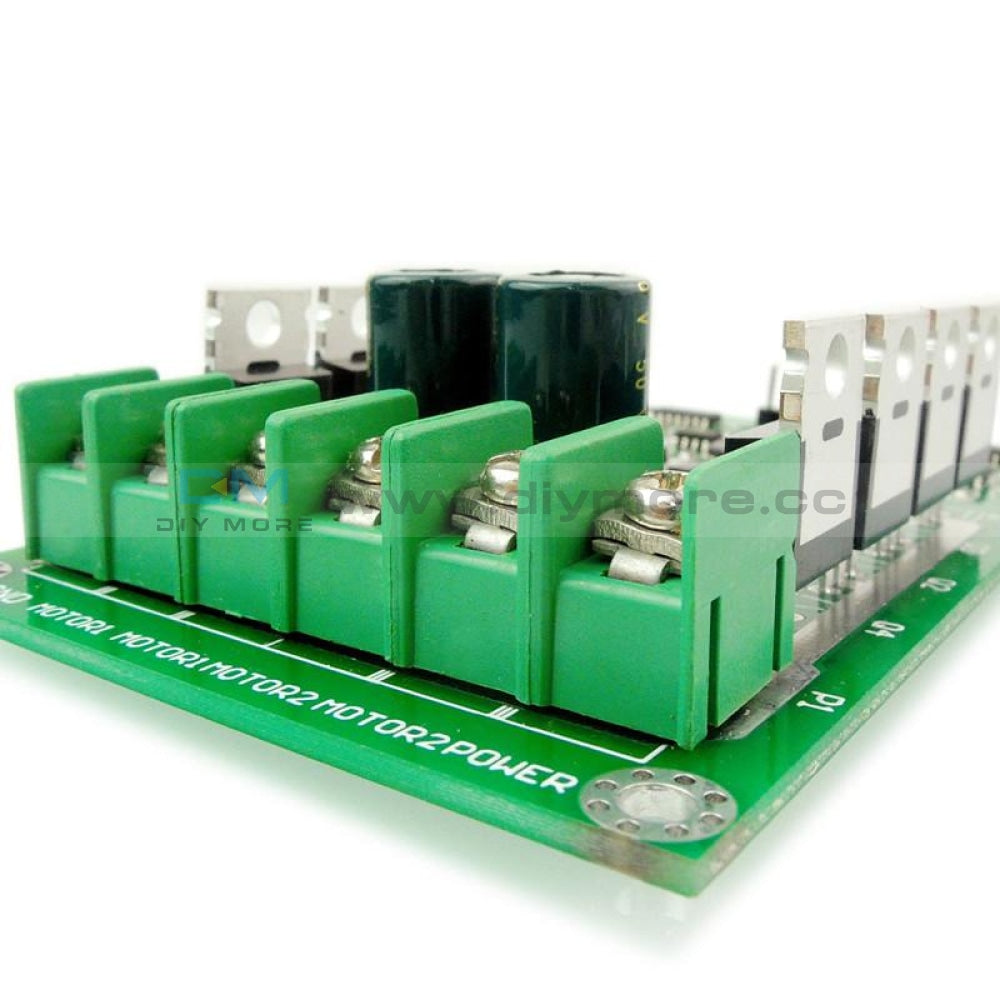

POWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2
Rated voltage: 3v-36v (can be customized according to the user)
Rated Current: 10A
Peak current: 30A
Use: variety of DC motor control circuit
Dimensions: length 108mm*58mm width
Package:
1 x Dual Motor driver module board H-Bridge DC MOSFET IRF3205 3-36V 10A
