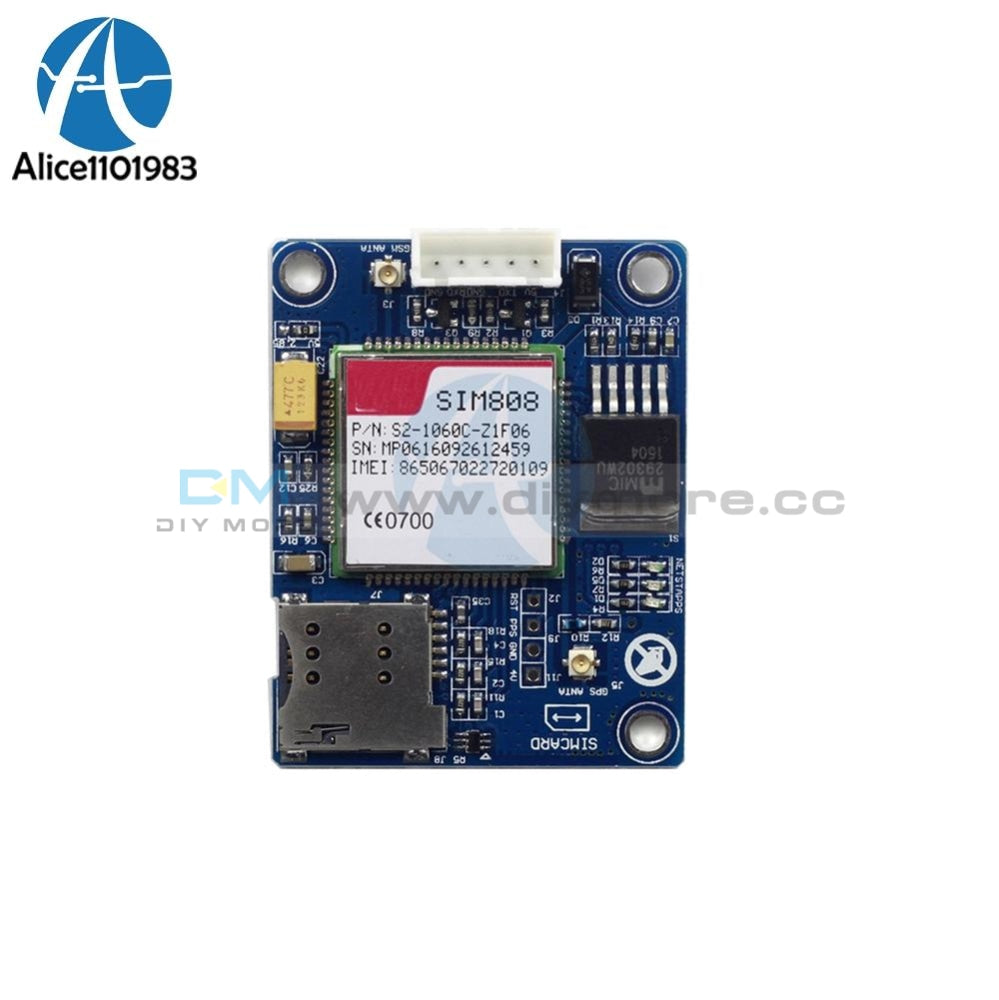

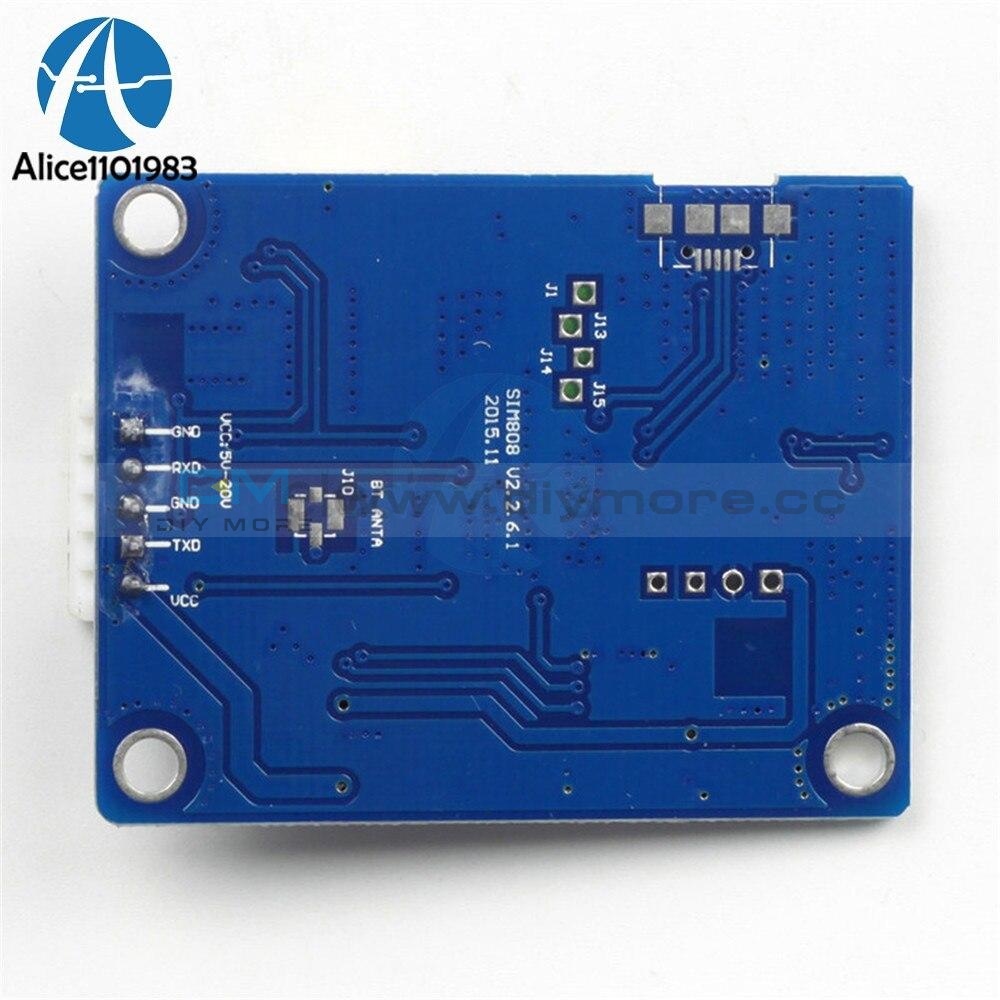

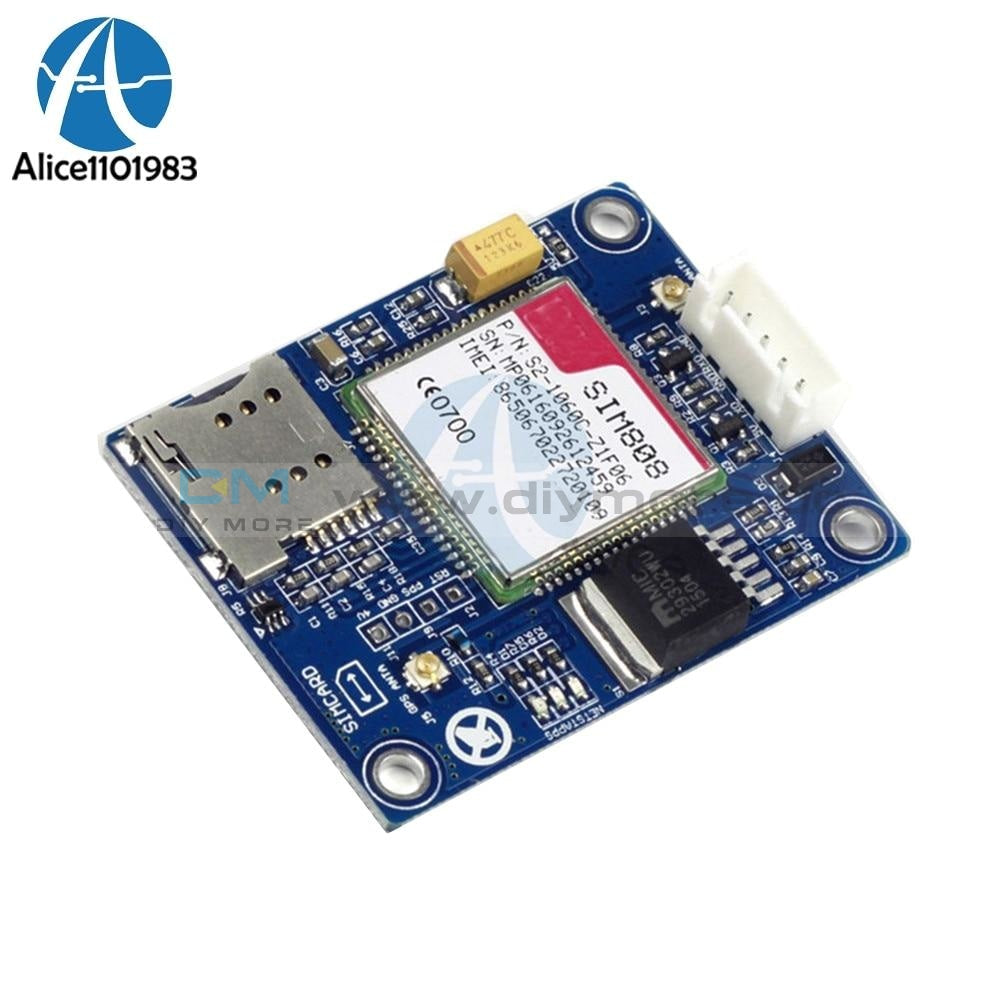

High Quality SIM808 Development GSM GPRS GPS Bluetooth SMS Module MINI SIM868 Board SIM868 Breakout Board 5V 18V
prev
next
High Quality SIM808 Development GSM GPRS GPS Bluetooth SMS Module MINI SIM868 Board SIM868 Breakout Board 5V 18V
SKU:011437
Regular price
$16.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
Voltage Range:5-18V
Lithium Battery Interface Voltage:3.4-4.4V
Operating Temperature:-40to+85°
Storage Temperature:-45to+90°
Size:50*50mm
GSM/GPRS Characteristic:
Bands: GSM 850,EGSM900,DCS 1800,PCS 1900
Transmit Power:
Class 4(2W)at GSM 850 and EGSM 900
Class 1(1W)at DCS 1800 and PCS 1900
GPRS Transmission Rate:
GPRS Downlink Data Transmission:max.85.6kbps
GPRS Uplink Data Transmission: max.85.6kbps
SIM Card Interface:
Support SIM card:1.8V,3V
Support 2G/3G/4G Mobile Unicom card
Serial Port:Support baud rate auto recognization
Rate:1200-115200bps
GPS Characteristic:
Horizontal Accuracy:<2.5m
Speed Accuracy(DGPS):0.05m/s
Acceleration Accuracy(DGPS):0.05m/s⊃2;
Timing Accuracy:10ns
Power Consumption:Acquisition:42mA (3.8V at -130dBm,GSM IDLE)
Bluetooth Characteristic:
Integrated AT Command Control
Fully Compliant with Bluetooth specification 3.0+EDR
Fully Integrated PA provide 10dbm output power
Max. support 4 way ACL link
Package List:
1pcs Development Board SIM808 GSM GPRS GPS Bluetooth SMS Module
