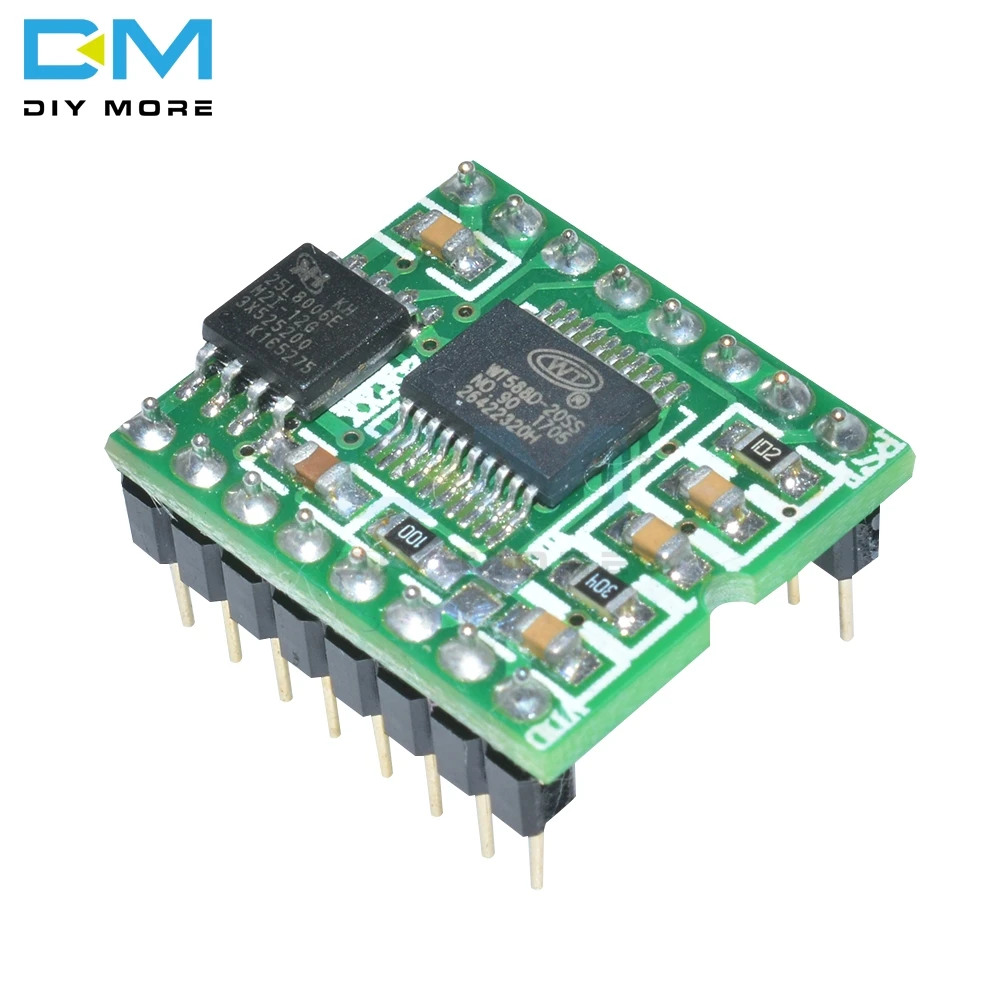

High-quality WT588D-16p voice module Sound modue audio player DC 2.8V-5.5V for Arduino

High-Quality Wt588D-16P Voice Module Sound Modue Audio Player Dc 2.8V-5.5V For Arduino For

High-quality WT588D-16p voice module Sound modue audio player DC 2.8V-5.5V for Arduino

SKU:010271
Regular price $4.99











WT588D voice module characteristics

Module package (with FLASH memory and peripheral circuits) have DIP16, DIP28, chip packaging has DIP18, SSOP20 and LQFP32 form;

According to external or built-in SPI-Flash's different, play different duration, support 2M ~ 32Mbit of SPI-Flash Memory;

Embedded DSP audio processor speed, fast processing speed;

Built 13Bit/DA converter, and 12Bit/PWM output, good sound quality;

PWM output can directly drive 0.5W/8 speakers, push-pull current abundant;

Support DAC / PWM output of two ways;

Support for loading WAV audio formats;

By professional PC operating software, any combination of voice, silence can be inserted, insert the mute does not take up memory capacity, a voice repeated calls have been loaded to multiple addresses;

USB download mode, support for online download / offline download; WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash;

Supports MP3 control mode, control mode button, 3 × 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I / O port expansion output mode;

Three-wire serial control mode to control the three-wire serial I / O port expansion only to send the data output mode can be switched. Even after switching to the final before switching into a working state after switching mode;

Arbitrary voice playback status display BUSY signal output;

Anti-interference, and can be used in industrial applications;

Section 220 can control the address bits, a single address can be loaded up to 128 bits of voice, the voice within the address bit combination play;

Support the loaded audio player audition;

Voice playback stops immediately enter the sleep mode, the chip to a complete stop state;

15 kinds of key control mode, any key can be set to any of the control mode;

Supporting WT588D VoiceChip PC software, the interface is simple, easy to use. The play can greatly limit the functionality WT588D voice chip;

Simple microcontroller written in a way to get rid of the past, the complicated assembly of thinking;

A single chip to support multiple external memory;

Up to 500 segments can be loaded for editing audio;

Into the quiet time range 10ms ~ 25min;

Chip reset time 5ms;

Voltage DC2.8V ~ 5.5V;

Static sleep current of less than 10uA;

Support load 6K ~ 22KHz audio sampling rate

































trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155











WT588D voice module characteristics

Module package (with FLASH memory and peripheral circuits) have DIP16, DIP28, chip packaging has DIP18, SSOP20 and LQFP32 form;

According to external or built-in SPI-Flash's different, play different duration, support 2M ~ 32Mbit of SPI-Flash Memory;

Embedded DSP audio processor speed, fast processing speed;

Built 13Bit/DA converter, and 12Bit/PWM output, good sound quality;

PWM output can directly drive 0.5W/8 speakers, push-pull current abundant;

Support DAC / PWM output of two ways;

Support for loading WAV audio formats;

By professional PC operating software, any combination of voice, silence can be inserted, insert the mute does not take up memory capacity, a voice repeated calls have been loaded to multiple addresses;

USB download mode, support for online download / offline download; WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash;

Supports MP3 control mode, control mode button, 3 × 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I / O port expansion output mode;

Three-wire serial control mode to control the three-wire serial I / O port expansion only to send the data output mode can be switched. Even after switching to the final before switching into a working state after switching mode;

Arbitrary voice playback status display BUSY signal output;

Anti-interference, and can be used in industrial applications;

Section 220 can control the address bits, a single address can be loaded up to 128 bits of voice, the voice within the address bit combination play;

Support the loaded audio player audition;

Voice playback stops immediately enter the sleep mode, the chip to a complete stop state;

15 kinds of key control mode, any key can be set to any of the control mode;

Supporting WT588D VoiceChip PC software, the interface is simple, easy to use. The play can greatly limit the functionality WT588D voice chip;

Simple microcontroller written in a way to get rid of the past, the complicated assembly of thinking;

A single chip to support multiple external memory;

Up to 500 segments can be loaded for editing audio;

Into the quiet time range 10ms ~ 25min;

Chip reset time 5ms;

Voltage DC2.8V ~ 5.5V;

Static sleep current of less than 10uA;

Support load 6K ~ 22KHz audio sampling rate
