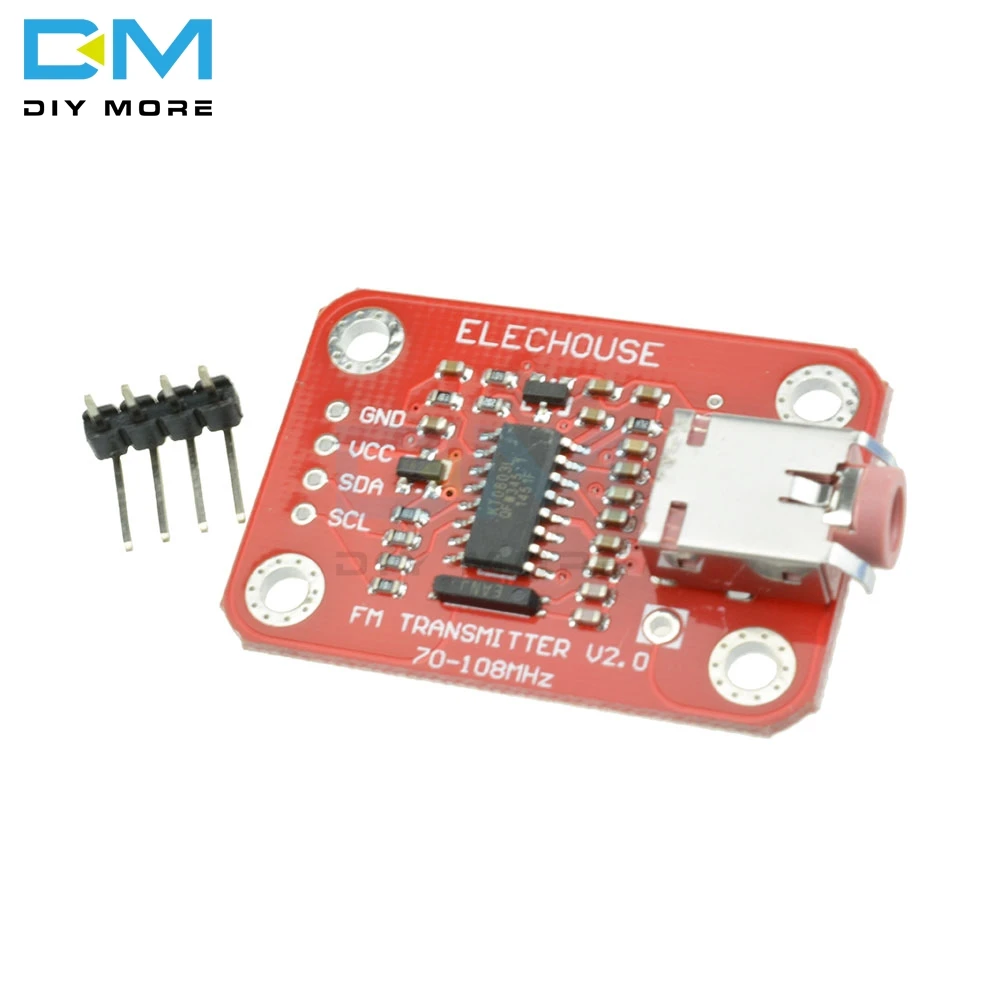

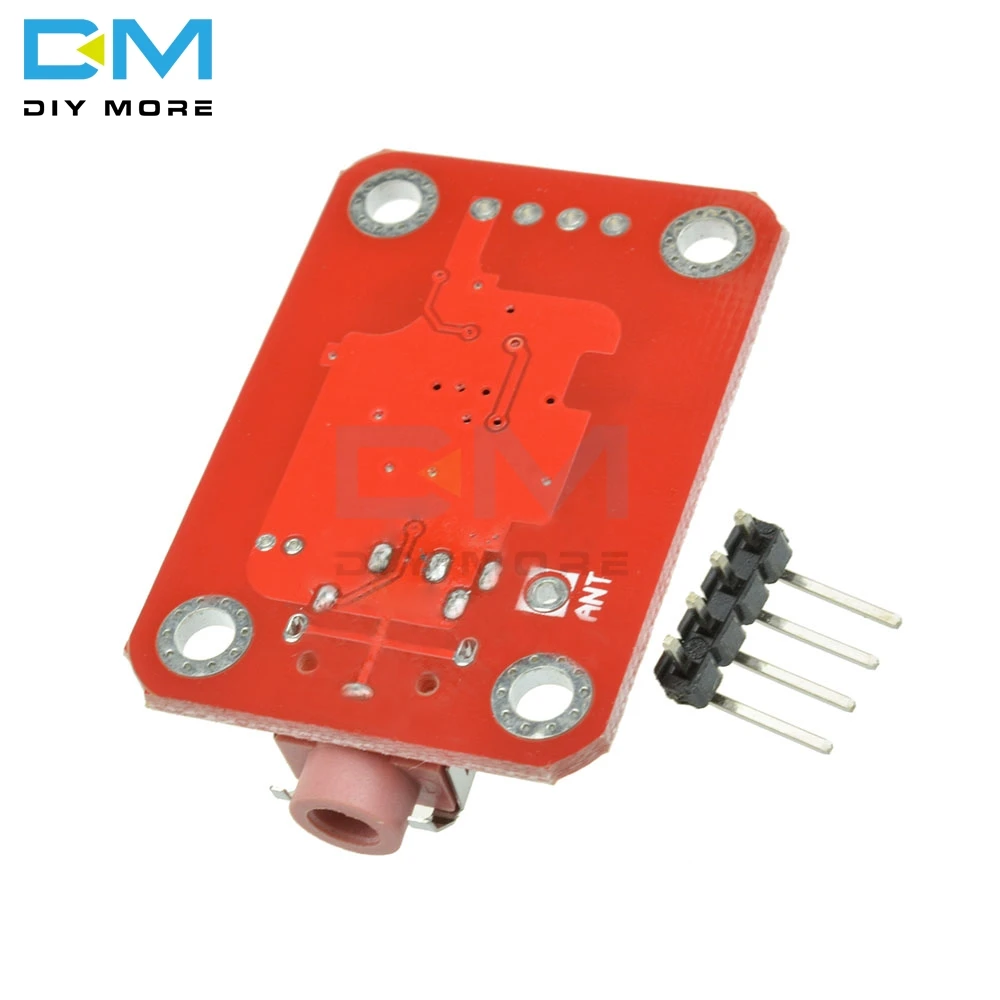

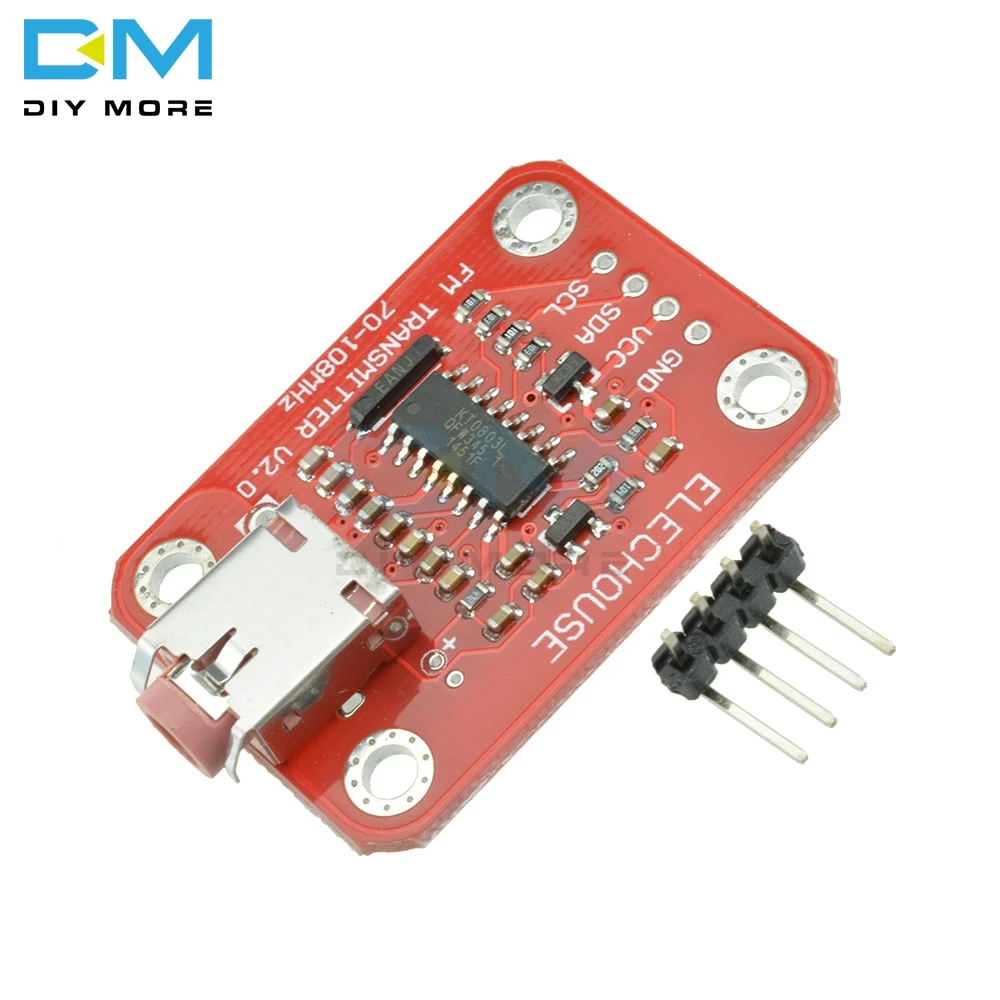

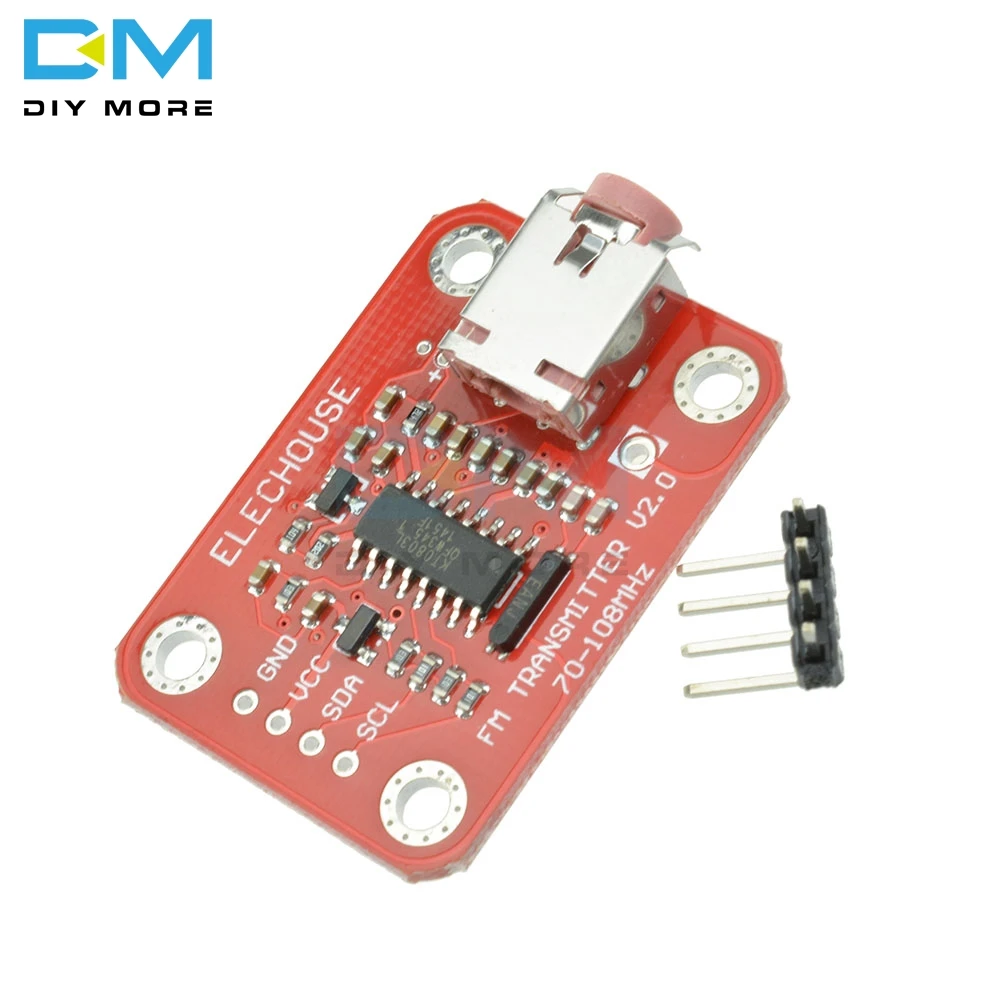

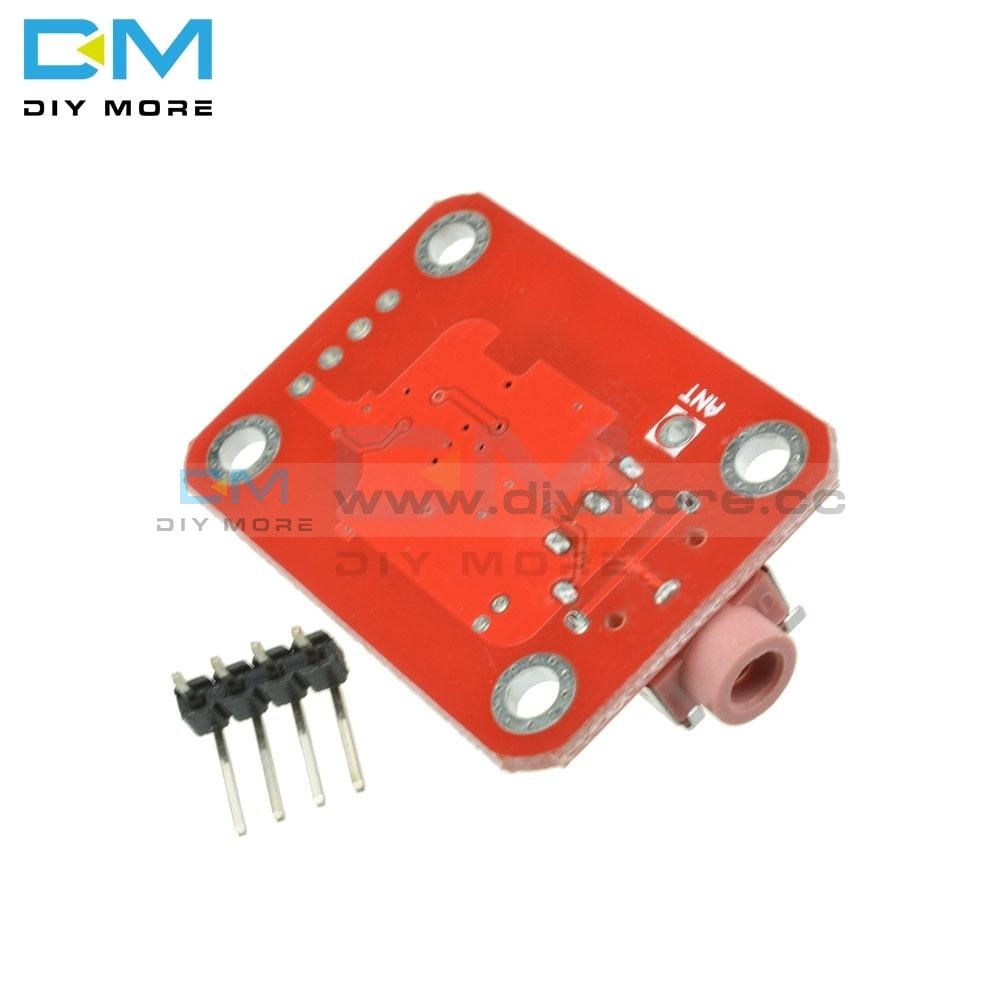

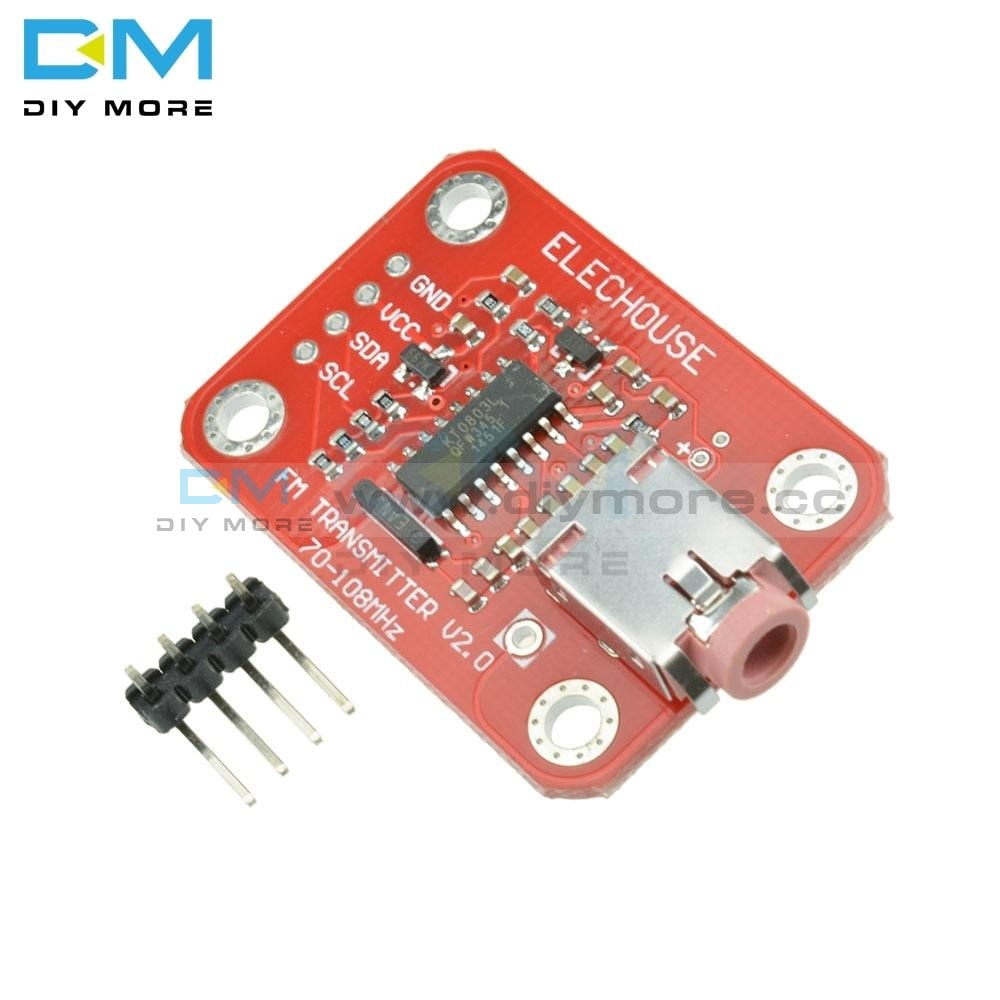

FM Radio Transmitter Module V2.0 For Build Your Own Radio Station TOP

FM Radio Transmitter Module V2.0 For Build Your Own Radio Station TOP

SKU:010684
Regular price $6.99

FM Radio Transmitter Module V2.0 Digital Radio Transmitter Module Onboard MIC FM Module for Arduino

Description :

Ever thinking about set up a music radio station yourself
I think it would be great if you could build a music station
and share your music with others. Pretty cool, right?
This module could modulate your voice on the FM radio wave.
And anyone who has a radio device could receive it.
We build everything on this module,
which makes it very easy to build a tiny radio station.
We also reate library for Arduino to work with this module.
We make everything easy for you.

Features:

1.I2C interface 5V TTL compatible
2.for Arduino plug and play
3.Onboard MIC
4.VCC Input: 3.0V ~ 5.0V

you could wire them in the following way :

for Arduino connect with FM Module as below :

GND connect with GND
5V connect with VCC
SDA connect with SDA
SCL connect with SCL

Then connect the antenna.

Any metal line about 75cm can serves as an antenna.

for Arduino Coding :

We explain more about the code in the manual.

Please refer to the manual for more information.

Download the library and upload the example sketch to for Arduino.


Package Included:

1 x FM Radio Transmitter Module V2.0 For Build Your Own Radio Station
