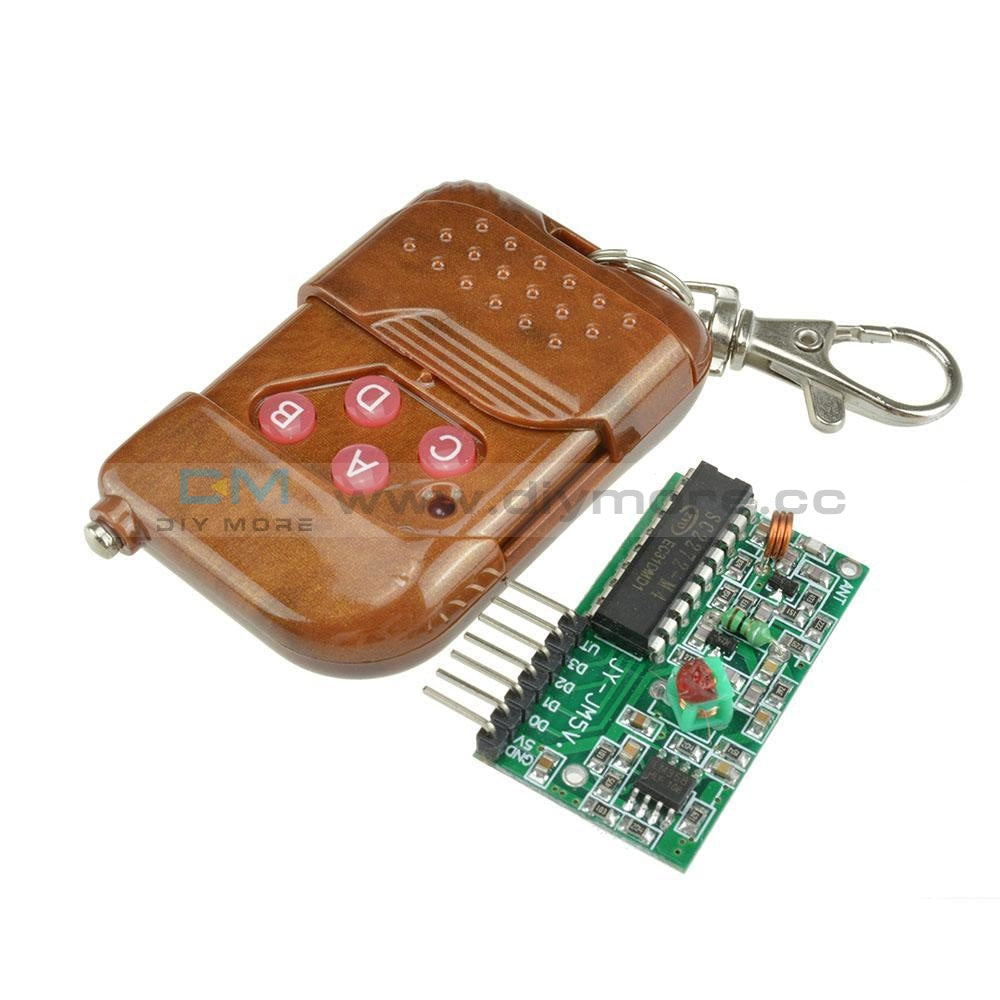

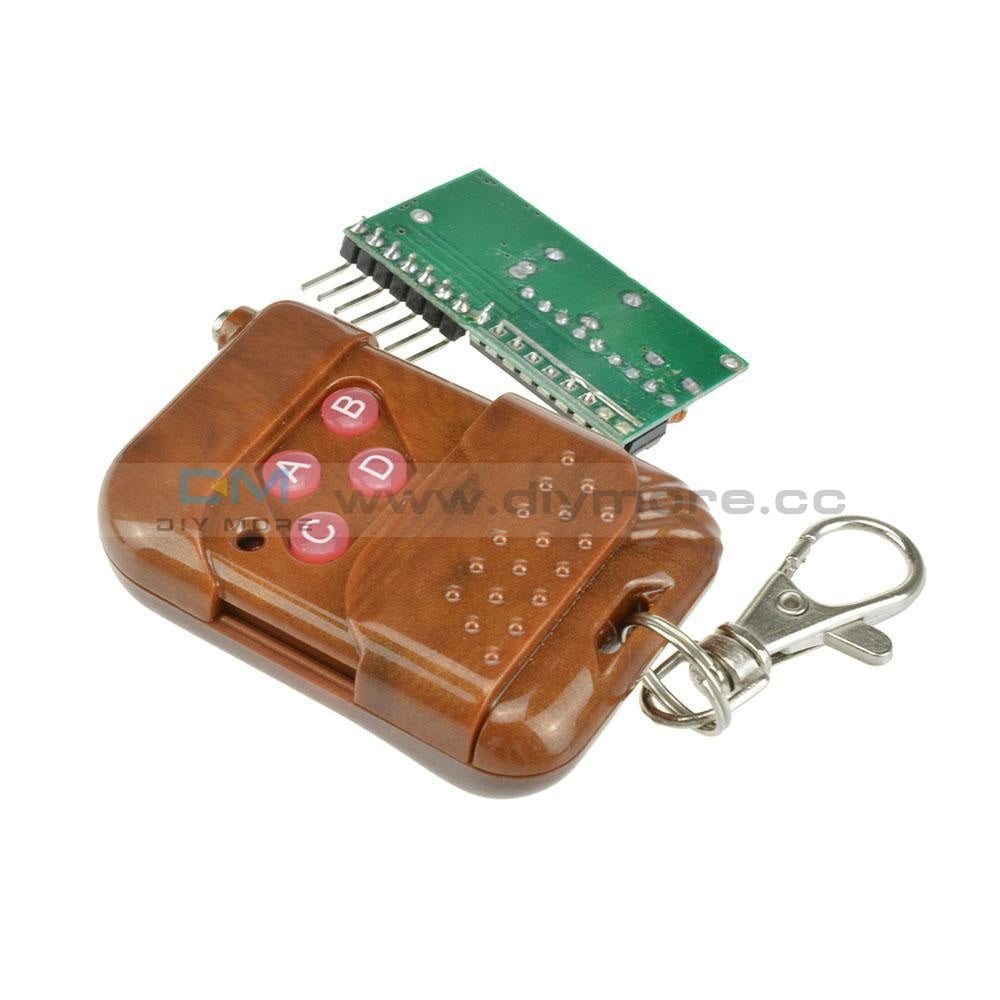

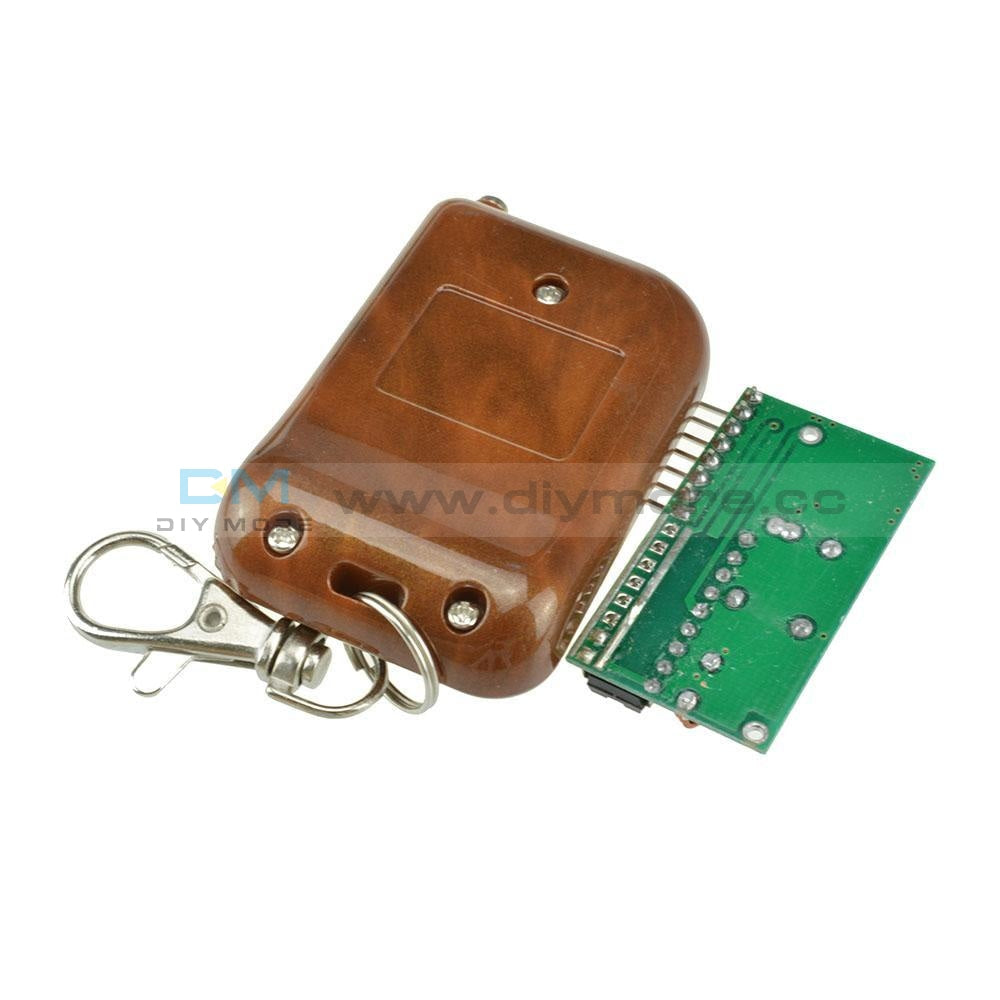

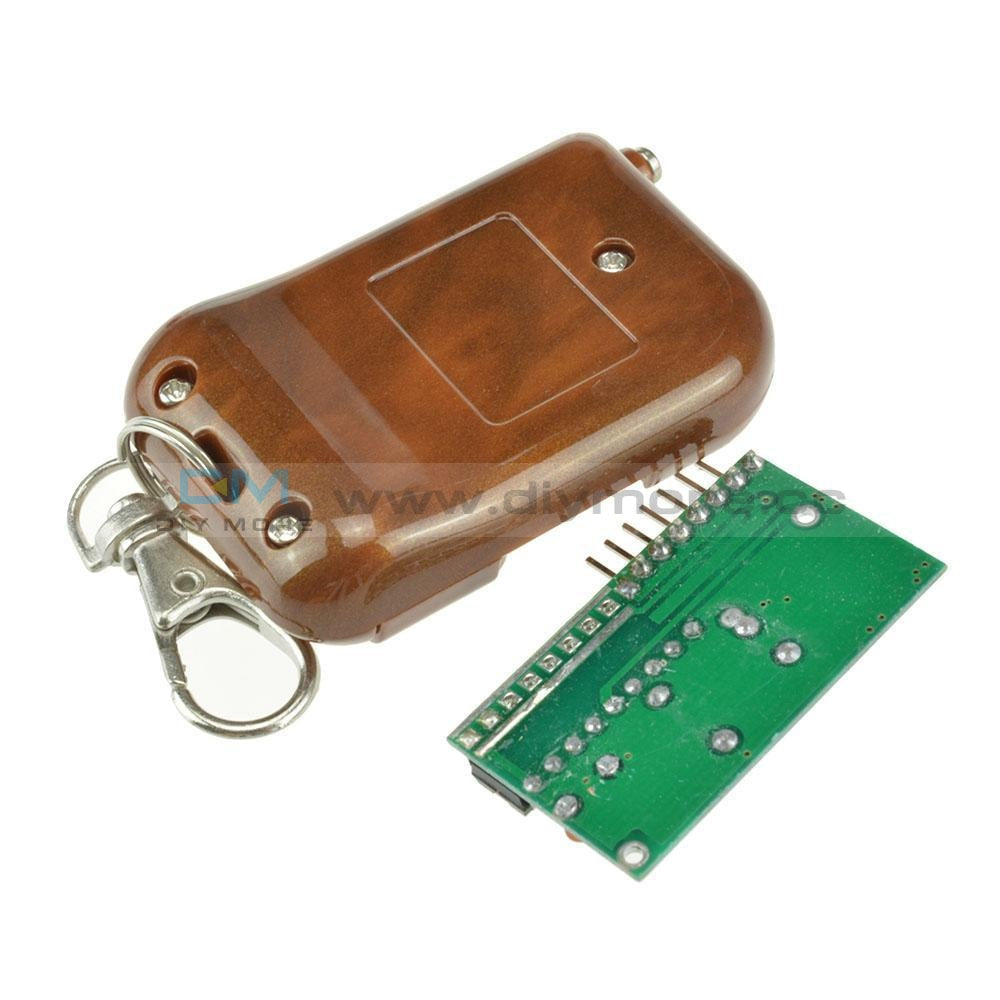

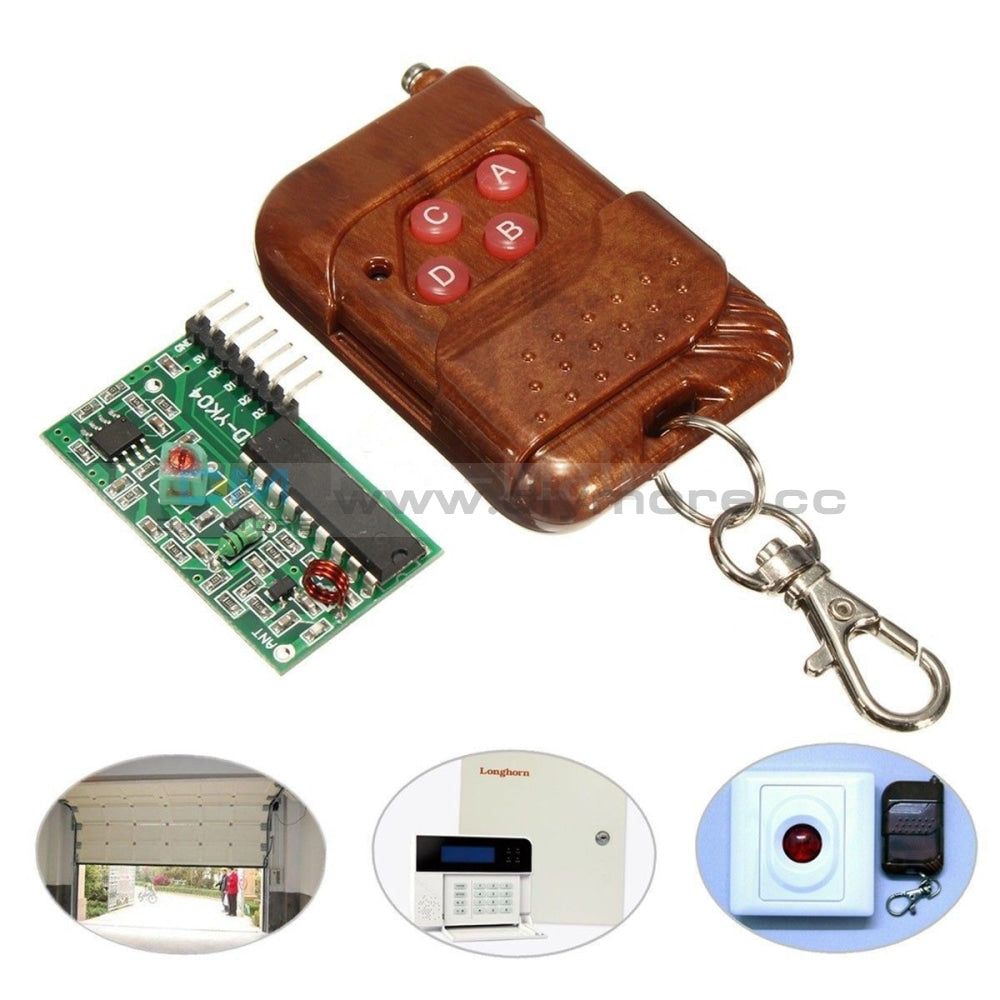

IC 2262/2272 4 CH Key Wireless Remote Control kits 433MHZ / 315MHZ Receiver module F Arduino

IC 2262/2272 4 CH Key Wireless Remote Control kits 433MHZ / 315MHZ Receiver module F Arduino

SKU:010790
Regular price $3.19

shipped within one bussiness day

Feature:

1.Operating voltage: DC12V (27A/12V battery x1) (NOT included)
2.Operating Current: 10mA @ 12V
3.Radiated power: 10mw @ 12V
4.Modulation mode: ASK (Amplitude Modulation)
5.Transmitting frequency: 433MHZ / 315MHZ(SAW frequency stabilization)
6.Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm)

Encoder types: fixed code
With decoding receiver board

NOTE : our item come WITHOUT Battery ,Batteries Not included !!

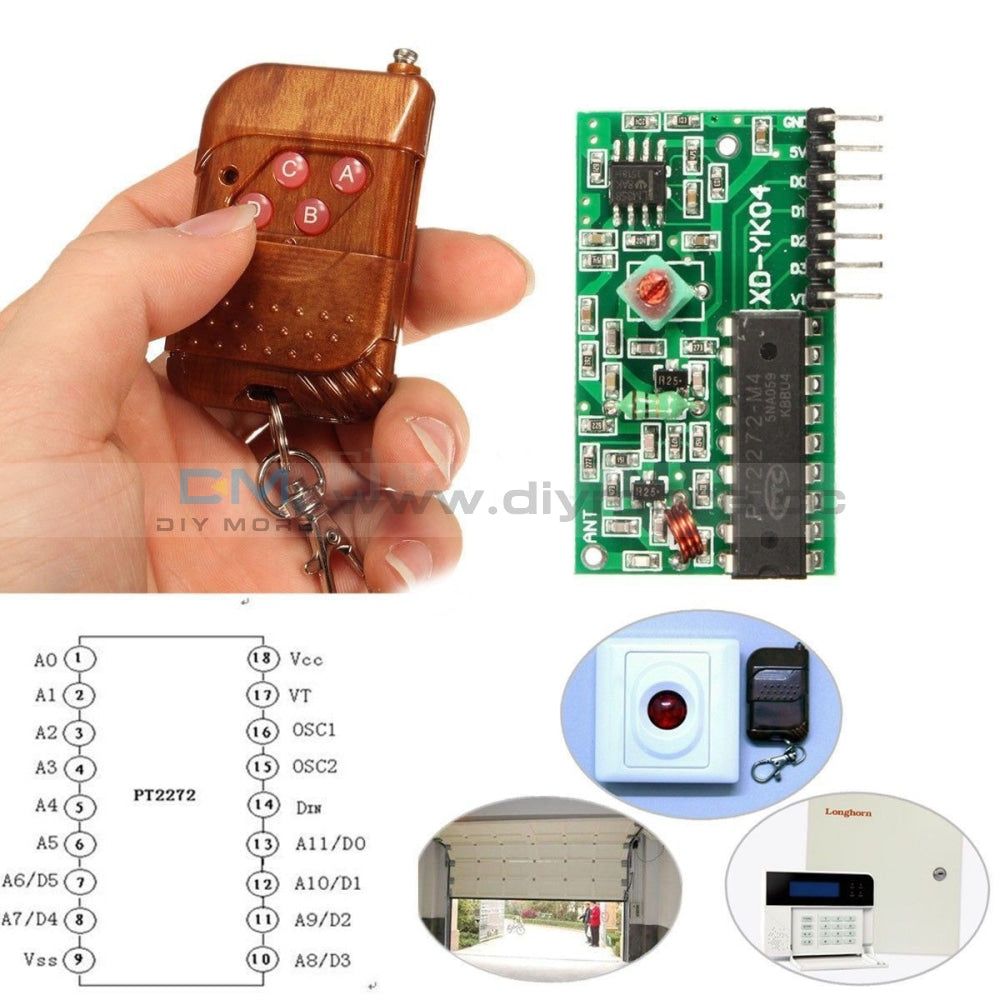

1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6.6*22*41mm

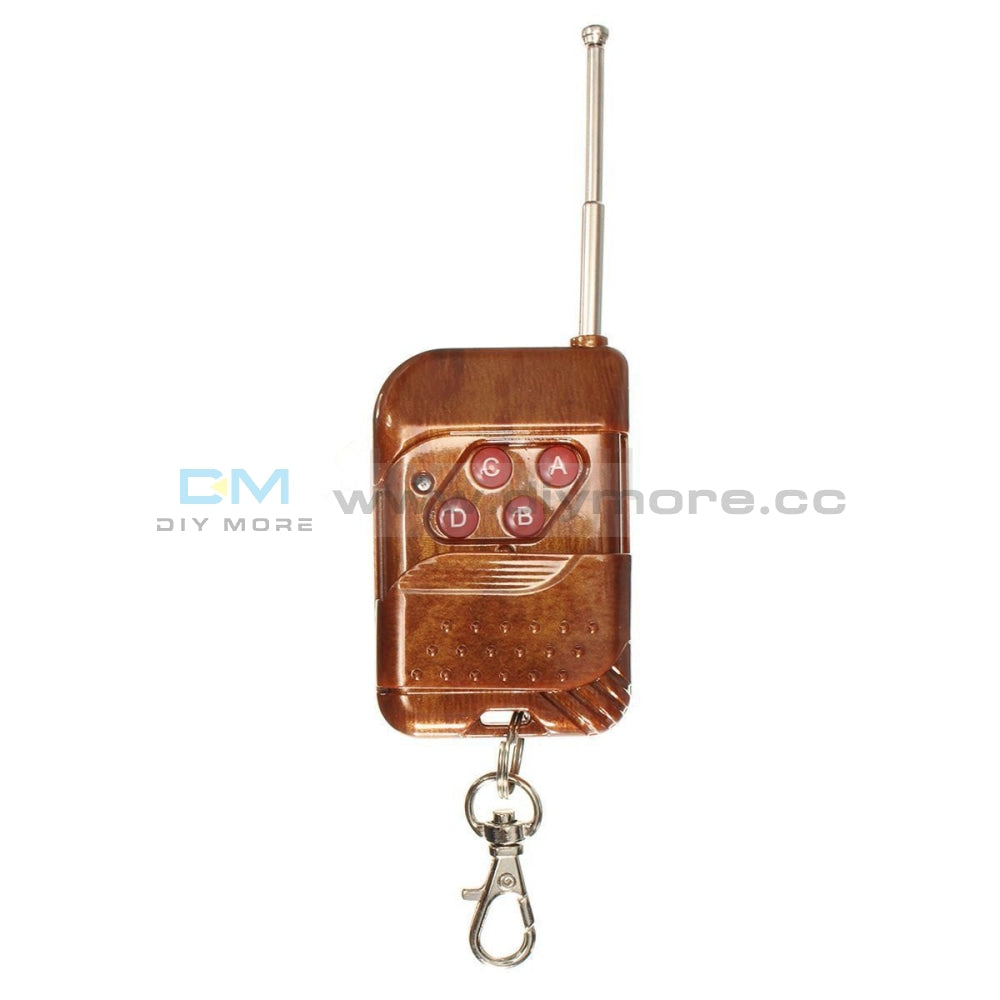

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.


Package include:
1 x 4 key wireless remote 433MHZ 4 channel IC2262/2272 wireless remote control kits
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Feature:

1.Operating voltage: DC12V (27A/12V battery x1) (NOT included)
2.Operating Current: 10mA @ 12V
3.Radiated power: 10mw @ 12V
4.Modulation mode: ASK (Amplitude Modulation)
5.Transmitting frequency: 433MHZ / 315MHZ(SAW frequency stabilization)
6.Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm)

Encoder types: fixed code
With decoding receiver board

NOTE : our item come WITHOUT Battery ,Batteries Not included !!

1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6.6*22*41mm

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.


Package include:
1 x 4 key wireless remote 433MHZ 4 channel IC2262/2272 wireless remote control kits
