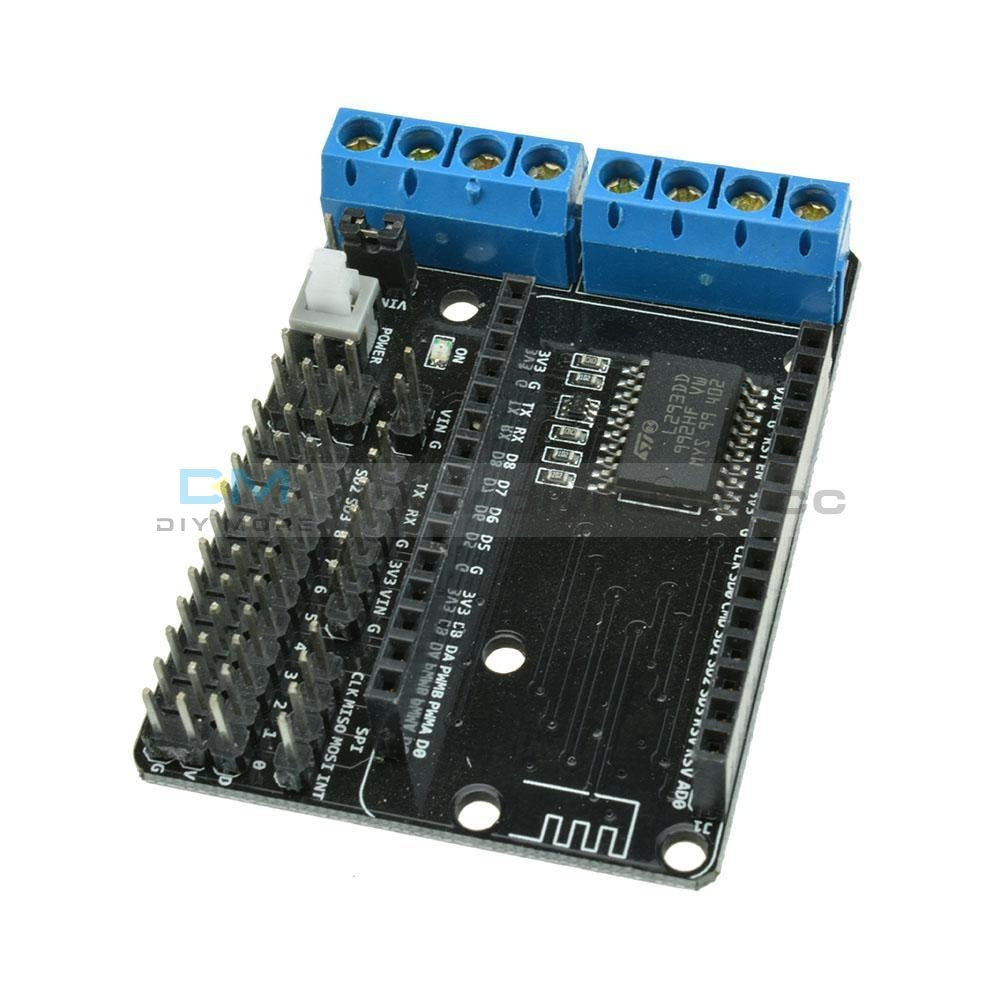

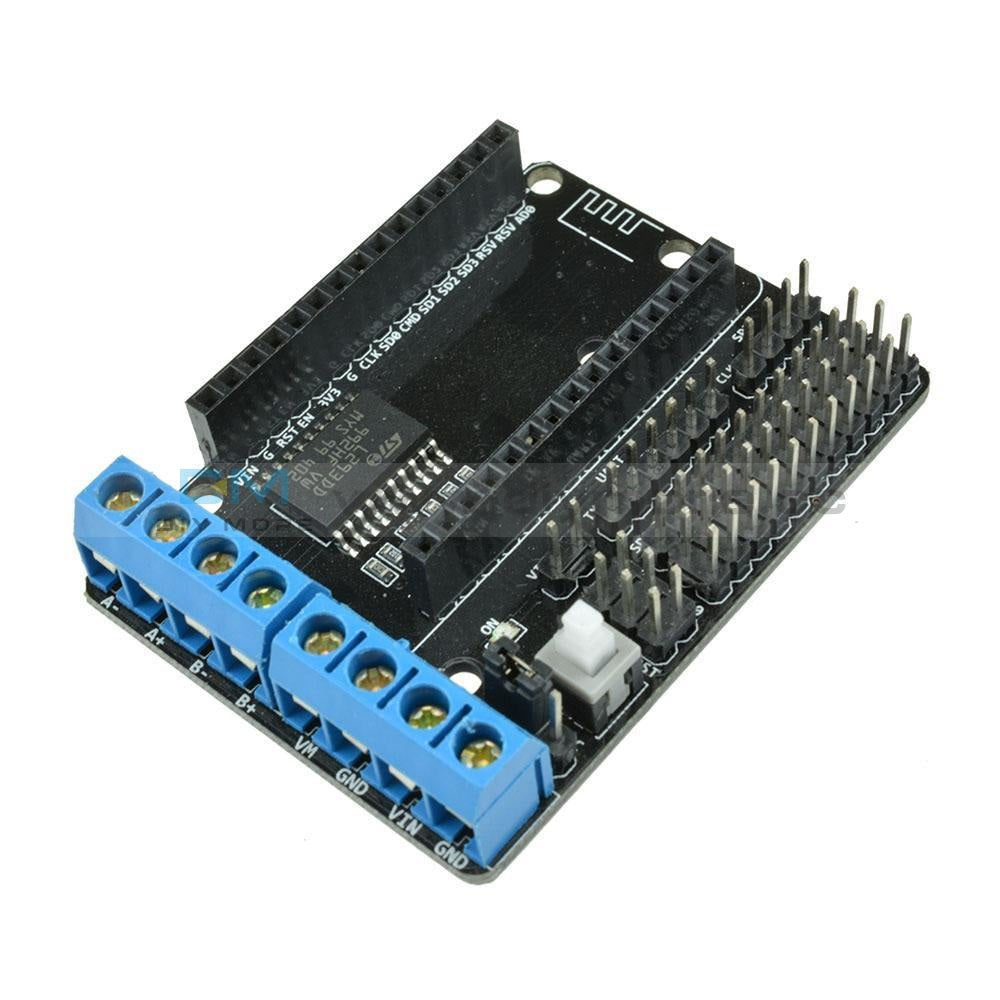

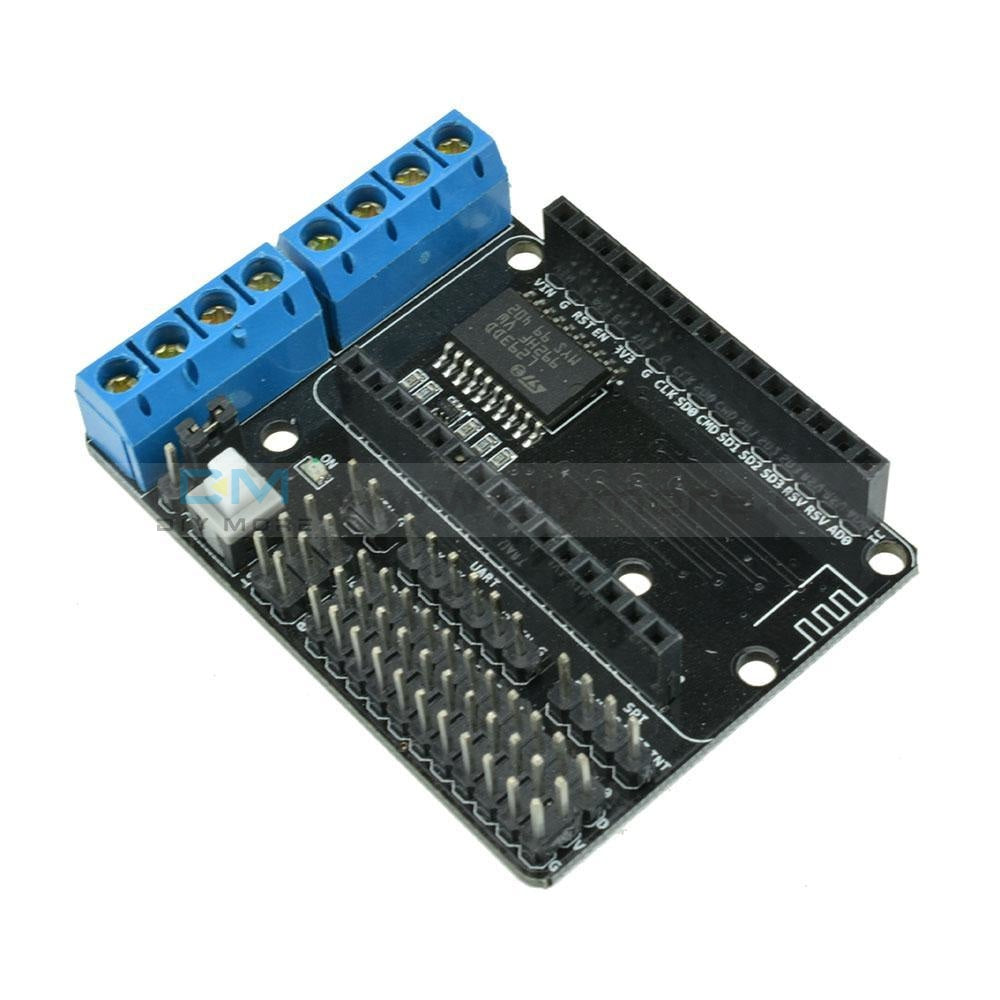

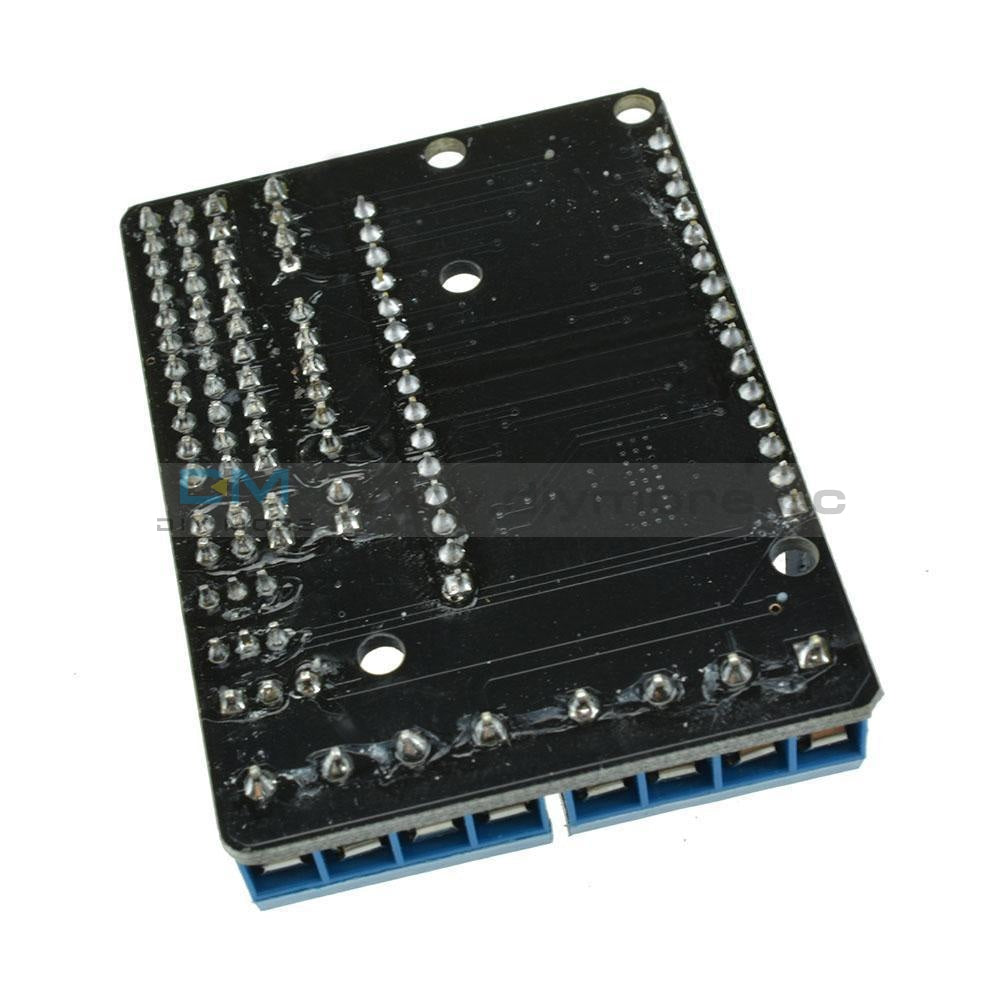

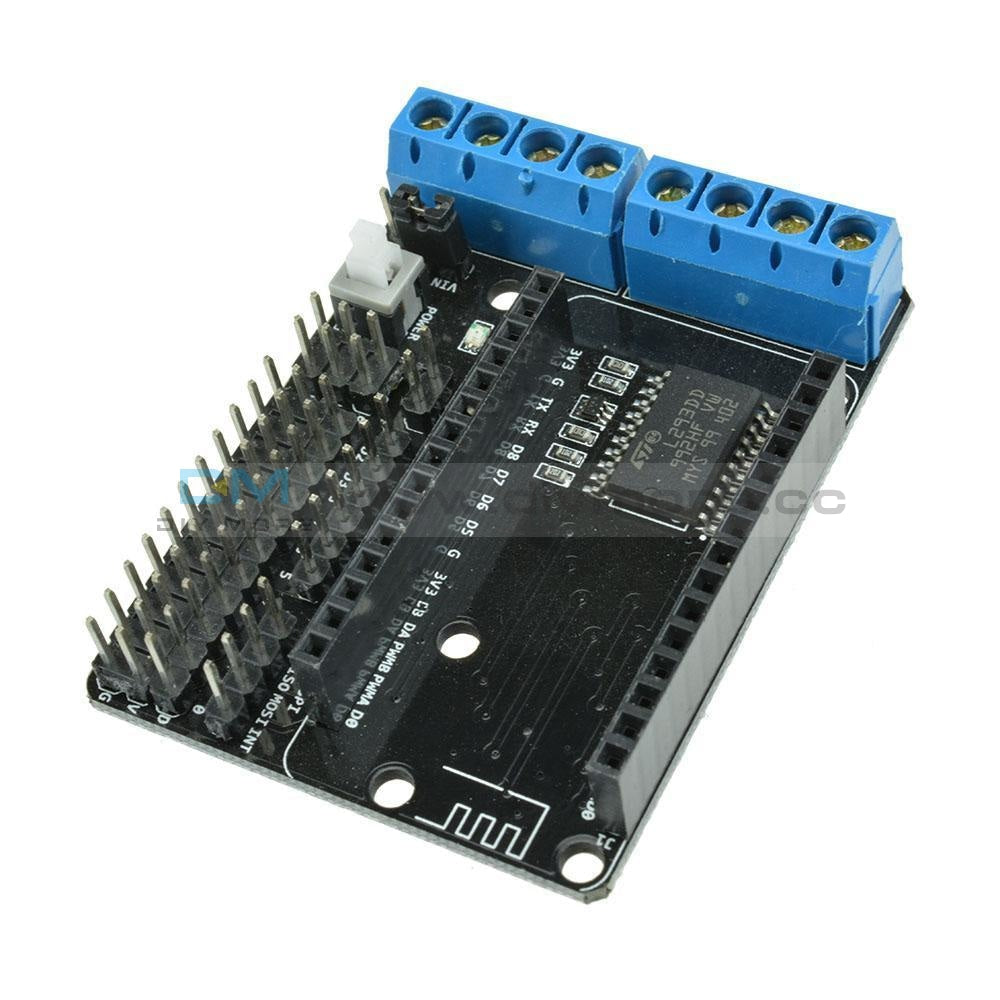

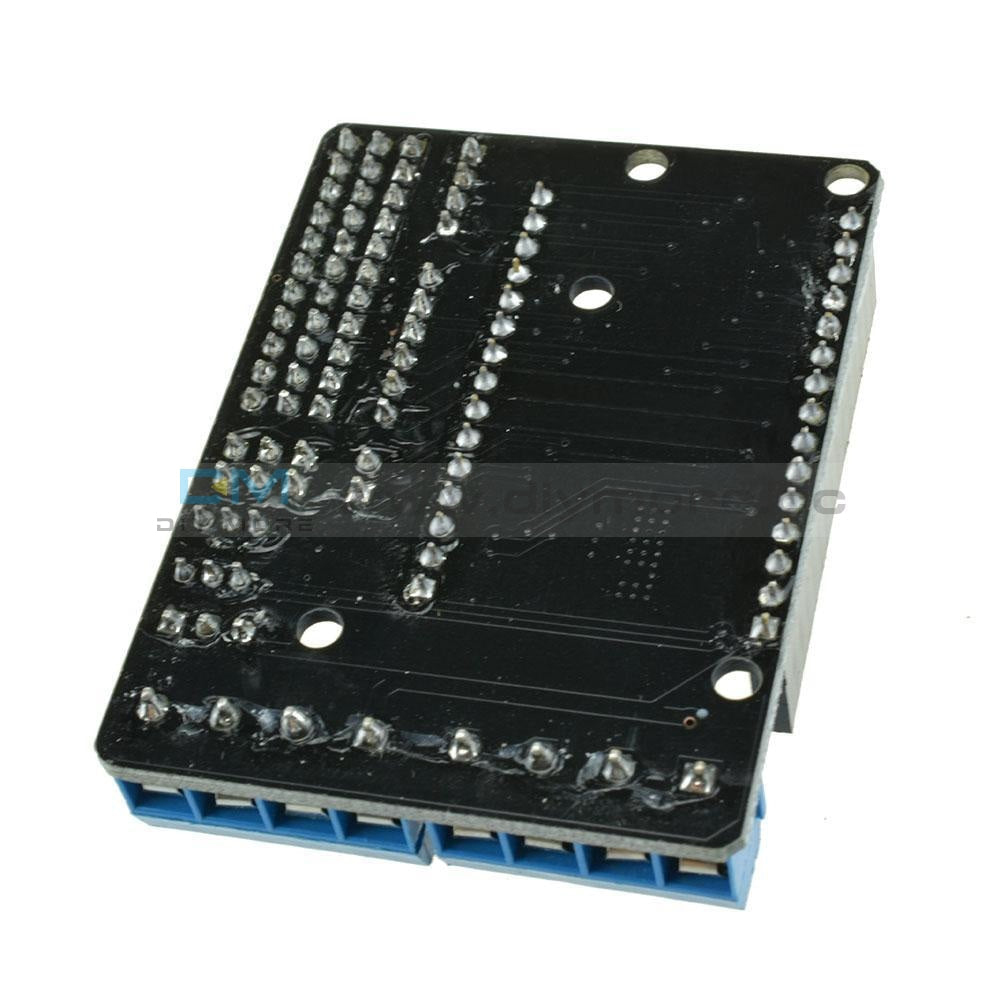

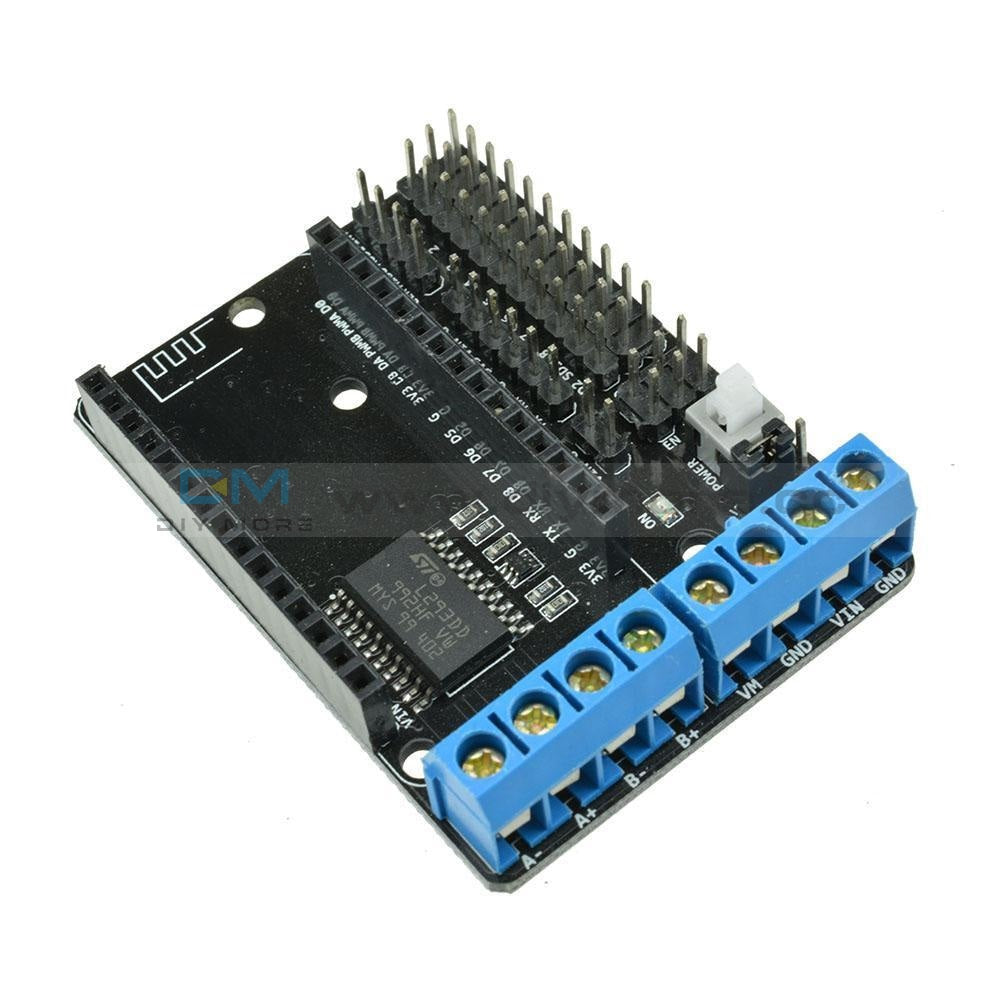

L293D Wifi Motor Drive Shield Module for Arduino NodeMcu Lua ESP8266 ESP-12E
L293D Wifi Motor Drive Shield Module for Arduino NodeMcu Lua ESP8266 ESP-12E
SKU:040094
Regular price
$5.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
Notice:
When inserted into the ESP-12E module,
please note the direction consistent with an expansion board antenna
The use of short modules that can simultaneously control board and motor.
Package Included:
1*L293D Wifi Motor Drive Shield
- Power input:
- Motor power supply (VM): 4.5V ~ 36V, can be powered separately
- Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately
- Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control
- Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H)
- Drive part of the work current Io: ≤1.2A
- Maximum power dissipation: 4W (T = 90 ℃)
- Control signal input level: High: 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
- Working temperature: -25 ℃ ~ + 125 ℃
- Drive Type: Dual high-power H-bridge driver
- ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
- Expand two-way motor-driven, two-way direct drive motor
- Onboard power switch
- Motor power, control power separation; In the experiment, by short-circuiting block the merger,
- the VIN and VM short, while power to the motor and the control board
Notice:
When inserted into the ESP-12E module,
please note the direction consistent with an expansion board antenna
The use of short modules that can simultaneously control board and motor.
Package Included:
1*L293D Wifi Motor Drive Shield
