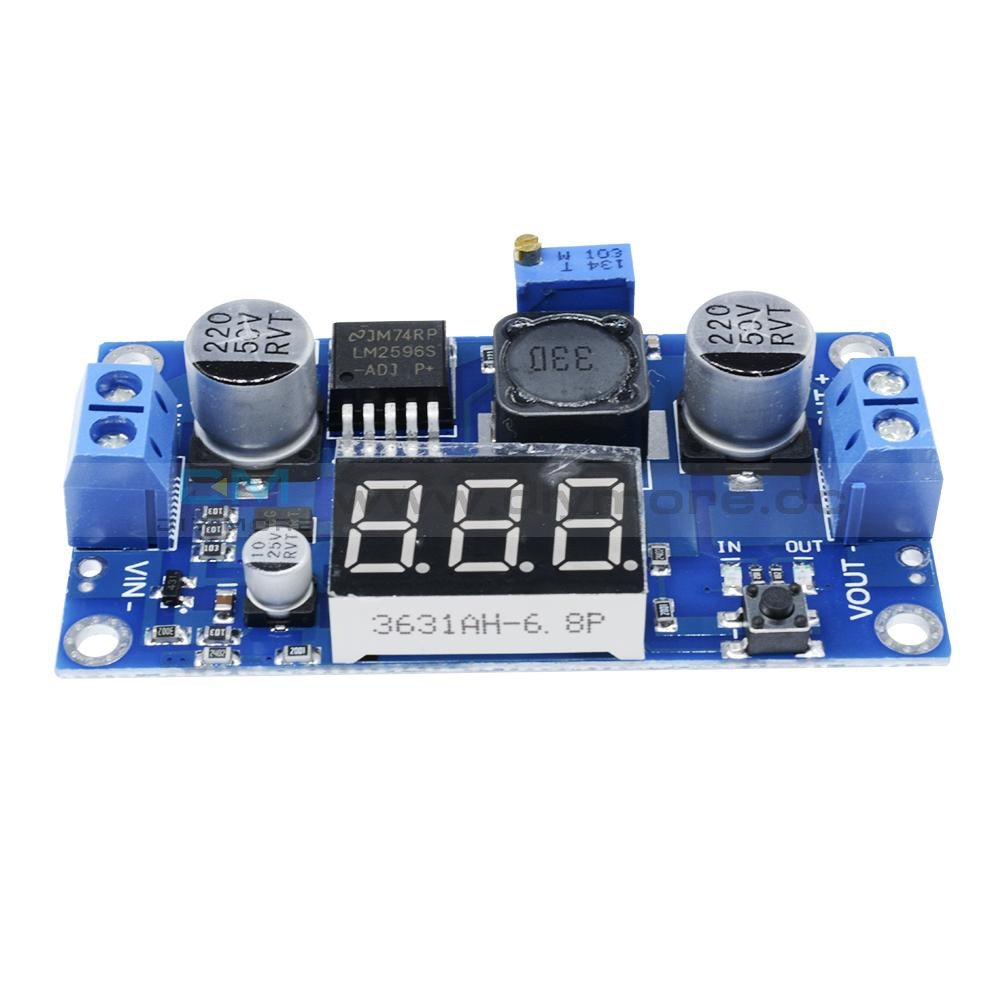

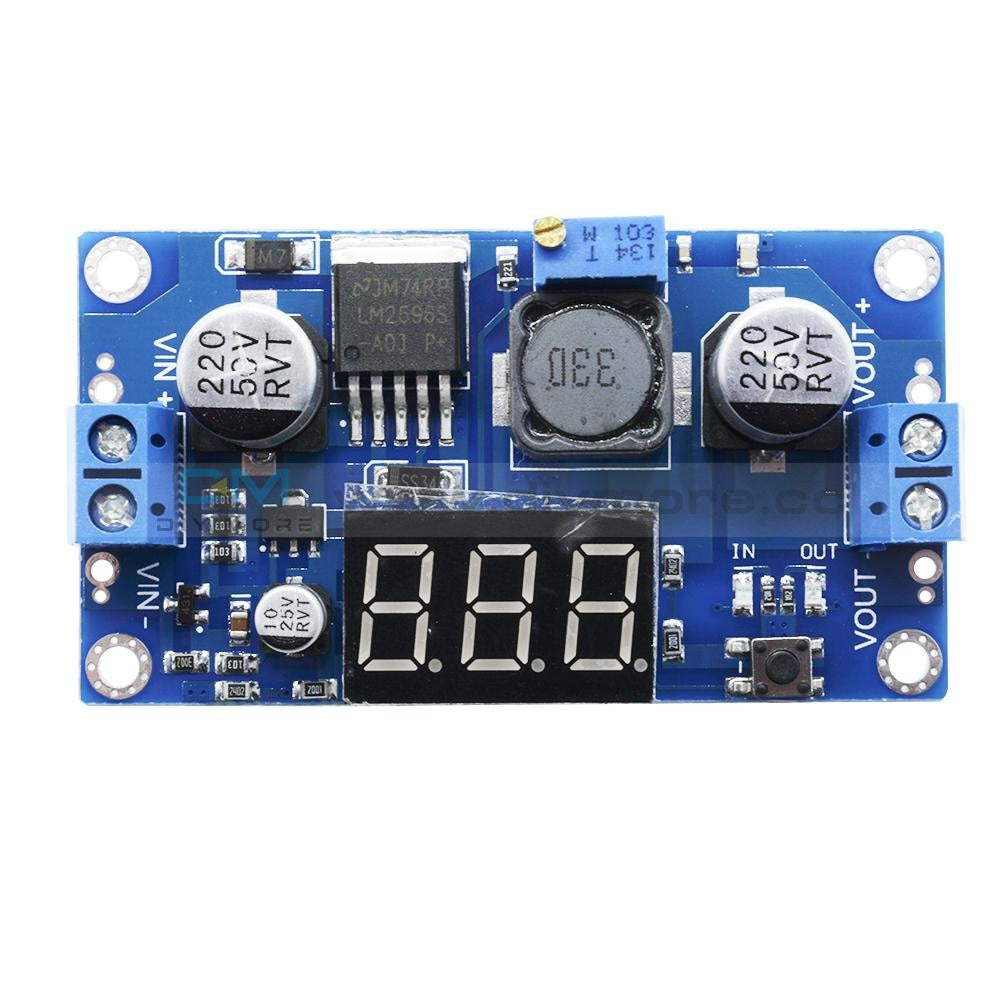

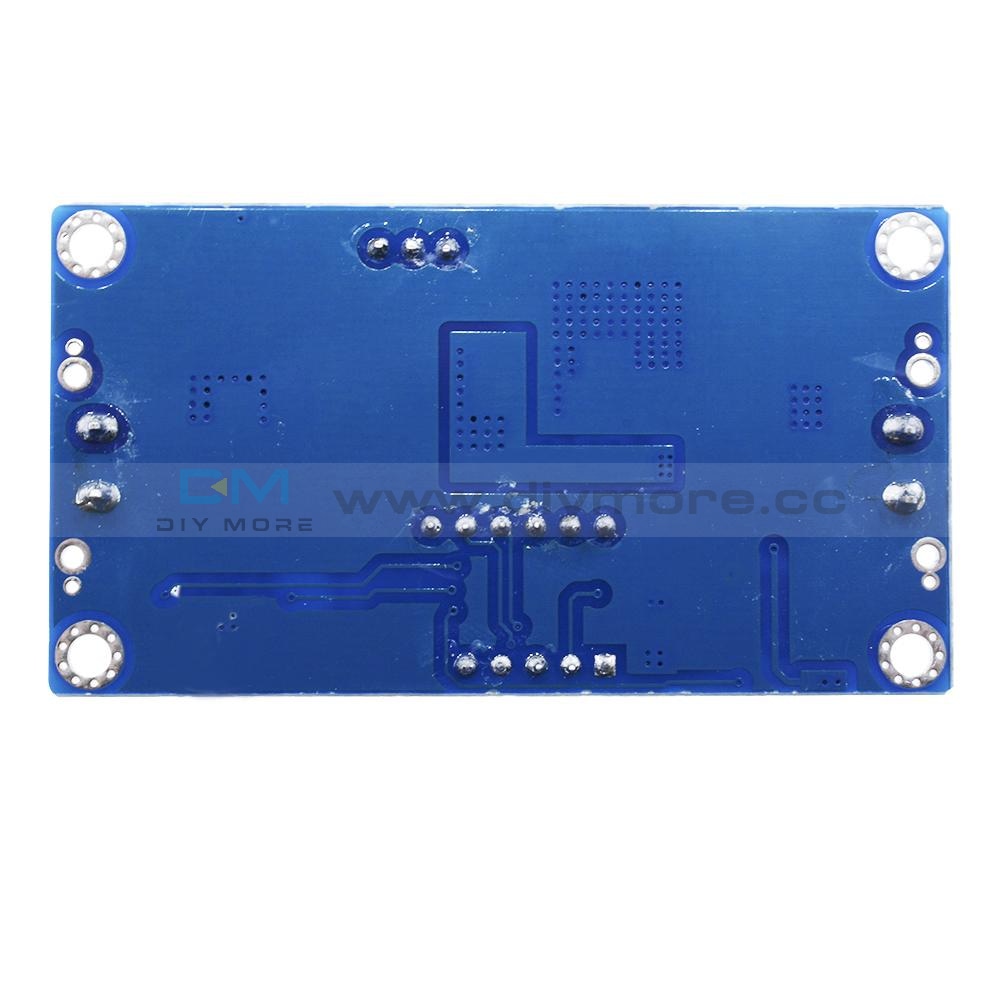

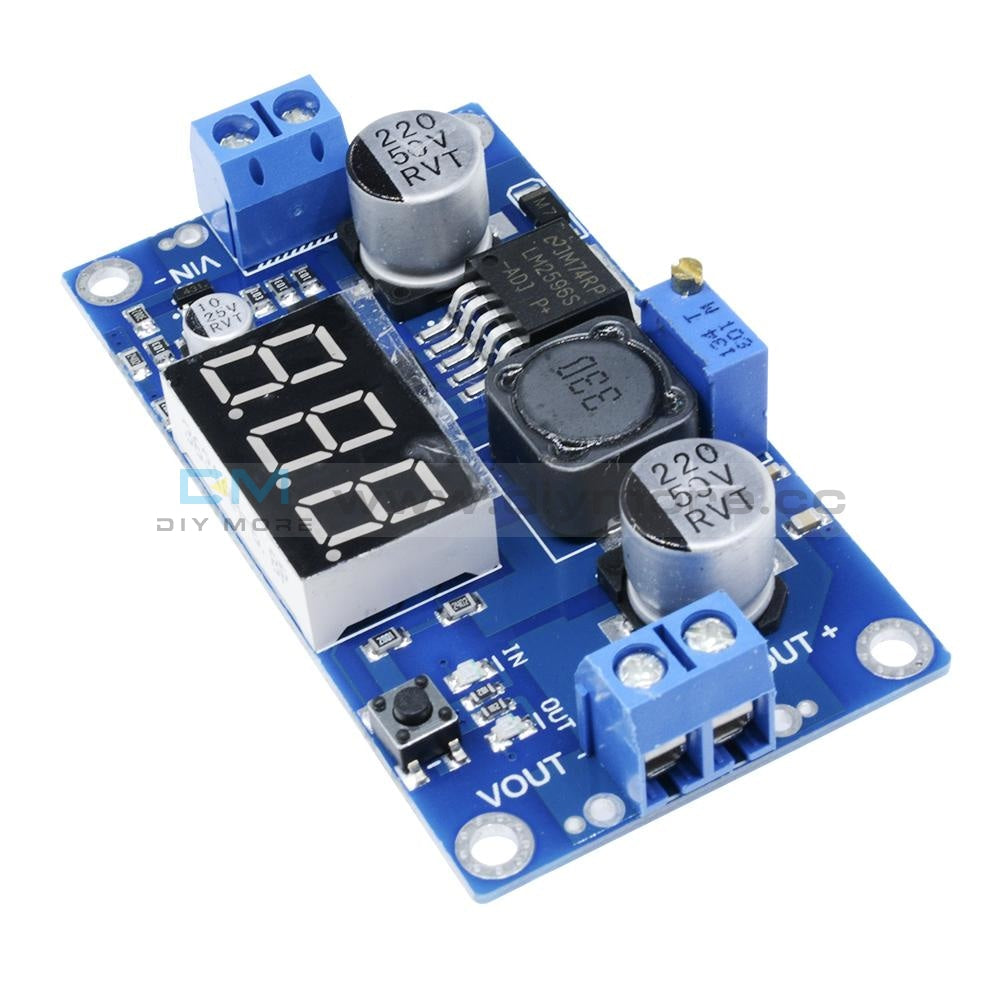

LM2596 Adjustable Step Down Board Power Converter Digital

LM2596 Adjustable Step Down Board Power Converter Digital

SKU:010050
Regular price $6.25 Sale price $3.13

shipped within one bussiness day



With voltage meter display,voltage meter error of±0.1V, the range of 0~40V. (note: to ensure that the voltage meter accuracy, please make sure that the input voltage is 4.2V or more).
Low light touch button switch measurement input or output voltage,and a light show is voltage measurement which road, and keep the last set, even if the power switch on again.
Voltmeter fine-tuning: hold down the button about 1-2s into fine-tuning mode, can remove button on the calibration at this time. (please do not use standby function, usually).
Low voltage meter can be closed,long press button closure voltmeter (minimum power loss).
Input voltage:4.2~40v(input voltage must be higher than to the output voltage of more than 1v).
Output voltage adjustable range1.25V~37V adjustable (input voltage must be higher than to the output voltage is more than 1V).
Maximum output current can be as high as 3A,normal and stableworking current in 2A.
Low the internal oscillation frequency, 150KHZ belong to the second generation of switch voltage regulator,low consumption, high efficiency.

Package Inclueded:

1 x modules

trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155



With voltage meter display,voltage meter error of±0.1V, the range of 0~40V. (note: to ensure that the voltage meter accuracy, please make sure that the input voltage is 4.2V or more).
Low light touch button switch measurement input or output voltage,and a light show is voltage measurement which road, and keep the last set, even if the power switch on again.
Voltmeter fine-tuning: hold down the button about 1-2s into fine-tuning mode, can remove button on the calibration at this time. (please do not use standby function, usually).
Low voltage meter can be closed,long press button closure voltmeter (minimum power loss).
Input voltage:4.2~40v(input voltage must be higher than to the output voltage of more than 1v).
Output voltage adjustable range1.25V~37V adjustable (input voltage must be higher than to the output voltage is more than 1V).
Maximum output current can be as high as 3A,normal and stableworking current in 2A.
Low the internal oscillation frequency, 150KHZ belong to the second generation of switch voltage regulator,low consumption, high efficiency.

Package Inclueded:

1 x modules
