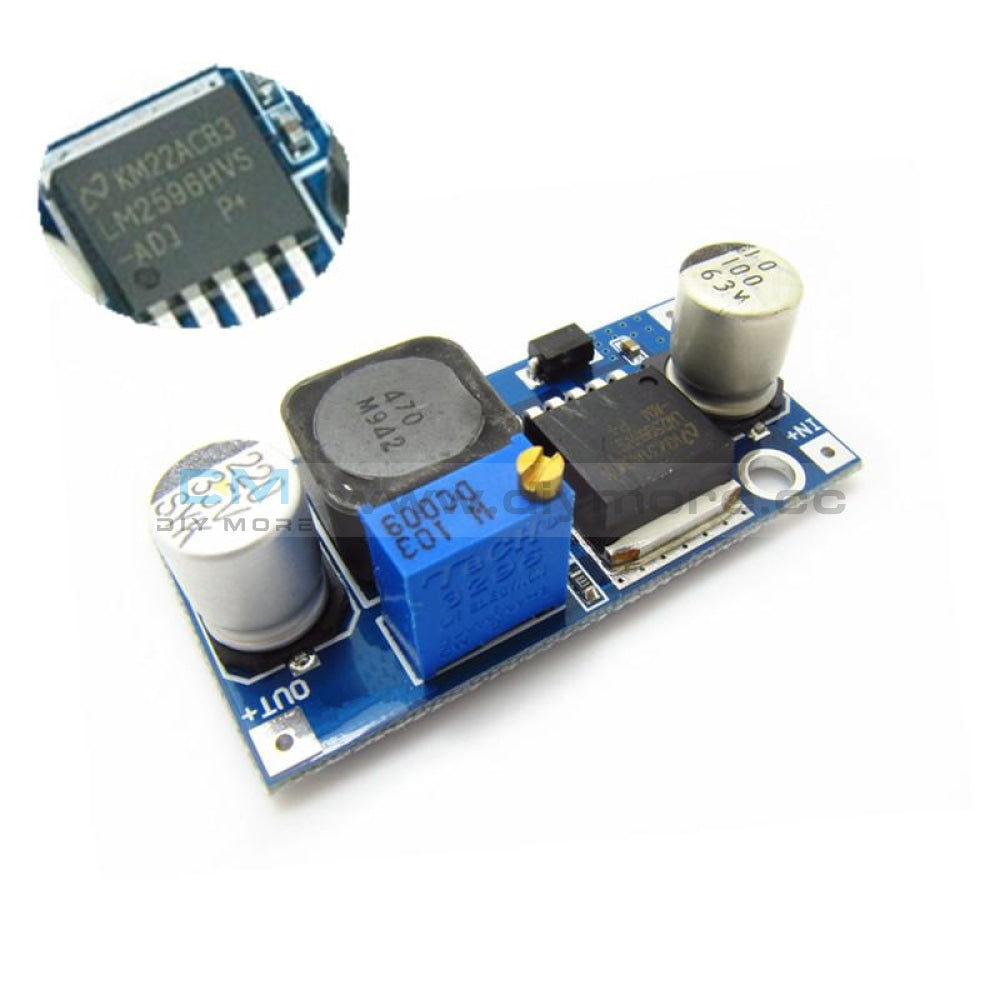

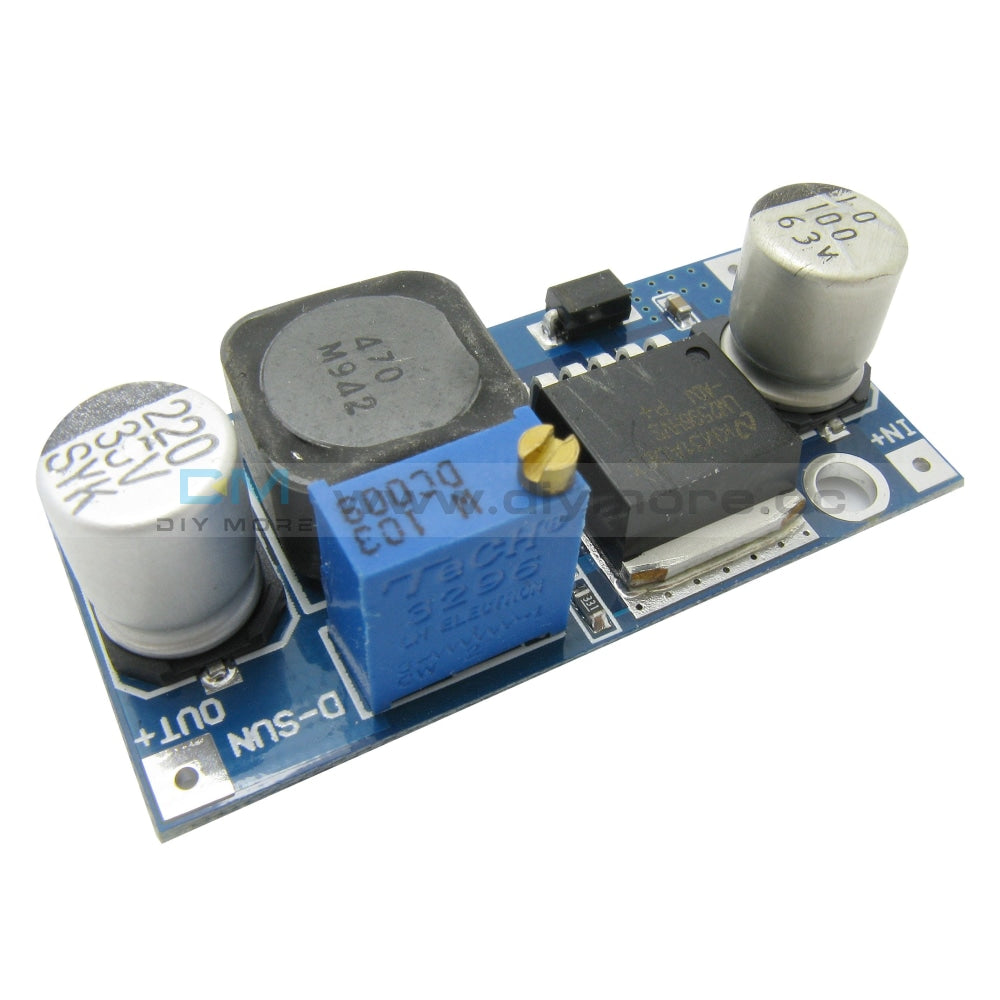

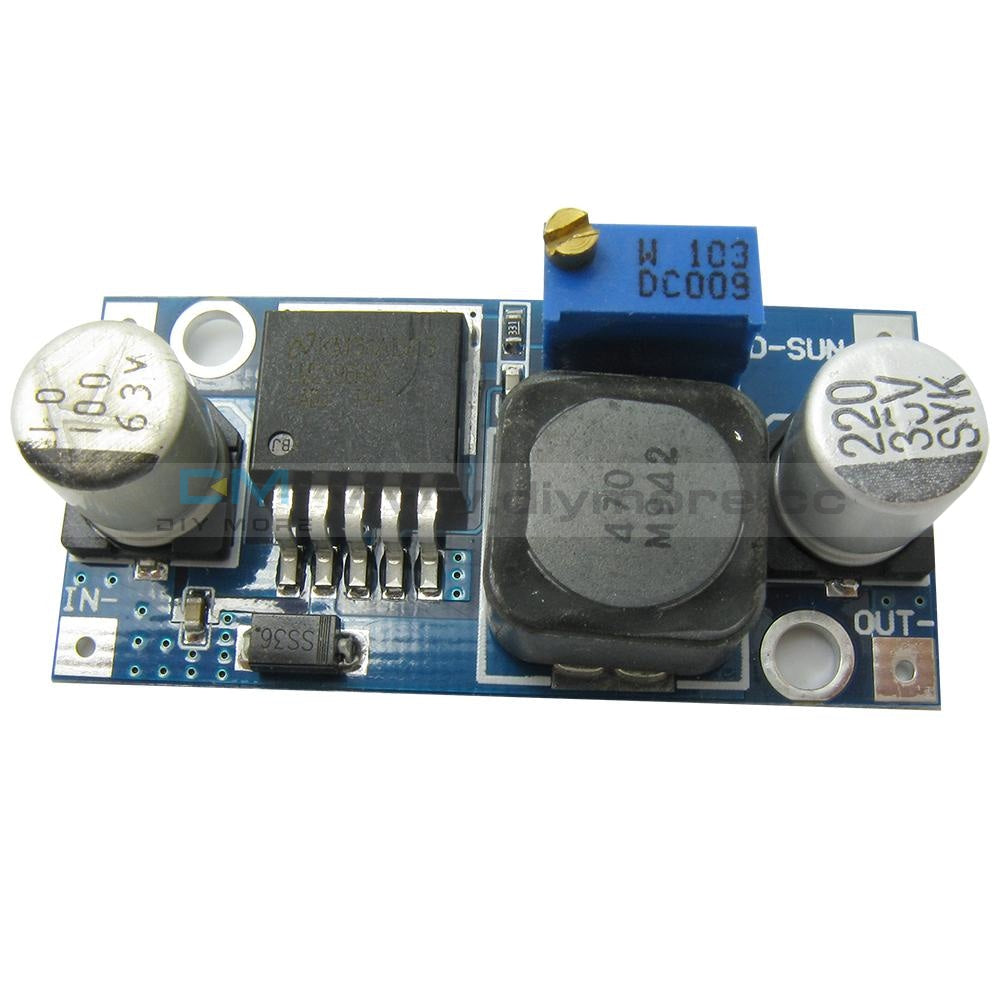

LM2596HVS LM2596HV DC-DC Adjustable Step Down Buck Converter Power Supply Module

LM2596HVS LM2596HV DC-DC Adjustable Step Down Buck Converter Power Supply Module

SKU:010054
Regular price $1.59

shipped within one bussiness day

Feature:

Type / name:LM2596HVS DC-DC step-down module
Input Voltage:4.5V ~ 53V
Output Voltage:3V ~ 40V
Output Current:3A (max)
Conversion efficiency:92% (the highest)
Output Ripple:<30mV
Switching frequency:150KHz
Operating Temperature:-45 ℃ ~ +85 ℃
Size:43mm * 21mm * 14mm (L * W * H)


IN-IN + input Positive Input Negative!
Positive output OUT + OUT-output negative
Input voltage range: DC 4.5V to 53V (input voltage must be greater than the output voltage to 1.5V or more high. Could not boost)
Output voltage range: DC 3V to 40V voltage is continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A.
Measured 12V input, 5V output current is 1A load regulation rate of less than 1%

Note:
It's LM2596HVS Not LM2596S Chip.
This is the step-down module, the input voltage must be higher than the output voltage.
Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add heat sink.

Package Included:
1PCS* DC-DC LM2596HVS LM2596HV Adjustable Step Down Buck Converter Power supply Mod
