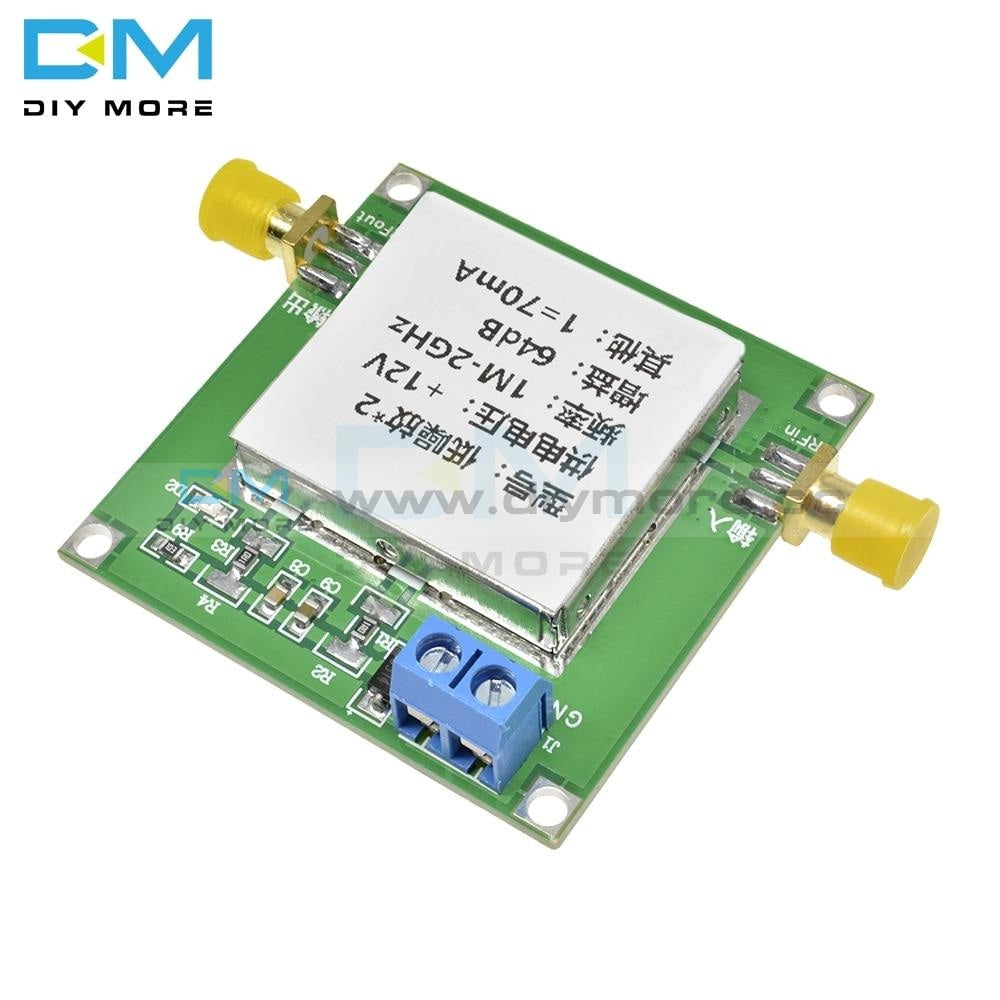

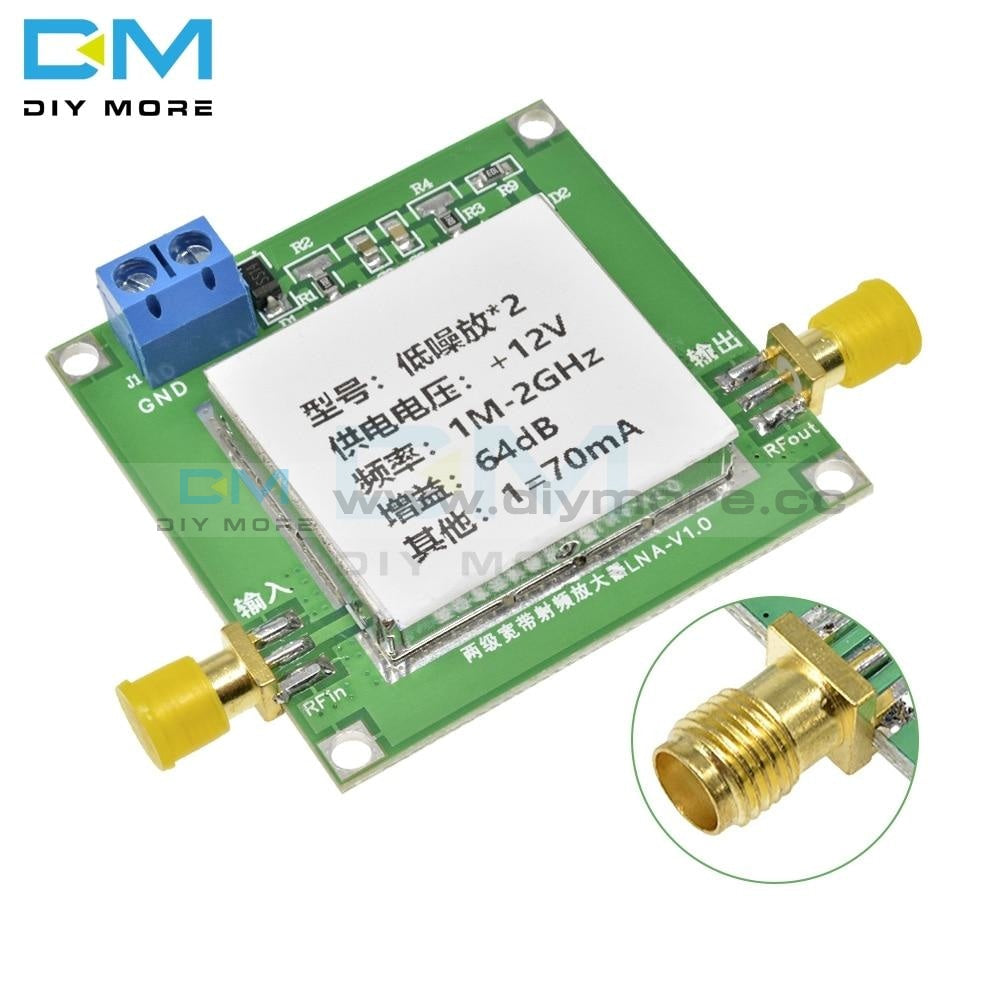

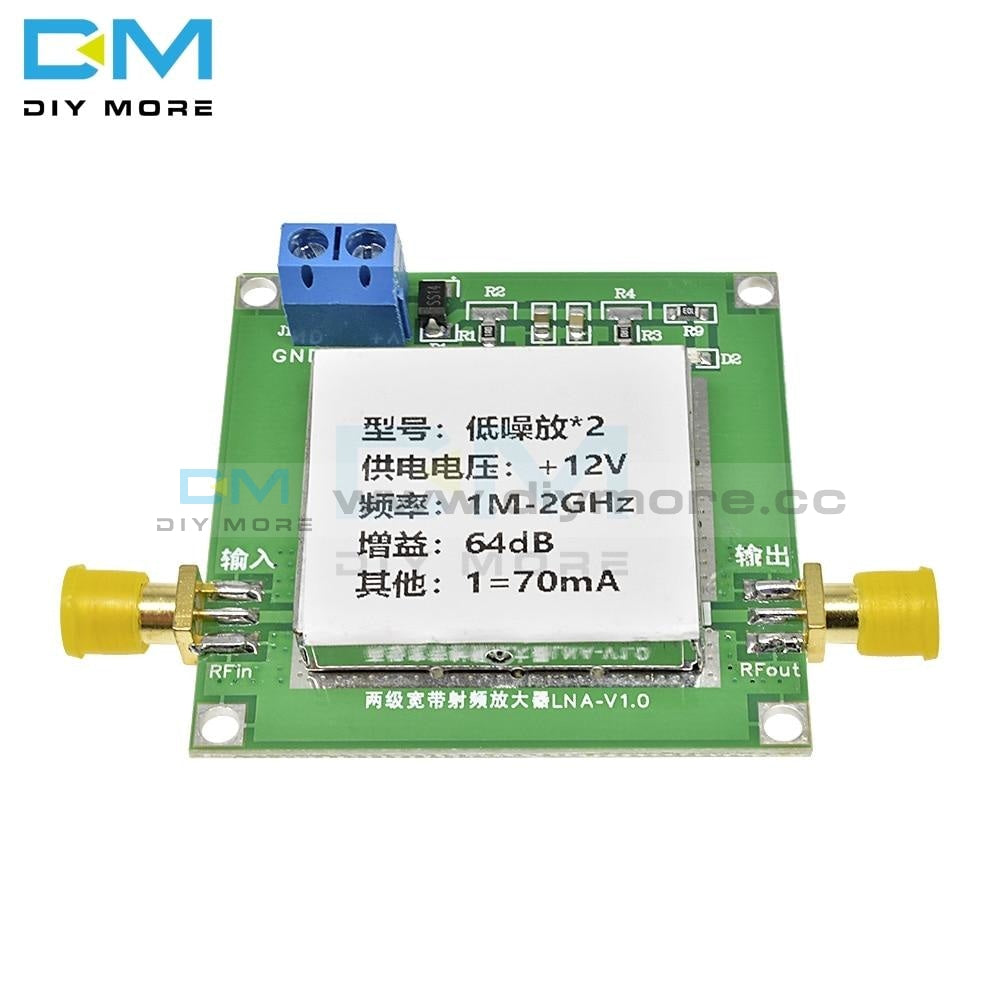

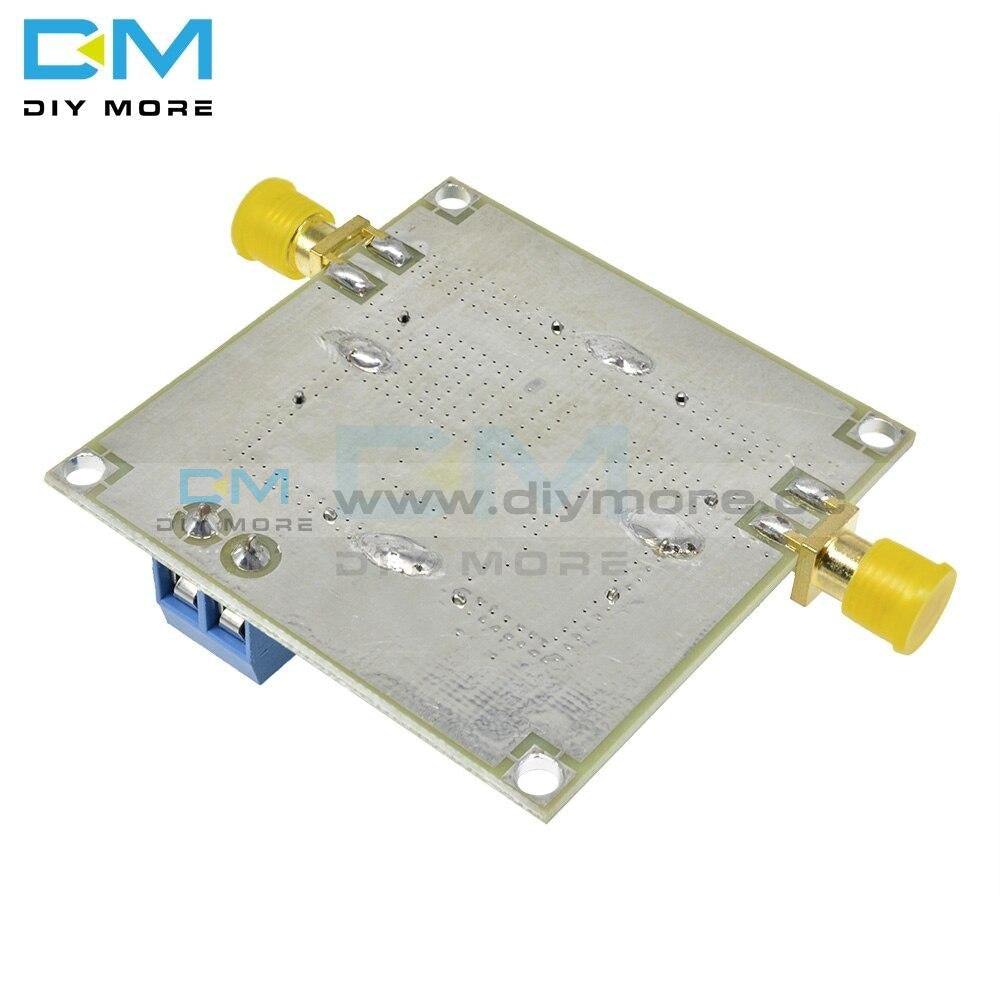

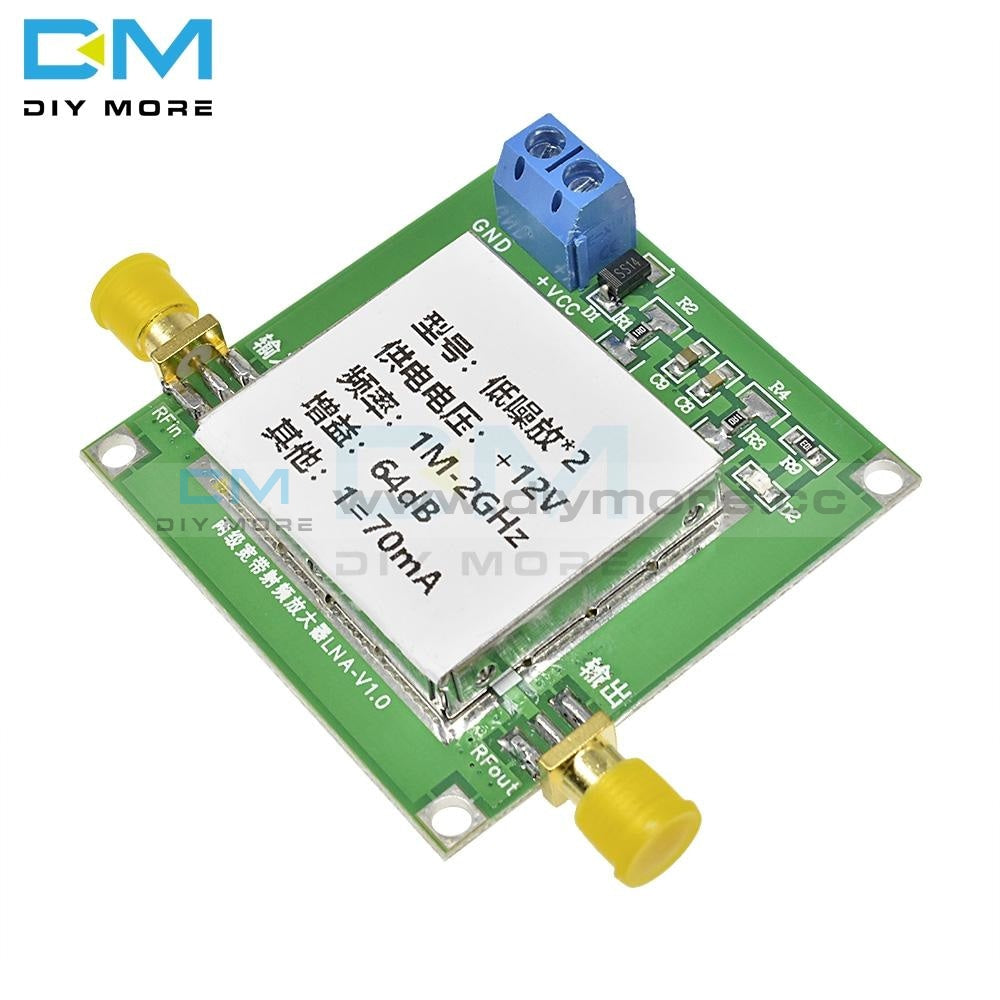

LNA 0.1-2GHz Gain 64dB RF Broadband Amplifier Board Low Noise Amplifier Module DC 12V Low Noice

LNA 0.1-2GHz Gain 64dB RF Broadband Amplifier Board Low Noise Amplifier Module DC 12V Low Noice

SKU:X13781
Regular price $12.99



Description:



low noise amplifierLNA2-2G-64DB

1. Power supply voltage:12V Direct(Current 70MA)Shielding enclosure

2. Gain:64DB input and output impedance: 50 ohm

3. Maximum output power:10dBm (2VPP50Under ohmic load)

4. Input signal:<=-54DBM(greater thanDBm -54Input output signal has been distorted)

5. Bandwidth, bandwidth:1MHzreach(2GHzDifferent frequency gain is different, specific please refer toS21Curve index)

6. Noise coefficient:2dB (0.5GHzCase measurement)

7. Other: the need for different gain values, you can reduce the supply voltage

8. Point frequency gain:GAIN=63.41 dB F=30.29MHZ

                   GAIN=66.43 dB F=310.2MHZ

                   GAIN=64.54dB F=620.2MHZ

                   GAIN=55.59 dB F=1.210GHZ

                   GAIN=48.18 dB F=1.590GHZ

                   GAIN=38.44 dB F=1.810GHZ

                   GAIN=39.58 dB F=2.000GHZ



Package included:



1 x 0.1-2GHz 64dB Gain RF Broadband Amplifier Board
