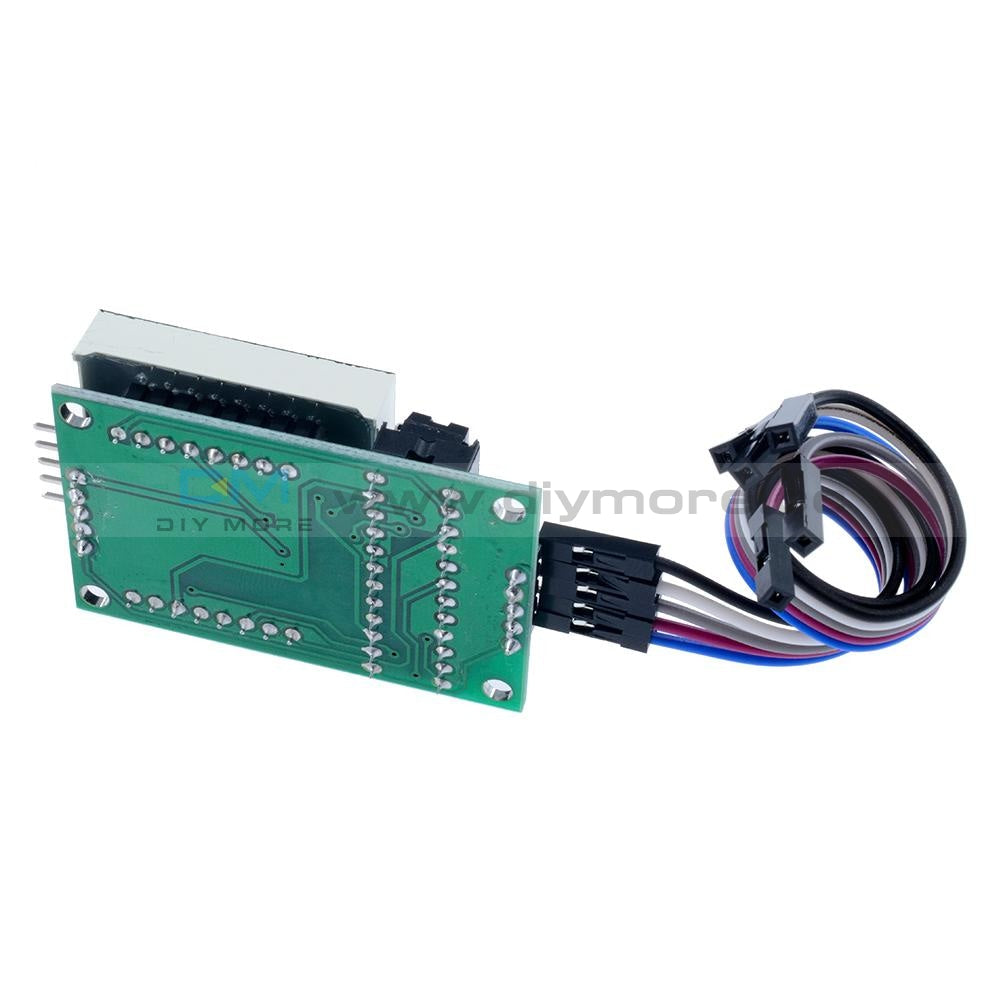

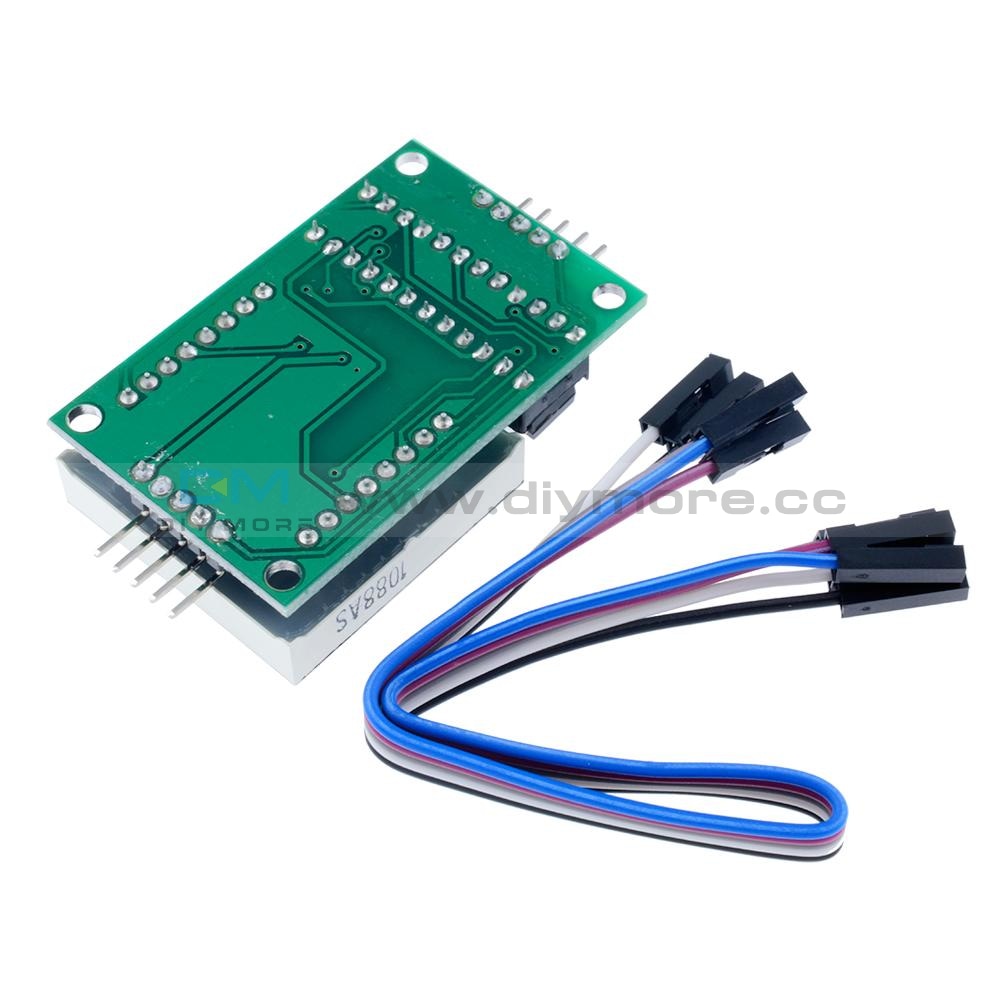

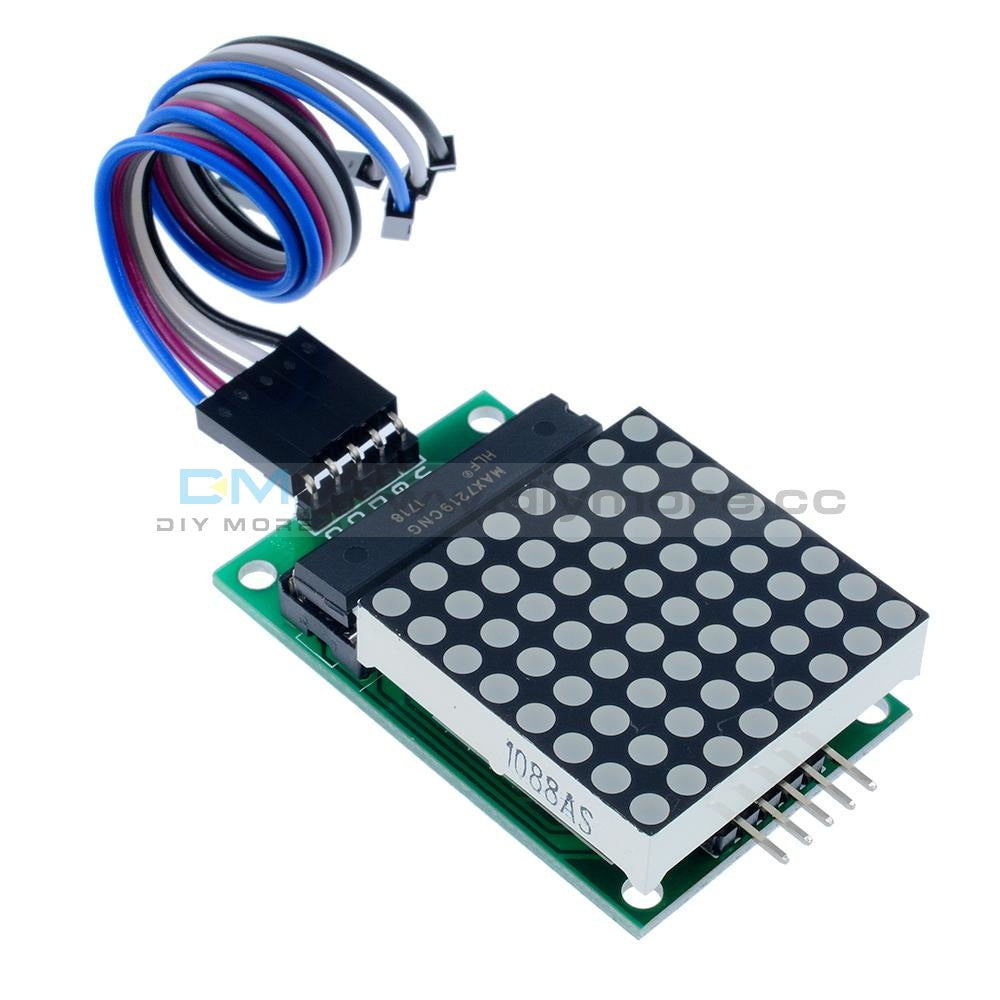

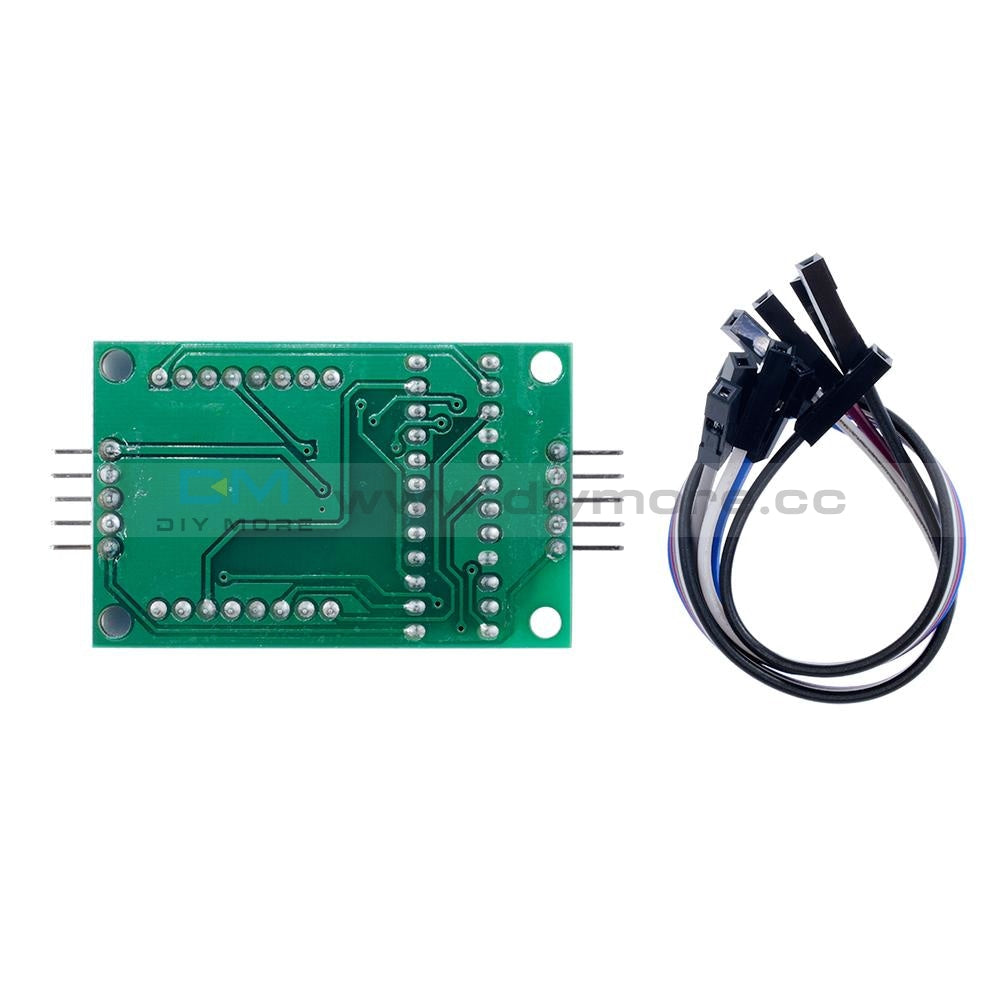

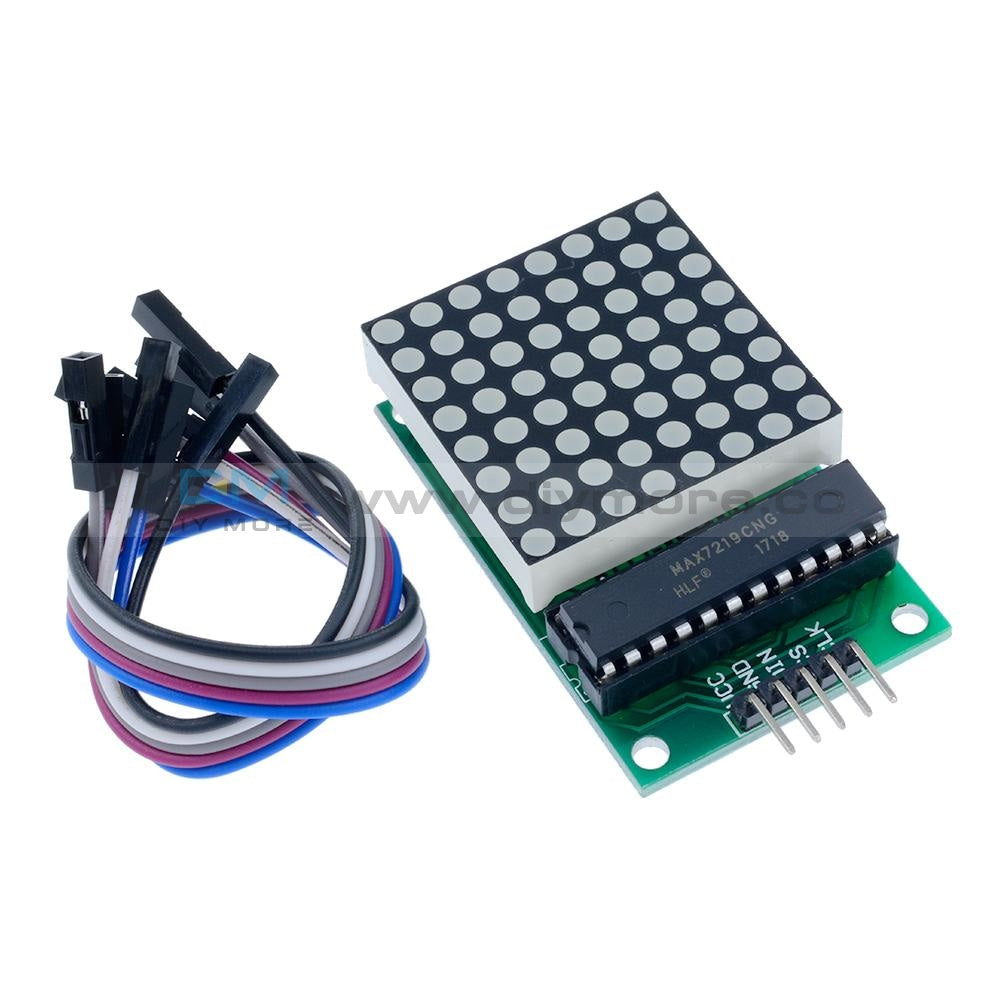

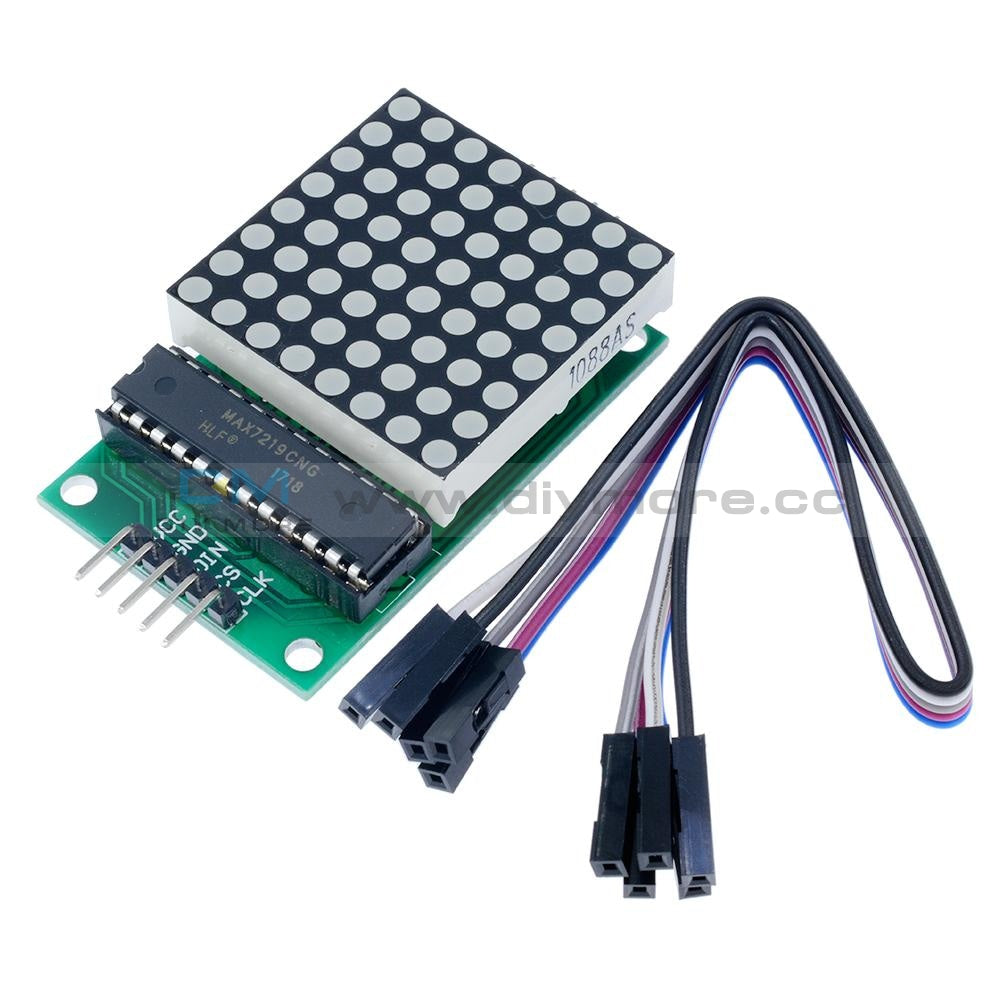

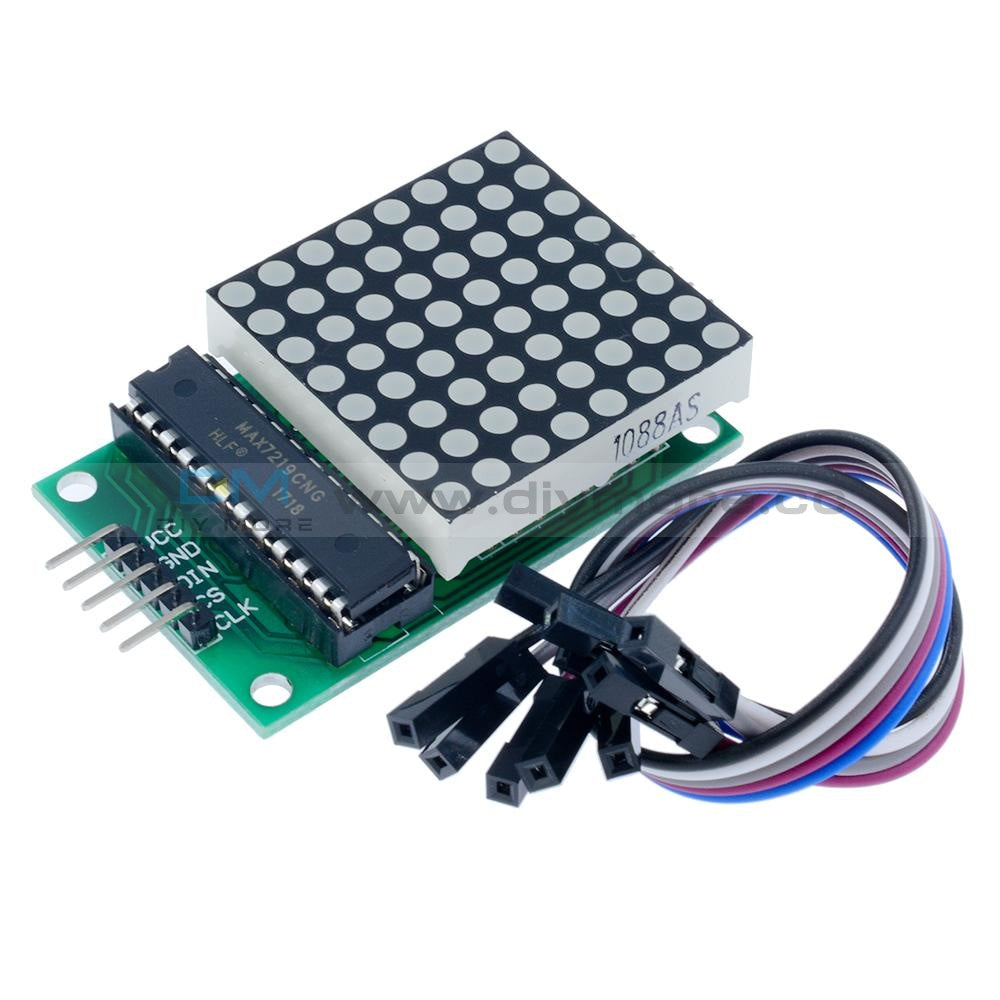

MAX7219 8 x 8 Dots Led Matrix Module MCU LED Display Controller Module for Arduino 5V Interface Module Output Input Common Cathode

MAX7219 8 x 8 Dots Led Matrix Module MCU LED Display Controller Module for Arduino 5V Interface Module Output Input Common Cathode

SKU:010217
Regular price $2.59

shipped within one bussiness day

Parameters:
1.Led Colour: Red
2.Module Operating voltage: 5V.
3.Module Size: 5 cm X 3.2 cm X 1.5 cm
4.A single module can drive an 8 * 8 common cathode lattice.
5.With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed.
6.Module with input and output interfaces, supports multiple modules cascade

Wiring instructions:
1.The module left as an input port to the output port on the right.
2.The control of a single module, simply input port to the CPU
3.Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ...

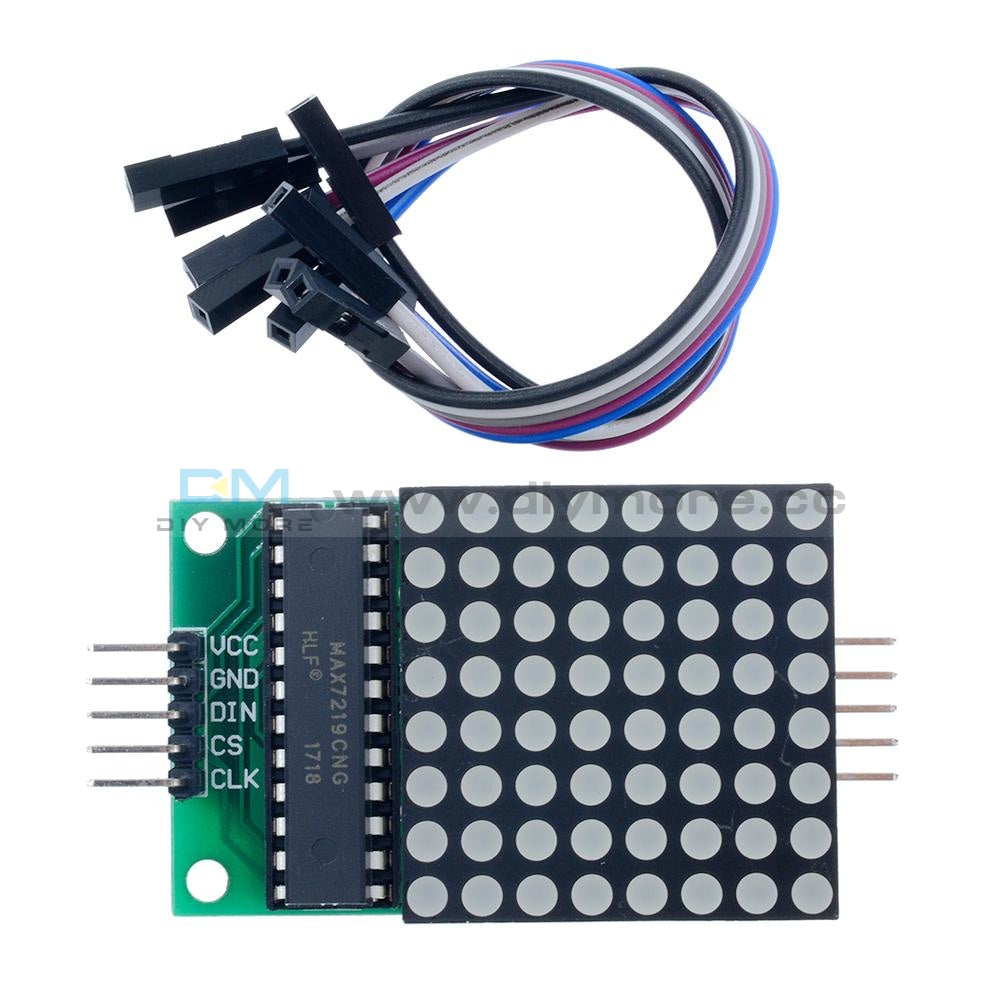

51 MCU, for example: VCC 5V GND GND DIN P22 CS P21 CLK P20

Package Included:
1 X MAX7219 8X8 Dots Led Matrix Module
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Parameters:
1.Led Colour: Red
2.Module Operating voltage: 5V.
3.Module Size: 5 cm X 3.2 cm X 1.5 cm
4.A single module can drive an 8 * 8 common cathode lattice.
5.With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed.
6.Module with input and output interfaces, supports multiple modules cascade

Wiring instructions:
1.The module left as an input port to the output port on the right.
2.The control of a single module, simply input port to the CPU
3.Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ...

51 MCU, for example: VCC 5V GND GND DIN P22 CS P21 CLK P20

Package Included:
1 X MAX7219 8X8 Dots Led Matrix Module
