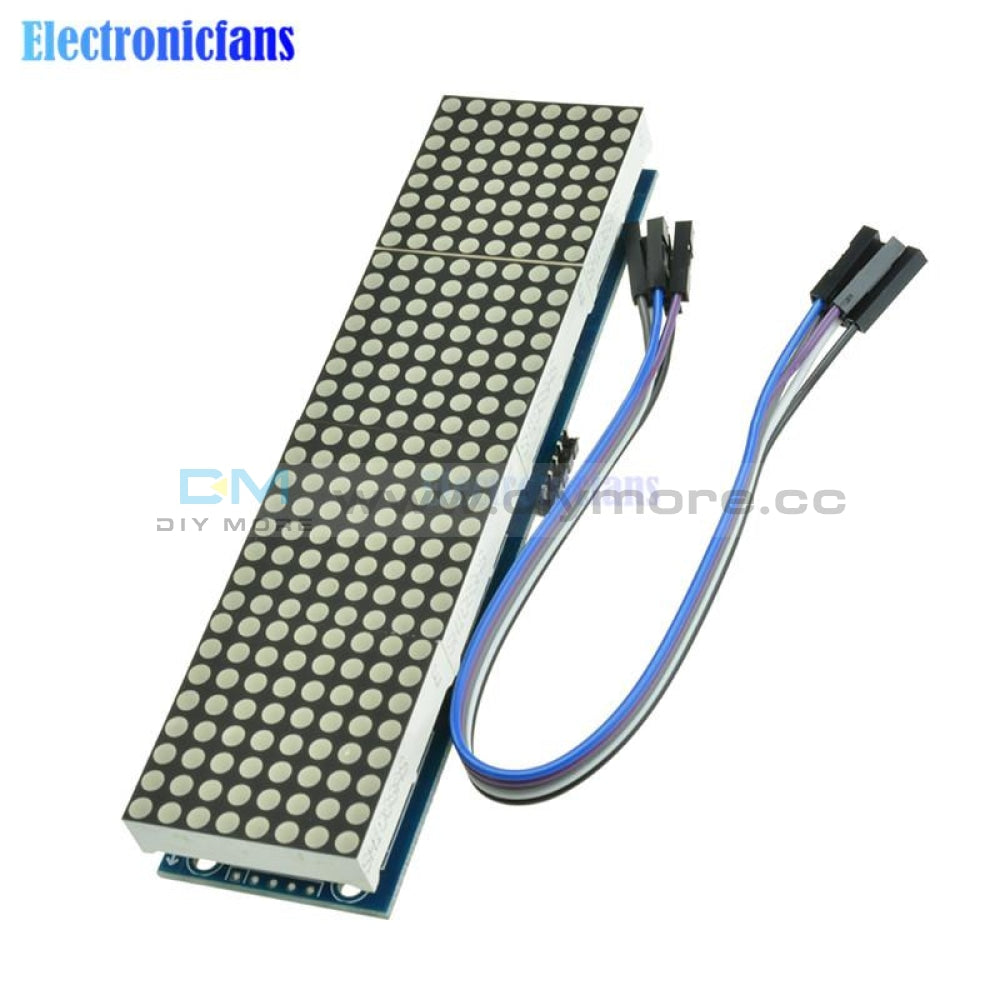

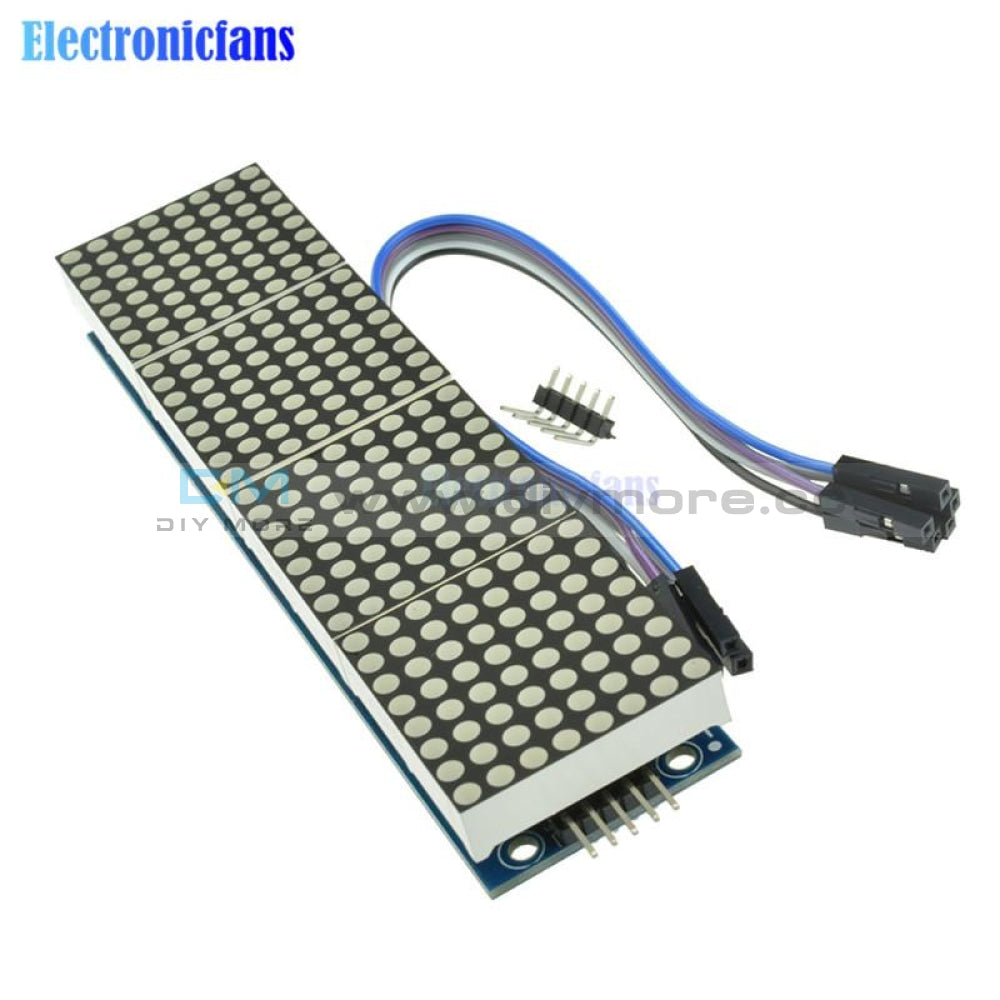

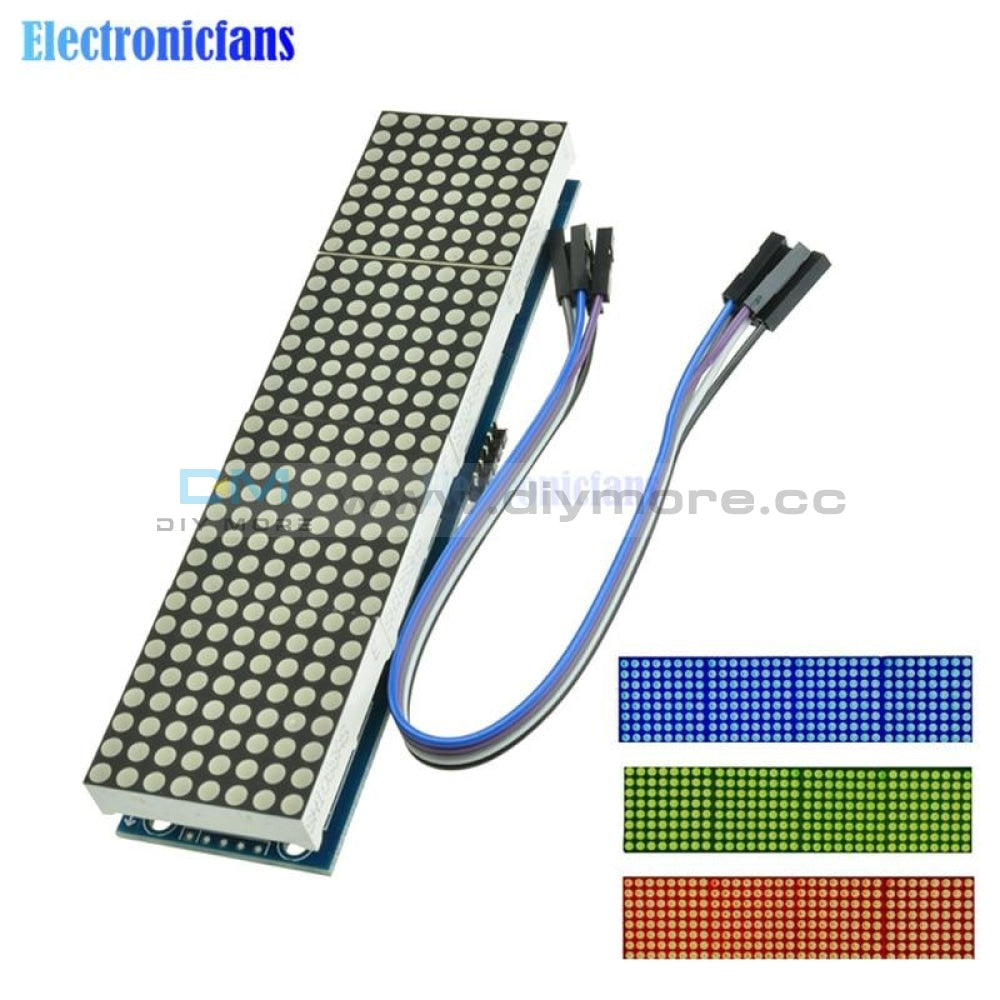

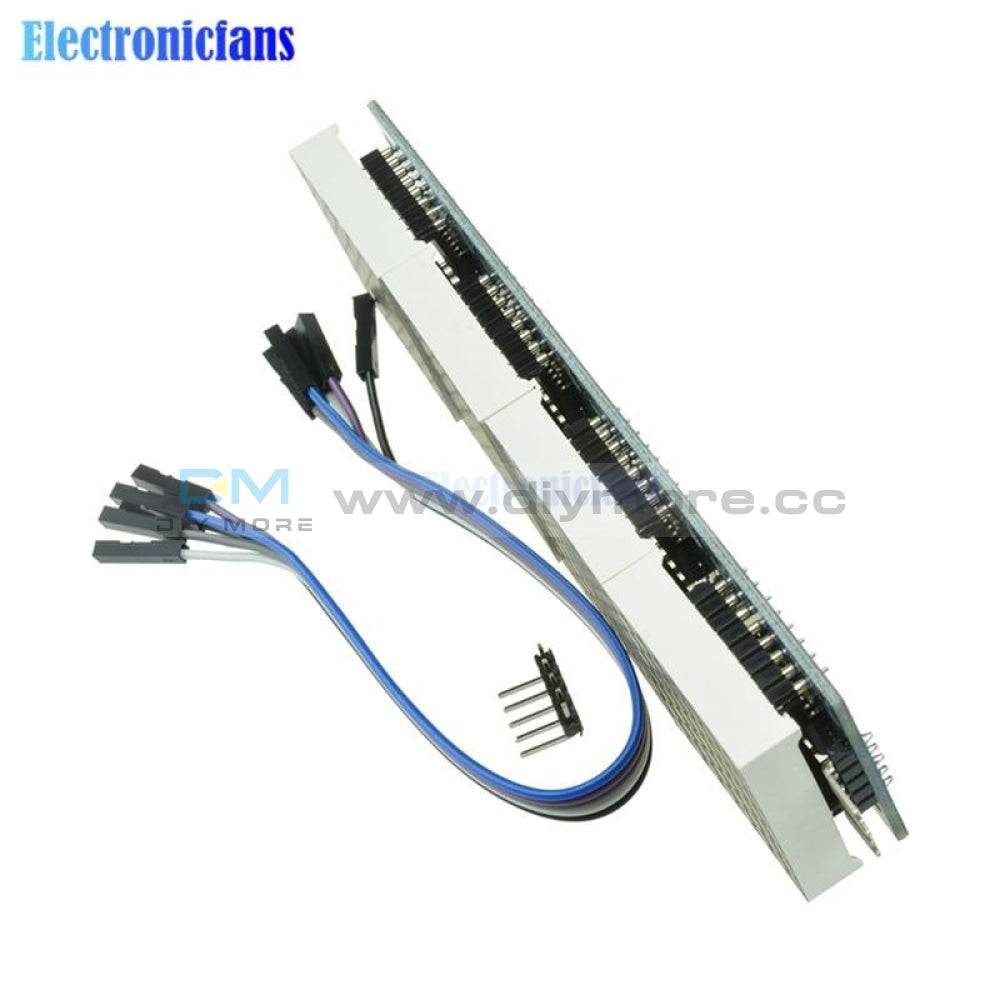

MAX7219 LED Microcontroller 4 In 1 Display with 5P Line Dot Matrix Module 5V Operating Voltage for Arduino 8x8 Dot Matrix Common
MAX7219 LED Microcontroller 4 In 1 Display with 5P Line Dot Matrix Module 5V Operating Voltage for Arduino 8x8 Dot Matrix Common
SKU:010856
Regular price
$8.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
100% brand new and high quality
Description:
A single module can drive a 8x8 dot matrix common cathode
Operating Voltage: 5V
Dimensions: 12.8X12.8X1.3cm/
Fixing screws with 64 holes with a diameter 3mm

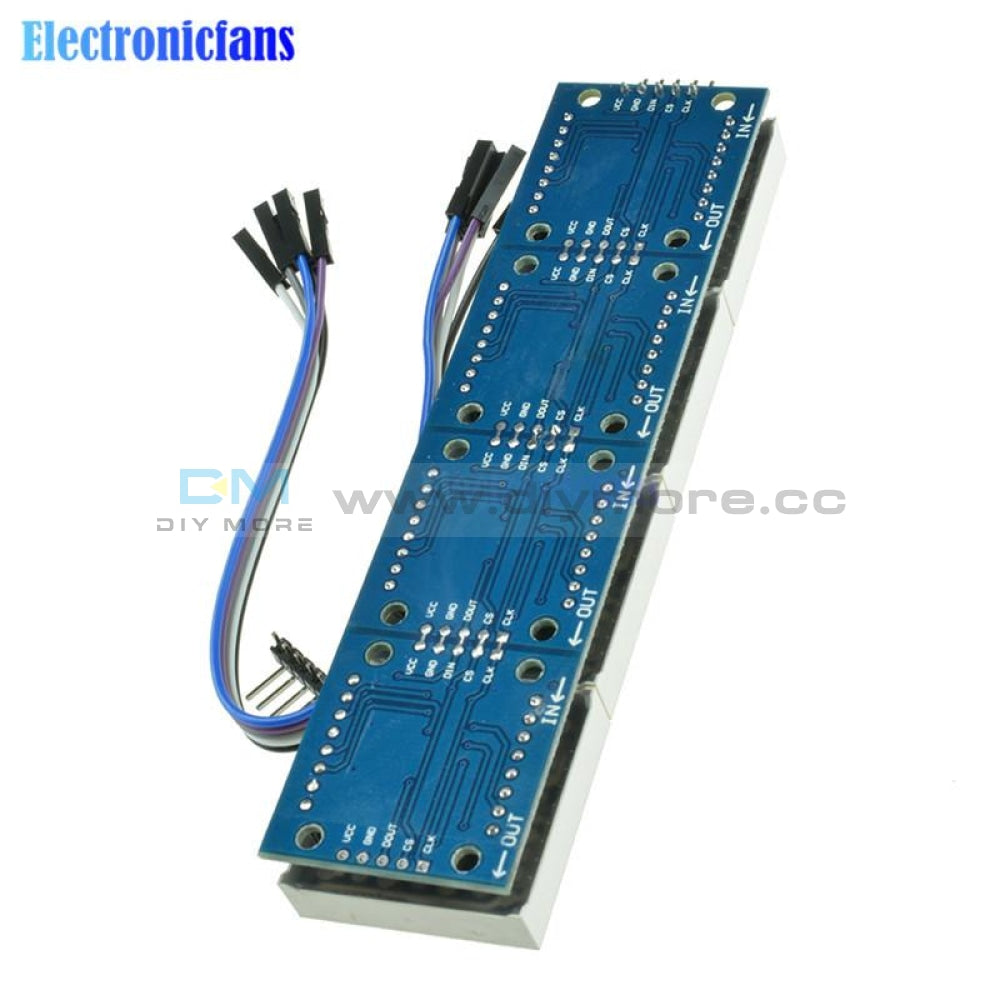

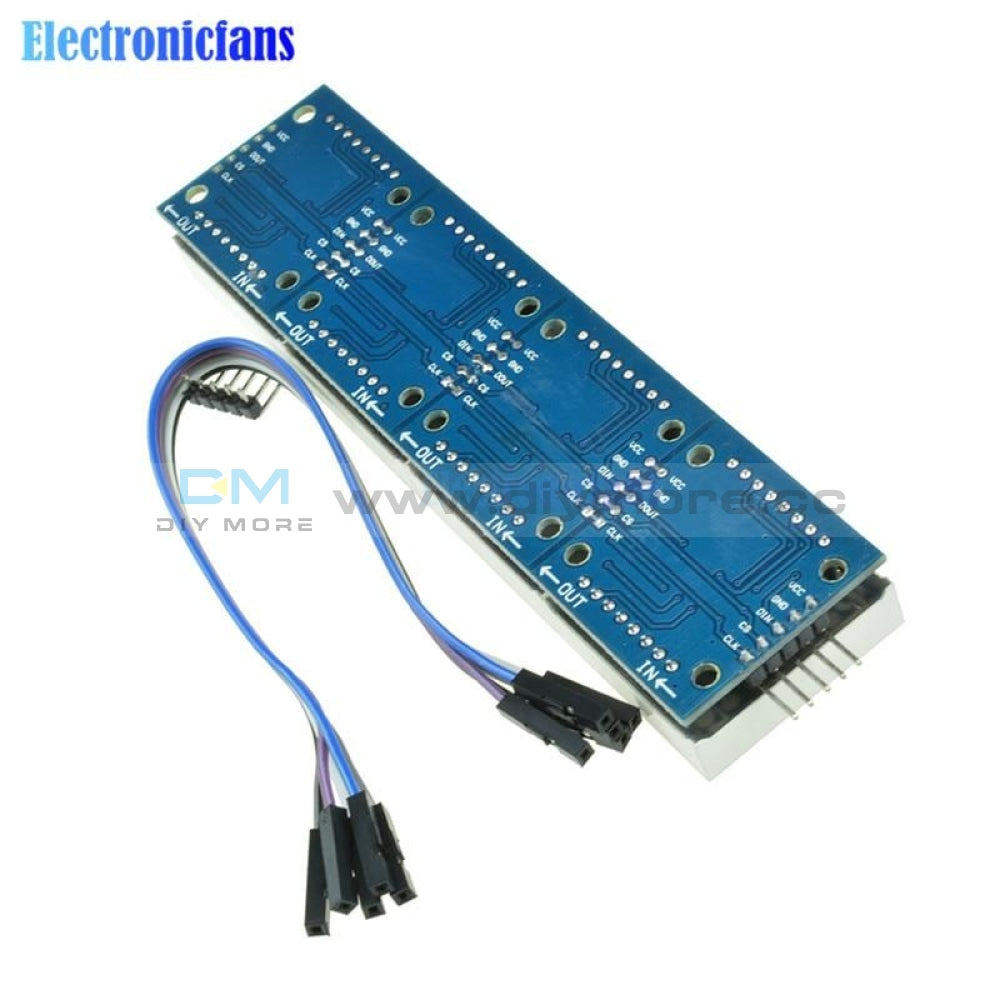

Module with input and output interfaces, support for cascading multiple modules
Wiring Instructions:
The left side of the module to the input port, the right to an output port
When the control of a single module, simply input port connected to CPU
When a plurality of cascaded modules, input and output termination CPU,
an input terminal of the second output end of the first module a module, t
he first two modules of the input terminal of the three termination modules, and so on...
51 microcontrollers,
51 microcontrollers,
For example:
VCC → 5V
GND → GND
DIN → P2.2
CS → P2.1
CLK → P2.0
Package Included:
- 1 x MAX7219 Microcontroller 4 In 1 Display with 5P Line Dot Matrix Module for Arduino
