Mini 5V MP3 Decoder Board Bluetooth Call Decoding module MP3 FM WAV U Disk & TF Card USB With 2*3W Amplifier Remote Controller

Mini 5V MP3 Decoder Board Bluetooth Call Decoding module MP3 FM WAV U Disk & TF Card USB With 2*3W Amplifier Remote Controller

SKU:X12984
Regular price $7.99

NOTE:
MINI USB-IN can not be used directly if not connected to the battery.Must connect the battery at first, then use MINI USB IN.Otherwise it may damage the decoder board.
Product Introduction:

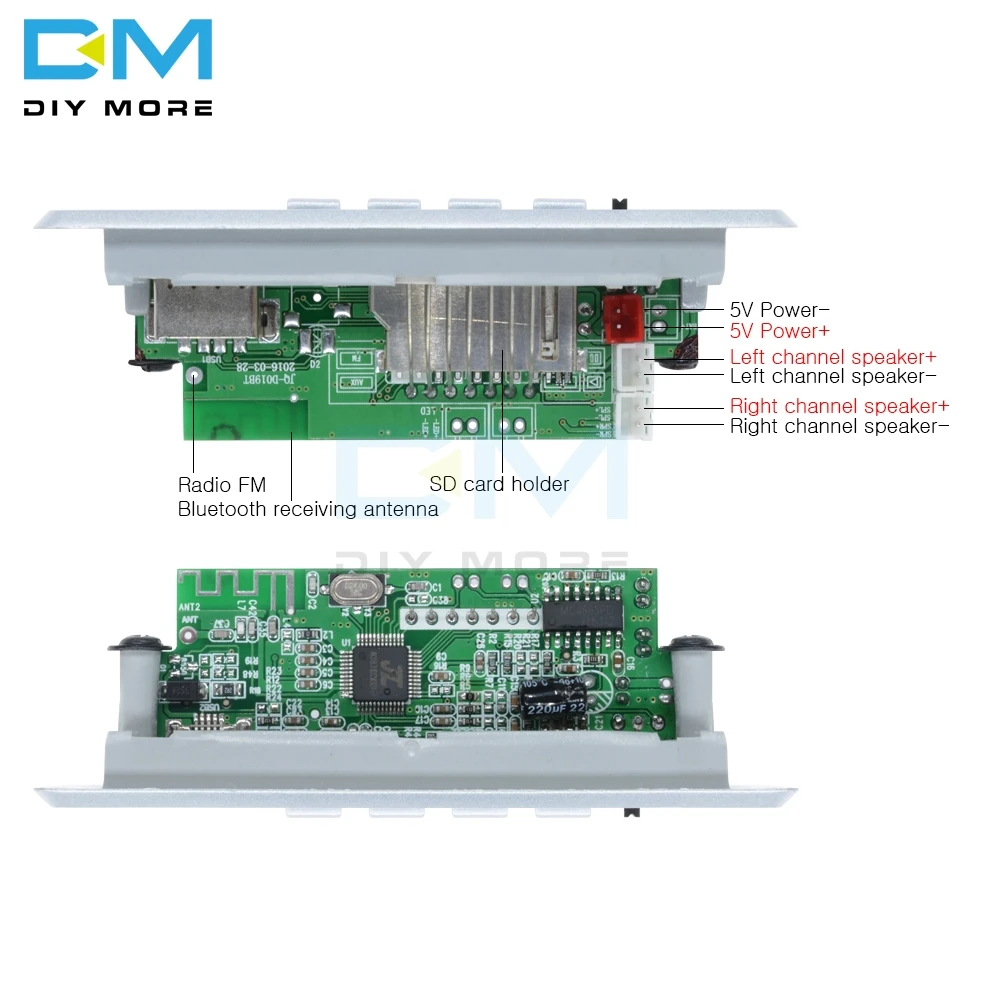

1.Power Supply Voltage:3.6-5V;3W stereo power amplifier output (BTL output,no common GND,cannot connect with other amplifiers for use)
2.Mul-function:bluetooth receive;hands-free call;fast forward/fast backward;insertation MP3 play;AUX function;radio function
3.Self-equipped with bluetooth audio receive module;after cellphone and bluetooth module has matched successfully,cellphone can play MP3 or bluetooth can send loseless APE file to bluetooth receive module to play;support hands-free call;support playing MP3 document in U-disk or SD card;support radio playing
Bluetooth Function Operation Method:
1.Press "MODE" key to switch state to "BLUE"
2.Open audio device with bluetooth function,search "ZTV-CT02EA" and connects with it
3.Volume can be controlled by external connection sound source device;or long press "PREV" and "NEXT" to adjust vlume
4.When there is call in,short press "Play/Pause"is for answering the phone and long press is for rejecting
5.When you want to call someone or in calling state,short press "Play/pause" is hanging up
6.Note:if current state is mute and there is call in,then it will release the mute state
Power On/off:
1.Power on:remove the power switch to "ON" position
2.Power off:remove the power switch to "OFF" position
MP3 Play:
1)When power on,plug the U-disk or SD card which copied MP3 songs,and the machine will automatically recognize and play
2)"PREV":short press will play the previous song;long press will decrease the volume
3)"Play/pause":press the first time will stop the current playing song;press again will restore to playing state
4)"NEXT":short press will play the next song;long press will increase the volume
5)"MODE":mode selection;switch SD card,U-disk,clock,FM,bluetooth,LINE mode
FM Mode:
1)When press "MODE" key to switch into FM state.PREV:short press will search radio station from up to down,long press will decrease the volume;"Play/pause":short press will automatically search and memory the radio station;"NEXT":short press will search the radio station from down to up,long press will increase the volume
Line Mode:
1)When press "MODE" key to switch into Line state,voice source is input by "Line/DC";and volume is controlled by external connection device.You can also adjust volume by pressing "PREV" or "NEXT" key

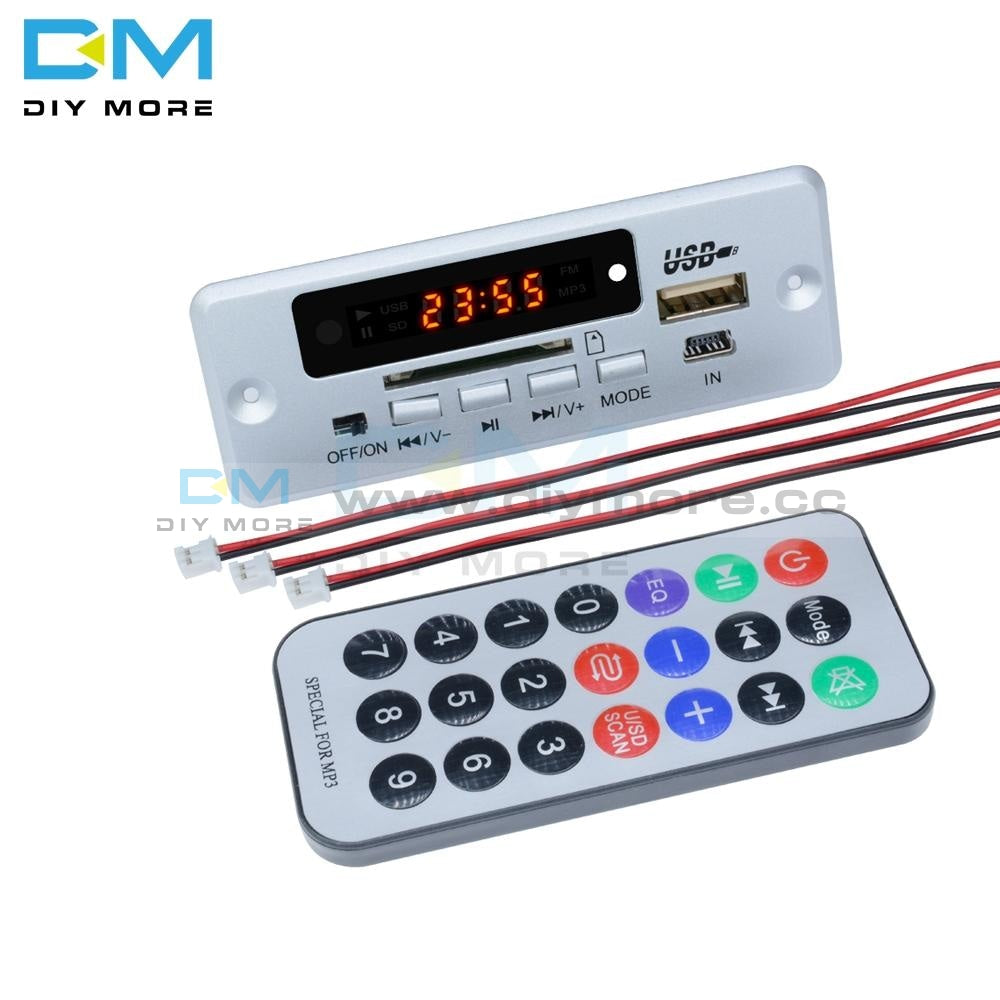

Clock Adjustment:
1)When press "MODE" key to switch into Clock state,press "Play/pause" key to select hour or minute;then the chosen part is flashing,if press "PREV" or "NEXT" again can achieve time adjustment
Bluetooth Mode:
1)When press "MODE" key to switch into Blue state,open the audio device with bluetooth function;search for "ZTV-CT02EA" and connect with it;volume is controlled by external connection device.You can also adjust volume by pressing "PREV" or "NEXT" key.When there is call in,short press "Play/pause" is for answering the phone,long press is for rejecting
2)If you want to call someone or in calling state,short press "Play/pause" is for hanging up

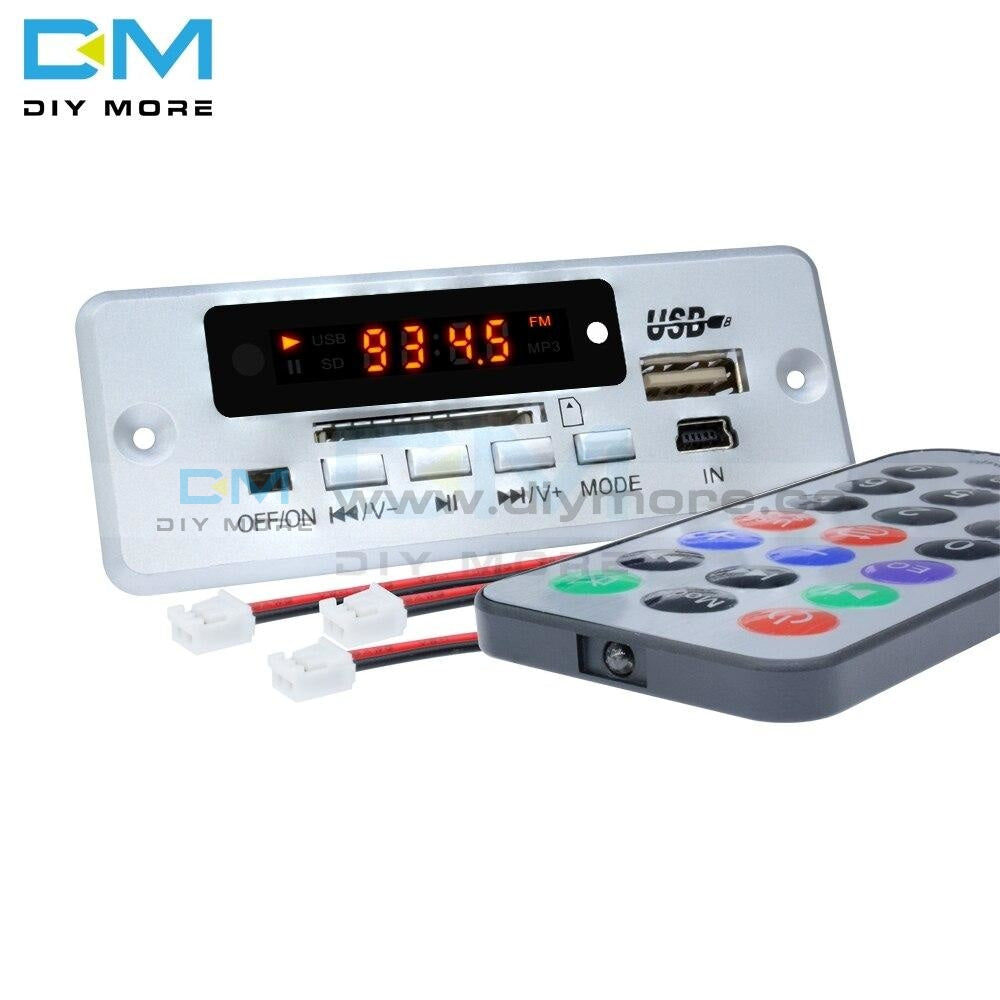

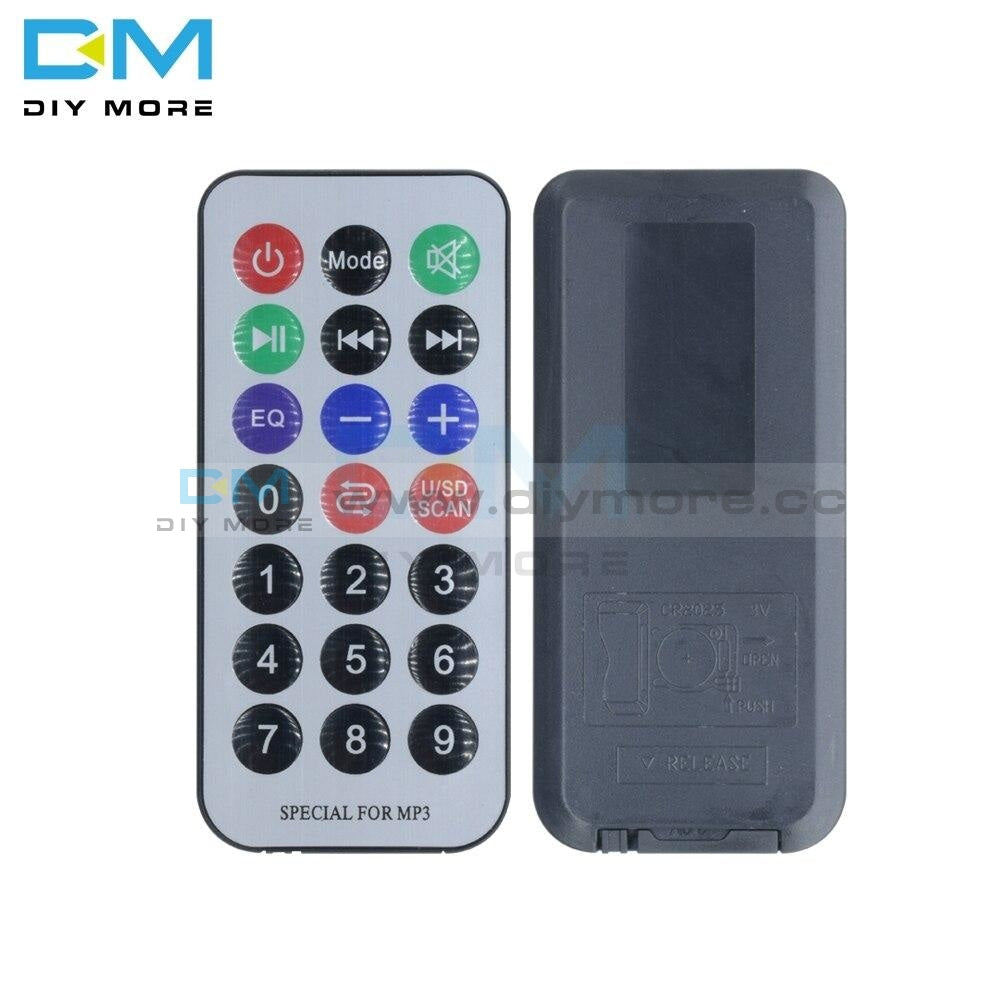

Remote Control Operation:
1)In bluetooth state
Power Switch:fake power off
Mode Switch:the same as MODE key,switch mode (bluetooth->MP3->FM->Clock->bluetooth)
Mute:press is for mute/unmute;please note that if the current state is mute and there is call in,then it will release the mute state
Play/pause:the same as PCBA board function
PREV:the same as PCBA board function
NEXT:the same as PCBA board function
Vol-:the same as PCBA board function
Vol+:the same as PCBA board function
Cycle:number repeat calling
MP3 State:
1)PREV:short press for previous song;long press is for fast backward
2)NEXT:short press for next song;long press is for fast forward
3)Cycle:switch single loop to list loop
Clock Adjustment:
1)When press "Time" to switch into "Clock" state,press "Time" key to choose hour or minute,then the chosen part is flashing;if press "PREV" or "NEXT" key again is for time adjustment
