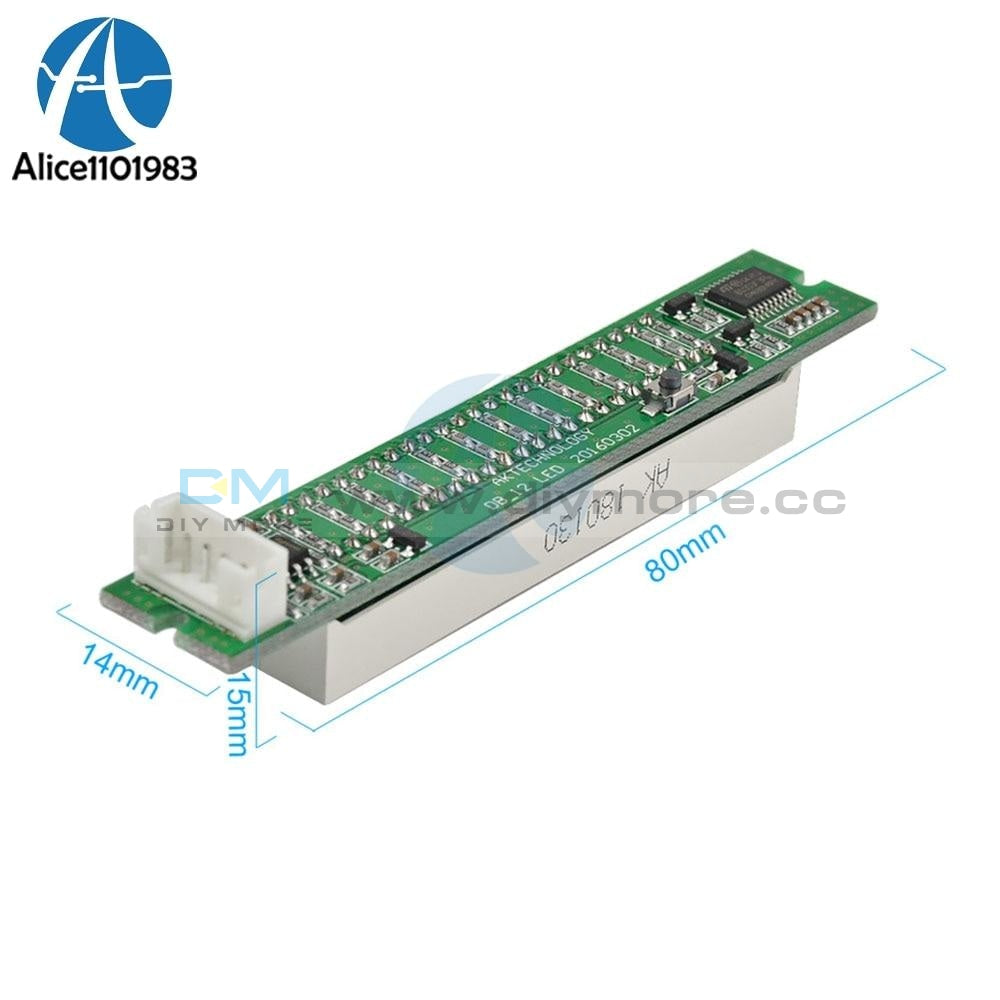

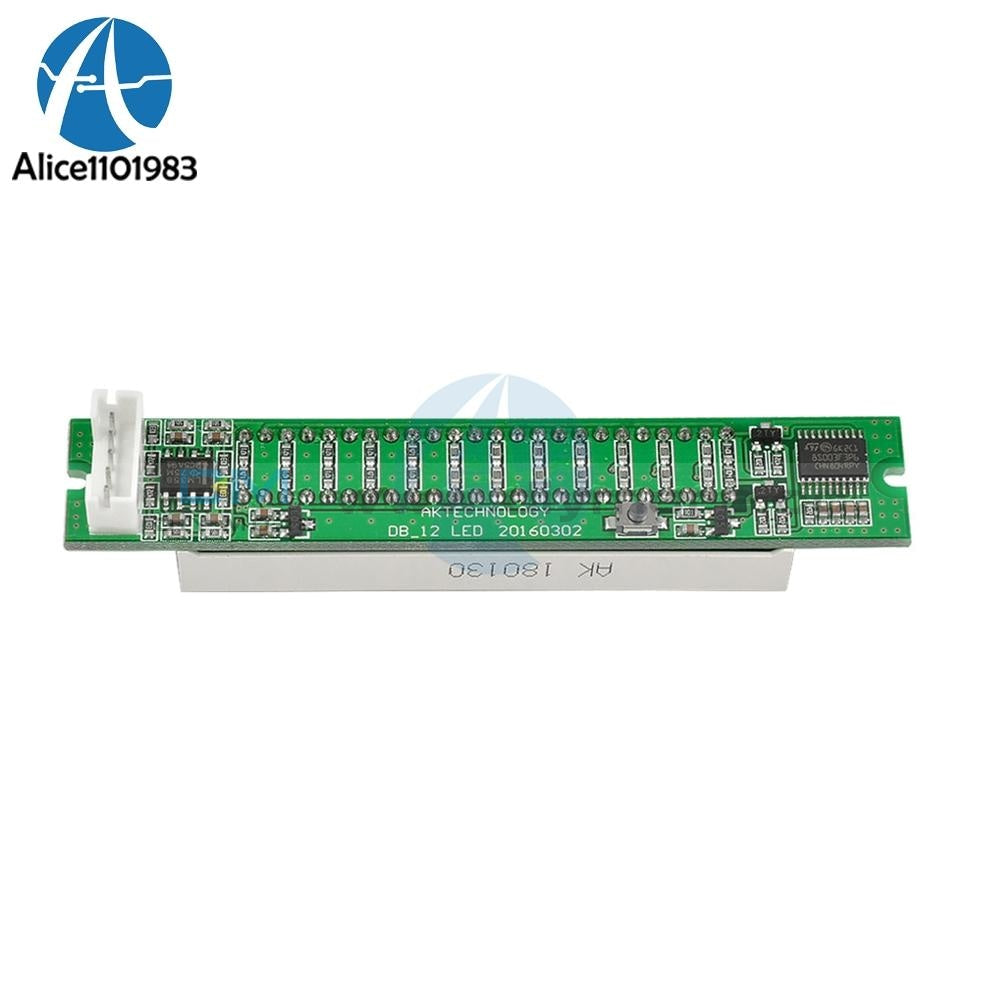

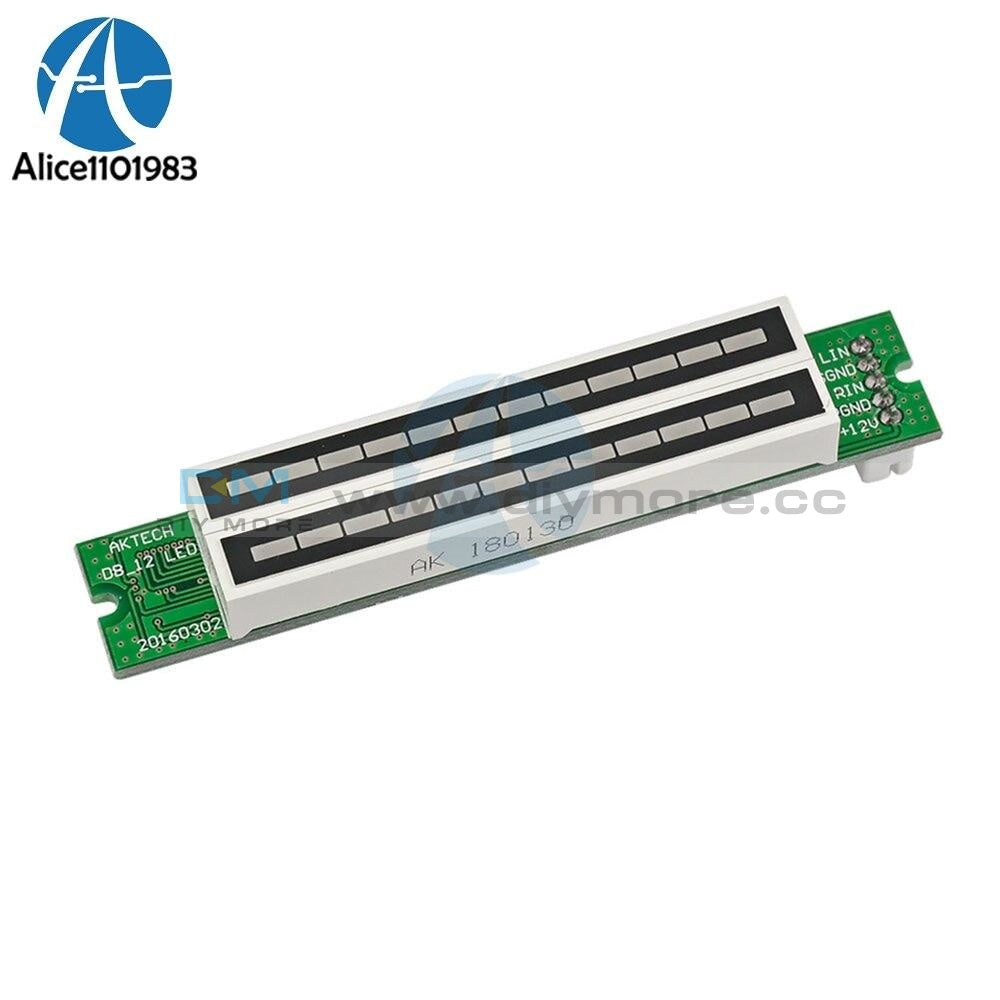

Mini Dual 12 Segments Music Level LED Light Bar Indicator VU Meter Stereo Amplifier Board Module Adjustable Speed AGC Mode Cable

Mini Dual 12 Segments Music Level LED Light Bar Indicator VU Meter Stereo Amplifier Board Module Adjustable Speed AGC Mode Cable

SKU:012737
Regular price $8.99


Features :

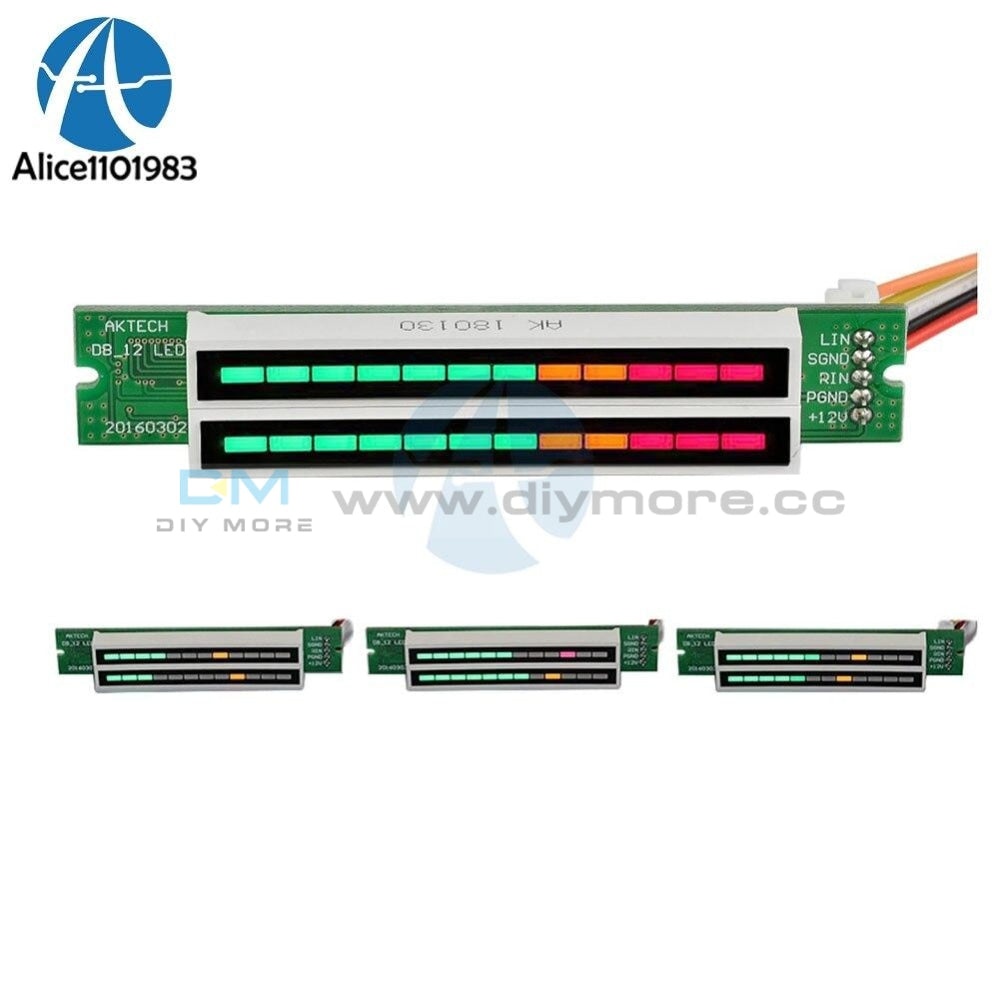

Custom 12 segments three colors LED light bar (7 green + 2 orange + 3 red).
The rising speed and the falling speed of the light bar, the holding time and
the falling speed of the peak can be adjusted separately.
Real-time mode and AGC mode selection (super wide range of AGC adaptive
algorithm to ensure the best effect)
Small size, can be easily loaded into small case.
Single button operation.
Increased brightness adjustment function in version 1.10.
REV1.2 Change the real time mode to dB mode, adding a single point effect.
Specific operation : ( There are LED instructions operating time )
Working voltage:DC7-12V
Working current:more than 100MA
Normal mode :
1. Press the button for 1 second - Mode switch (there will be a
corresponding preview ).
2. Press the button for 3 seconds - Switch between dB mode and AGC mode
( there will be a corresponding preview ).
3. Press the button for 5 seconds - Enter the speed setting mode .
4. Press the button for 10 seconds - Factory default .
5. Double click on the button - Adjust the brightness of the light bar, low /
medium / high.
Speed setting mode : (In normal mode, press the button for 5 seconds to enter,
press the button for 5 seconds to exit) .
1. Press the button for 1 second
The rising speed of the light bar (7 optional)
The falling speed of the light bar (7 optional)
The holding time of the peak (7 optional)
The falling speed of the peak (7 optional)
Zoom in / out in dB mode (7 optional)
Loop in these functions.
2. Click the button - Loop to change the parameters set.
Note: Corresponding reference values for dB mode..
Package you could choose:

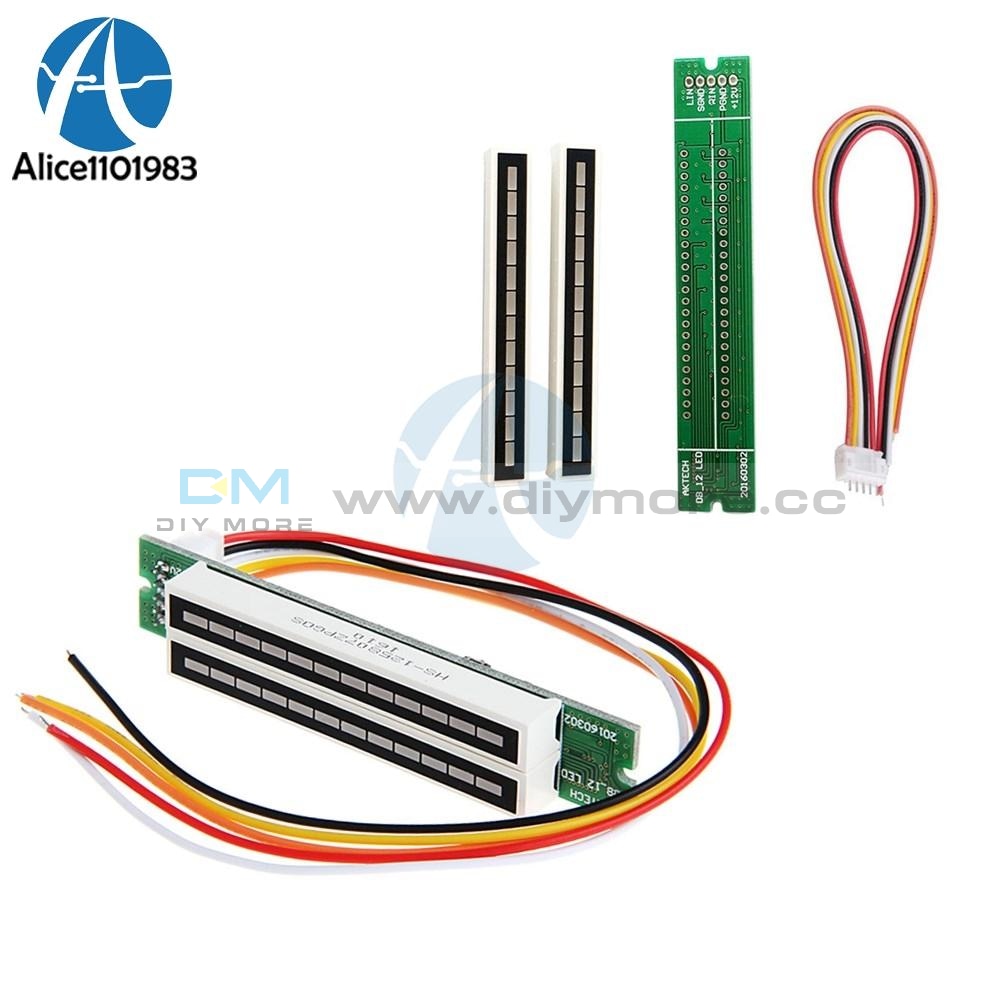

1x Mini Dual 12 Stereo Level indicator lamps board With 5Pin Cables DIY KIT

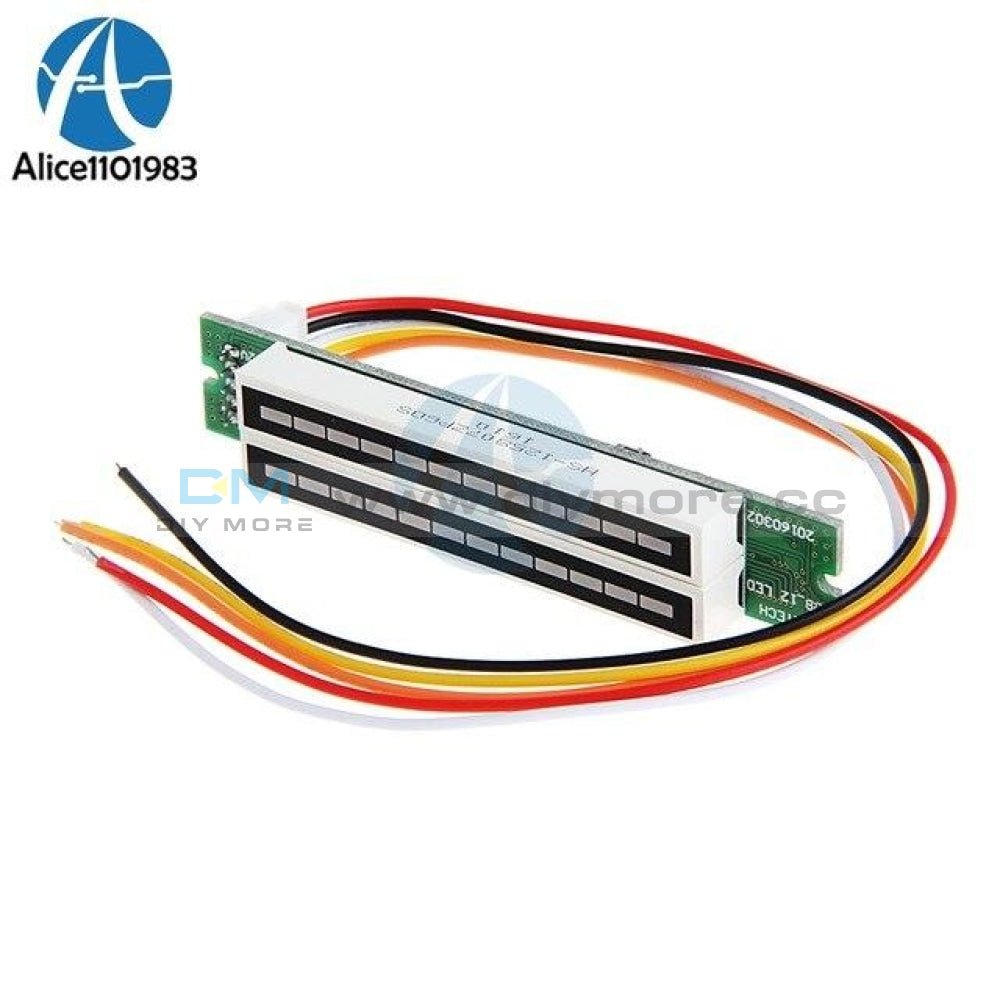

1x Mini Dual 12 Stereo Level indicator lamps Assemed board With 5Pin Cables
