MQ2 MQ4 MQ5 MQ7 MQ9 MQ6 MQ8 MQ135 Liquefied Petroleum Gas Stadt Kohlen

MQ2 MQ4 MQ5 MQ7 MQ9 MQ6 MQ8 MQ135 Liquefied Petroleum Gas Stadt Kohlengas Senor

SKU:011202

$3.99

MQ board

MQ Gas Sensor Carrier Board MQ3 MQ2 MQ4 MQ5 MQ7 MQ9 MQ6 MQ8 MQ135

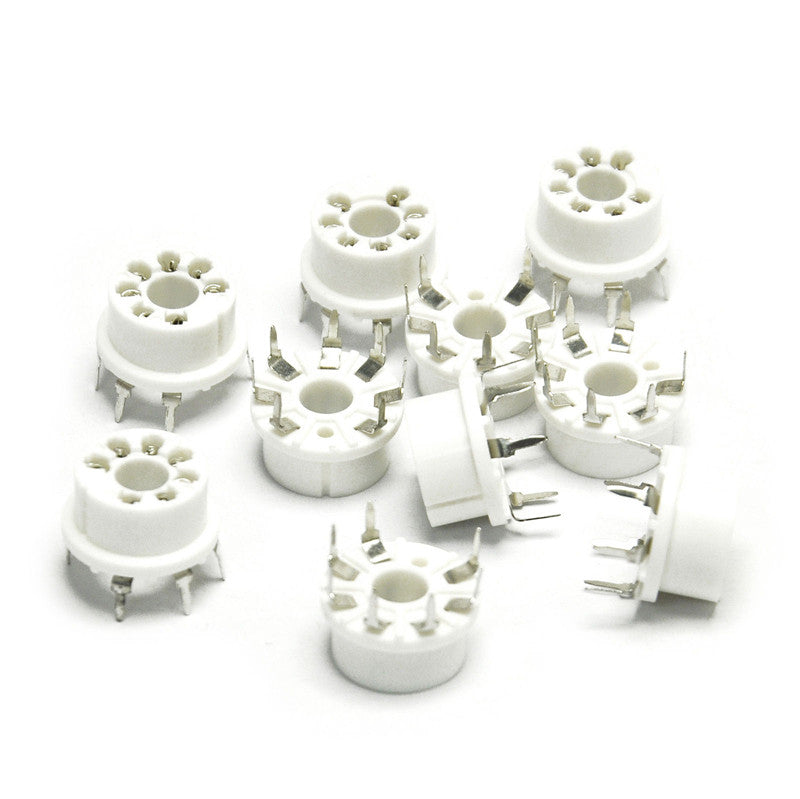

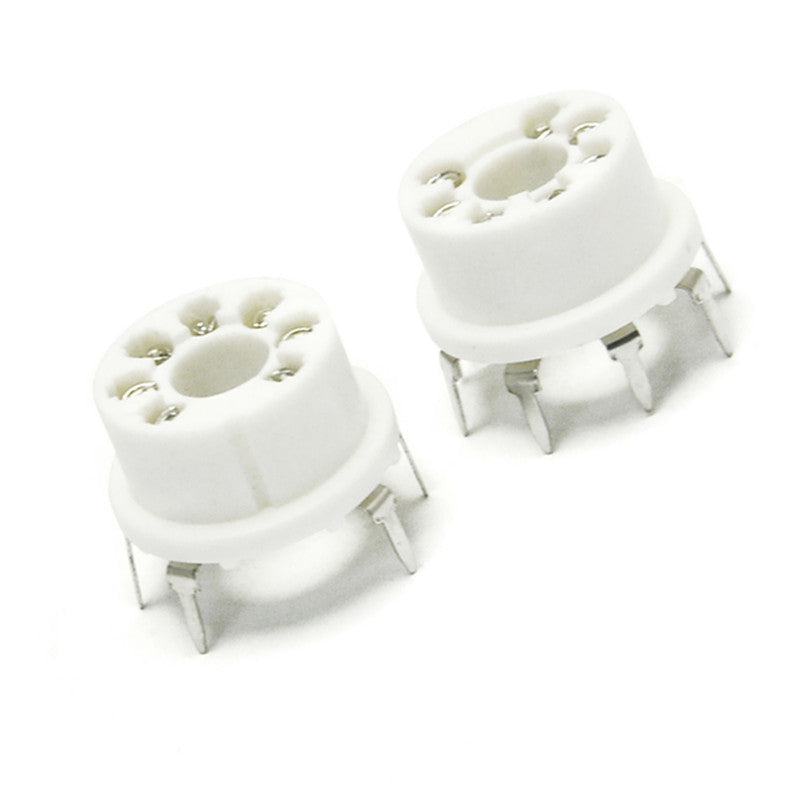

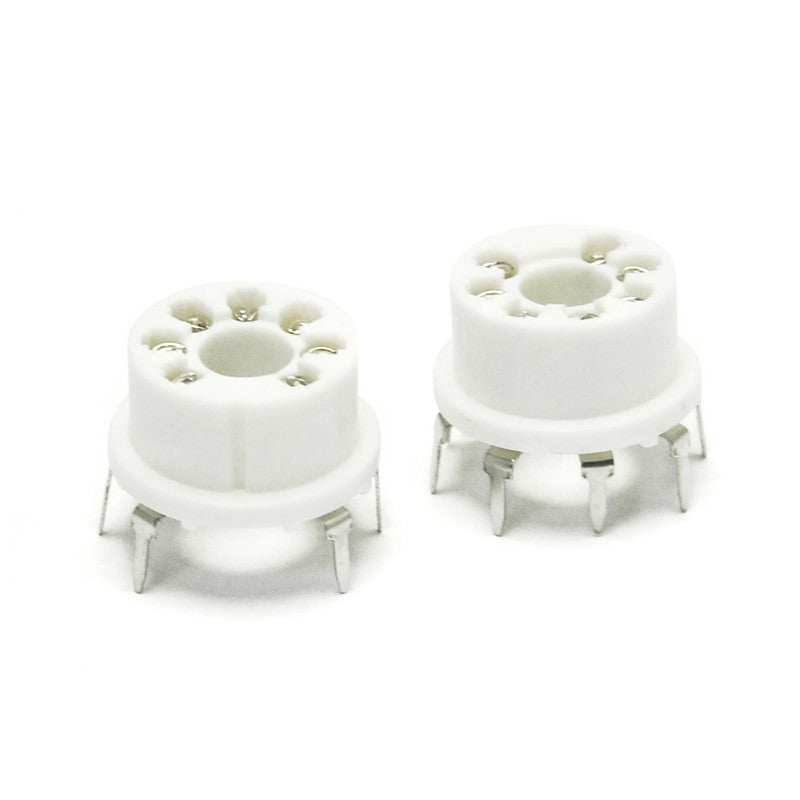

MQ Socket
Mounting Base White Socket MQ2/MQ3/MQ7/MQ9/MQ135 Gas Sensors For Arduino

MQ-2:

Wide detecting scope.
Fast response and High sensitivity.（Rin air/Rin typical gas≥5 ）
Recovery Time: ≤30s.
Conditions: Ambient Temperature: -20℃～+55℃.
Response Time: ≤10s.
Heating Resistance: 31ω±3ω.
Heating Current: ≤180mA.
Heating Voltage: 5.0V±0.2V.
Heating Power: ≤900mW.
Measuring Voltage: ≤24V.

Detect The Concentration Range:

Liquefied Gas And Propane:100ppm-10000ppm.
Butane:300ppm-5000ppm.
Methane:5000ppm-20000ppm
Hydrogen:300ppm-5000ppm.
Ethanol:100ppm-2000ppm.

Standard Operating Conditions:

Temperature: 20℃±2℃.
Vc: 5.0V±0.1V.
Vh: 5.0V±0.1V.
Relative Humidity: 65%±5%.
Warm Up Time: 5-30MIN.

MQ-3:

Sensitive material of MQ-3 gas sensor is SnO2, which with lower conductivity in clean air. When the target alcohol gas exist, The sensors conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration.
MQ-3 gas sensor has high sensitity to Alcohol, and has good resistance to disturb of gasoline, smoke and vapor. The sensor could be used to detect alcohol with different concentration, it is with low cost and suitable for different applicationCharacter
Good sensitivity to alcohol gas
Long life and low cost
Simple drive circuitApplication
Vehicel alcohol detector
Portable alcohol detector
MQ-4:MQ-4 Natural Gas Methane detector Detection Sensor For Arduino
MQ-5:MQ-5 LPG Natural Gas Propane Methane Butane Sensor For Arduino
MQ-6:MQ-6 LPG Natural gas Propane Methane Butane Sensor for Arduino
MQ-7:MQ-7 Carbon Monoxide CO Gas Detection Sensor For Arduino
MQ-8:MQ-8 Hydrogen Gas Methane Detection Sensor For Arduino
MQ-9:MQ-9 Carbon Monoxide Combustible Gas Detection Sensor For Arduino
MQ-135:
Product Model：MQ135.
Product Type: Semiconductor gas sensitive element.
Gas Detected: Ammonia,sulfide,Benzene series steam.
Detection Of Concentration: 10-1000ppm

Package included:

1 pcs(According to your choice)
Packed Safely in Bubble Bag.

Quantity

1PCS 5PCS 10PCS 50PCS

Quantity

guaranteeQuality checked
Special gift cardsSpecial gift cards
Free return Within 60 days
Consultancy86-0755-85201155

MQ board

MQ Gas Sensor Carrier Board MQ3 MQ2 MQ4 MQ5 MQ7 MQ9 MQ6 MQ8 MQ135
MQ Socket
Mounting Base White Socket MQ2/MQ3/MQ7/MQ9/MQ135 Gas Sensors For Arduino

MQ-2:

Wide detecting scope.
Fast response and High sensitivity.（Rin air/Rin typical gas≥5 ）
Recovery Time: ≤30s.
Conditions: Ambient Temperature: -20℃～+55℃.
Response Time: ≤10s.
Heating Resistance: 31ω±3ω.
Heating Current: ≤180mA.
Heating Voltage: 5.0V±0.2V.
Heating Power: ≤900mW.
Measuring Voltage: ≤24V.

Detect The Concentration Range:

Liquefied Gas And Propane:100ppm-10000ppm.
Butane:300ppm-5000ppm.
Methane:5000ppm-20000ppm
Hydrogen:300ppm-5000ppm.
Ethanol:100ppm-2000ppm.

Standard Operating Conditions:

Temperature: 20℃±2℃.
Vc: 5.0V±0.1V.
Vh: 5.0V±0.1V.
Relative Humidity: 65%±5%.
Warm Up Time: 5-30MIN.

MQ-3:

Sensitive material of MQ-3 gas sensor is SnO2, which with lower conductivity in clean air. When the target alcohol gas exist, The sensors conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration.
MQ-3 gas sensor has high sensitity to Alcohol, and has good resistance to disturb of gasoline, smoke and vapor. The sensor could be used to detect alcohol with different concentration, it is with low cost and suitable for different applicationCharacter
Good sensitivity to alcohol gas
Long life and low cost
Simple drive circuitApplication
Vehicel alcohol detector
Portable alcohol detector
MQ-4:MQ-4 Natural Gas Methane detector Detection Sensor For Arduino
MQ-5:MQ-5 LPG Natural Gas Propane Methane Butane Sensor For Arduino
MQ-6:MQ-6 LPG Natural gas Propane Methane Butane Sensor for Arduino
MQ-7:MQ-7 Carbon Monoxide CO Gas Detection Sensor For Arduino
MQ-8:MQ-8 Hydrogen Gas Methane Detection Sensor For Arduino
MQ-9:MQ-9 Carbon Monoxide Combustible Gas Detection Sensor For Arduino
MQ-135:
Product Model：MQ135.
Product Type: Semiconductor gas sensitive element.
Gas Detected: Ammonia,sulfide,Benzene series steam.
Detection Of Concentration: 10-1000ppm

Package included:

1 pcs(According to your choice)
Packed Safely in Bubble Bag.
