NCH6100HV High Voltage DC Step Up Converter Power Supply Module For Nixie Tube Glow Tube Magic Eye Board DC 12V 24V to 85-235V

NCH6100HV High Voltage DC Step Up Converter Power Supply Module For Nixie Tube Glow Tube Magic Eye Board DC 12V 24V to 85-235V

SKU:012376
Regular price $21.30 Sale price $10.65









Product Details:

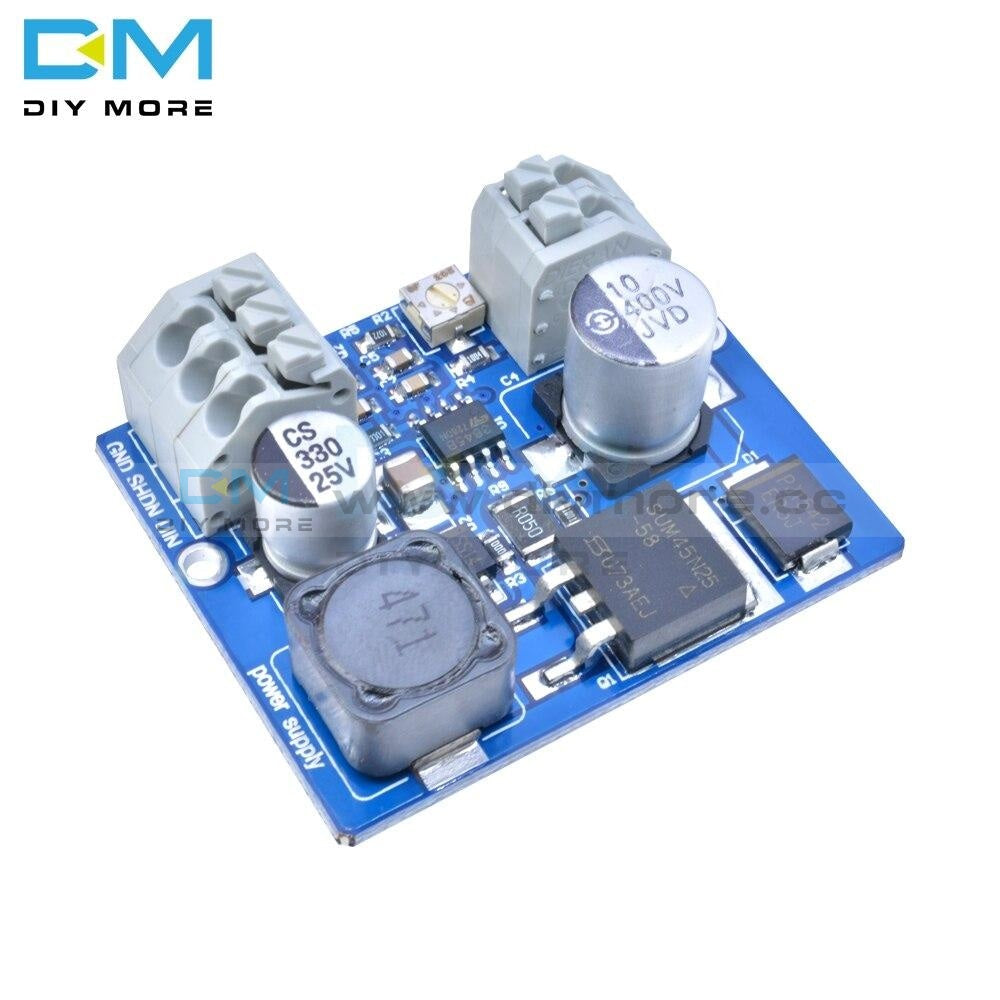

NCH6100HV High-voltage step-up converter DC-DC power module is miniature with high efficiency and low heat operating from 12V to 24V DC input,
with an output set of 85 ~ 235V DC by a precise potentiometer. Designed for Nixie tube, VFD tube, Magic eye etc. Shutdown mode are controlled through the SHDN
Logical input. PCB terminals and pin connectors are optional.



Parameters:

Input voltage: DC 12-24 V
Output voltage: DC 85-235 V
Dimensions: 45mm x 37mm x 15mm



Note:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow 0.5-1cm measuring deviation due to manual measurement.
1 cm = 0.3937 "



Package Included:

  1 x  NCH6100HV High Voltage DC Power Supply for Nixie Tubes & Magic Eye DC85-235V Out
