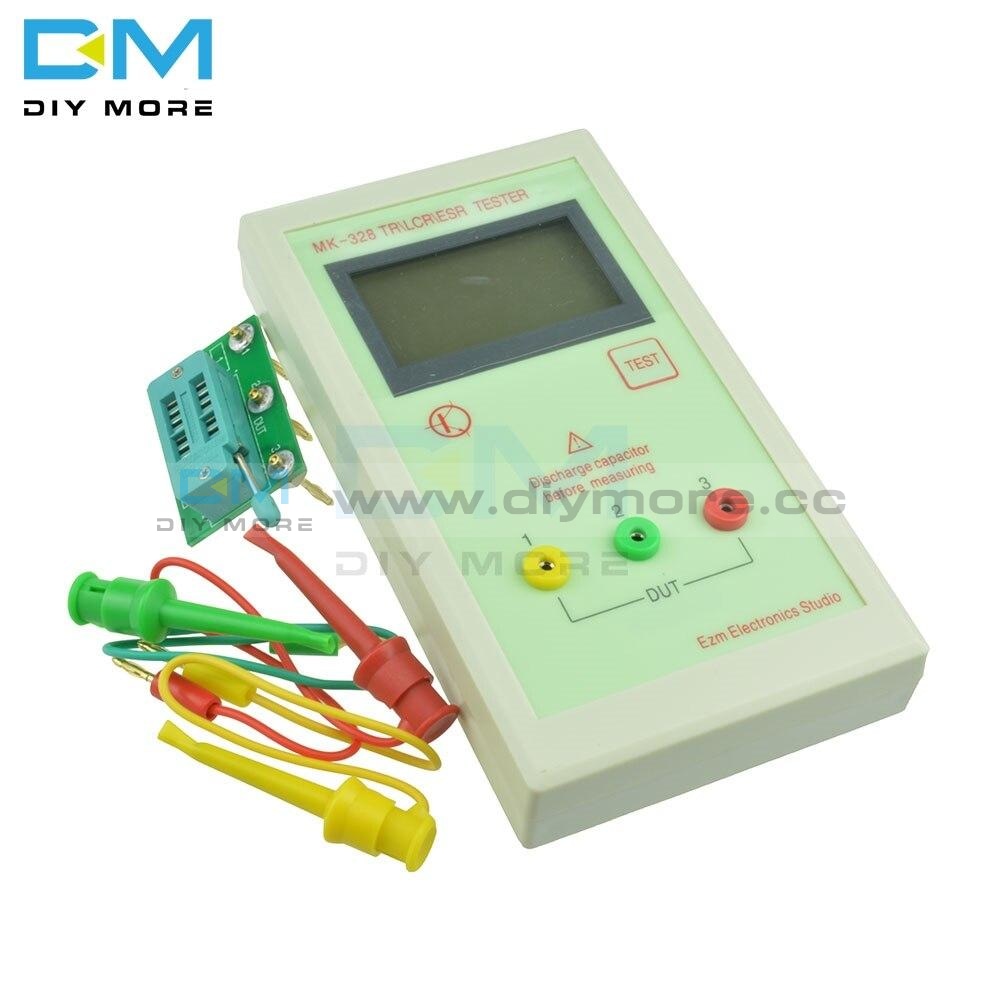

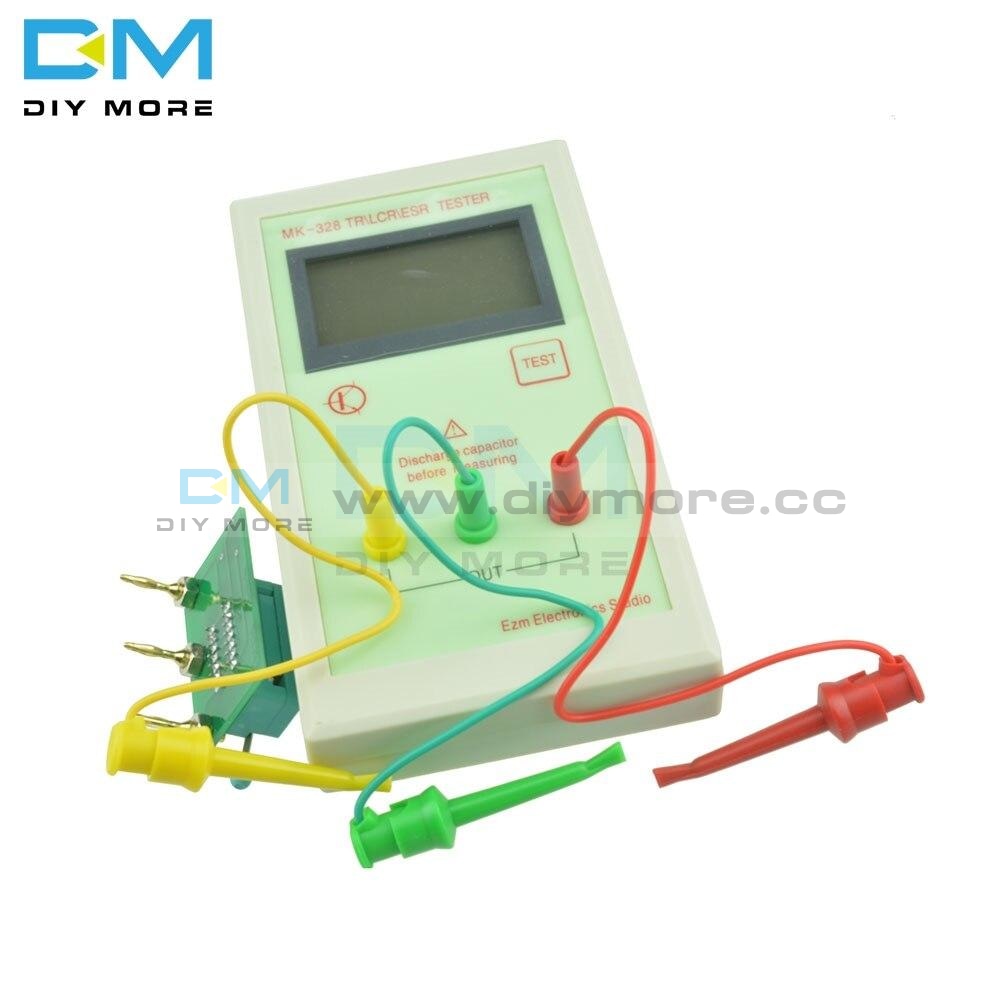

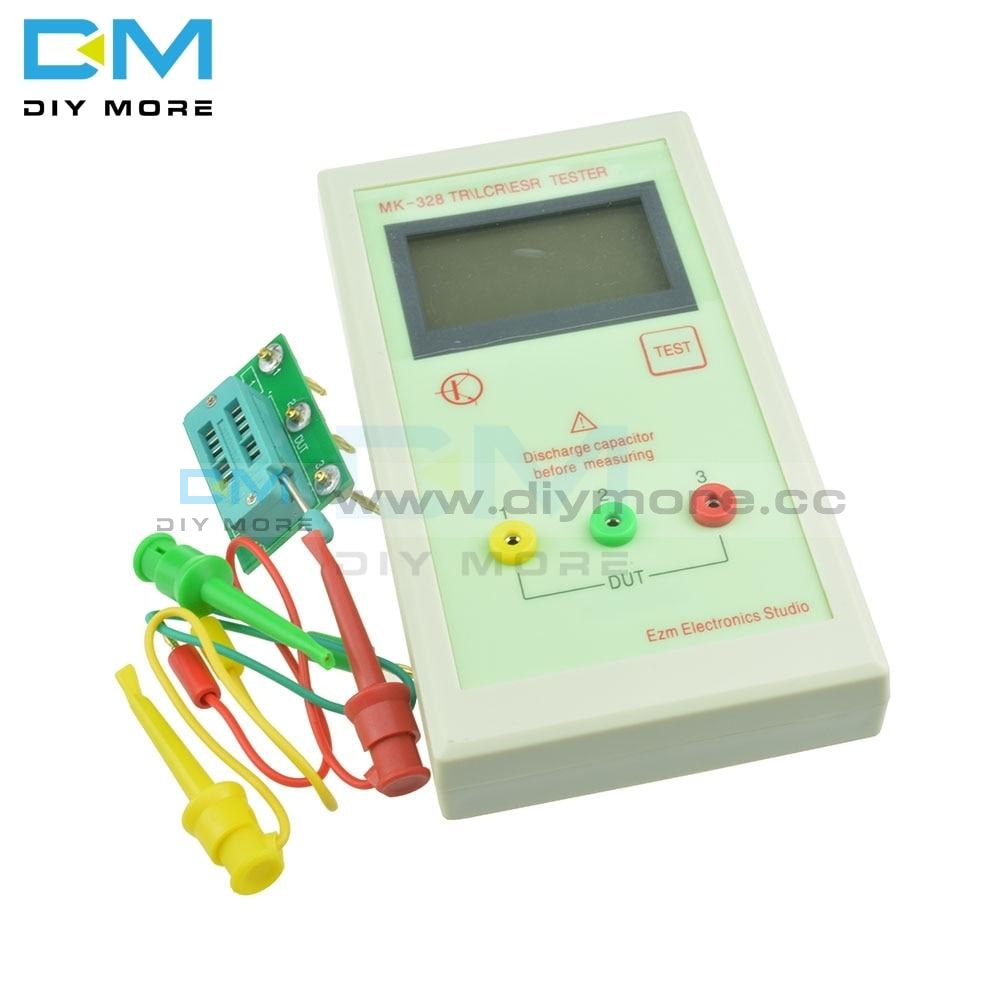

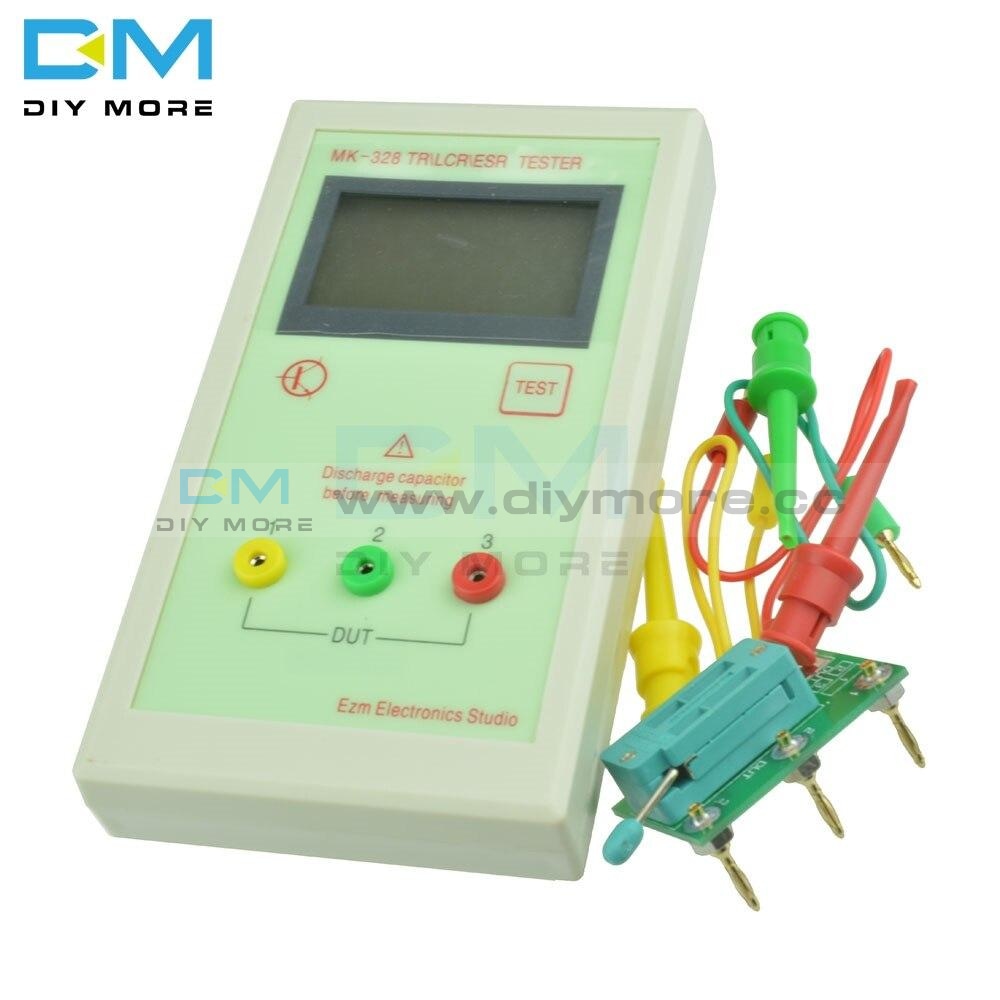

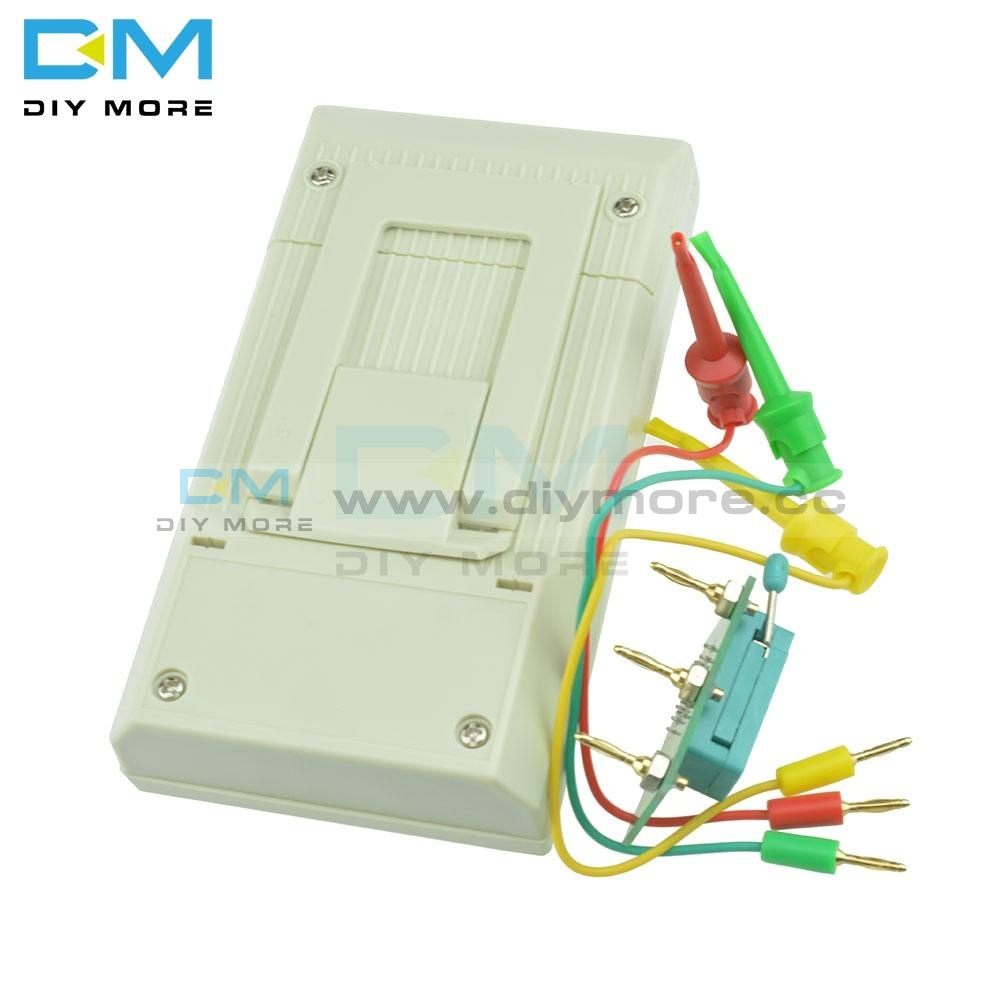

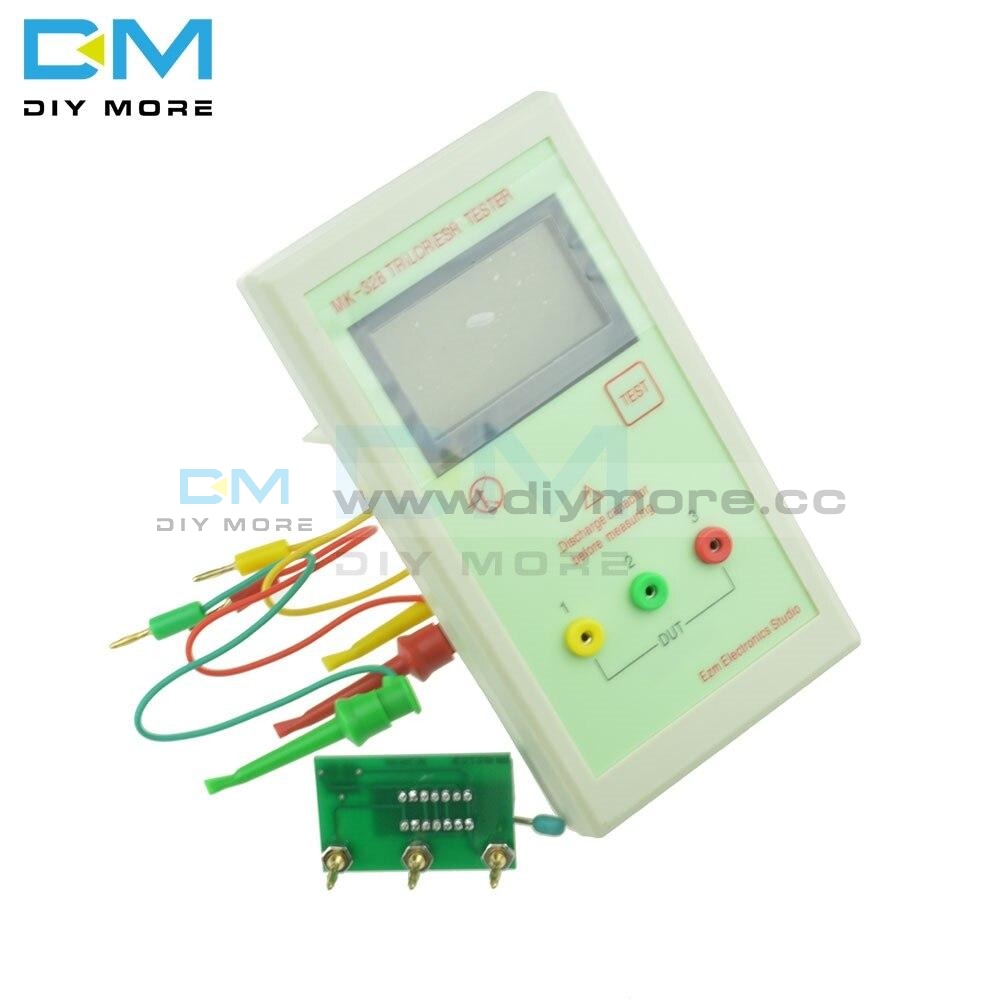

Newest MK 328 Transistor Tester Kit Inductance Resistance LCR TEST MOS/PNP/NPN Automatic Detection Electronic Kit
Newest MK 328 Transistor Tester Kit Inductance Resistance LCR TEST MOS/PNP/NPN Automatic Detection Electronic Kit
SKU:050195
Regular price
$24.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
---Use the latest MK328 version software, more function than M8 version.
---The microcontroller adopts 8 MHz external crystals oscillator, better measurement accuracy
---The related resistance of affecting the accuracy use 1‰metal film resistor,
and the rest also use 1%metal film resistor.
---Use backlight low-power consumption LCD screen, compared with the
overall power consumption is almost negligible, convenient to read the data in the dark.
---Built-in laminated 9V batteries with external DC power jack, long time using
makes more economic.
---High quality component and element
---Overall dimensions: 125 x80x32 (mm)
---Weight: 200g
Description:
1. A key operation with automatic shutdown
2. Battery operation is possible since shutdown current is only about 20nA
3. Automatic detection of NPN and PNP bipolar transistors, N- and P-Channel MOSFETs, JFETs, diodes, double diodes, unidirectional thyristor and bidirectional thyristor.
4. Automatic detection of pin layout of the detected part.
5. Measuring the current amplification coefficient of the bipolar transistor and the voltage of base - emitter threshold
6. Darlington transistors can be identified by the threshold voltage of the high current amplification factor.
7. Detection the bipolar transistor and the protection diode of MOS
8. Measuring the Gate threshold voltage and Gate capacity value of MOSFETs.
9. Up to two Resistors are measured and shown values with up to four decimal digits in the right dimension. All symbols are surrounded by the probe numbers of the Tester. So Potentiometer can also be measured. If the Potentiometer is adjusted to one of its ends, the Tester cannot differ the middle pin and the end pin.
10. The resolution of the resistance measurement is 0.1Ω, can measure up to 50MΩ
11. One capacitor can be detected and measured. It is shown value with up to four decimal digits in the right dimension. The value can be from 30pF to 100mF. The resolution can be up to 1 pF
12. For capacitors with a capacity value above 2µF the Equivalent. Serial Resistance (ESR) is measured with a resolution of 0.01Ω and shown with two significant decimal digits
13. Up to two diodes are shown in correct order and by diode symbol. Additionally the forward voltages are shown.
14. LED is detected as diode; the forward voltage is much higher than normal. Two-in-one LEDs are also detected as two diodes.
15. If Reverse breakdown voltage is below 4.5 V,zener diode can be identified
16. Measurement of the capacity value of a single diode in reverse direction. Bipolar Transistors can also be analysed, if you connect the Base and only one of Collector or Emitter
17. Only one measurement is needed to find out the connections of a rectifier bridge.
18. Capacitors with value below 30pF are usually not be detected, but can be measured together with a parallel diode or a parallel capacitor with at least 30pF. In this case you must subtract the capacity value of the parallel connected part.
19. Can measure inductance resistance less than 2100Ω, the Measuring range is 0.01mH - 20H, but the accuracy is not very good. The measurement result is only shown with a single component connected.
20. Testing time is about two seconds, only capacity or inductance measurement can cause longer period.
Note: Before the measurement of capacitance, must to discharge the capacitor, otherwise may damage the instrument
Package Content: 1pcs Transistor Meter
Accessories: test hook, socket
Package Included:
1 x MK-328 TR\LCR\ESR Transistor LCR ESR tester semiconductor device analyzer M100
