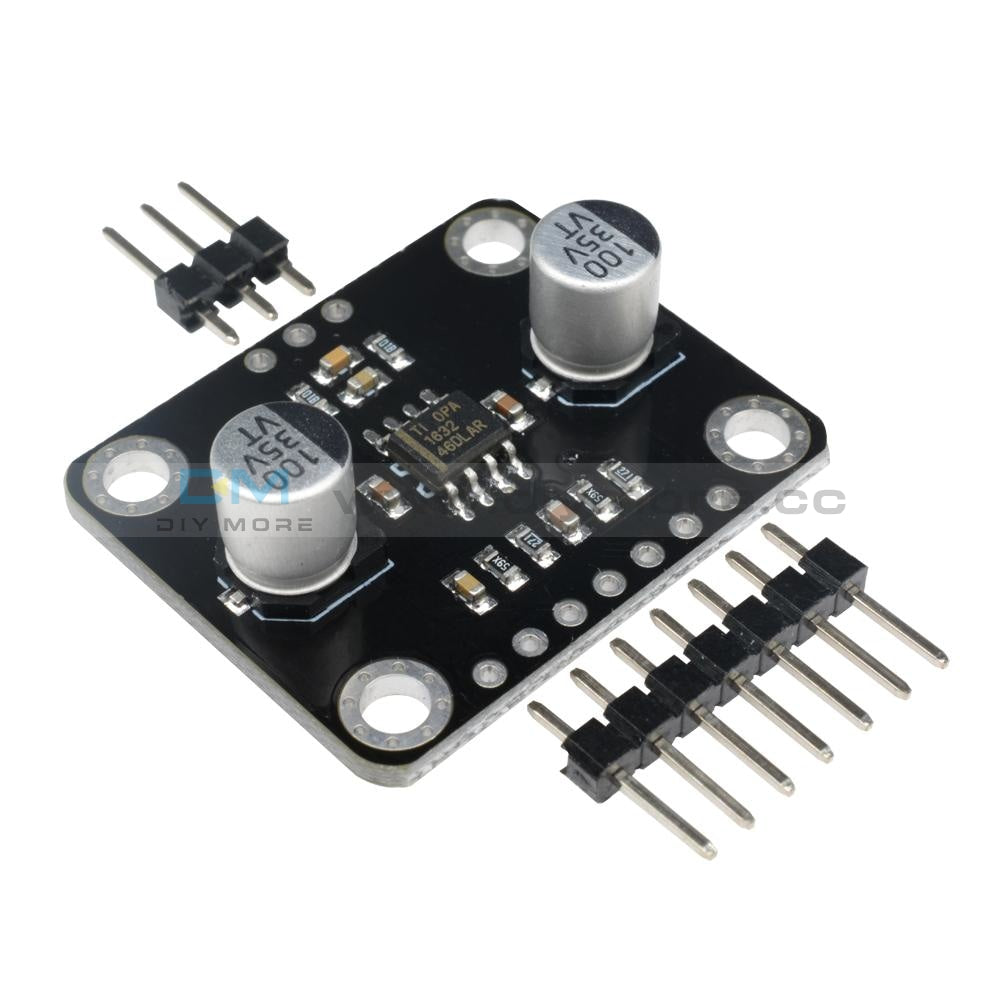

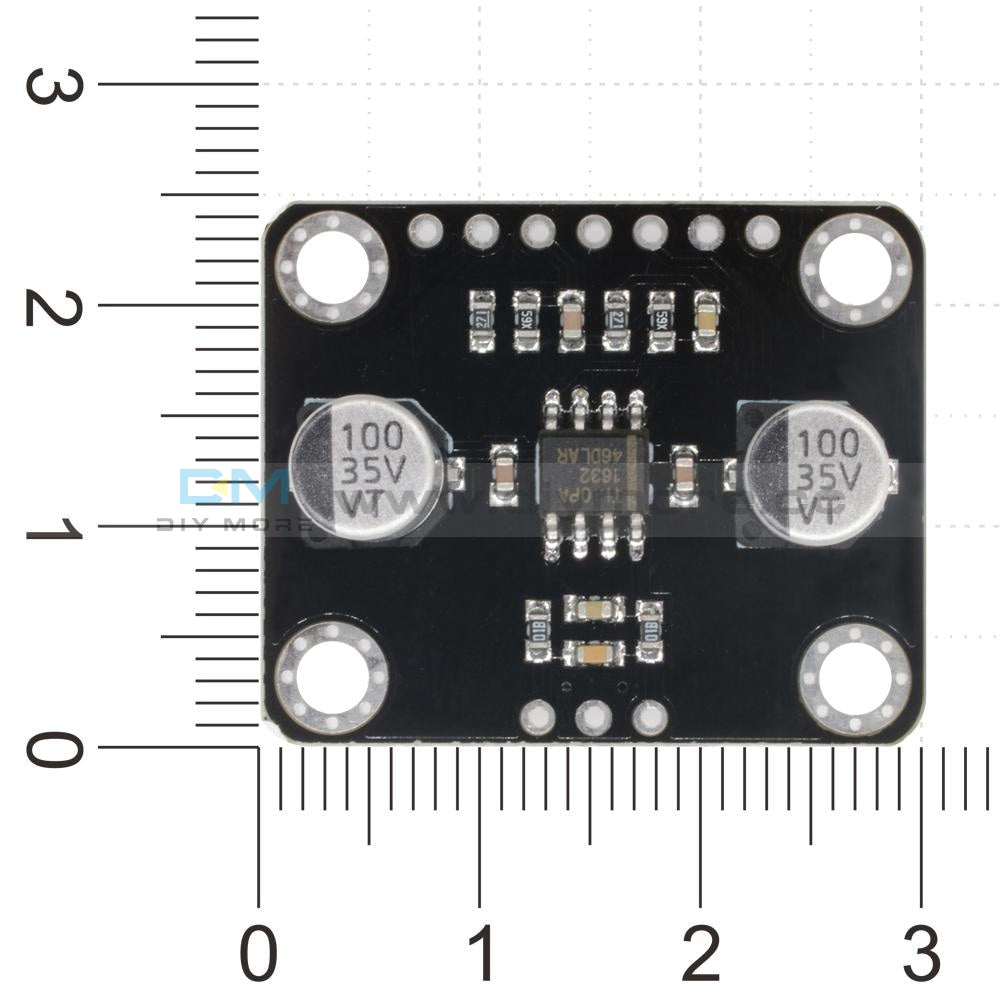

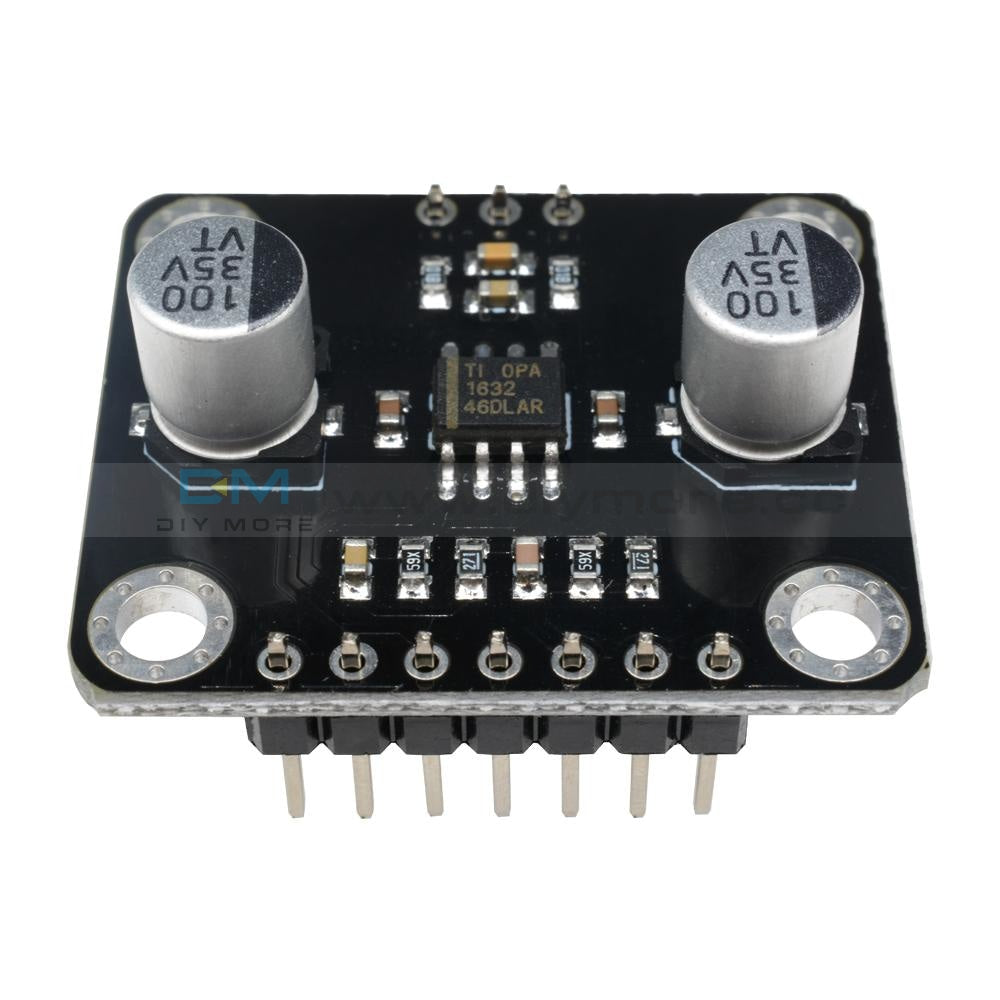

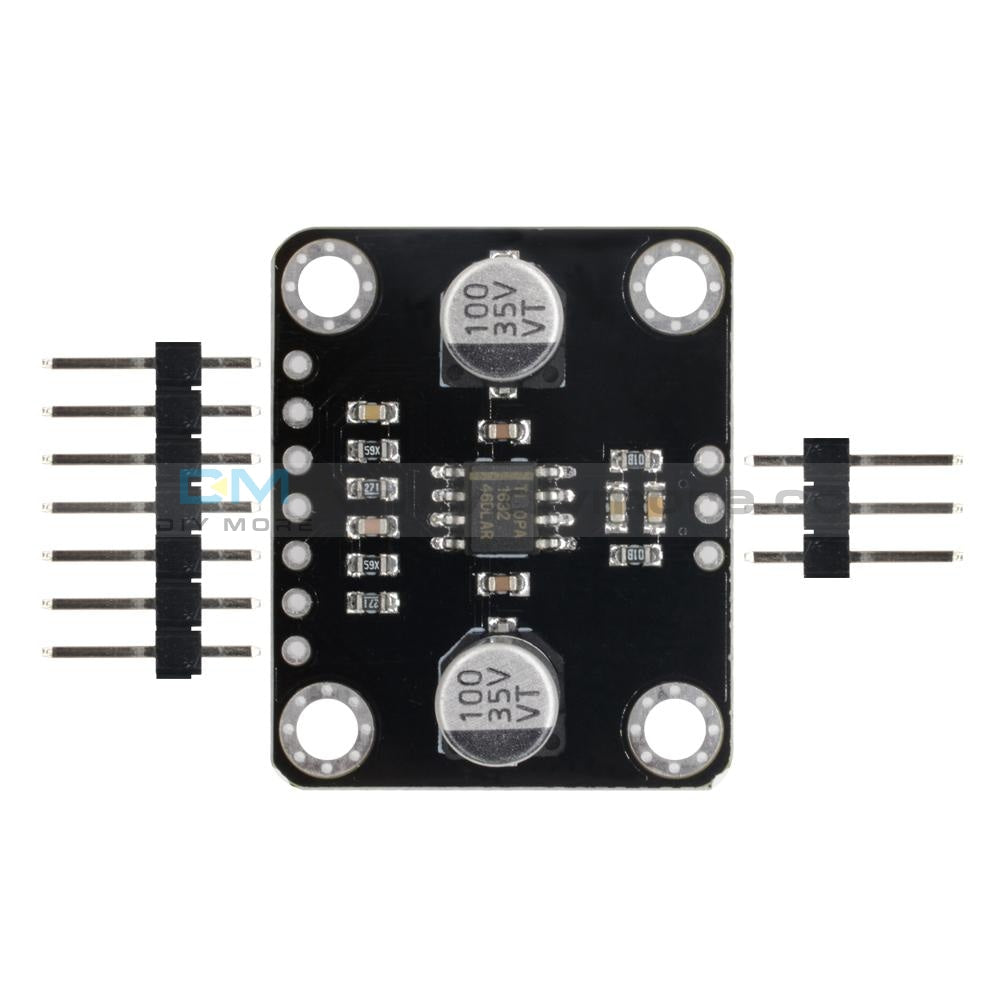

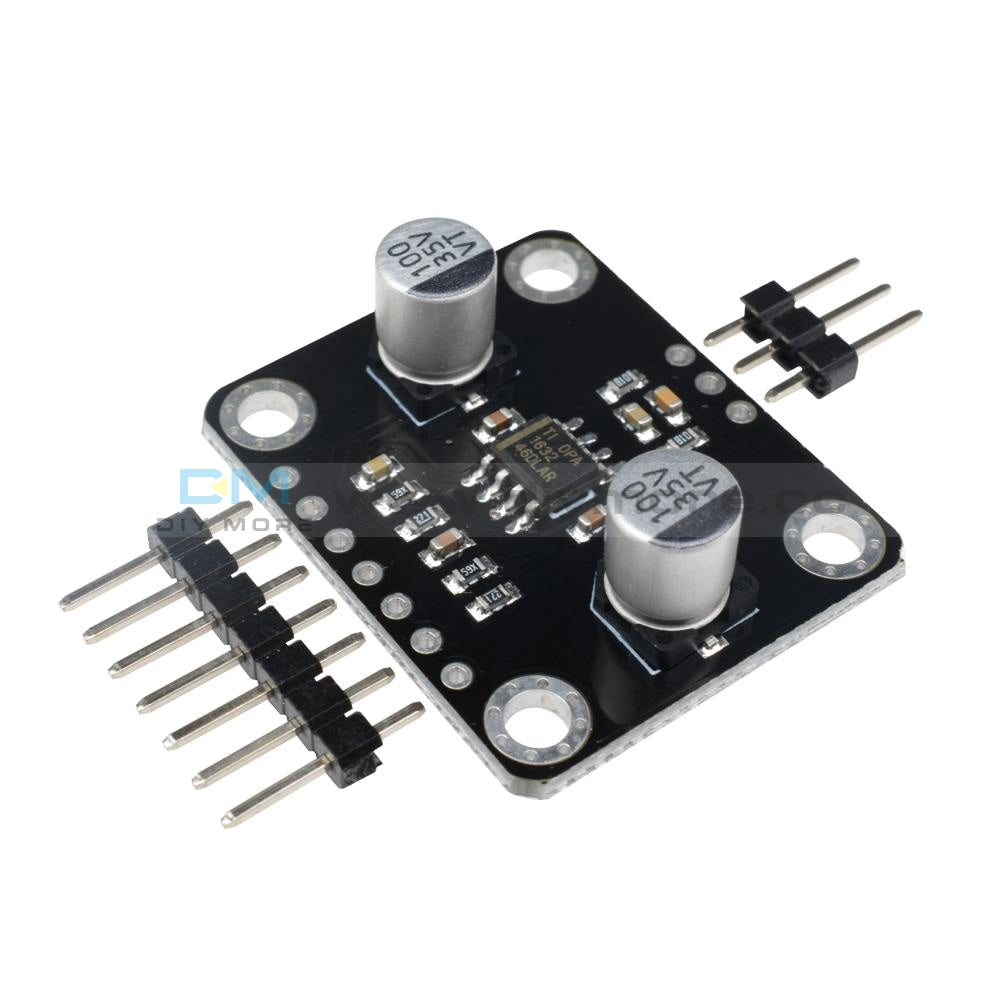

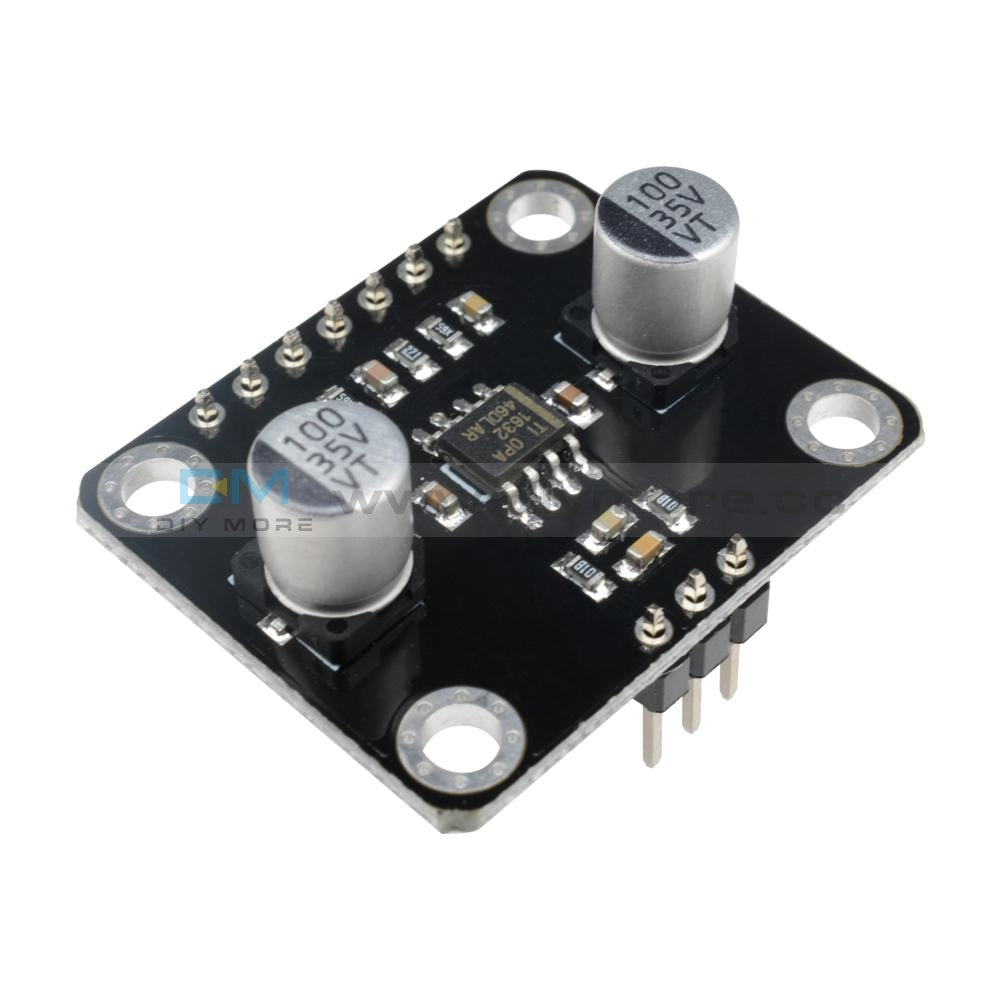

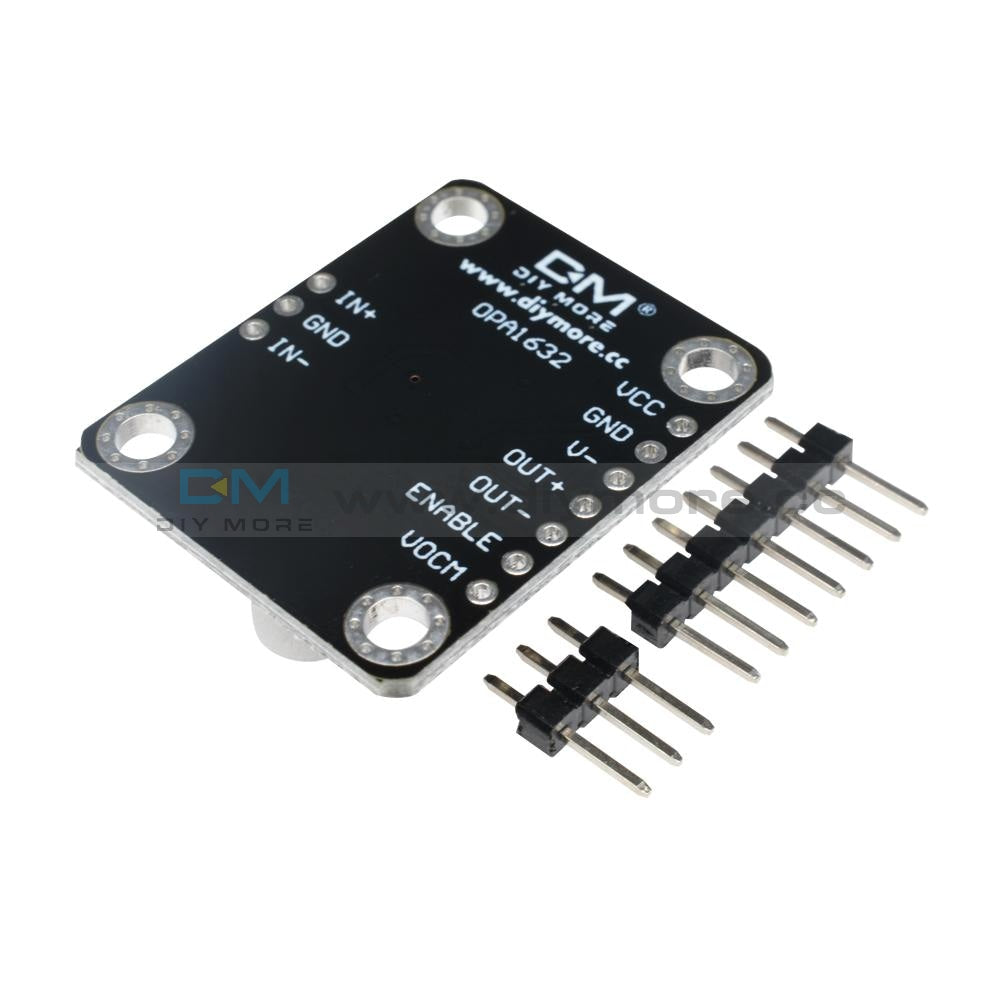

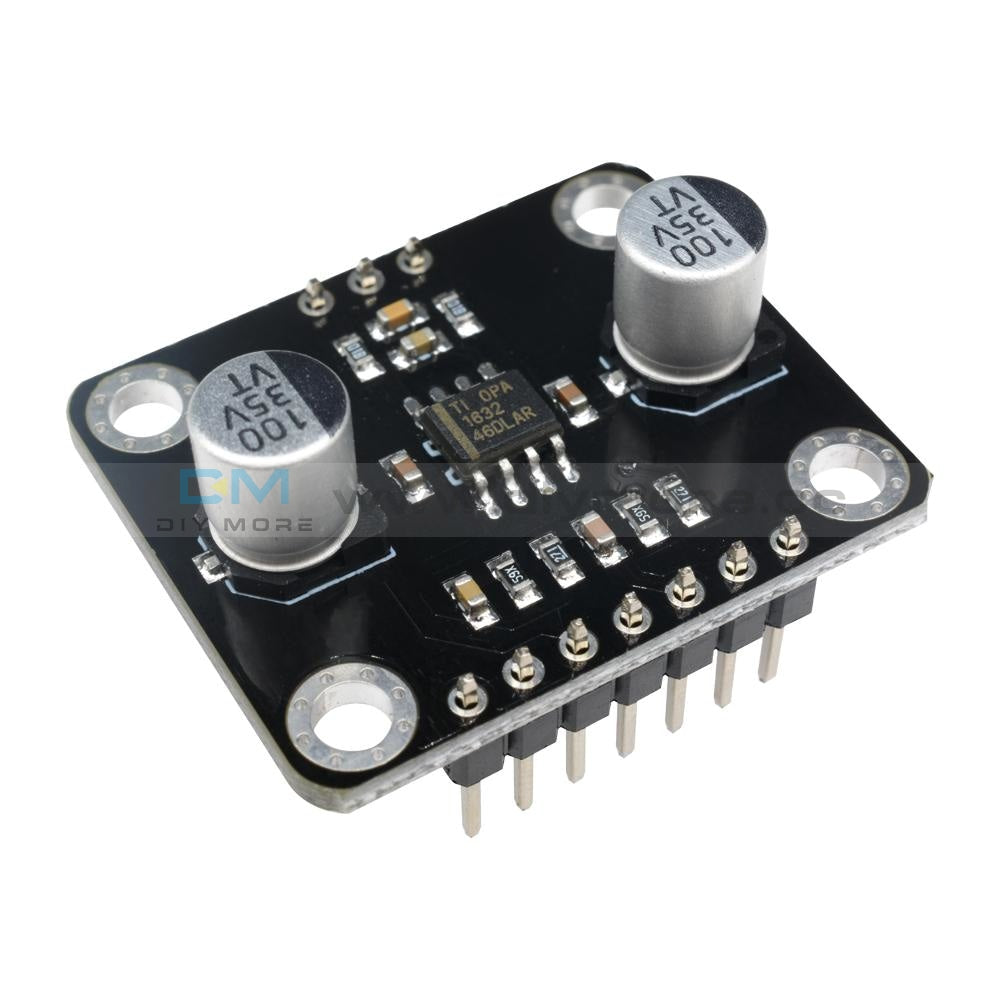

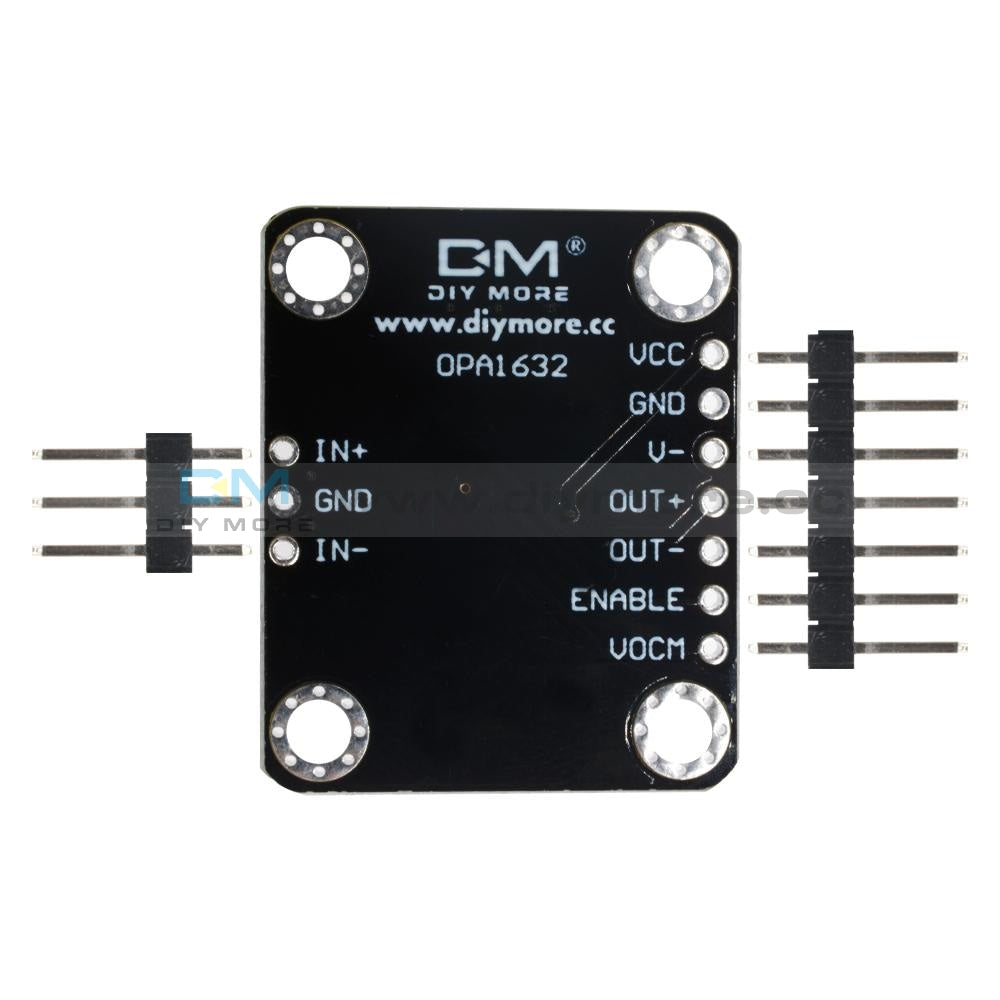

OPA1632 Fully-Differential Audio Operational Amplifier Board ADC Driver Module Minimizes Common Mode Noise Interference

OPA1632 Fully-Differential Audio Operational Amplifier Board ADC Driver Module Minimizes Common Mode Noise Interference

SKU:180008
Regular price $3.99

shipped within one bussiness day

Features:
  • The OPA1632 is a fully-differential amplifier designed for driving high-performance audio analog-to-digital converters (ADCs)
  • It provides the highest audio quality, with very low noise and output drive characteristics optimized for this application
  • The OPA1632’s excellent gain bandwidth of 180 MHz and very fast slew rate of 50 V/μs produce exceptionally low distortion. Very low input noise of 1.3 nV/√Hz further ensures maximum signal-to-noise ratio and dynamic range.
  • The flexibility of the fully differential architecture allows for easy implementation of a single-ended to fully-differential output conversion. Differential output reduces even-order harmonics and minimizes common-mode noise interference
  • The OPA1632 provides excellent performance when used to drive high-performance audio ADCs such as the PCM1804. A shutdown feature also enhances the flexibility of this amplifier
  • The OPA1632 is available in an SO-8 package and a thermally-enhanced MSOP-8 PowerPAD package

Specifications:
  • Superior sound quality
  • Ultra Low Distortion: 0.000022%
  • Low Noise: 1.3 nV/√Hz
  • Slew Rate: 50 V/μs
  • Gain Bandwidth: 180 MHz
  • Fully differential architecture:
  • Balanced input and output converts single-ended input to balanced differential output
  • wide supply range: ±2.5 V to ±16 V
  • Shutdown to conserve power

Applications:
  1. Audio ADC Driver
  2. Balanced Line Driver
  3. Balanced Receiver
  4. Active Filter
  5. Preamplifier
Package Included:
1*OPA1632 Audio Amplifier Module
