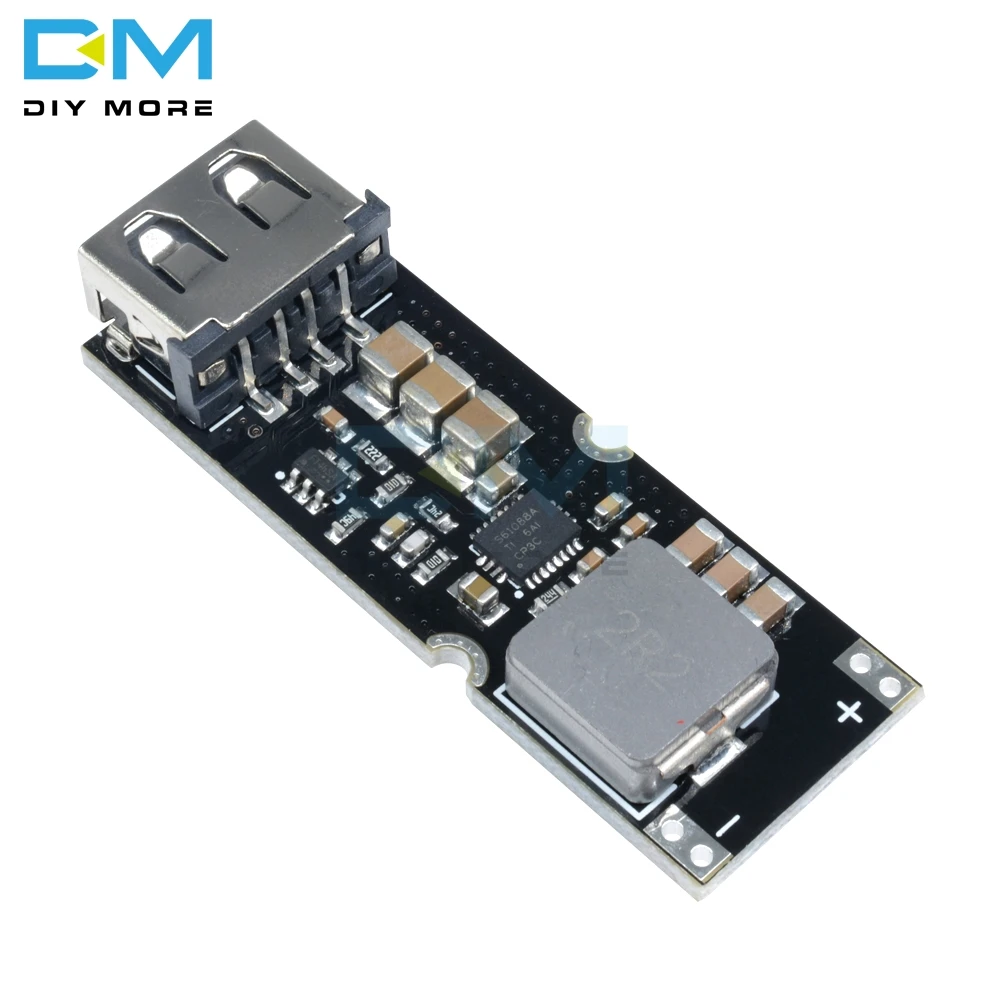

Single Cell Lithium Battery Boost Power Module Board 3.7V 4.2V Liter 5V 9V 12V USB Mobile Phone QC Fast Charge QC2.0 QC3.0

Single Cell Lithium Battery Boost Power Module Board 3.7V 4.2V Liter 5V 9V 12V USB Mobile Phone QC Fast Charge QC2.0 QC3.0

Single Cell Lithium Battery Boost Power Module Board 3.7V 4.2V Liter 5V 9V 12V USB Mobile Phone QC Fast Charge QC2.0 QC3.0

SKU:X12908
Regular price $3.33

shipped within one bussiness day











Product model: AILAVI-180312

Name: Single-cell lithium battery boost fast charging source module

Main control chip: TPS61088A

Identification chip: FP6601Q

Input voltage: 2.8 ~ 4.5V, very suitable for 3.7V polymer lithium battery

Output voltage: The default is 5V, triggering fast charge after 4.5V ~ 12V according to the protocol.

Input rated current: 8A

Output current: 5V3A, 9V2A, 12V2A. Output current is adaptive.

Output power: up to 24W.

Support Agreement: QC2.0, QC3.0, Huawei FCP, DCP Agreement

Efficiency is up to 93%, with a typical value of 90%.

Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)

Module net weight: about 7 grams

The FP6601Q chip integrates the HiSilicon fast charge protocol and Qualcomm QC2.0/3.0USB interface fast charge protocol, which can quickly charge devices that support FCP and QC2.0/3.0 protocols. In addition to supporting the USB BC1.2 standard, it also supports FOR Apple and FOR Samsung devices. The chip can automatically detect whether the currently connected device is a QC2.0/3.0 or FCP device to automatically adjust the voltage.


feature of product:
1. Support FCP voltage and current output protocol.
2. Support Qualcomm QC2.0/3.0 classA 5V, 9V, 12V voltage output.
3. Automatically recognize FCP and QC2.0/3.0 fast charge protocol.
4. Support the protocol equipment of Chinese telecom enterprise YD/T 1591.


The TPS61088 is a high power density, fully integrated boost converter with an 11mΩ power switch and a 13mΩ rectifier switch that provides an efficient, small form factor solution for portable systems. With a wide input voltage range of 2.7V to 12V, the TPS61088 supports applications with single or two-cell Li-Ion batteries. The device features 10A switching current capability and is capable of delivering output voltages up to 12.6V.



The TPS61088 uses an adaptive constant off-time peak current control topology to regulate the output voltage. The TPS61088 operates in PWM mode under medium to heavy load conditions. Under light load conditions, the device can select one of the following two modes of operation via the MODE pin. One is a PFM mode that increases efficiency; the other is a forced PWM mode that avoids application problems due to low switching frequency. The switching frequency in PWM mode can be adjusted from 200kHz to 2.2MHz with an external resistor. The TPS61088 also implements a programmable soft start function and an adjustable switching peak current limit. In addition, the device is available with 13.2V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.
The TPS61088 is available in a 20-pin 4.50mm × 3.50mm VQFN package.

Product application introduction:
This module can be applied to a single-cell lithium battery to 5V-12V output for general digital product charging, such as mobile phones, Ipad, MP3, PSP and so on. It can be used as a high current output mobile power source only by connecting the battery. It is also possible to supply power to the 5-12V product by setting the output voltage.
