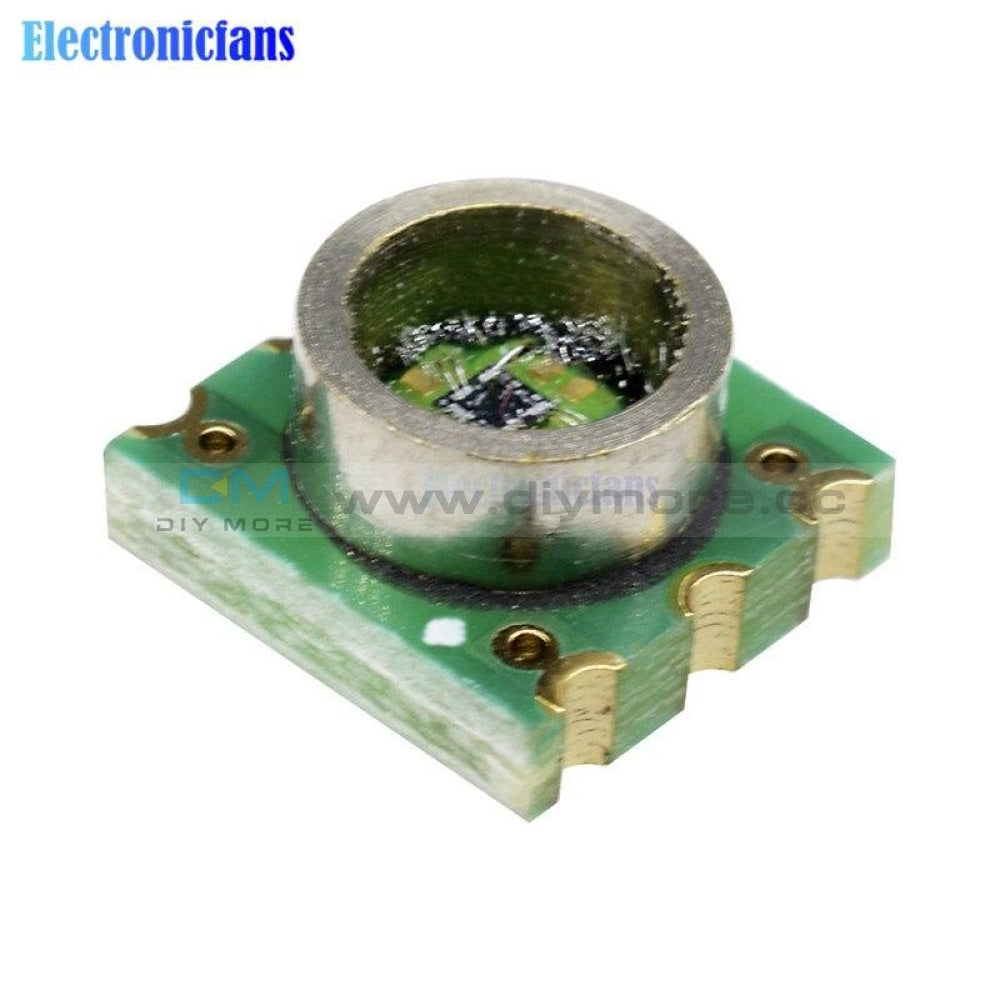

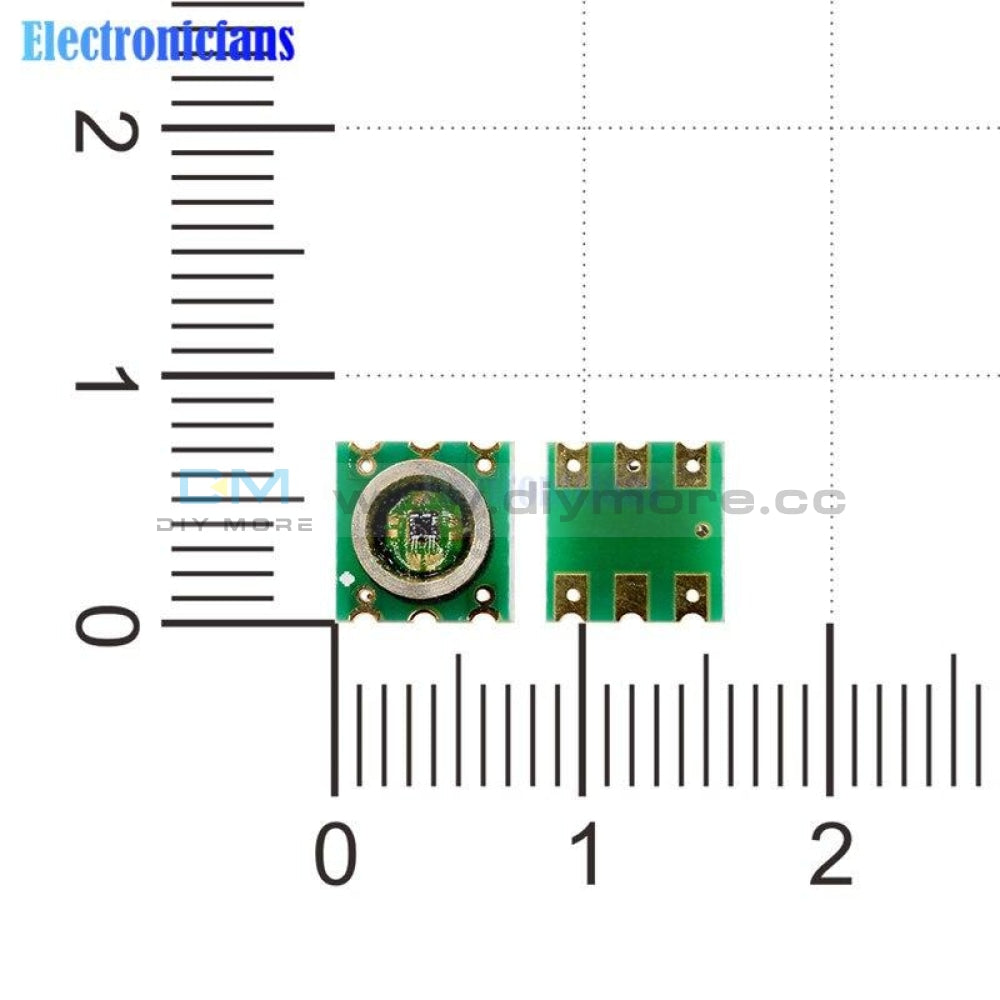

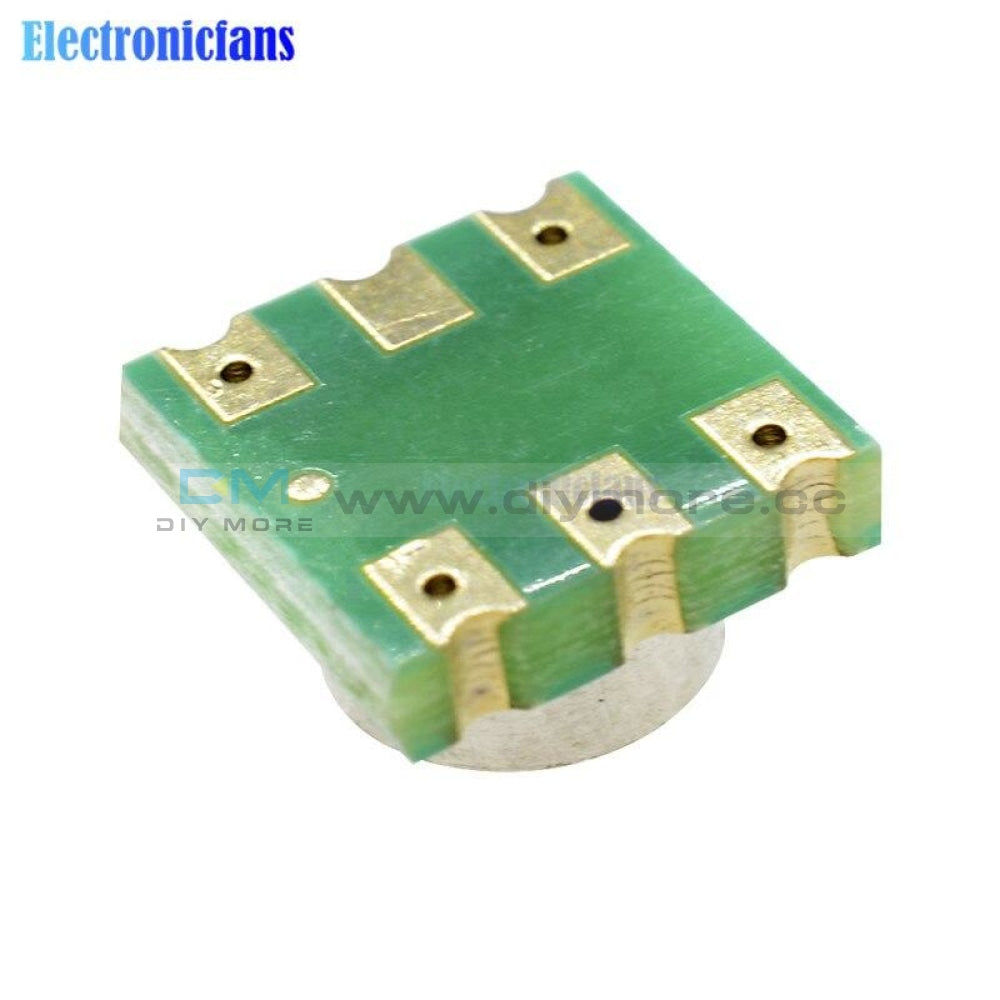

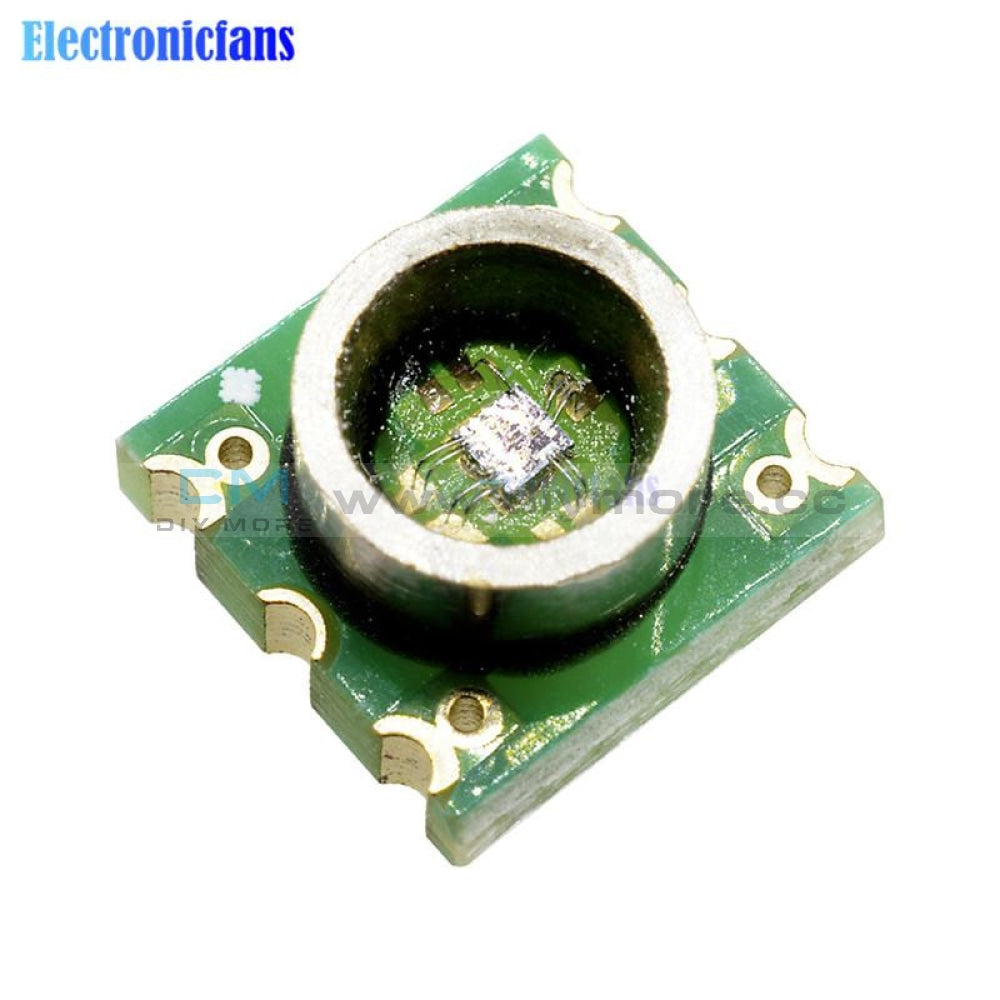

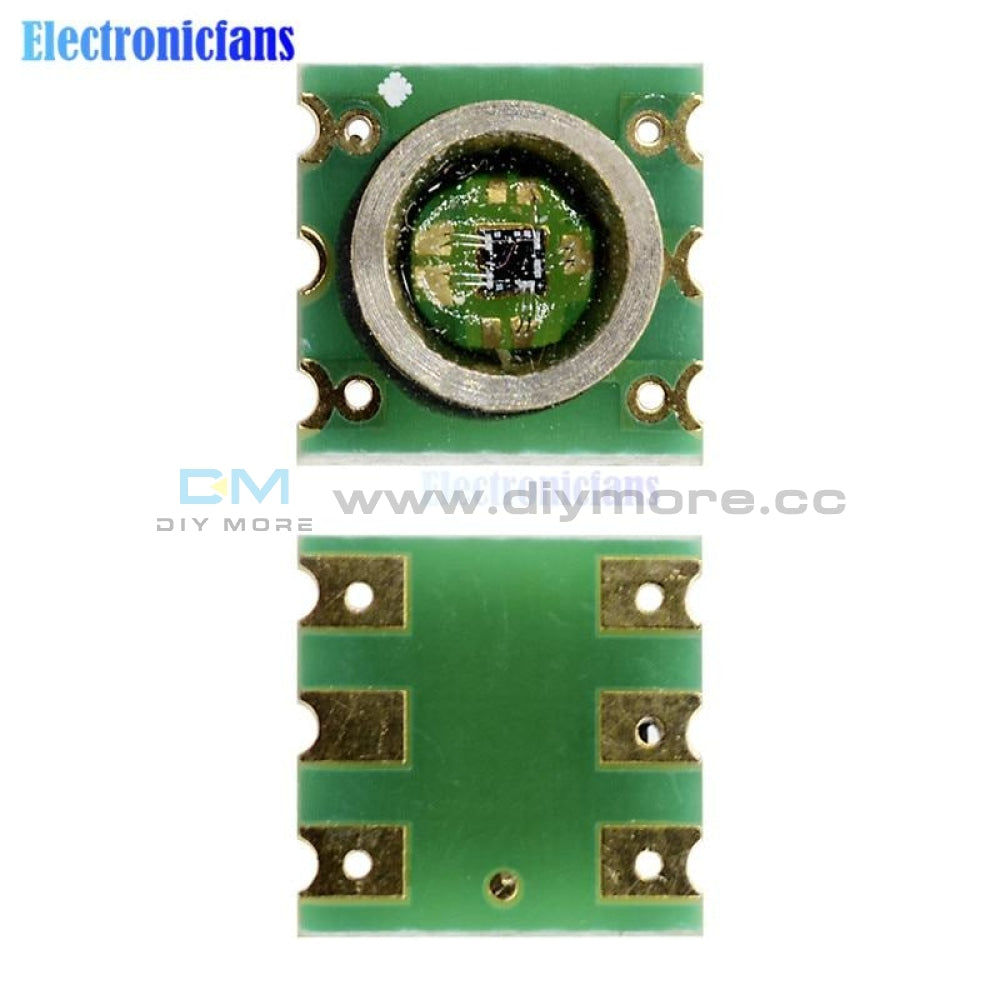

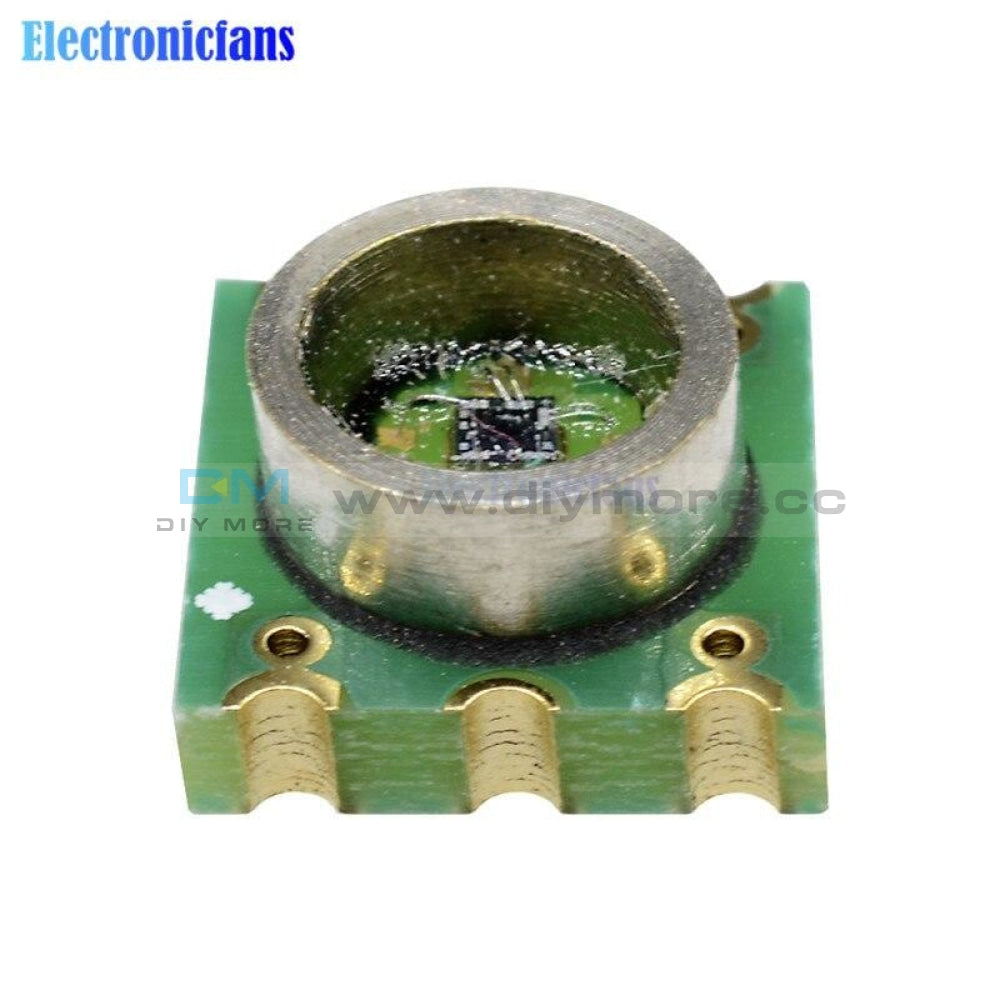

MD-PS002 MPXV7002DP Transducer Pressure Sensor Differential Breakout Board

MD-PS002 MPXV7002DP Transducer Pressure Sensor Differential Breakout Board

SKU:011223
Regular price $4.99

HTB1ZYSui4PI8KJjSspoq6x6MFXaU

Features:
Economy, compact;
The chip surface coating protection against water vapor, dust and other chip;
Pressure connection stainless steel, pressure;
Pin-defined, easy connection;
A variety of range to choose from.
Applications:
The car: tire gauge, car air pump, MAP sensor, diagnostic equipment, steam engine and suspension control, automotive sensors.
Industry: pressure switches and controls, air brake switch, cable leak detection, portable pressure gauge.
Medical: patient monitoring and diagnostic equipment, blood pressure monitors.
Research: aerodynamics miniature absolute pressure sensor.
Range: 150kpa (absolute pressure) pressure range from vacuum (absolute 0 pressure) above atmospheric pressure 50kpa
Remarks: 15psi are range. Vacuum (-100kPa), that can be measured can also be used to measure positive (positive and negative pressure detection) can also be used for the compositescale.
Output: mV signal
Electricity supply: 5VDC or constant current 1Ma of
Linear accuracy: 0.25% FS
Feature
Solid, MEMS technology, high reliability
Low cost, small size
Standard pressure range :0-15 ,0-30 ,0-50 ,0-100Psia
Nonlinear <0.20% FSO
Piezoresistive sensing technology, the silicon / silicon-bonded chips, good stability
Electrical performance (22 ° C)
Environmental conditions
Temperature Range
Operating temperature -40 to 125 ° C
Storage temperature -55 to 150 ° C
Maximum overvoltage 6X
Usually pressure 2X
Compatible medium gas
Technical indicators (1)
Zero output ± 8 mV / v / ± 10 mV / v
Full scale output 65-115 mV / 75-125 mV / 170-280 mV
Linearity of ± 0.20% FSO / ± 0.25% FSO
Hysteresis and repeatability of ± 0.10% FSO
Zero temperature coefficient of ± 30 μv / v / ° C
Resistance temperature coefficient of 0.30% / ° C
Sensitivity temperature coefficient of -0.20% FSO / ° C
Zero Thermal Hysteresis ± 0.10% FSO
Long-term stability of ± 0.20% FSO
Note:
1, all test values relative 22 ° C, 1mA constant current power supply
2,100 KPA pressure range
3,4295 psi pressure range
4, straight-line output
5, in the 0-70 ° C, the temperature coefficient of typical values.
Package Included :
1 X Sensore Pressione MD-PS002 Vacuum Sensor Pressure Sensor for Arduino
