Soil humidity Sensor Hygrometer Moisture Detection Sensor w/ Corrosion Resistance Probe Module Board Diy Electronic
Soil humidity Sensor Hygrometer Moisture Detection Sensor w/ Corrosion Resistance Probe Module Board Diy Electronic
SKU:012796
Regular price
$4.10
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Specification:
Name: Soil humidity sensor
Size: 36*15*7mm
Voltage:DC 3.3-12V
Current: <20mA; <30mA (output)
Interface:+ - DO AO; DO digital value; AO analog value
Operating Temperature:-25~85 Celsius
Application:
The soil humidity probe is for detecting humidity, and the voltage comparator is for judging humidity amount; when the humidity is larger than set value , DO will output low level.
Using Introduction:

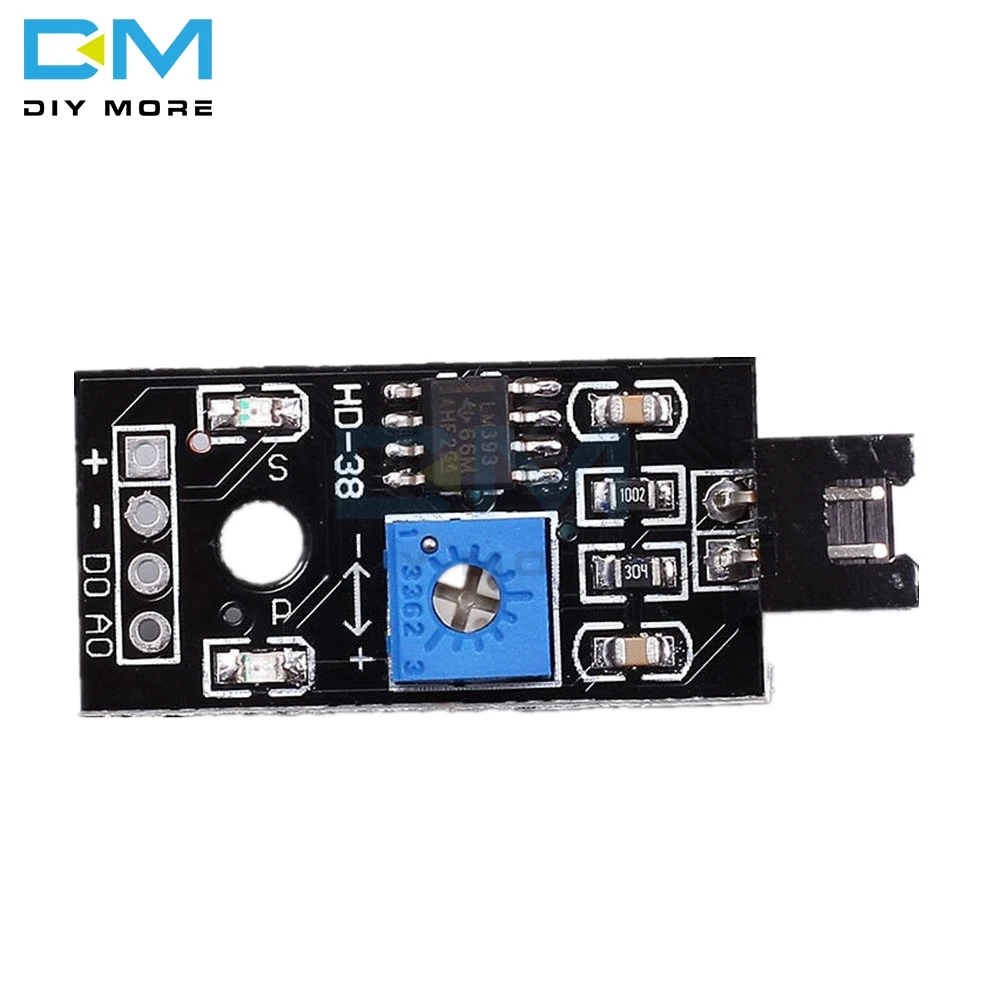

1."+" connects power positive; "-" connects power negative. Please do not connect reversely, or it will burn the chip. After connection, "P" power indicator lamp will be on and the module will operate normally
2.Clockwise/counter clockwise adjust the blue potentiometer, it can improve/reduce the detection sensitivity. Take "Thermal Sensor" as example, if defaults 25 Celsius trigger, DO output low level is valid; After clockwise adjusting, that is when the temperature is lower than 25 Celsius, it can trigger; if counter clockwise adjusting, then higher than 25 Celsius can trigger
3.When clockwise adjusts the potentiometer to "S" output indicator is on, it represents the adjusting range has surpassed the testing threshold; if counter clockwise adjusting to its max extend, it surpasses the threshold. When adjusting, please do no let them over the threshold, or it cannot be used normally.Potentiometer adjustment is only used for DO port, it has no relevance to AO output
4.AO output is analog value (voltage), and it can detect via MCU AD port.
When the detected value is more than the set value, DO will output low level, the triode will be connected and the load will operate. 1K is current-limiting resistor, and 10K is pull-up resistor
Package Included:

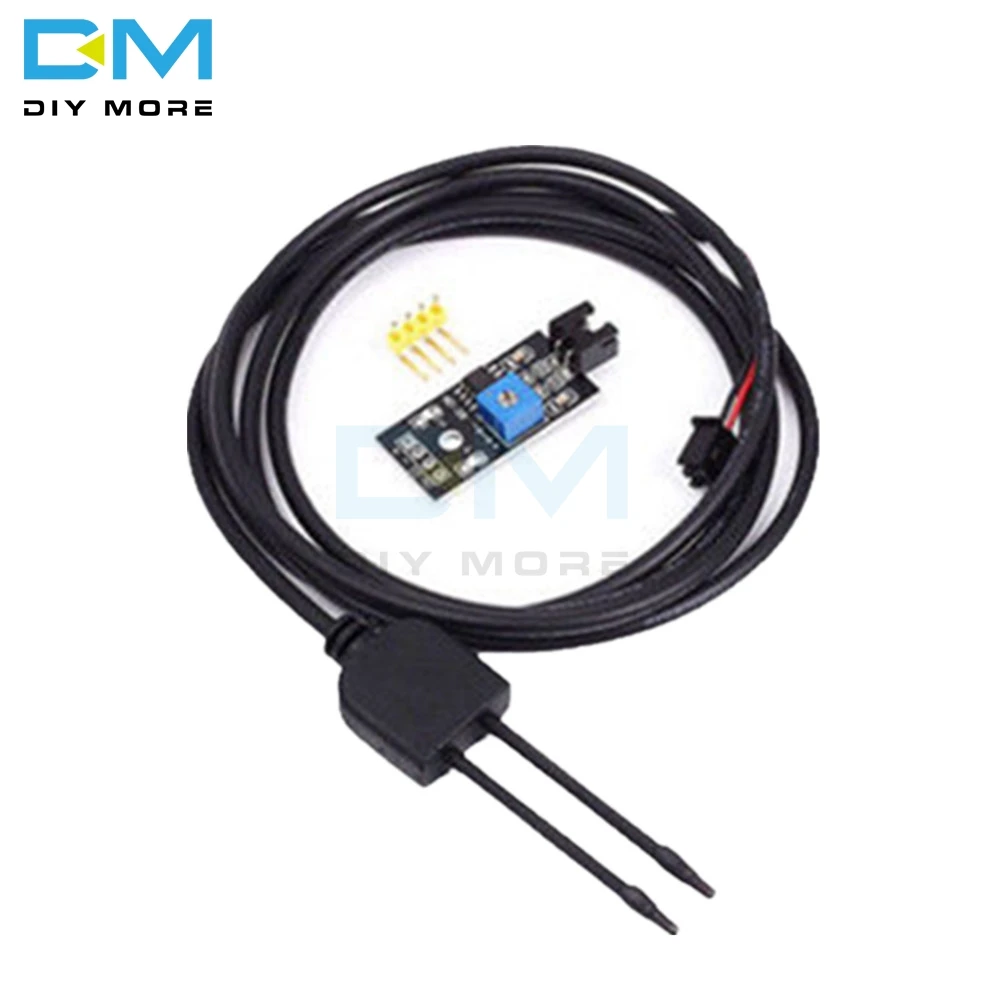

1 x Soil Humidity Hygrometer Moisture Detection Sensor Module
