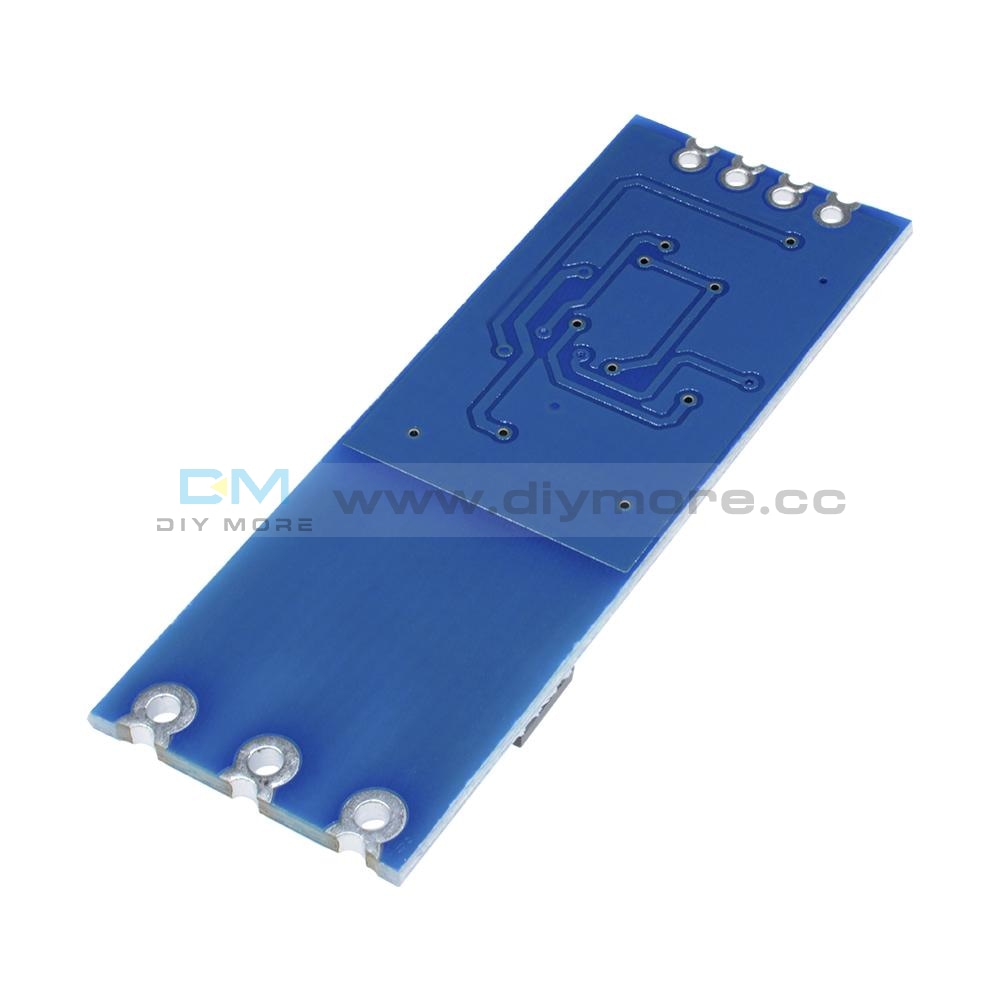

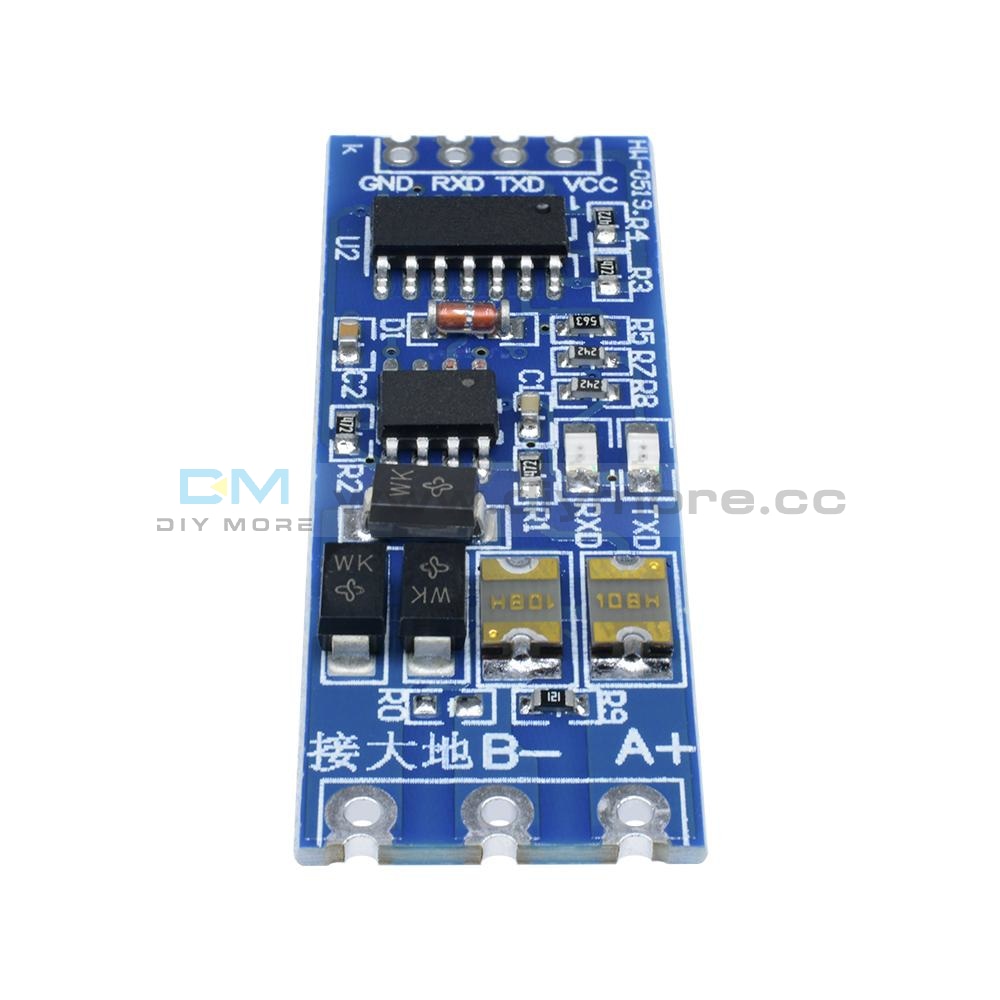

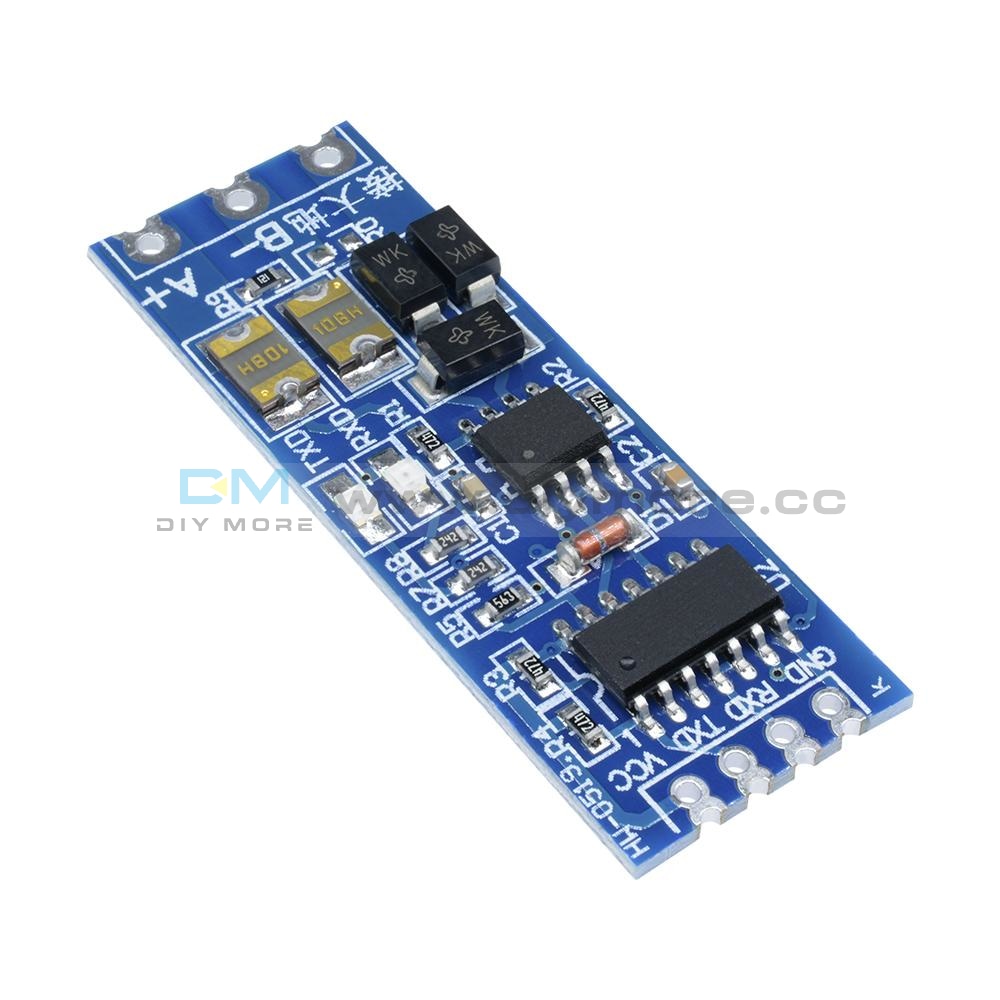

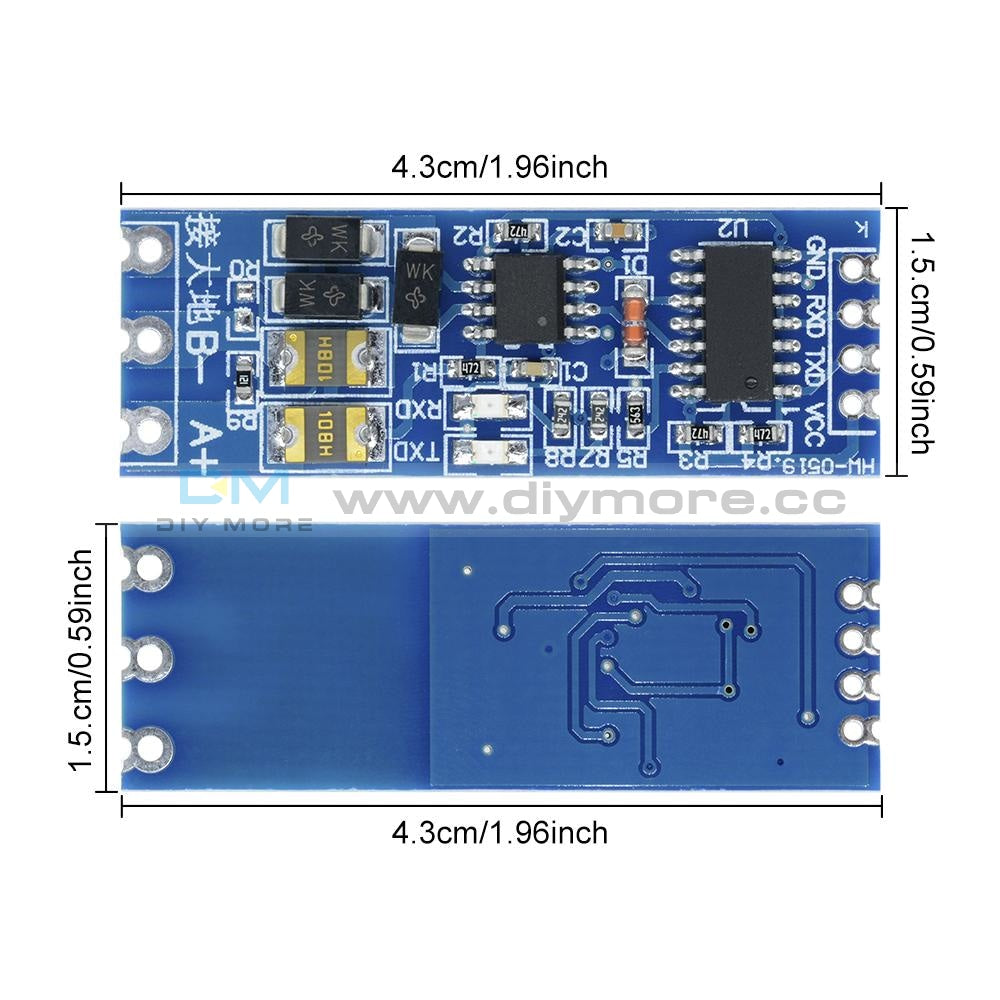

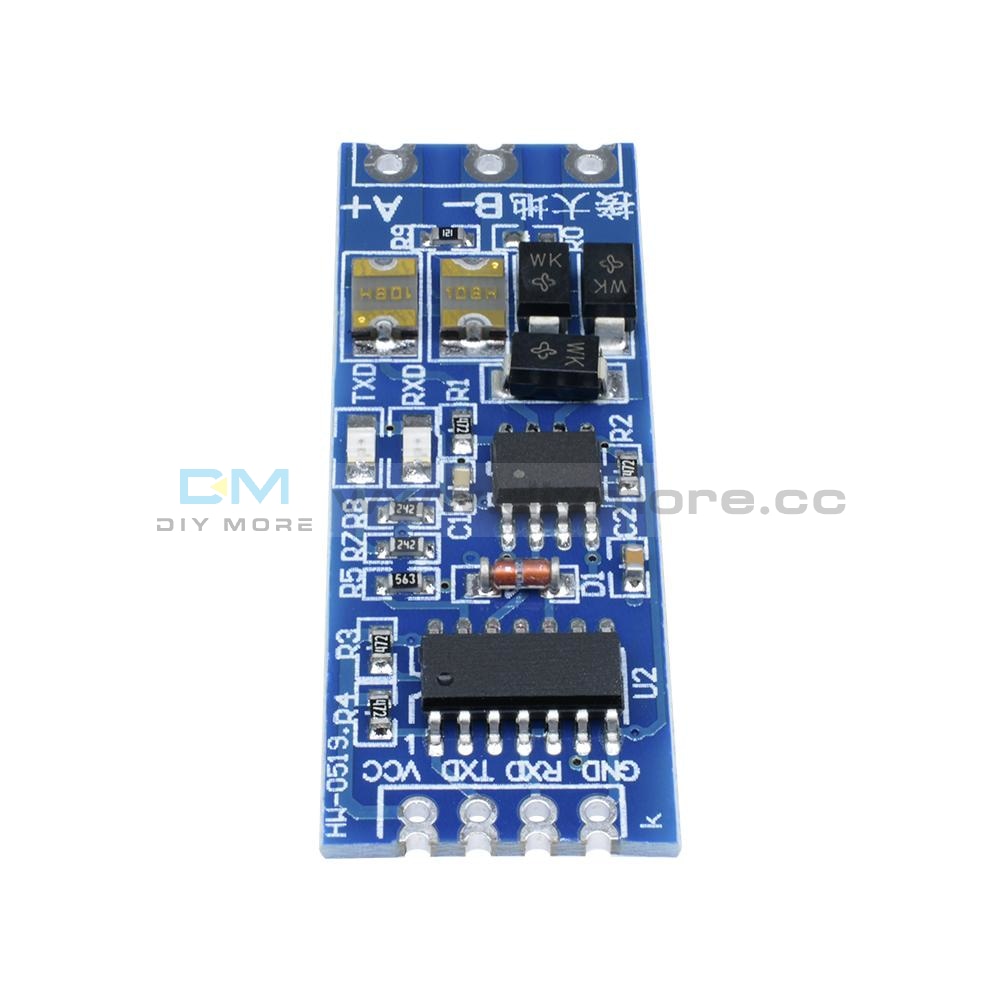

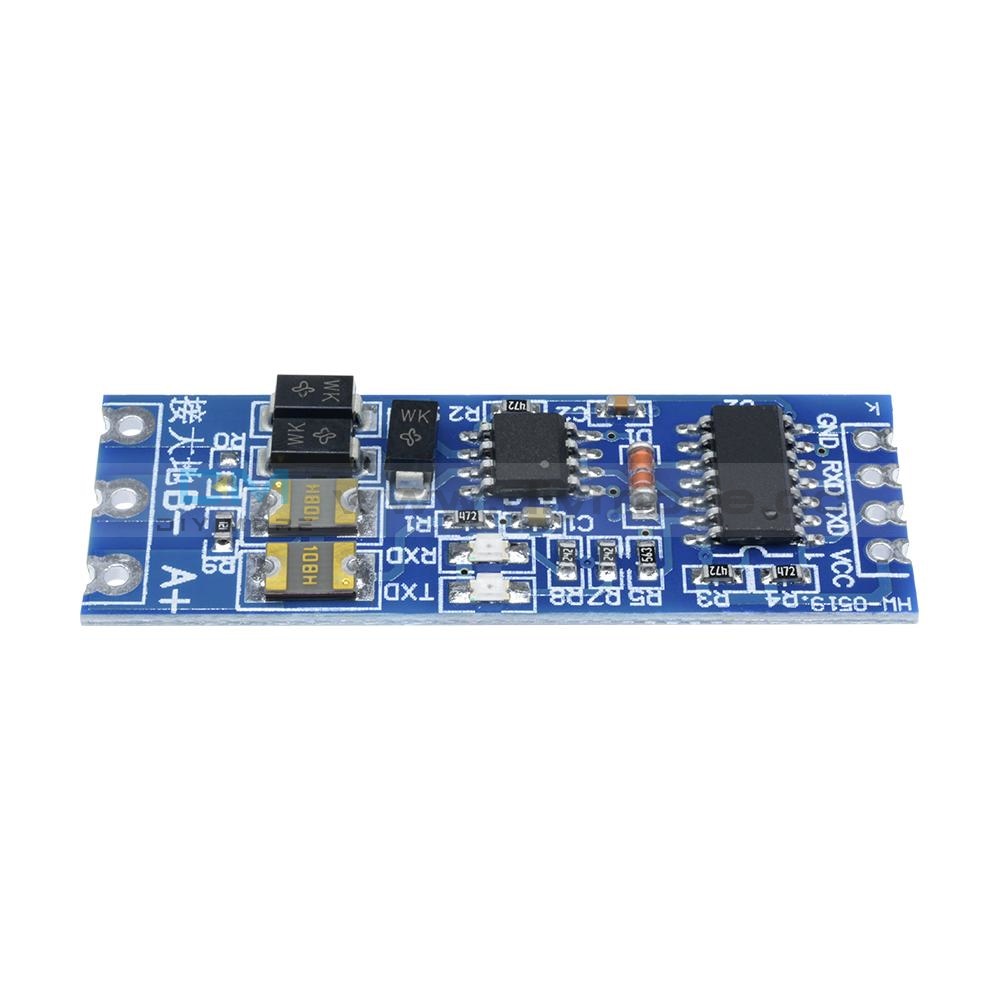

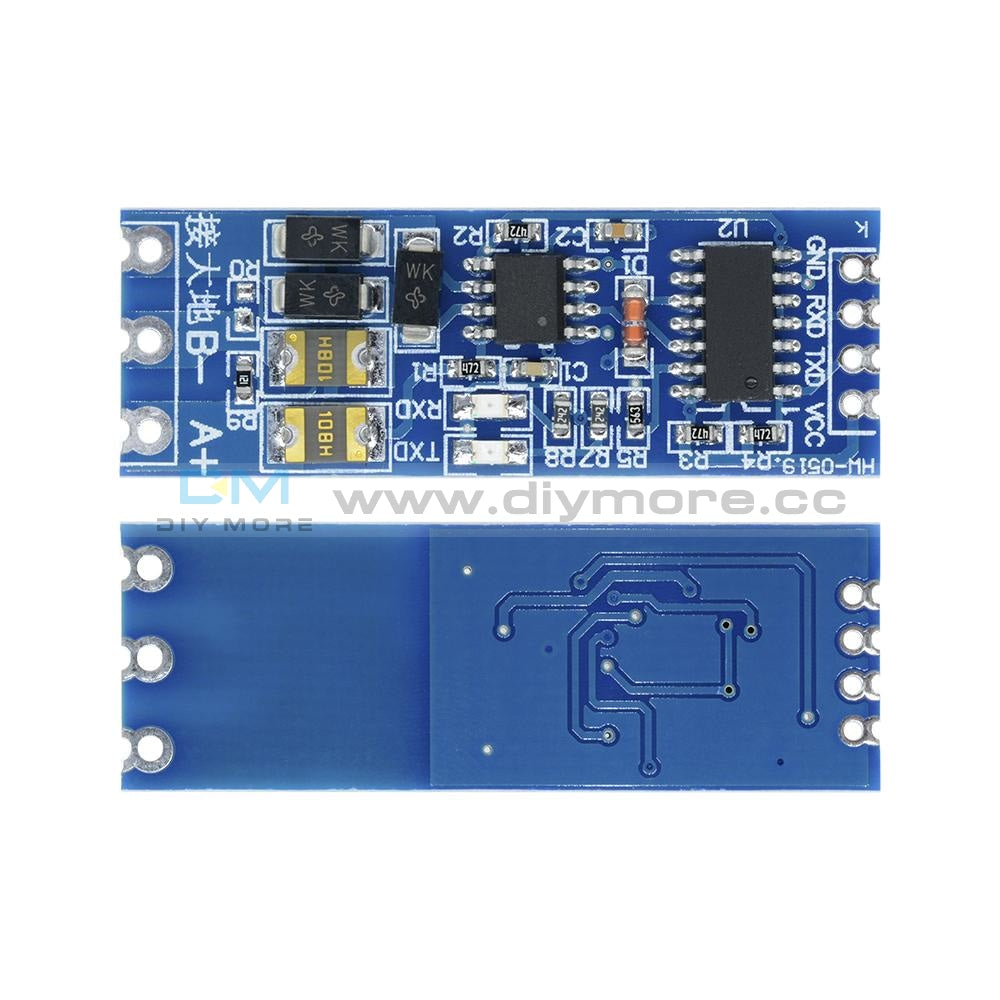

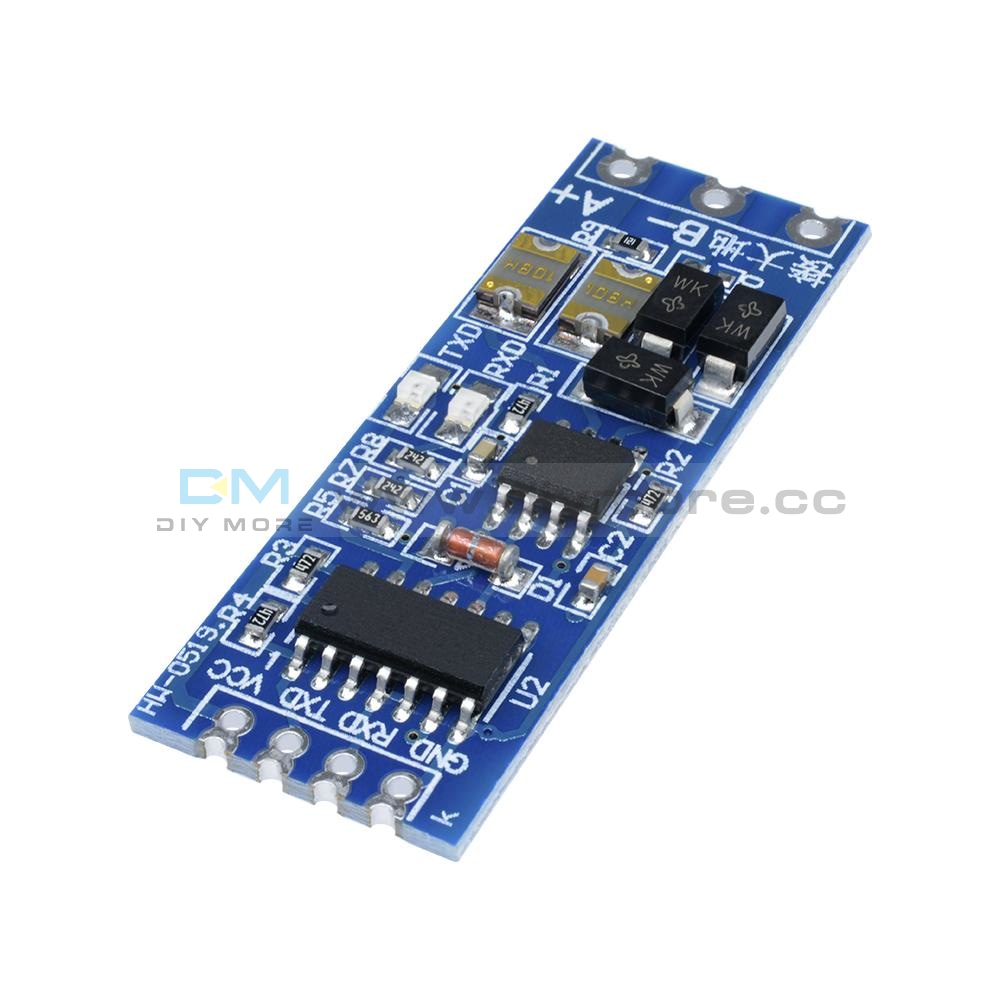

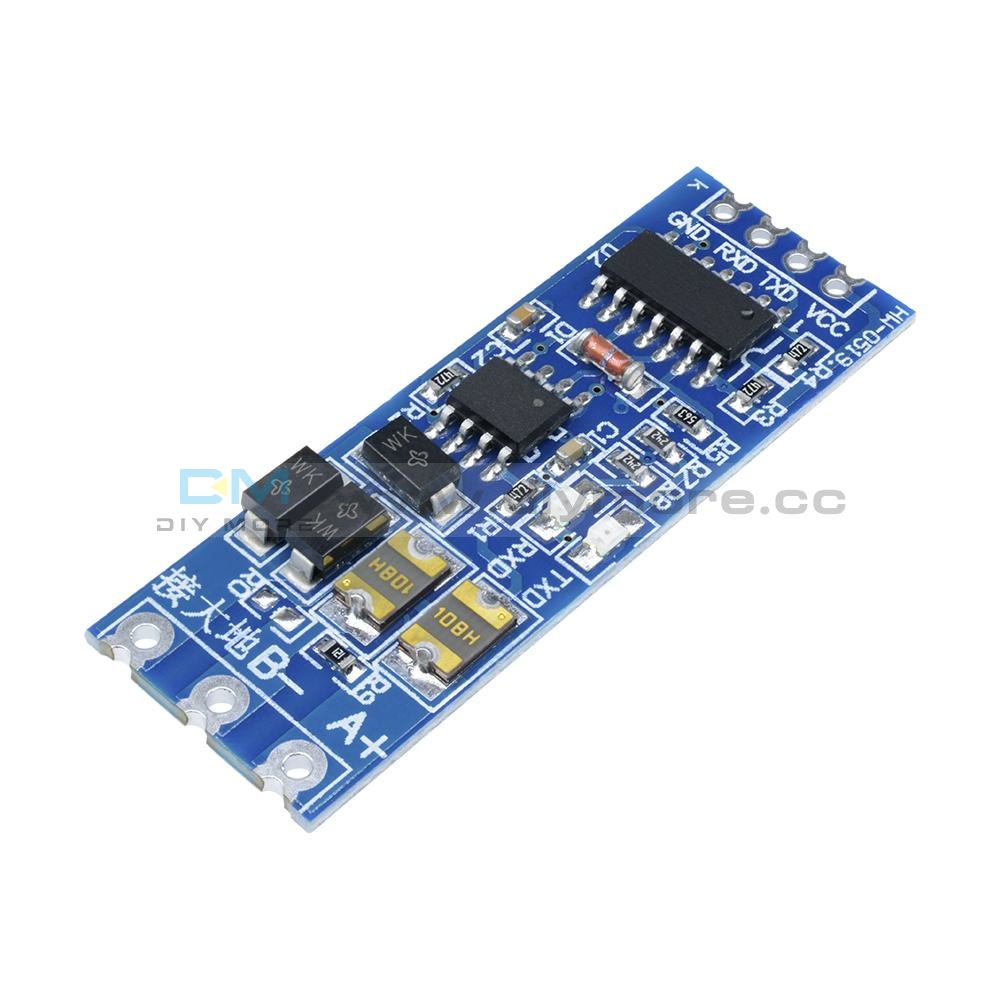

Stable UART Serial Port to RS485 Converter Function Module RS485 to TTL Module

Stable UART Serial Port to RS485 Converter Function Module RS485 to TTL Module

SKU:010726
Regular price $1.29

shipped within one bussiness day

Features:

The module is fully considered mine design, long-distance transmission signal 485 in the wild, the module "Connected to the ground" terminal is connected to the earth, can play a very good anti-jamming and anti-lightning effect, more secure; it can not connect with the ground when the indoor short-distance transmission.
Using the standard 2.54 pitch design, easy secondary development.
Has a 120 ohm termination resistors, shorted R0to enable the termination resistor.
Support multi-machine communication, allowing access at up to 128 devices on the bus
The module can be hot swapped, the signal does not appear dead phenomenon.
A large area of copper to prevent interference.


Highlights:

(1) Compatible with 3.3V and 5.0V power supply.
(2) Compatible with 3.3V and 5.0V signal.
(3) Absolute using imported chips, industrial design, anti-interference ability, while using more effective mine design can be used in the industrial field and harsh field environments, the working temperature of -40 ℃ to + 85 ℃ transmission distance up to 1 kilometer (made with 850 meters of cable F1.5 tests recommended in the 800 meters, more than 800 m, please add repeaters).
(4) Semi-hole pads, onboard module, thin PCB, having a thickness of 0.8mm.
(5) Has RXD, TXD signal indicator light, monitor send and receive status.


Only one in the whole network, 3.3V and 5.0V power supply, RS485 signal perfectly compatible with automatic flow control module.
Without "Receiving - launch" control, this module is as simple to use with your serial port operations.



Package Included:

1 x UART Serial Port to RS485 Converter Function Module RS485 to TTL Stable Module
