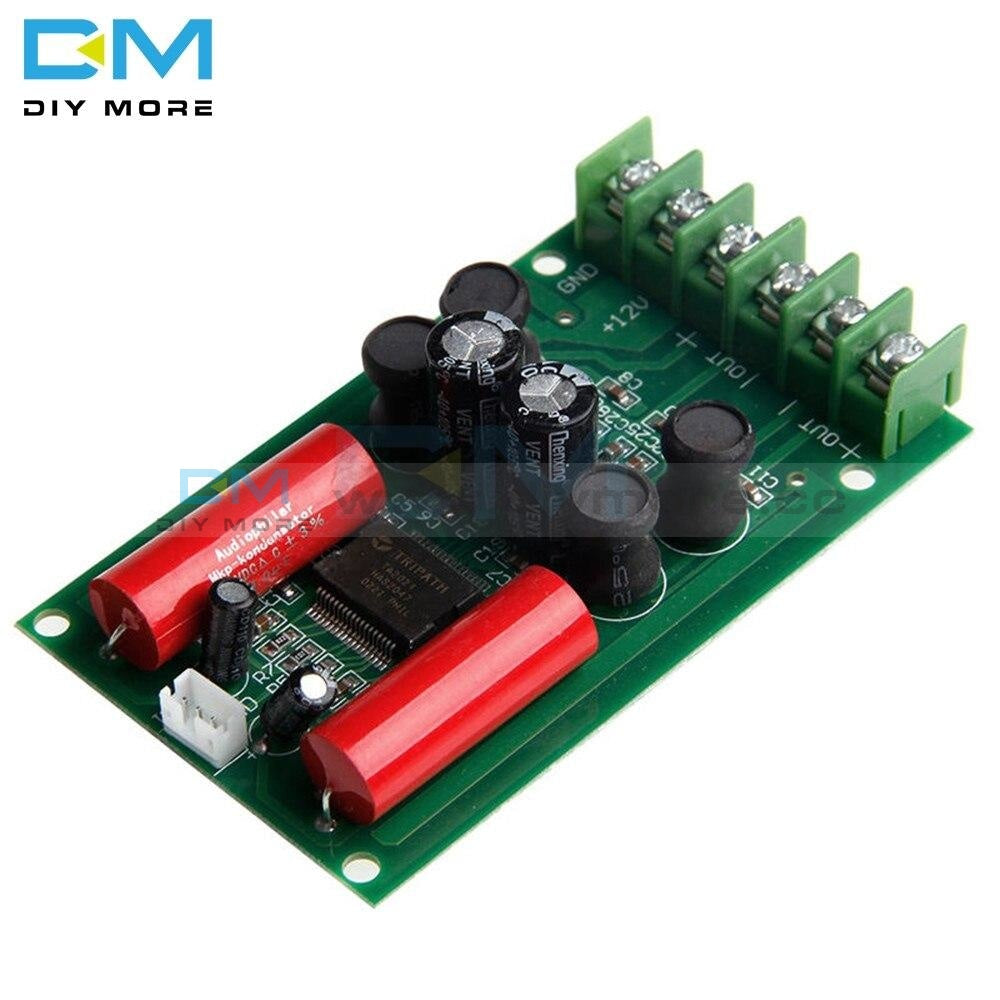

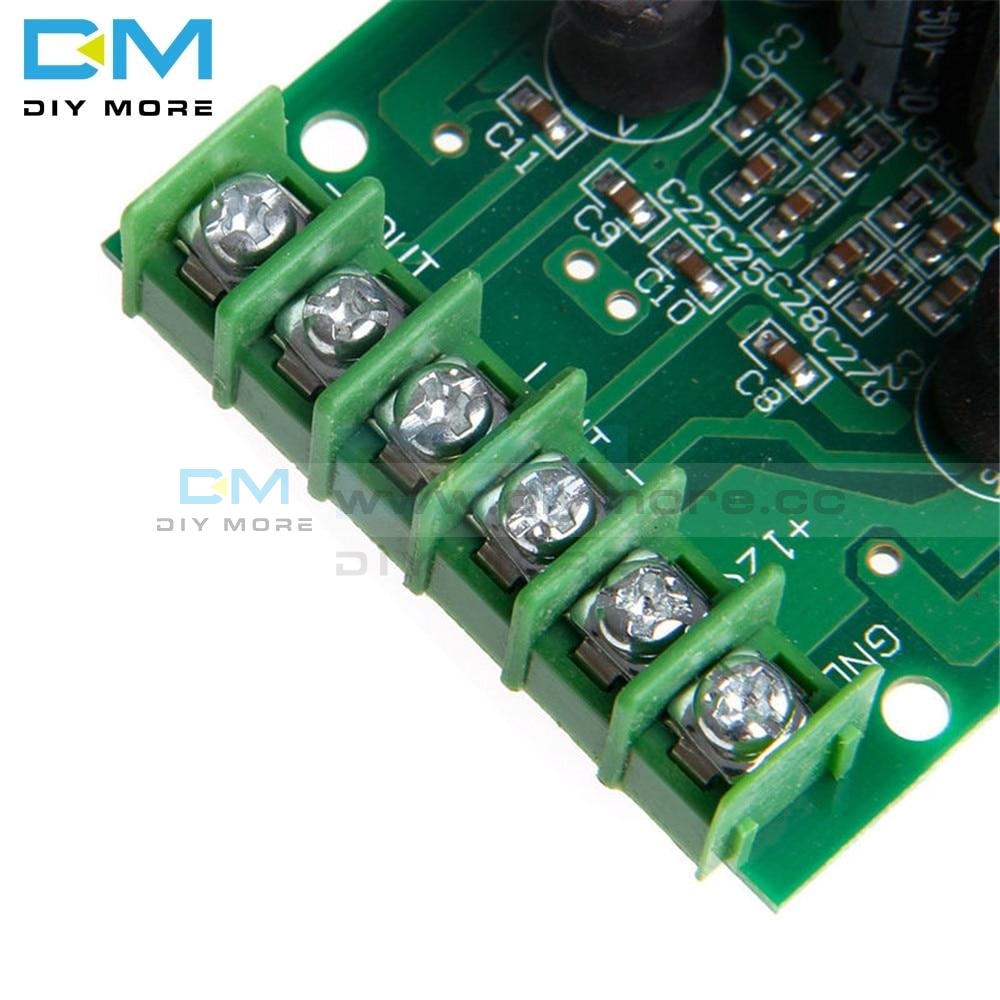

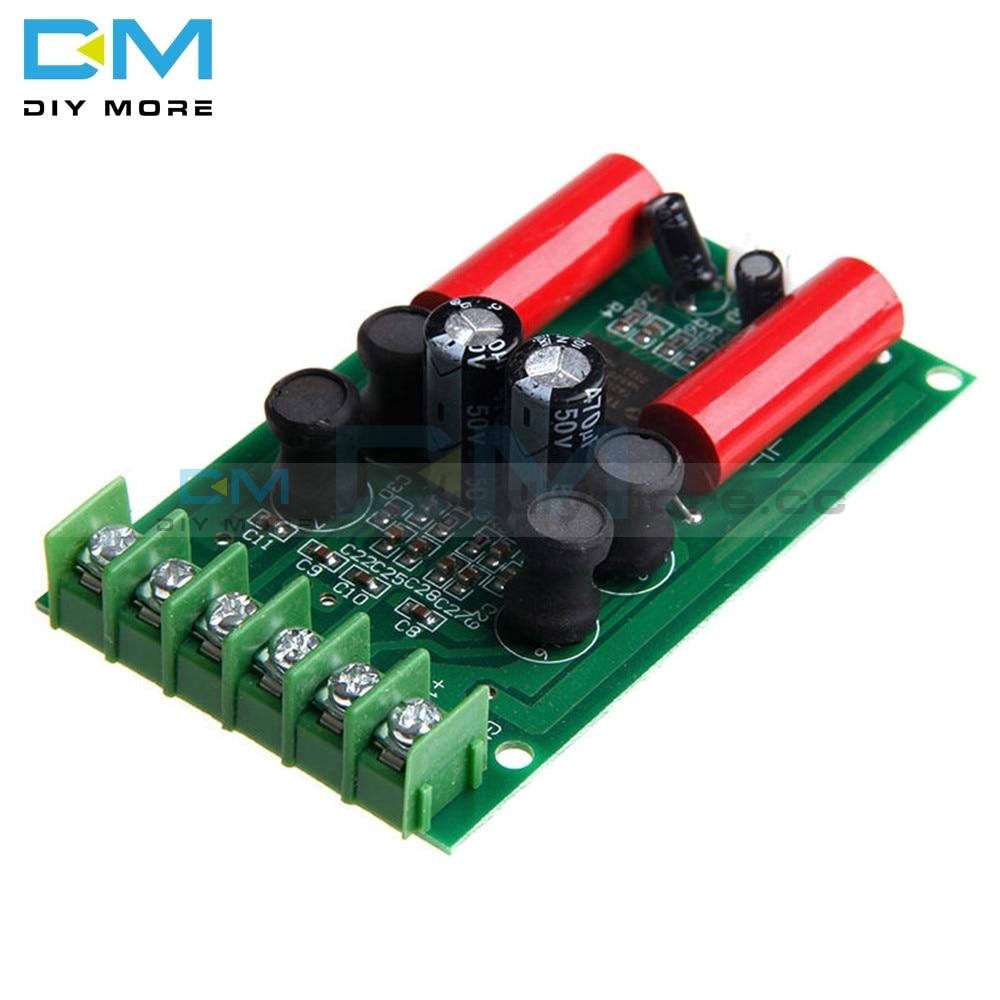

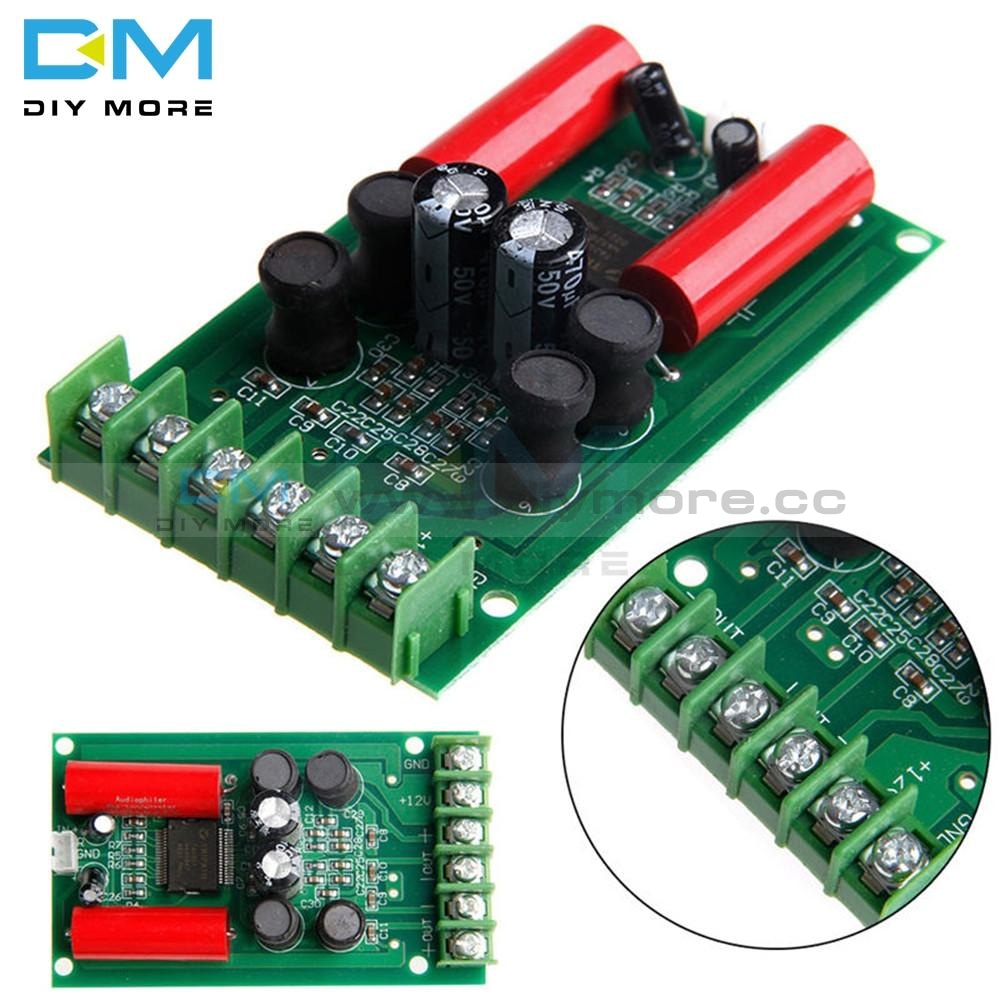

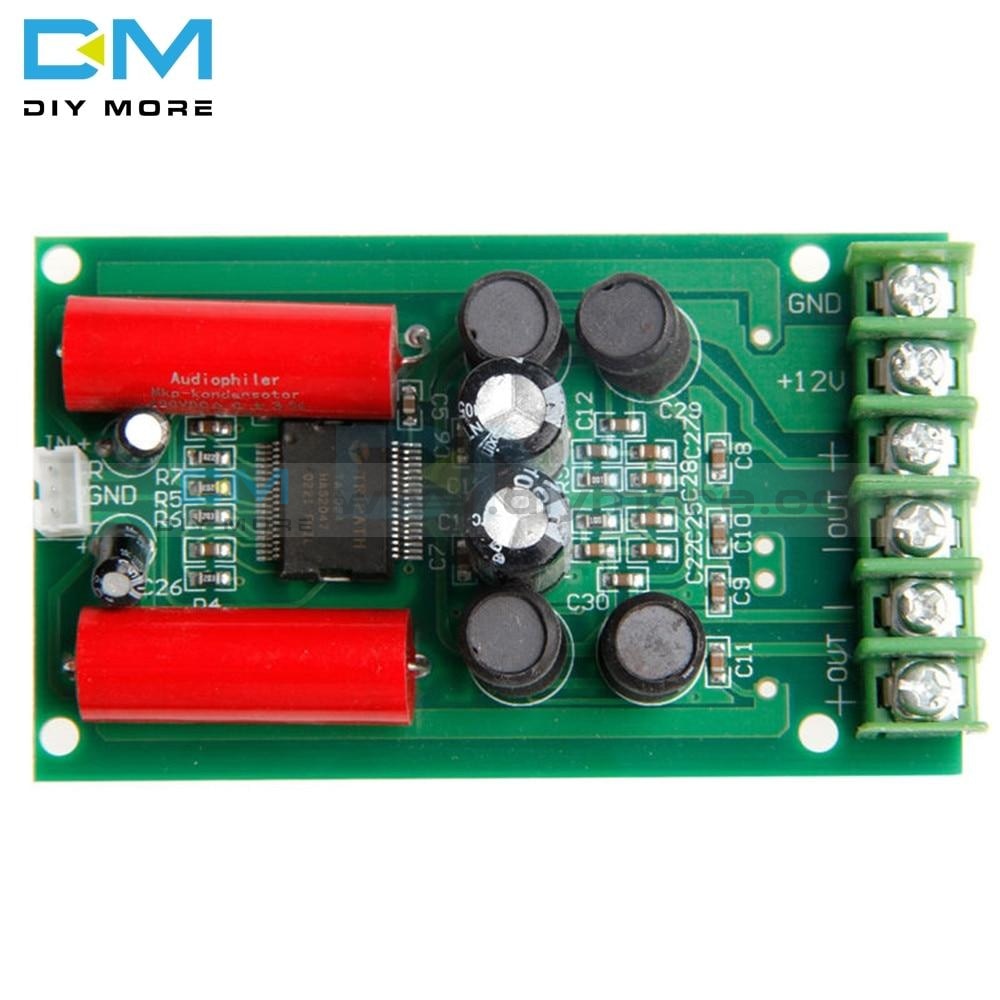

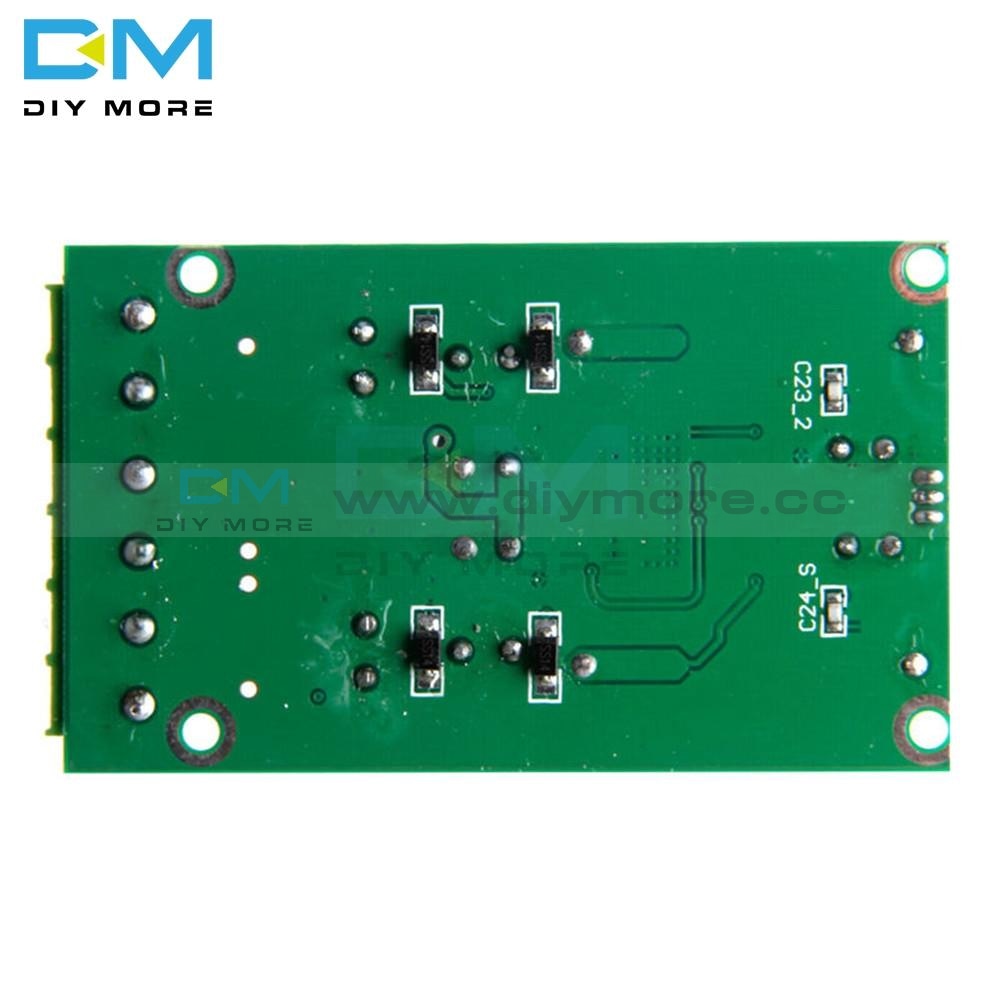

TA2024 12V 2 x 15W Mini HIFI Digital Audio AMP Amplifier Board Module Car For 4 8 ohms Speaker Single Power Design DIY KIT

TA2024 12V 2 x 15W Mini HIFI Digital Audio AMP Amplifier Board Module Car For 4 8 ohms Speaker Single Power Design DIY KIT

SKU:011812
Regular price $8.99

Description:

100% brand new and high quality
Material: Electronic Component
Color: See pictures
This is a small digital amplifier board, its expertise is digital signal processing technology
and design mixed signal processing and power integrated circuit. It is good, the efficiency high fidelity.
Easy to carry, no small body heat. Widely used in multimedia computer, portable audio, home theater, car audio, etc.
Features:

No heat sink; Suitable for any 4-8 ohms speakers;
Compared with the traditional AB kind of power amplifier sound extremely high;
Sound quite or more than class power amplifier;
Single power design.
Signal Output function :
Single 12 volts power supply.
Class-T architecture.
0.04% THD+N @ 9W, 4Ω.
0.18% IHF-IM @ 1W, 4Ω.
6W @ 8Ω, 0.1% THD+N.
11W @ 4Ω, 0.1% THD+N.
High Power:
10W @ 8Ω, 10% THD+N.
15W @ 4Ω, 10% THD+N.
High Efficiency:
88% @ 10W, 8Ω.
81% @ 15W, 4Ω.
Dynamic Range:102 dB.
Mute and Sleep inputs.
Turn-on & turn-off pop suppression.
Over-current protection.
Over-temperature protection.
Dimension : 9.1*5.3*1.5cm/3.58"*2.09"*0.59" (L*W*H)
No Retail Packages
Quantity:1Pc


Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

1Pc x TA2024 Mini HIFI Digital Audio AMP Amplifier Board Module Car PC 12V 2 x 15W New
