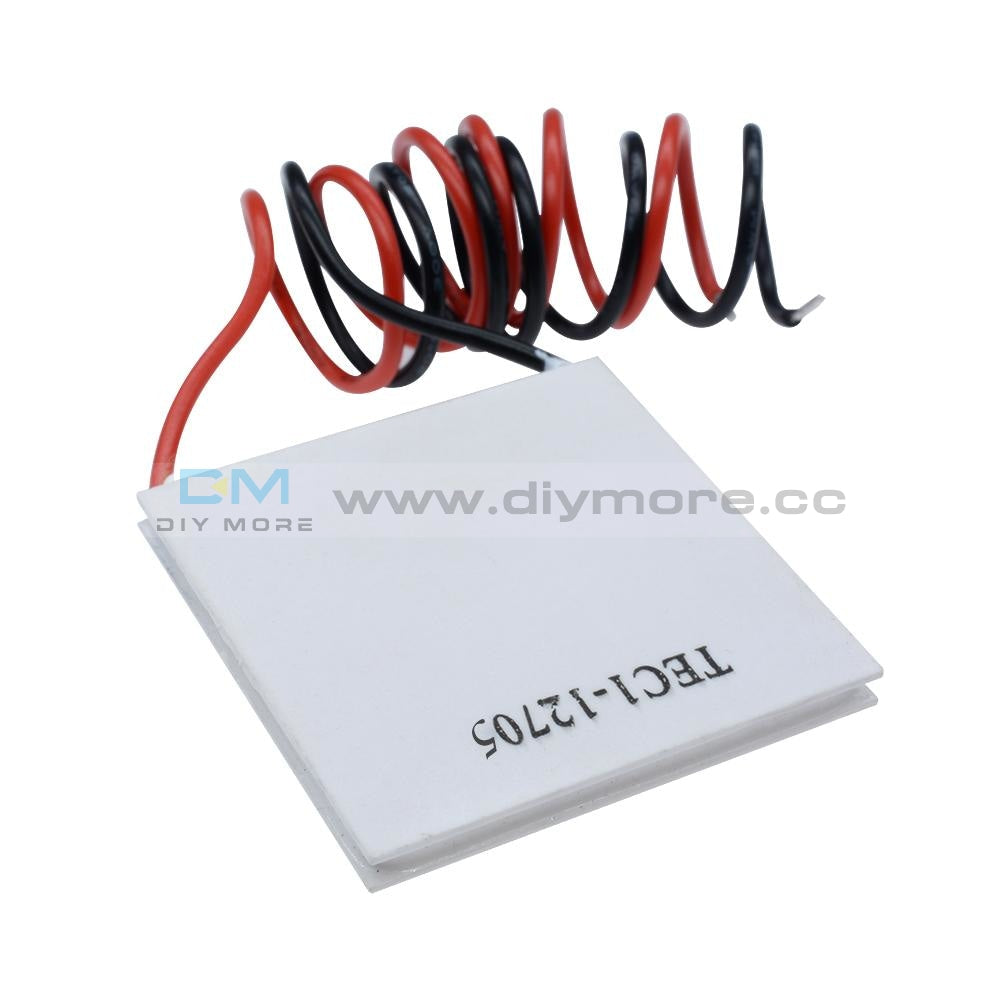

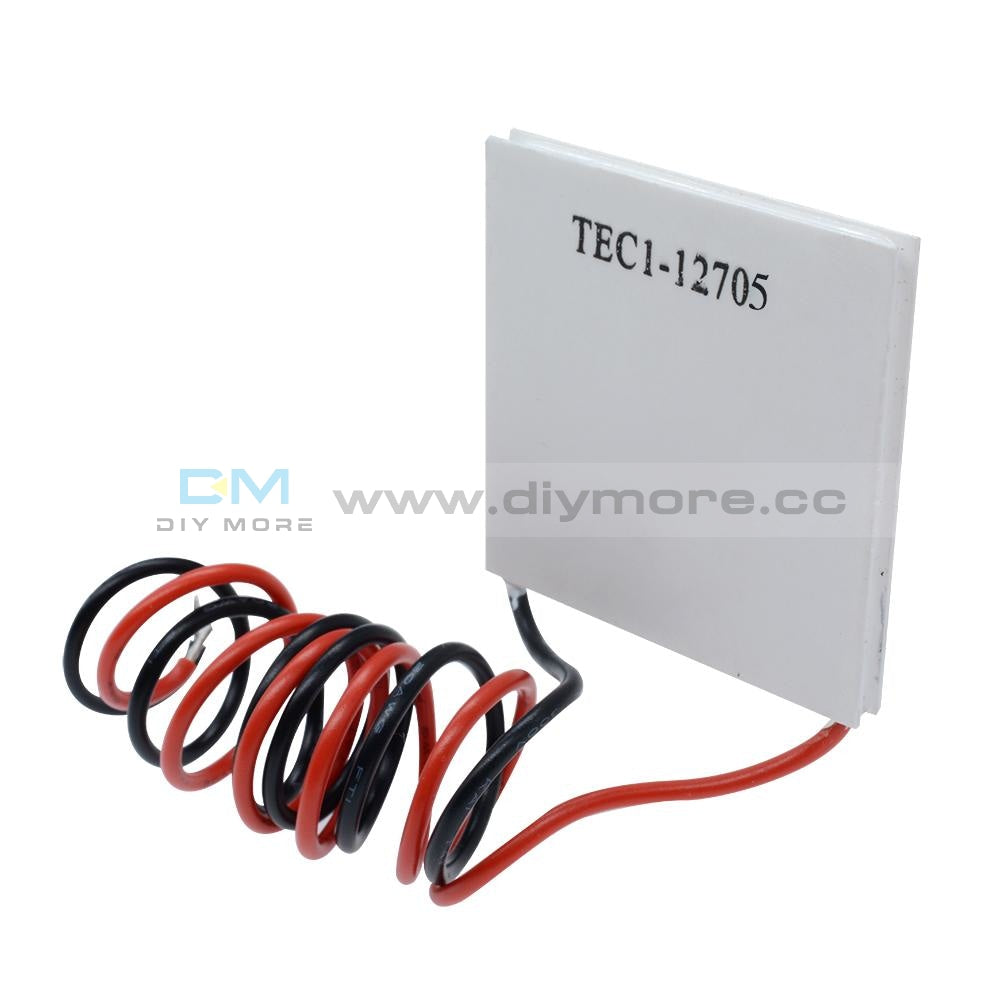

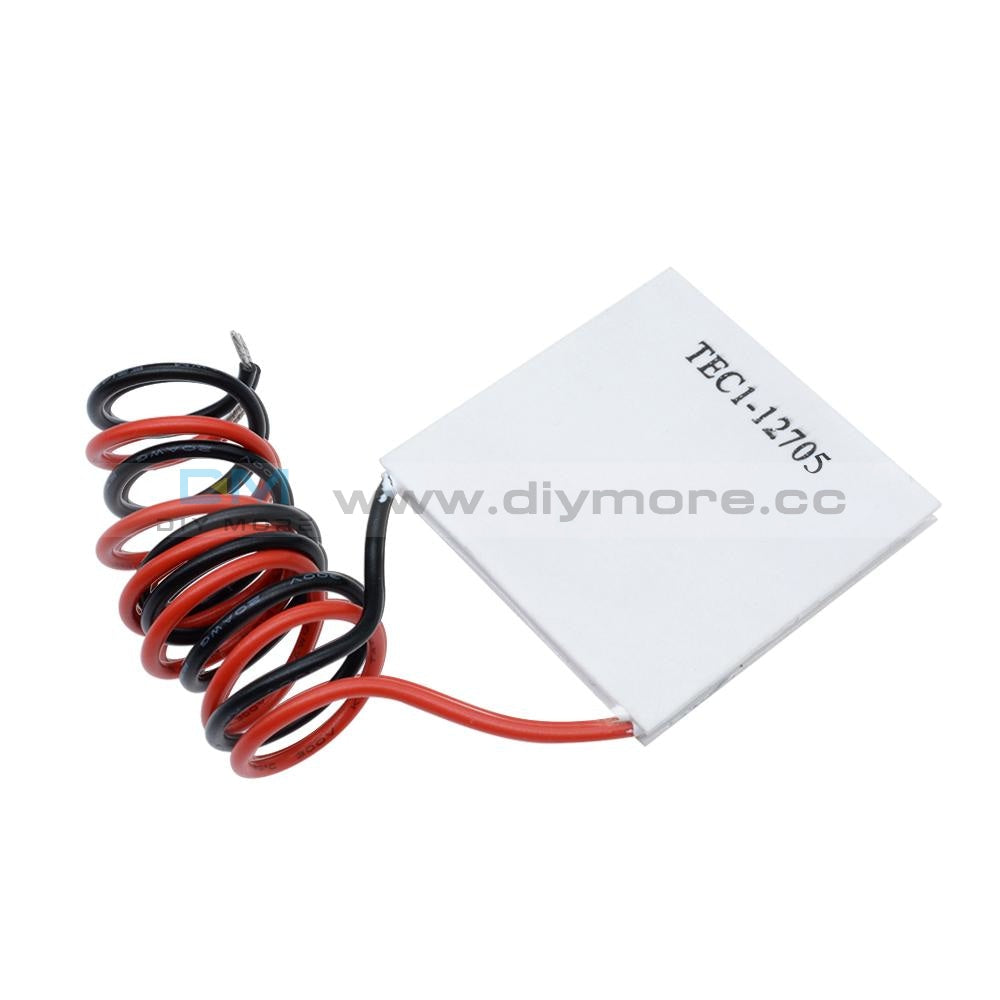

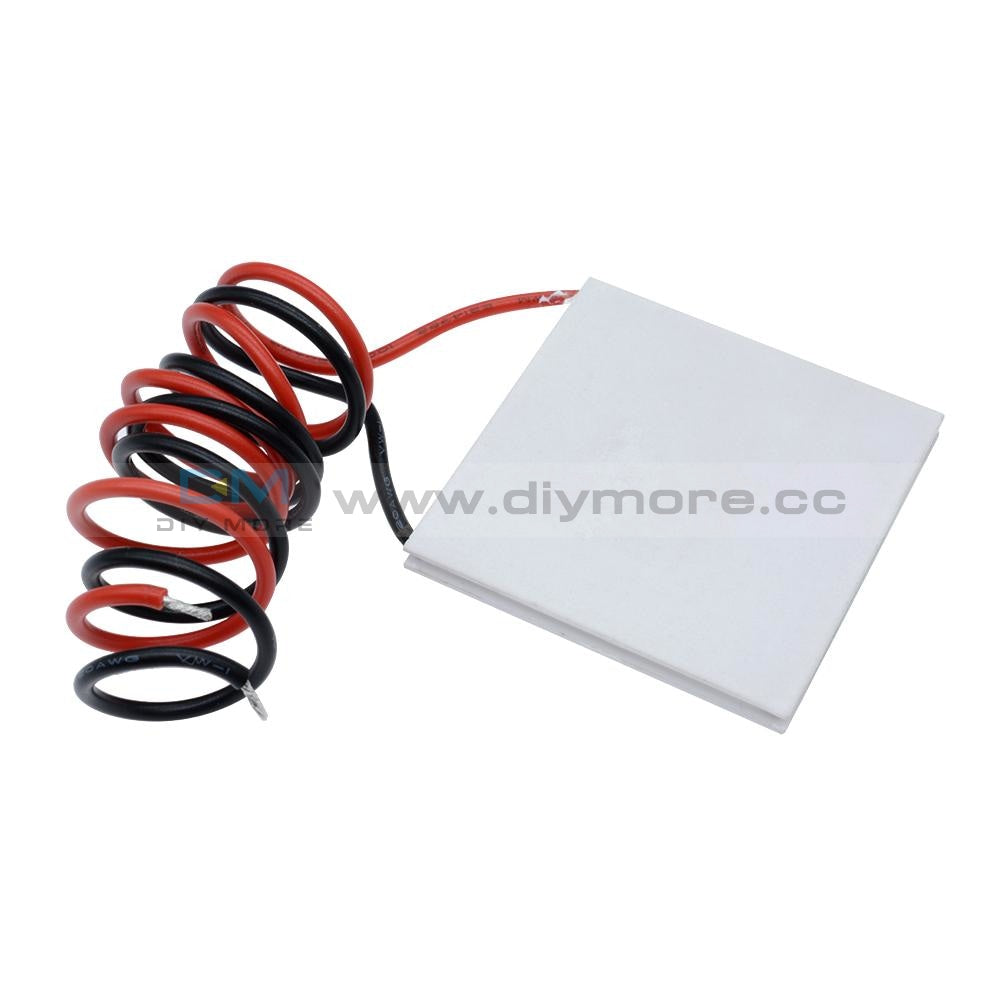

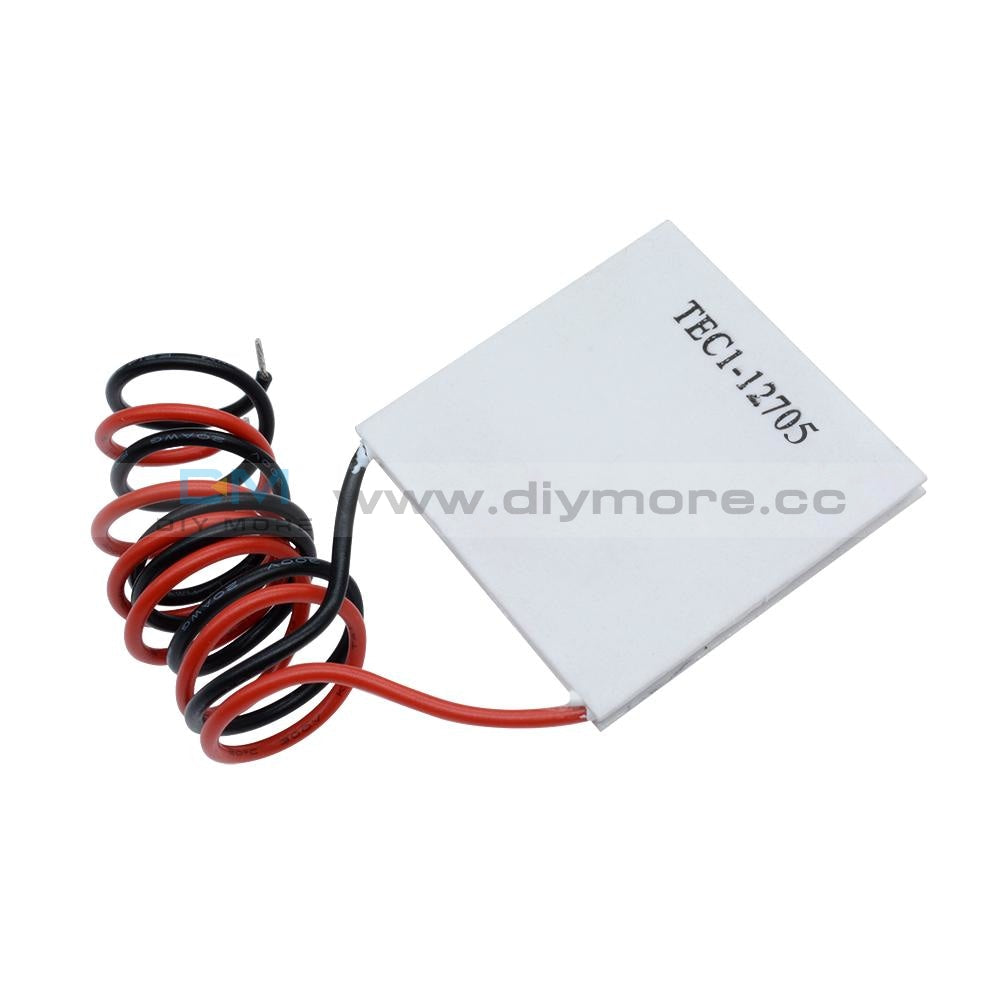

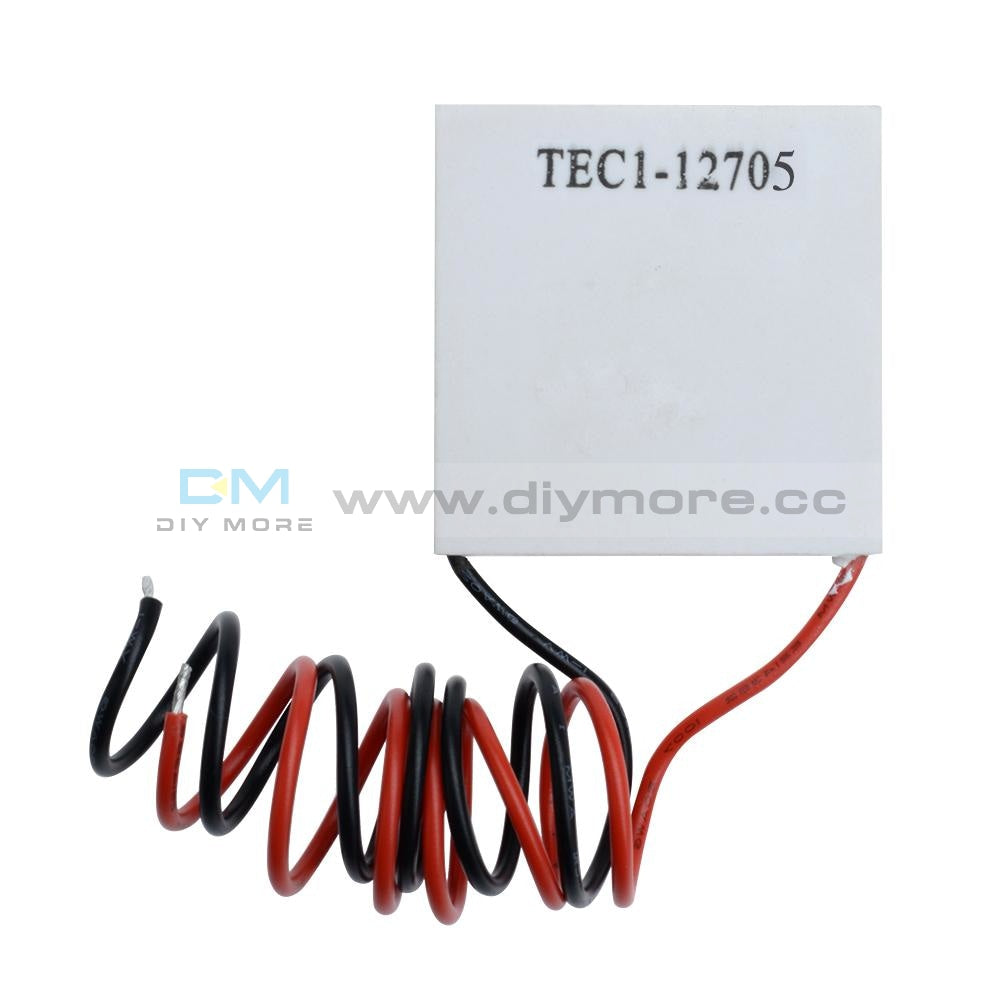

TEC1-12705 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module
TEC1-12705 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module
SKU:010450
Regular price
$5.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
- Chip Model: TEC1-12705
- Dimensions: 40 * 40 * 3.8mm,
- Component :Logarithm of 127
- Wire Size:Lead Length 100 ± 5mm,RV standard wire,Single head 5mm Tin Plated
- Internal resistance: 2.4 ~ 2.7Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test)
- Maximum temperature: Tmax (Qc = 0) :60 ℃
Description:
Operating current: Imax = 12 (rated voltage startup)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 30W
Assembly Pressure: 85N/cm2
Working environment: Temperature range -55 ℃ ~ 83 ℃
(high ambient temperature will directly affect the cooling efficiency)
Storage conditions: -40 ~ 60 ℃
Encapsulation Process:Standard 704 Silastic Seal
Solid state, vibration free, noise-free.
Simple to install and operate.
Should use with a heat sink.
Package Included:
1 x TEC1-12705 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module NEW
