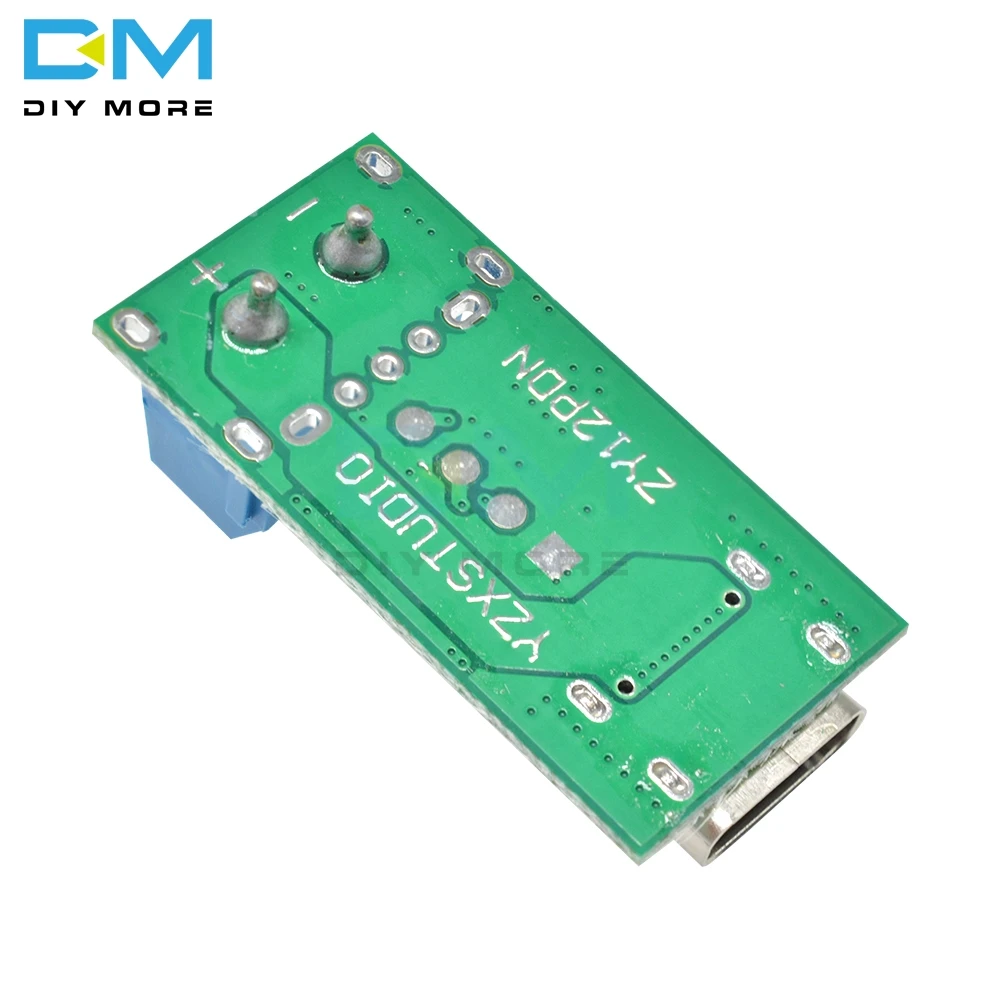

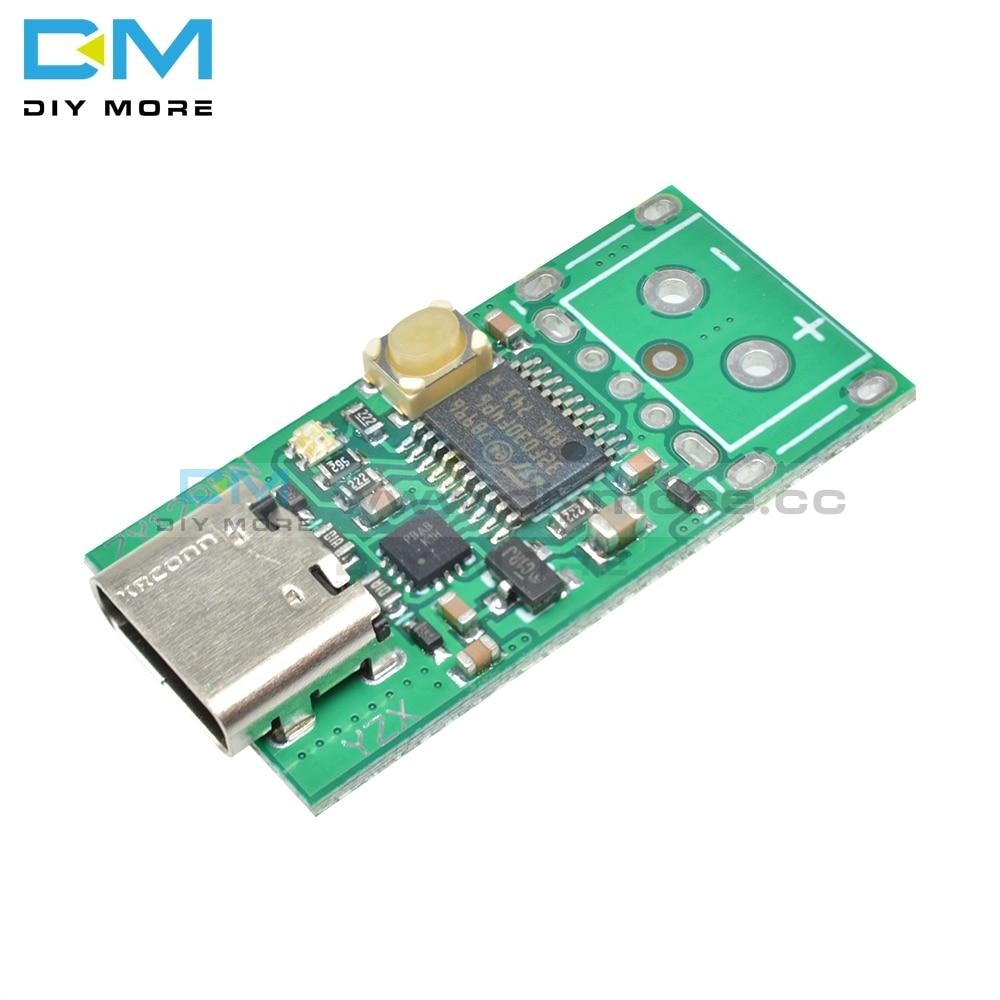

Type-C USB-C PD2.0 3.0 to DC USB Fast Charge Trigger Poll Detector ZYPDS ZY12PDN

Type-C USB-C PD2.0 3.0 to DC USB Fast Charge Trigger Poll Detector ZYPDS ZY12PDN

SKU:X13659
Regular price $8.99


The PD trigger uses the hardware protocol IC, and the compatibility is not comparable to the soft solution.
Maximum power support to 100W, excellent compatibility.

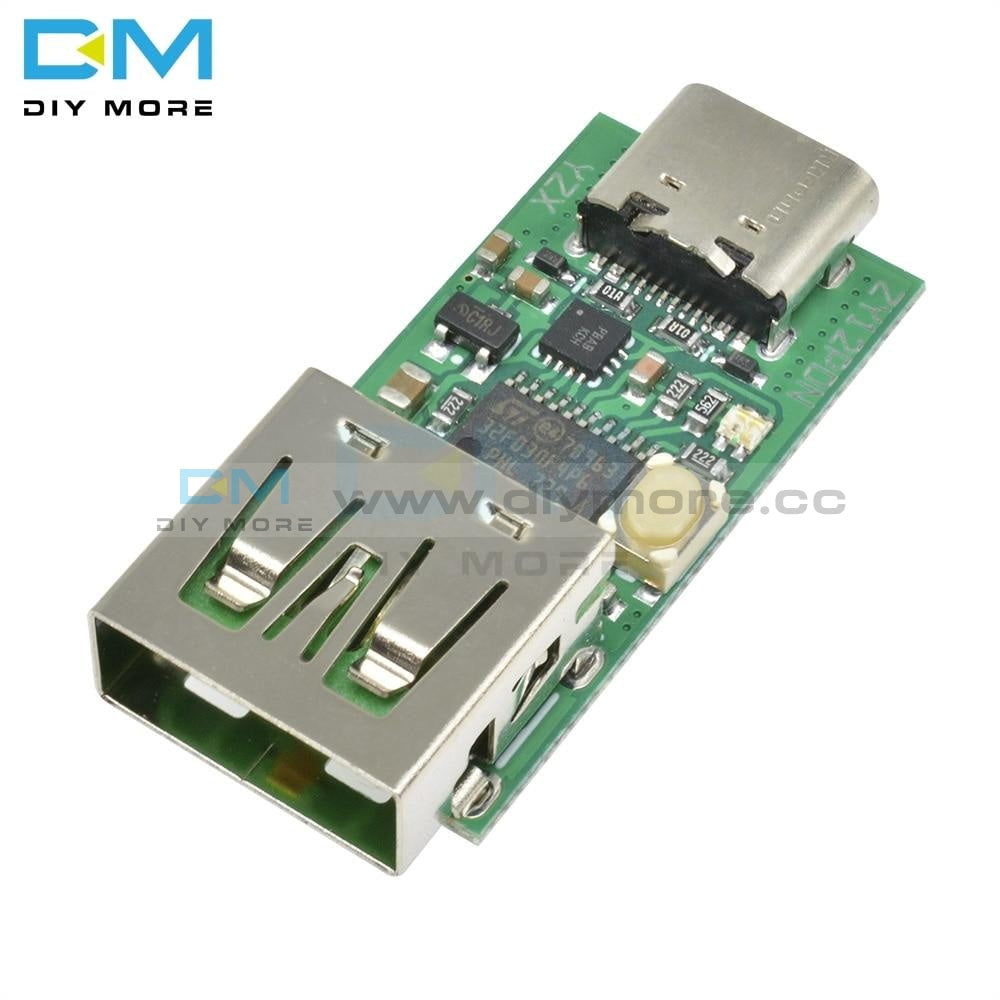

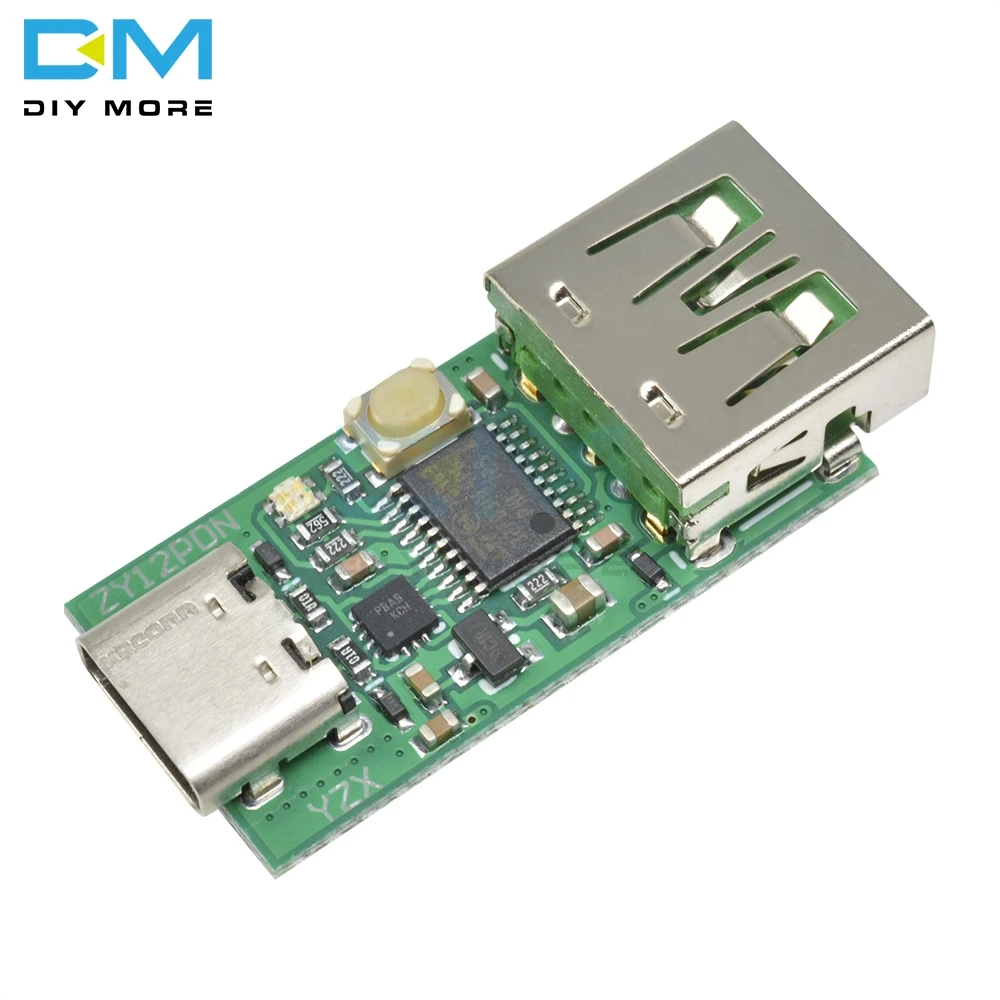

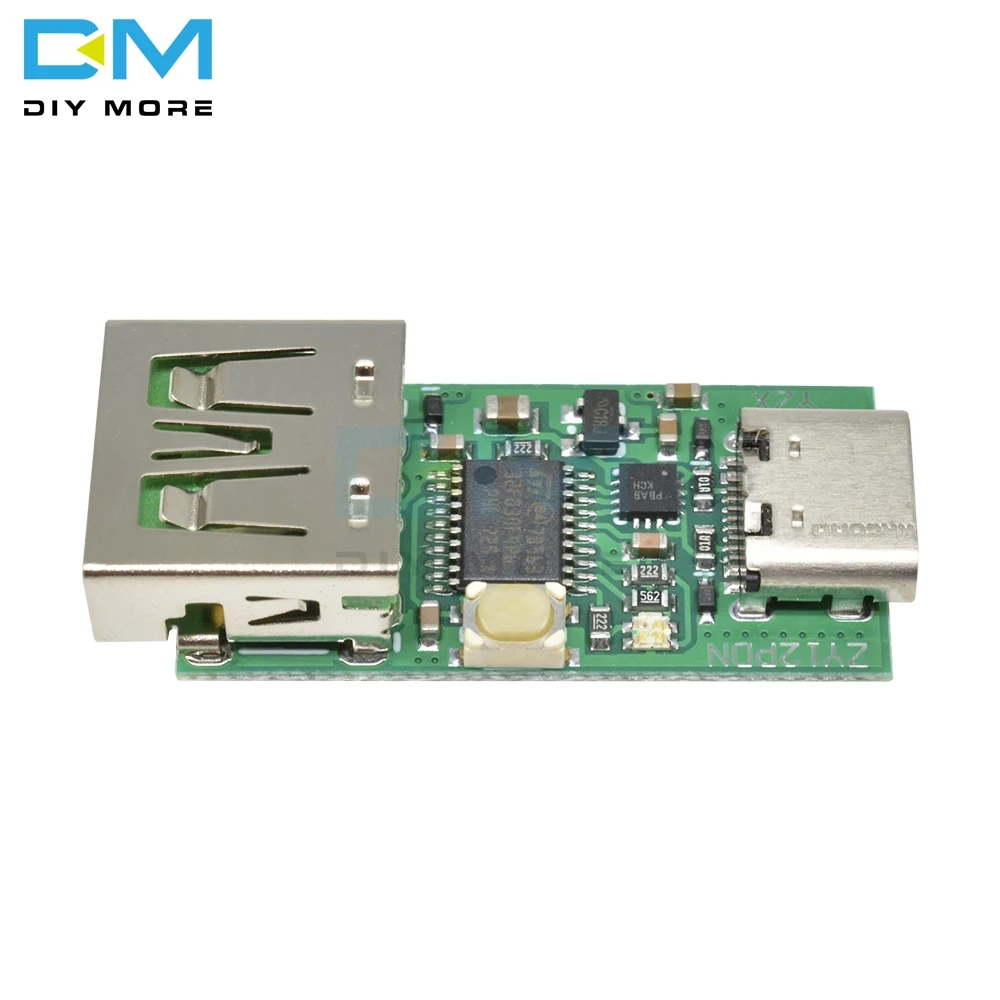

The version with USB uses a 5A high current PAL female base with a small internal resistance.
Large-capacity ceramic capacitor filtering, TVS anti-surge anti-reverse connection, Japan ALPS tact switch, focusing on stability.

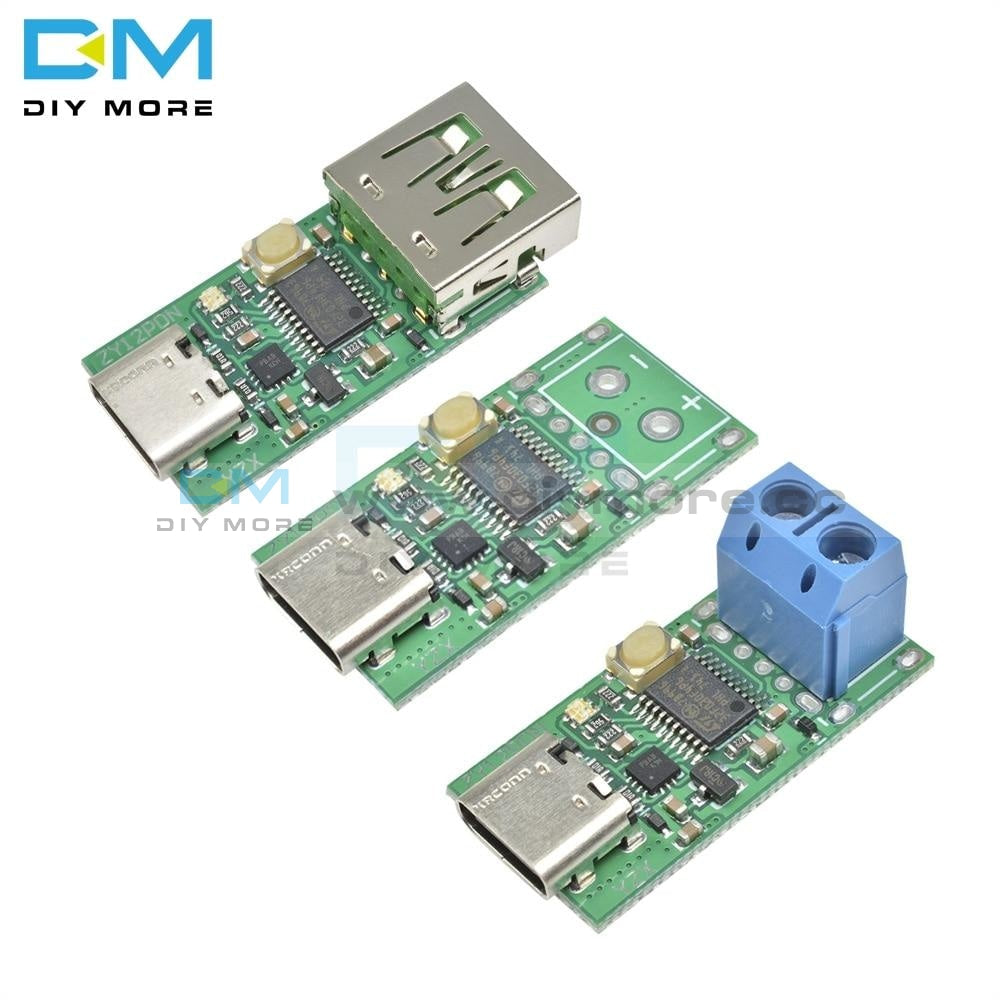

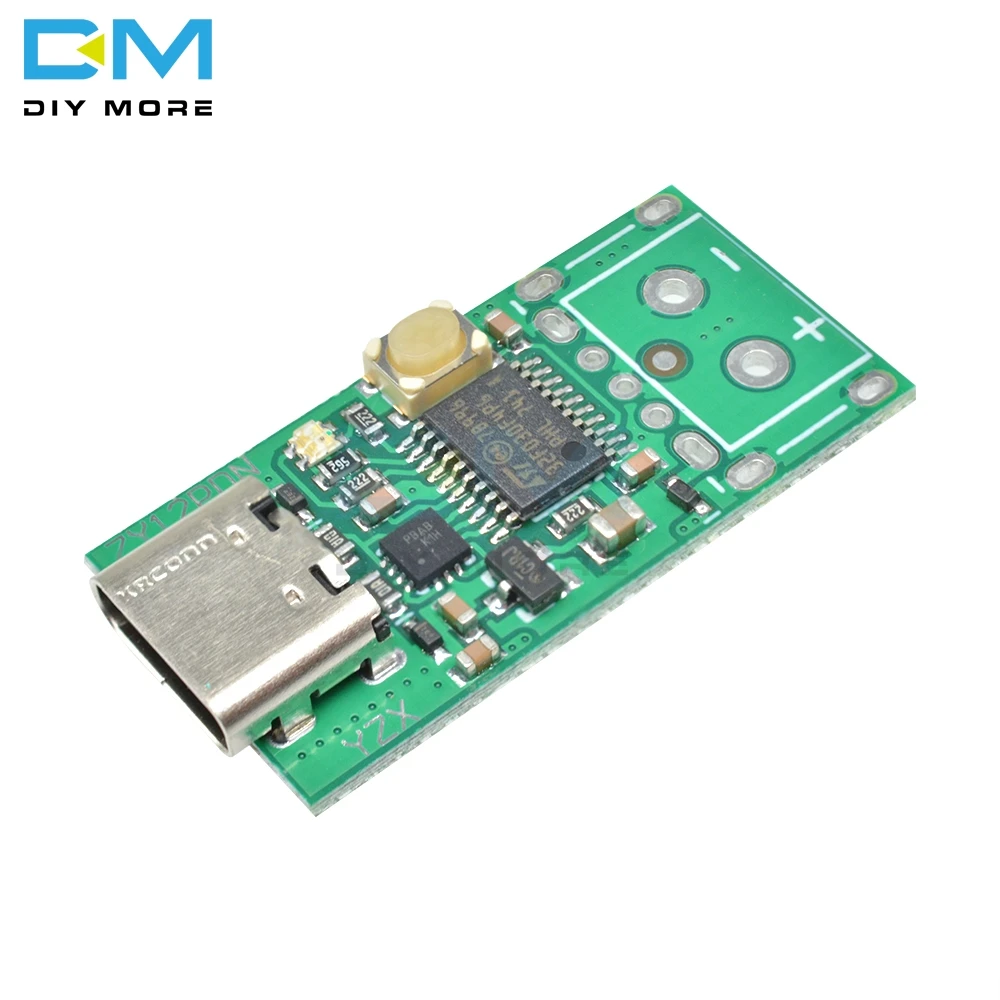

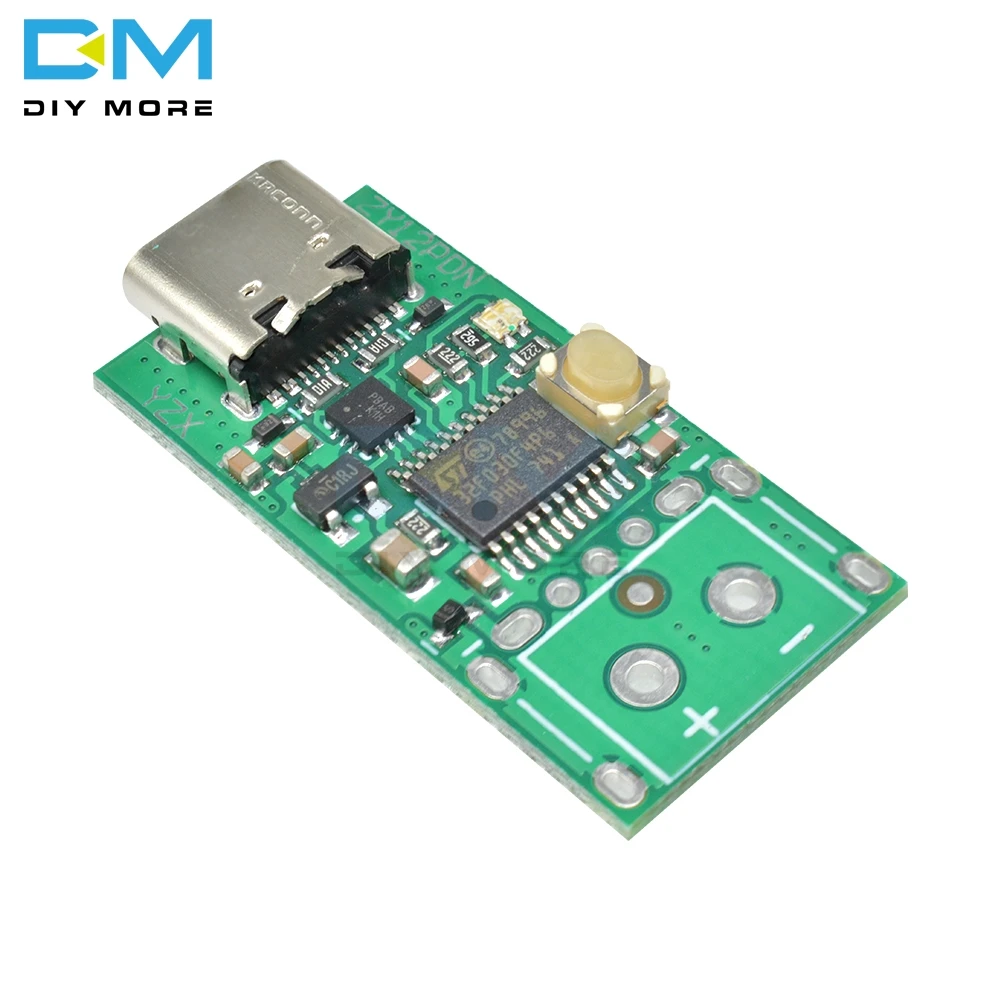

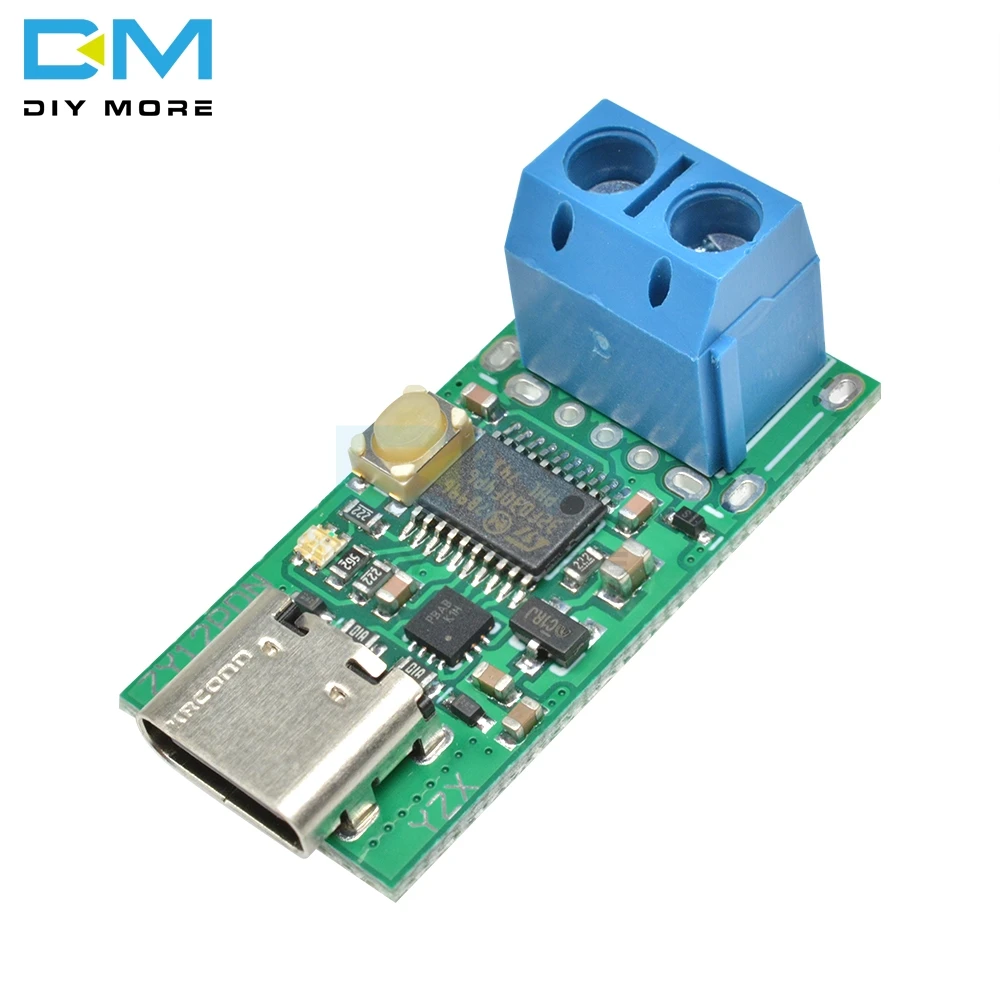

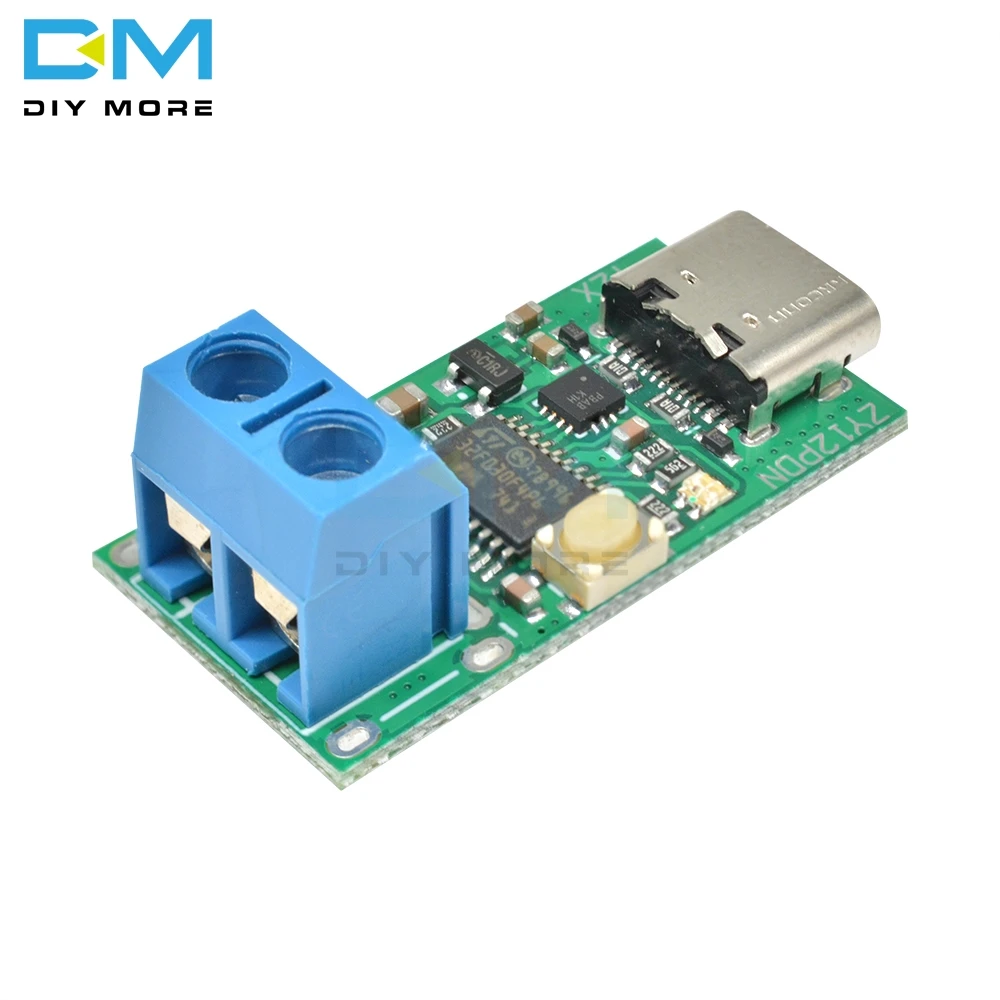

With USB soldering position and 5.08 screw terminal soldering position, it is convenient to make Type-C to DC adapter cable.
Small size 15mm wide * 30mm long, soldered DC line heat shrinkable tube can be used to charge your notebook with PD mobile power.


The module industrial grade specification:
Withstand voltage between positive and negative 20V between any two terminals of industrial grade, the input voltage is reversed
Effectively prevent problems such as VBUS short circuit to CC burning during testing.
It is very suitable for test fixtures to directly measure the bare power module without flying the assembly.
Or DIY fast charging lure with plug, no hardware switch is not easy to accidentally touch the voltage.
When using the 5A-EMARK line DIY, the maximum power is supported to 100W, and the compatibility is excellent.
The hole pitch is 2.54mm, which is convenient for the welding pin to be inserted into other motherboards.
TRIG foot-to-ground connection is equivalent to button press, which can be triggered by optocoupler or relay isolation.
If CC1 or CC2 is connected to the male, you only need to pick one of them.
The rest of the operation is exactly the same as the regular version.
