USB Logic Analyzer Device Set USB Cable 24MHz 8CH 8-channel 24MHz MCU ARM GA M100
USB Logic Analyzer Device Set USB Cable 24MHz 8CH 8-channel 24MHz MCU ARM GA M100
SKU:011043
Regular price
$7.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Overview:
Voltage range:

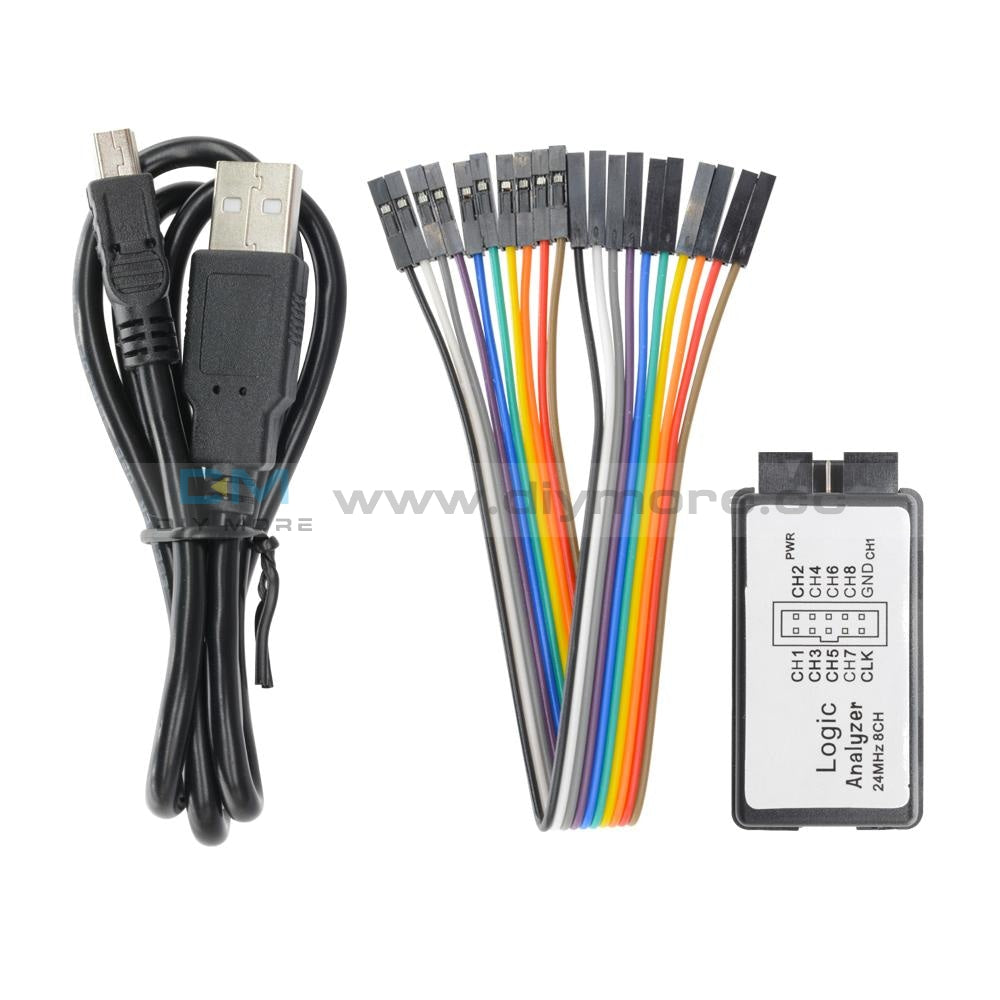

Package included:

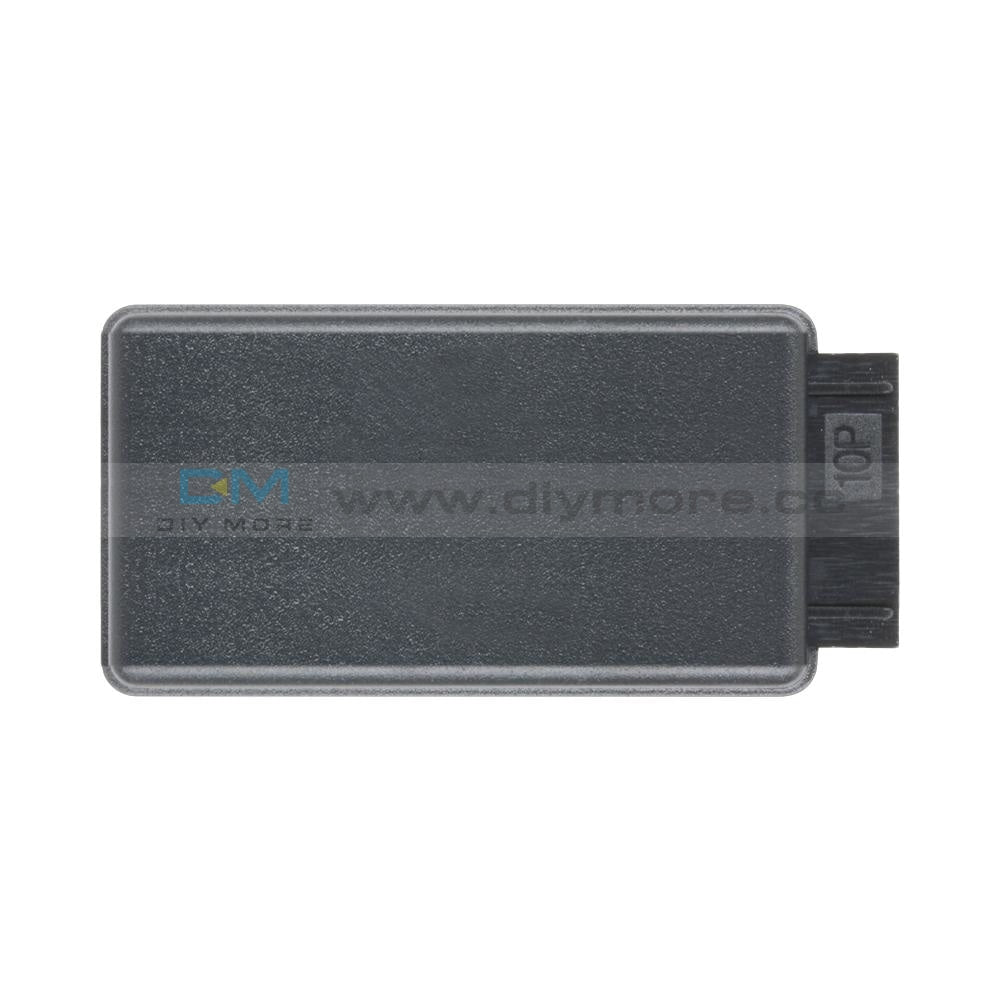

1*Analyser Device

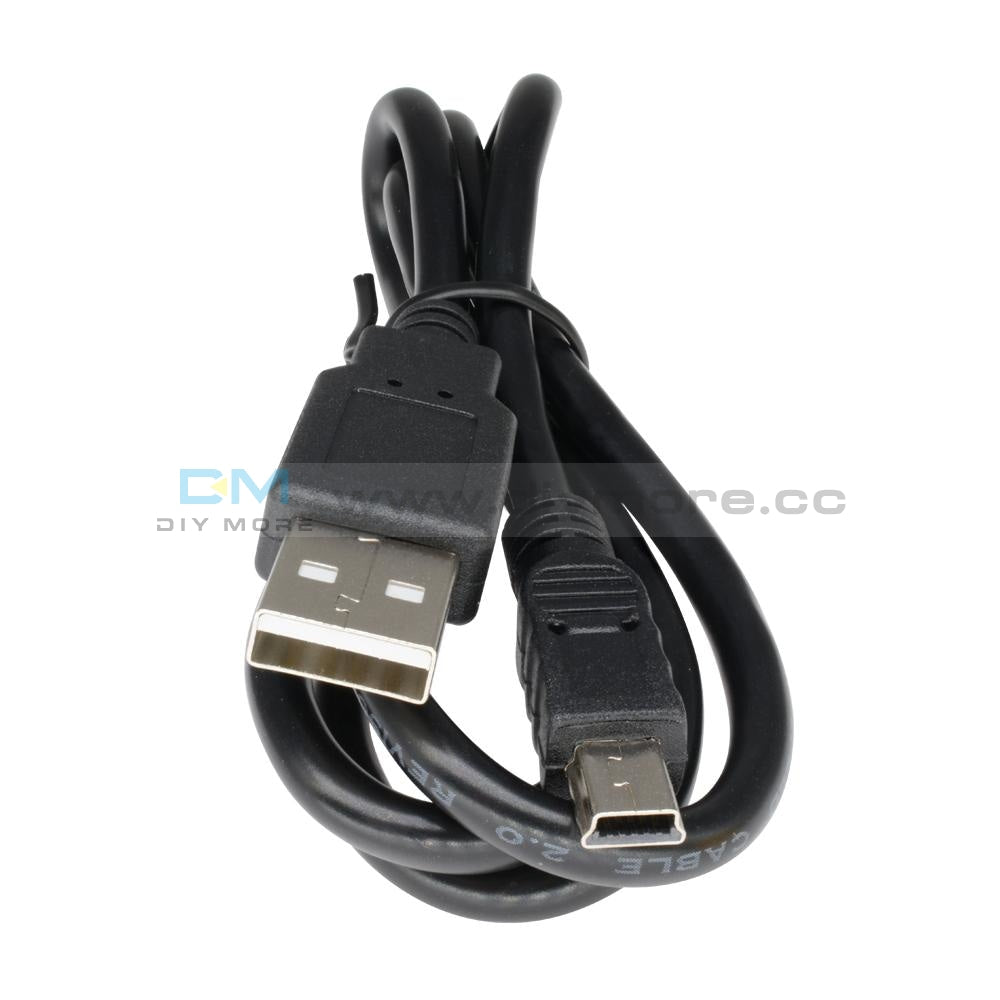

1*USB Cable

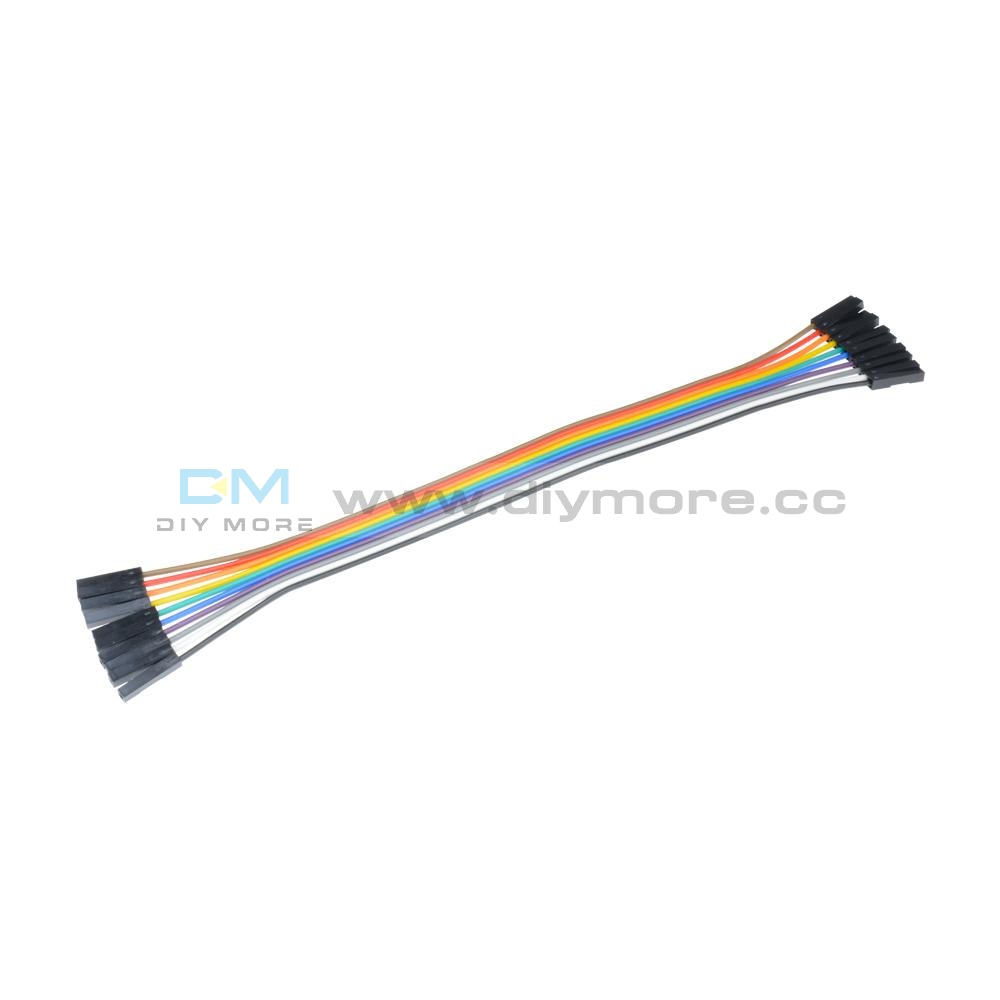

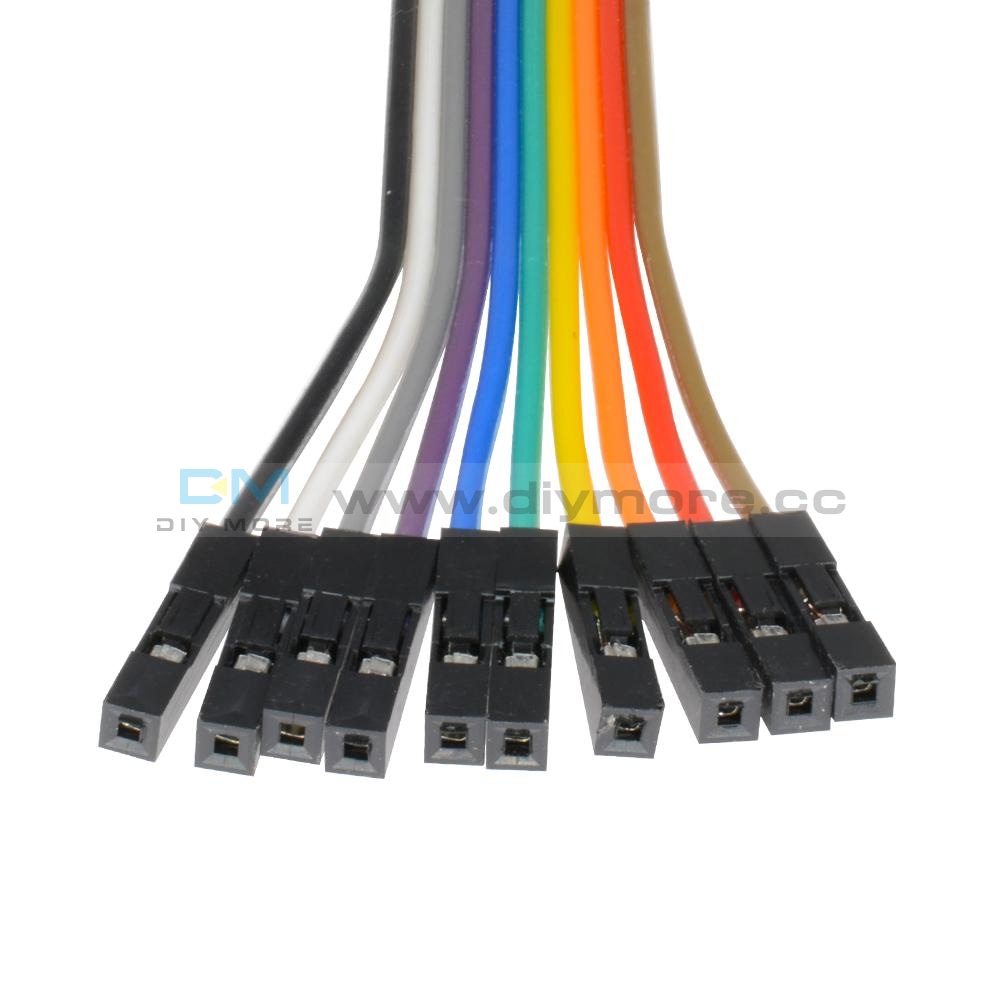

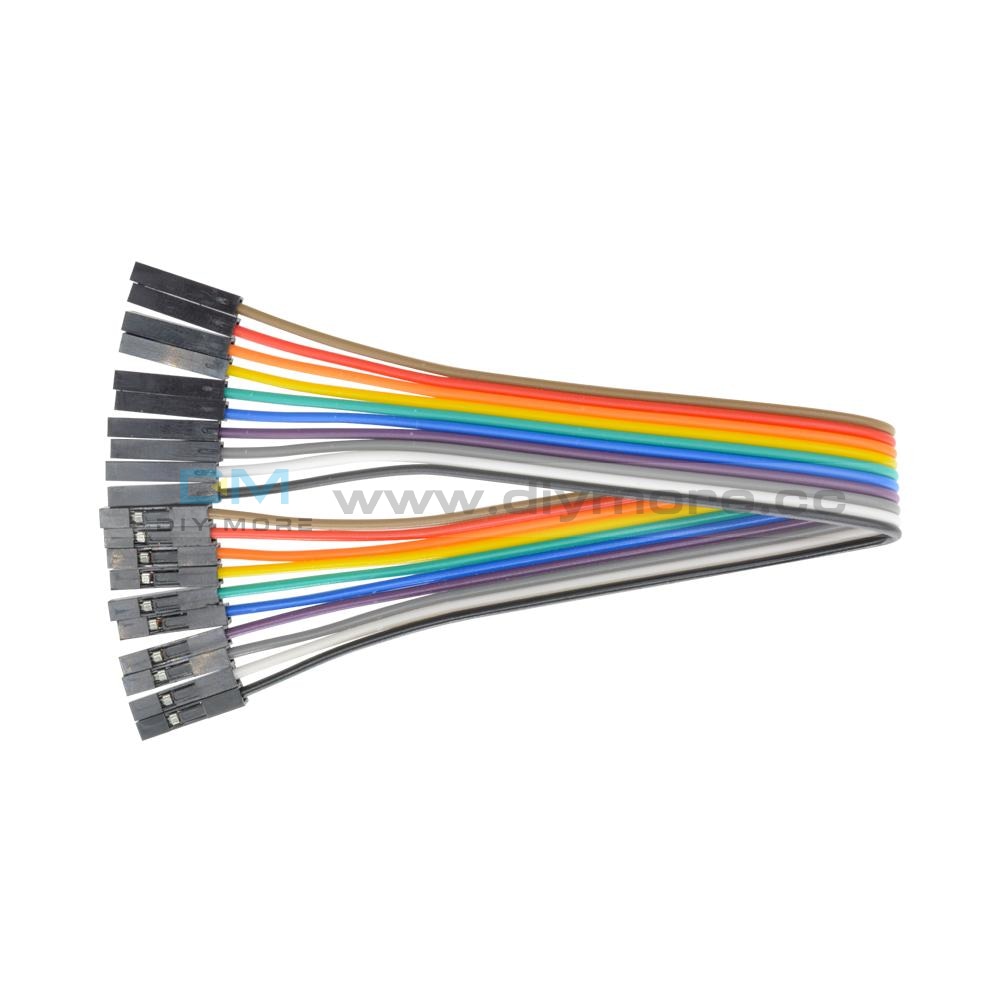

1*Dupont L
- Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
- The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions

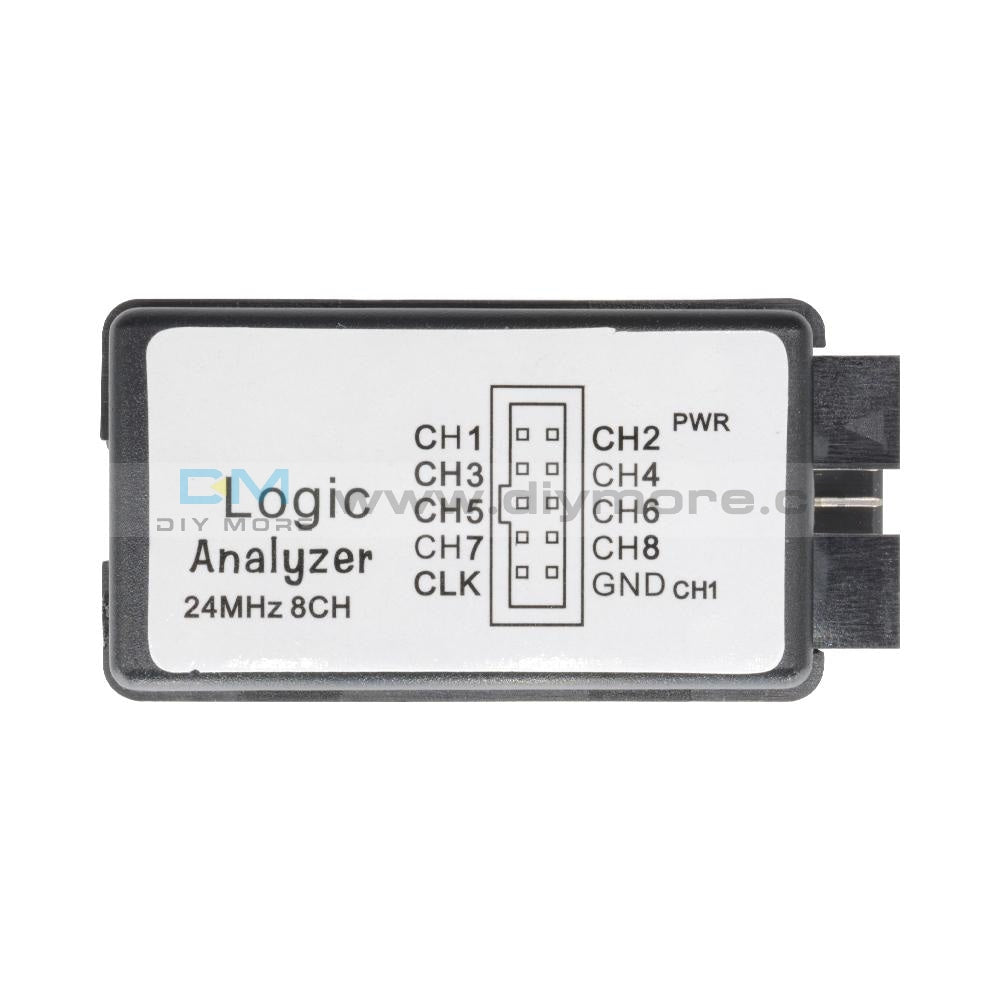

- 8-channel
Voltage range:
- Input voltage range: -0.5V to 5.25V
- Input Low Voltage: -0.5V to 0.8V
- Input High Voltage: 2.0V to 5.25V
- Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
- Input Impedance: 1Mohm || 10pF (typical, approximate)
- Crystal: +/-20ppm, 24MHz
- Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).
Package included:
1*Analyser Device
1*USB Cable
1*Dupont L
