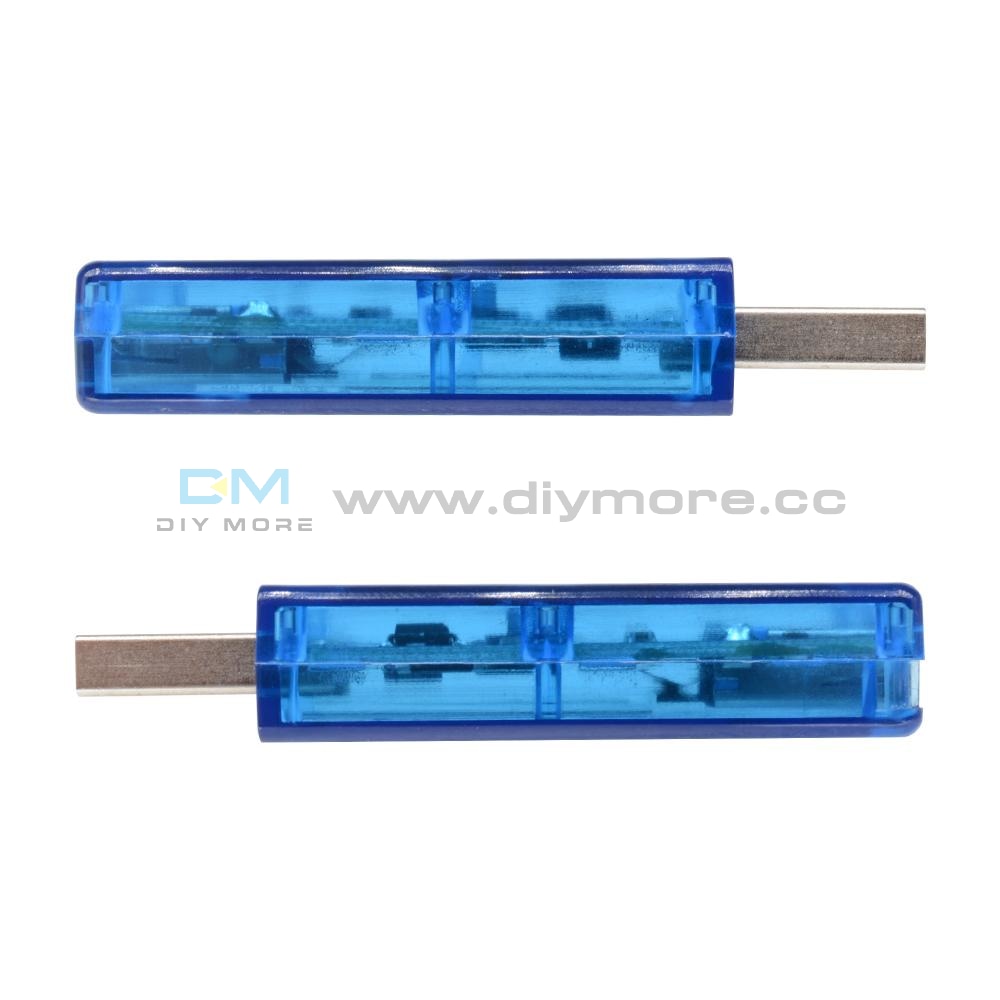

USB 3.0 OLED Battery Capacity Detector Charger Voltage Current Tester DC 3.7-22V
USB 3.0 OLED Battery Capacity Detector Charger Voltage Current Tester DC 3.7-22V
SKU:X12913
Regular price
$7.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Specification:
Features:
1.Automatic calibration of current zero function
After long-term use, due to aging of the device or changes in ambient temperature, small current measurement errors may increase. The solution is to hold down the button and the breathing light is on, and an automatic calibration current zero operation is performed.

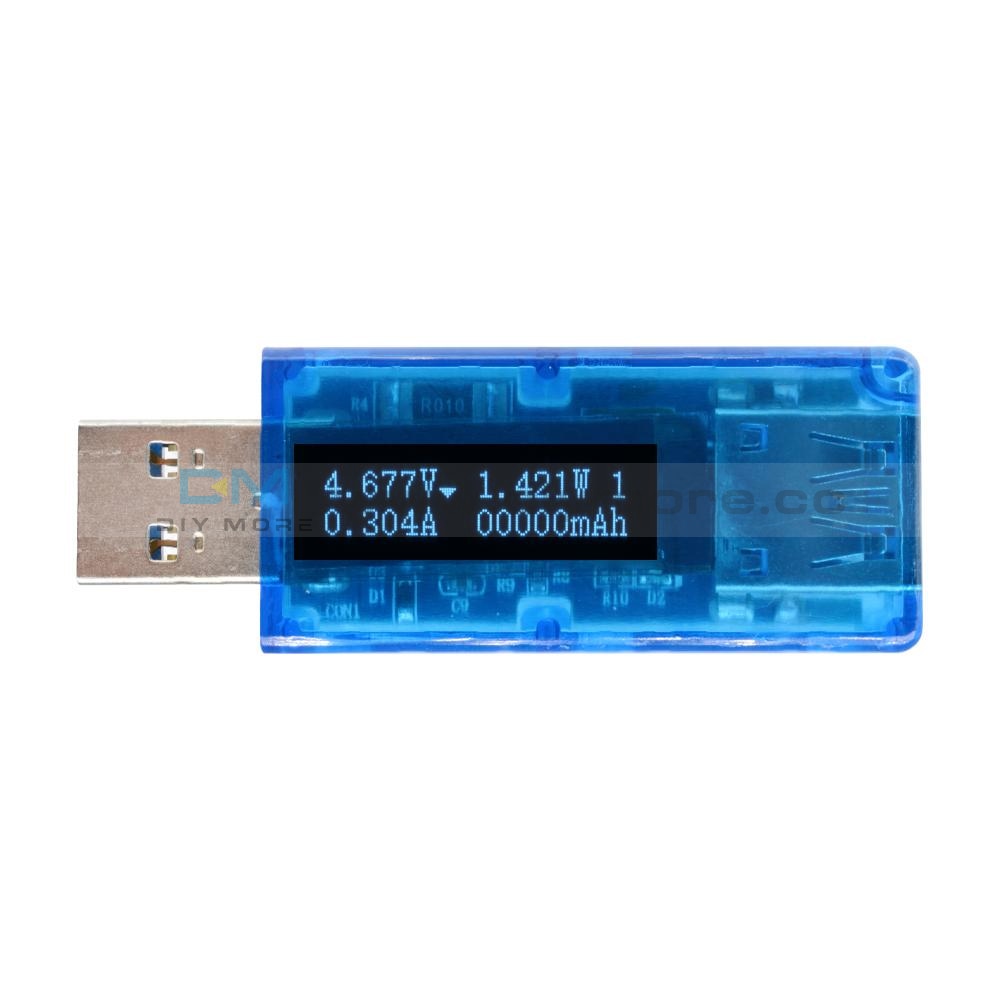

After entering the main interface, the first line displays the current voltage value, the current power and the current data group, and the second line displays the current current and the cumulative capacity respectively.
2.Overvoltage and undervoltage reminder function
When the voltage is higher than 5.3V, it will be displayed on the screen and will flash continuously, indicating that the USB voltage is too high. When the voltage is lower than 4.7V, it will be displayed on the screen, and it will flash continuously, indicating that the voltage is too low, the flashing cannot be turned off, when the voltage is normal. The range disappears automatically.
3.Capacity automatic storage function
In the main interface, if you click the back button, you can cycle through the next set of data, the tester can provide 0-9 a total of 10 sets of data to save and view.
When the data group is 1-9 groups, the current capacity is stored when the power is turned off, and continues to be accumulated when the power is turned on next time. When the data group is 0 group, the current capacity is stored when the power is turned off, and the next time the power is turned on to remind the last capacity, but When the accumulated capacity exceeds 1MAH, the last data is automatically cleared and re-accumulation begins.
In the main interface, double-click the back button (within 0.5 seconds between two presses) to enter the data viewing interface. The secondary interface displays the cumulative capacity of the current data group. In this interface, click the back button to view in turn. The next set of data.
In the data viewing interface, if you press and hold the back button for more than 2 seconds, you can clear the data in this group. If you double-click the button, you will exit to the main interface.
4.Capacity unit switching function
In the main interface, press and hold the back button for 2 seconds, release the breather light when it is lit, and switch between mah and mwh.
5.Screen flip function
In the main interface, press and hold the back button for 4 seconds, the breathing light will be on when it is turned on and off, and the screen can be flipped and automatically memorized for later use.
6.Screen off function
In the main interface, long press the back button for more than 6 seconds to release, you can turn off the screen display and enter the power saving mode. At this time, the breathing light flashes, click the button to return to the main interface.

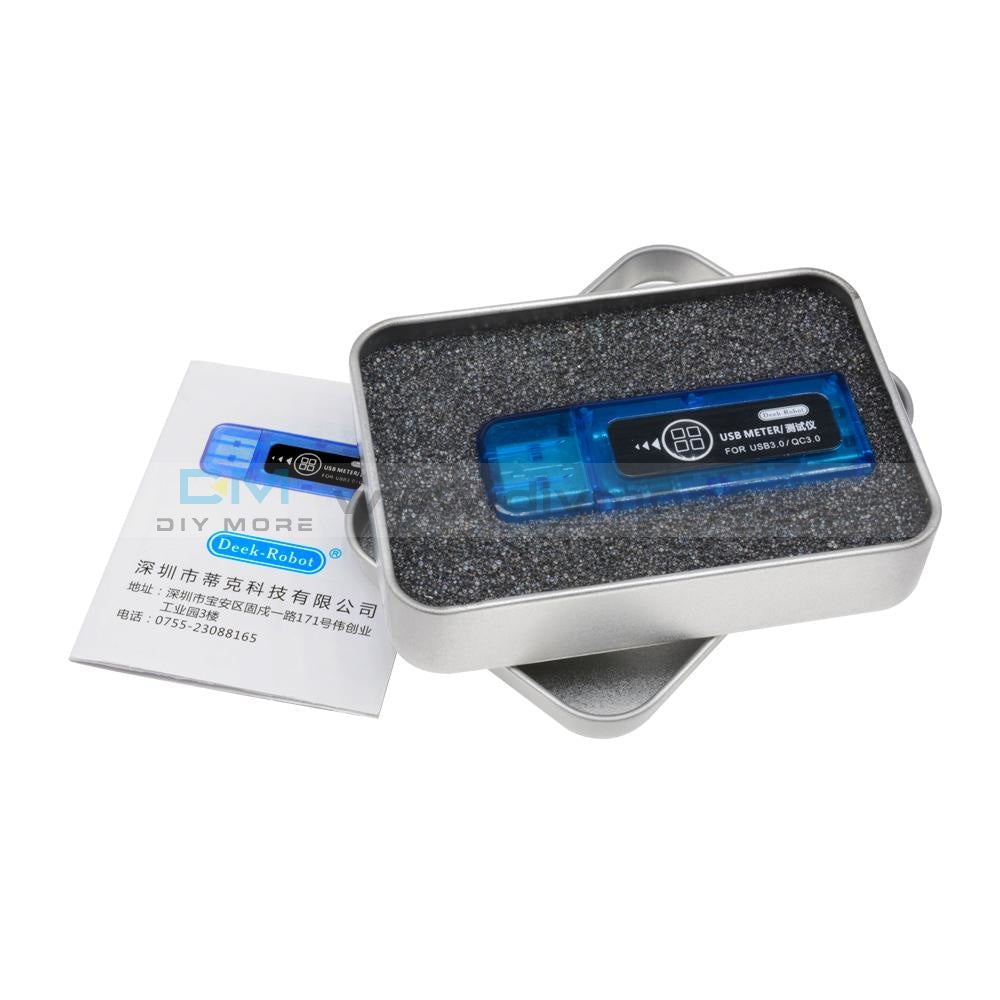

Package Included:
1X USB3.0 Charger Dr
- Voltage measurement range: DC3.7-22.0V
- Current measurement range: DC0.00-3.00A
- Power measurement range: 0-65W
- Capacity measurement range: 0-99999mAH
- Energy measurement range: 0-99999Mwh-999WH
- Voltage measurement accuracy: +/- (0.2% ---1 point)
- Current measurement accuracy: +/- (0.8% ---3 point)
- Refresh rate: 2 times / sec
- Static power consumption: 10mA
- Font color: white
- Product weight: 14 grams (including packaging 46 grams)
- Product size: 64mmx21.6mmx11.2mm

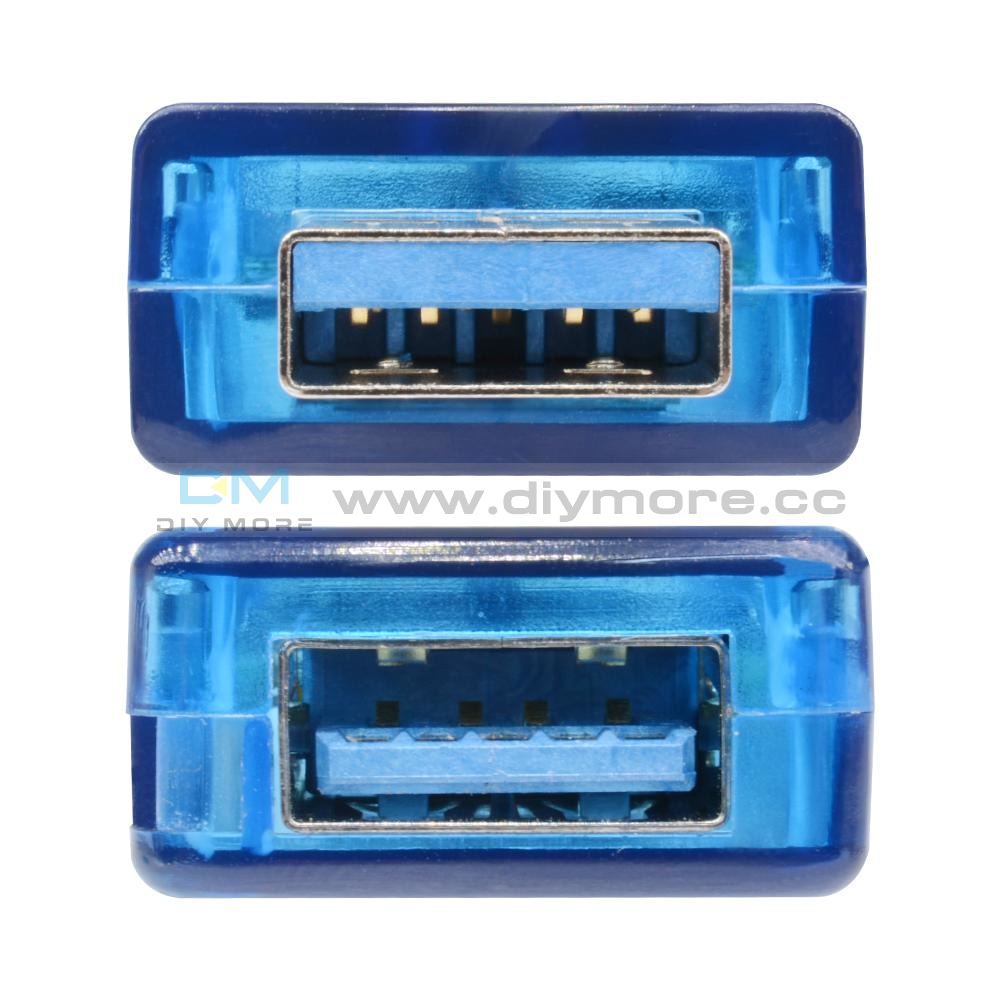

- Port mode: compatible with USB2.0 USB3.0
- Display screen: 0.91 inch 128x32 dot matrix OLED display
Features:
1.Automatic calibration of current zero function
After long-term use, due to aging of the device or changes in ambient temperature, small current measurement errors may increase. The solution is to hold down the button and the breathing light is on, and an automatic calibration current zero operation is performed.
After entering the main interface, the first line displays the current voltage value, the current power and the current data group, and the second line displays the current current and the cumulative capacity respectively.
2.Overvoltage and undervoltage reminder function
When the voltage is higher than 5.3V, it will be displayed on the screen and will flash continuously, indicating that the USB voltage is too high. When the voltage is lower than 4.7V, it will be displayed on the screen, and it will flash continuously, indicating that the voltage is too low, the flashing cannot be turned off, when the voltage is normal. The range disappears automatically.
3.Capacity automatic storage function
In the main interface, if you click the back button, you can cycle through the next set of data, the tester can provide 0-9 a total of 10 sets of data to save and view.
When the data group is 1-9 groups, the current capacity is stored when the power is turned off, and continues to be accumulated when the power is turned on next time. When the data group is 0 group, the current capacity is stored when the power is turned off, and the next time the power is turned on to remind the last capacity, but When the accumulated capacity exceeds 1MAH, the last data is automatically cleared and re-accumulation begins.
In the main interface, double-click the back button (within 0.5 seconds between two presses) to enter the data viewing interface. The secondary interface displays the cumulative capacity of the current data group. In this interface, click the back button to view in turn. The next set of data.
In the data viewing interface, if you press and hold the back button for more than 2 seconds, you can clear the data in this group. If you double-click the button, you will exit to the main interface.
4.Capacity unit switching function
In the main interface, press and hold the back button for 2 seconds, release the breather light when it is lit, and switch between mah and mwh.
5.Screen flip function
In the main interface, press and hold the back button for 4 seconds, the breathing light will be on when it is turned on and off, and the screen can be flipped and automatically memorized for later use.
6.Screen off function
In the main interface, long press the back button for more than 6 seconds to release, you can turn off the screen display and enter the power saving mode. At this time, the breathing light flashes, click the button to return to the main interface.
Package Included:
1X USB3.0 Charger Dr
