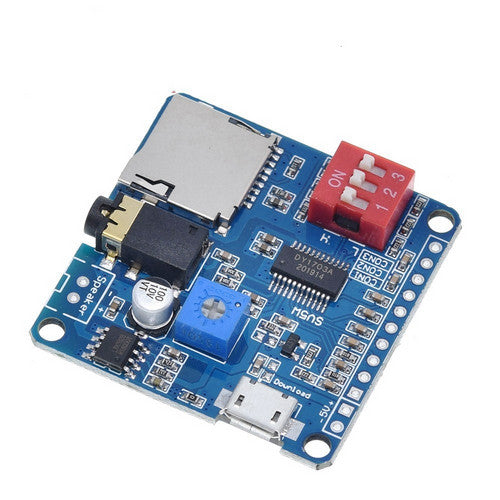

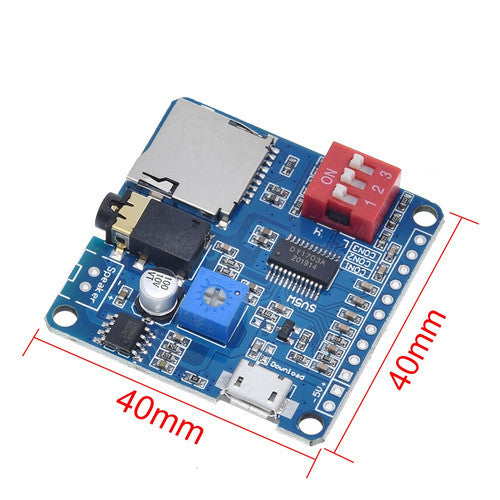

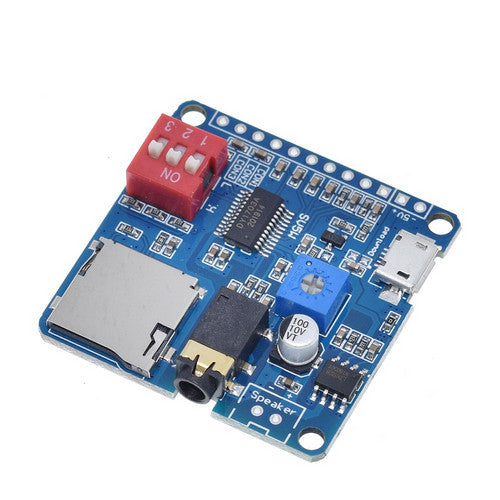

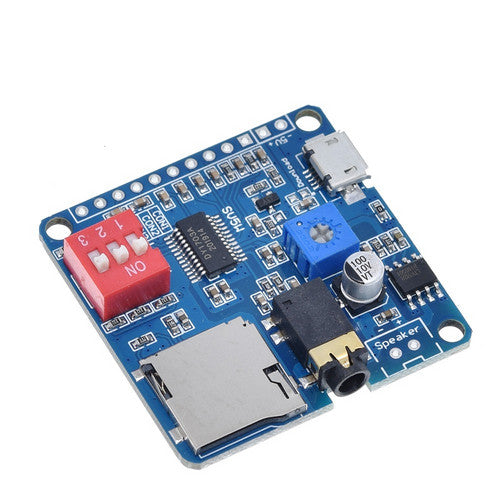

Voice Playback Module MP3 Player I/O Trigger UART Control SD/TF 5W For Arduino
Voice Playback Module MP3 Player I/O Trigger UART Control SD/TF 5W For Arduino
SKU:X13388
Regular price
$6.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Product overview:
- smart voice module，
- Integrated IO trigger, UART protocol control, One_line single-bus protocol control,
- standard MP3 and other 7 operating modes setting by DIP switch; Drive 4~8Ω, 3~5W
- speaker by a 5W class D audio amplifier on board；Support MP3、WAV decoding; Support
- TF card for maximum 32G downloading music files directly by micro USB connector.
Product characteristics:
- Support MP3、WAV decoding
- Support sampling rate (KHz):8/11.025/12/16/22.05/24/32/44.1/48
- 24bit DAC output，support dynamic range 90dB，SNR 85dB
- Support FAT16/FAT32 file system，support TF card for maximum 32G
- Drive 4~8Ω speaker by 5W class D amplifier chip on board
- Play 65535 pieces of music by UART control protocol; Play, Pause, Selecting music,
- VOL /- and so on can be controlled，the communication baud rate is 9600bps
- Play 255 pieces of music by IO triggering;
- Play music by One_line control protocol，Play, Pause, Selecting music, VOL /- and so on
- can be controlled.
- Switch 7 operating modes using DIP switch easily
Package Included:
- 1 x Voice Playback Module MP3 Player I/O Trigger UART Control SD/TF Card For Arduino
