Temperature humidity Controller Thermostat Control Digital Dual Display LED

Temperature humidity Controller Thermostat Control Digital Dual Display LED

SKU:012697LA
Regular price $6.99

Specifications:
  • Temperature range :-30-110 °
  • Temperature control mode: ON / OFF
  • Resolution:When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
  • Control accuracy: 0.1 °
  • Hysteresis accuracy: 0.1°
  • Refresh rate: 0.5S
  • High temperature protection: 0-110°
  • Supply voltage: DC 12V
  • Static current: ≤ 35MA, attract current ≤ 65MA
  • Output voltage: DC 12V

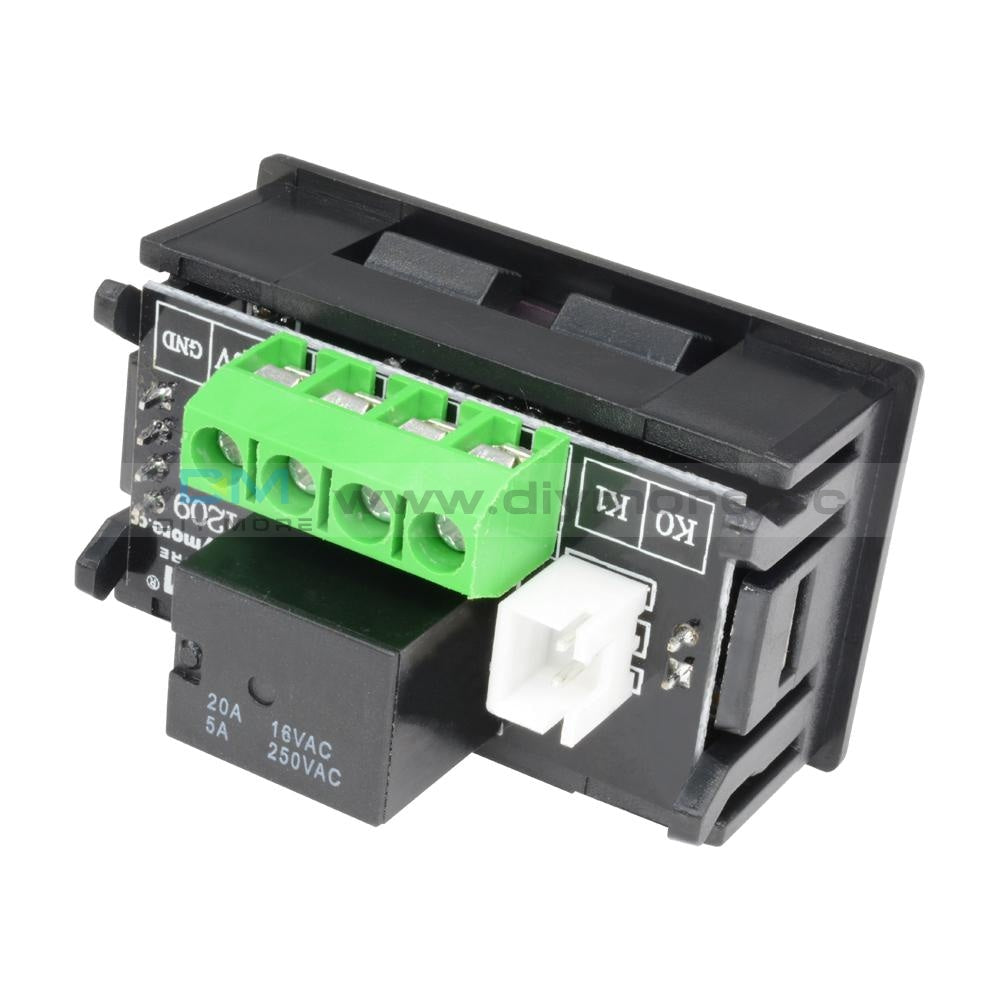

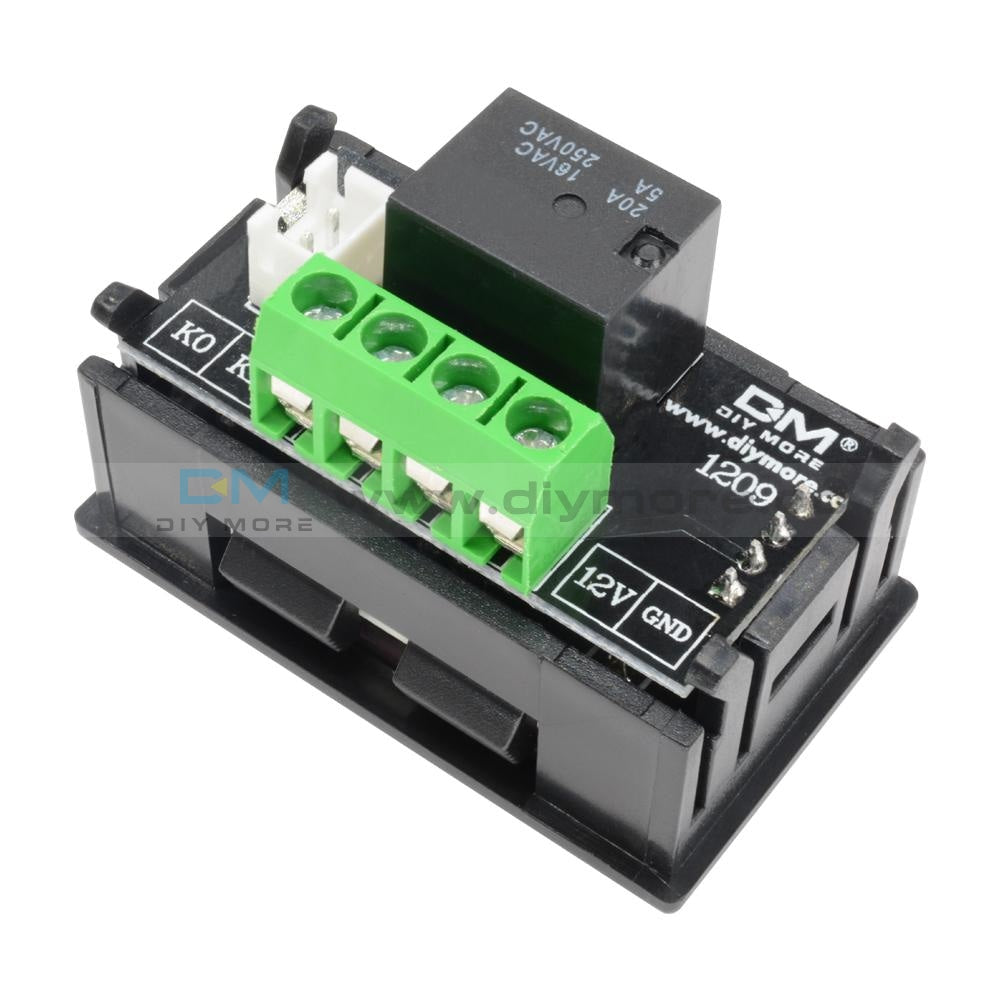

  • Output power: 20A relay

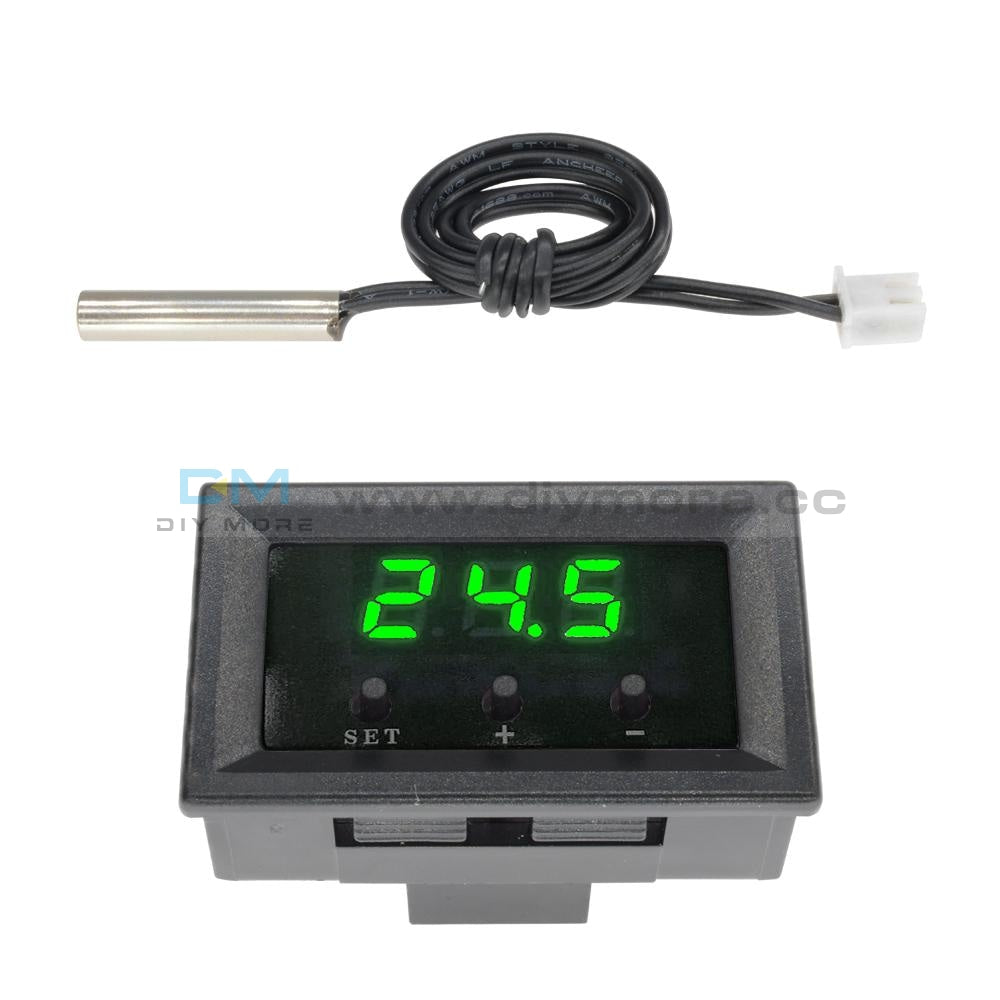

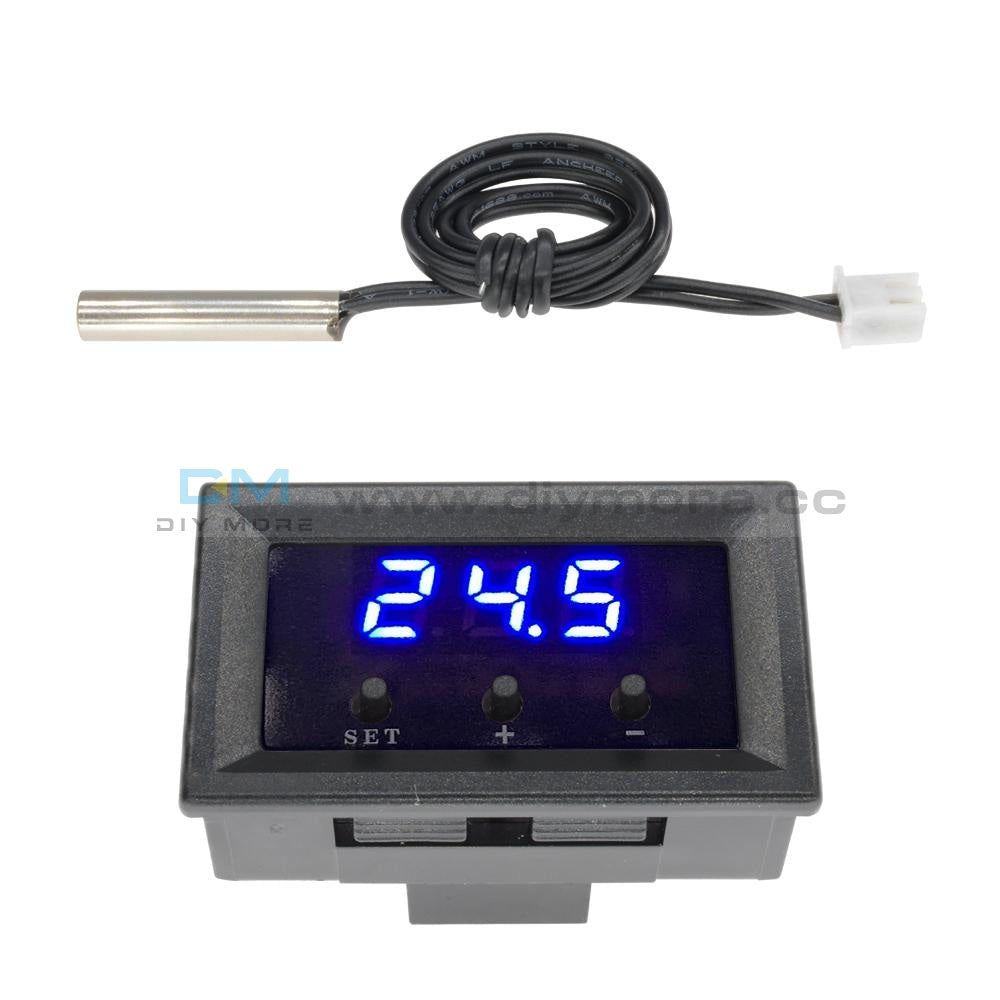

  • Measurement input: NTC (10K 0.5%) Waterproof Sensor
  • Environmental requirements: -10 ~ 60 ° ,Humidity 20% -85%
How to use:

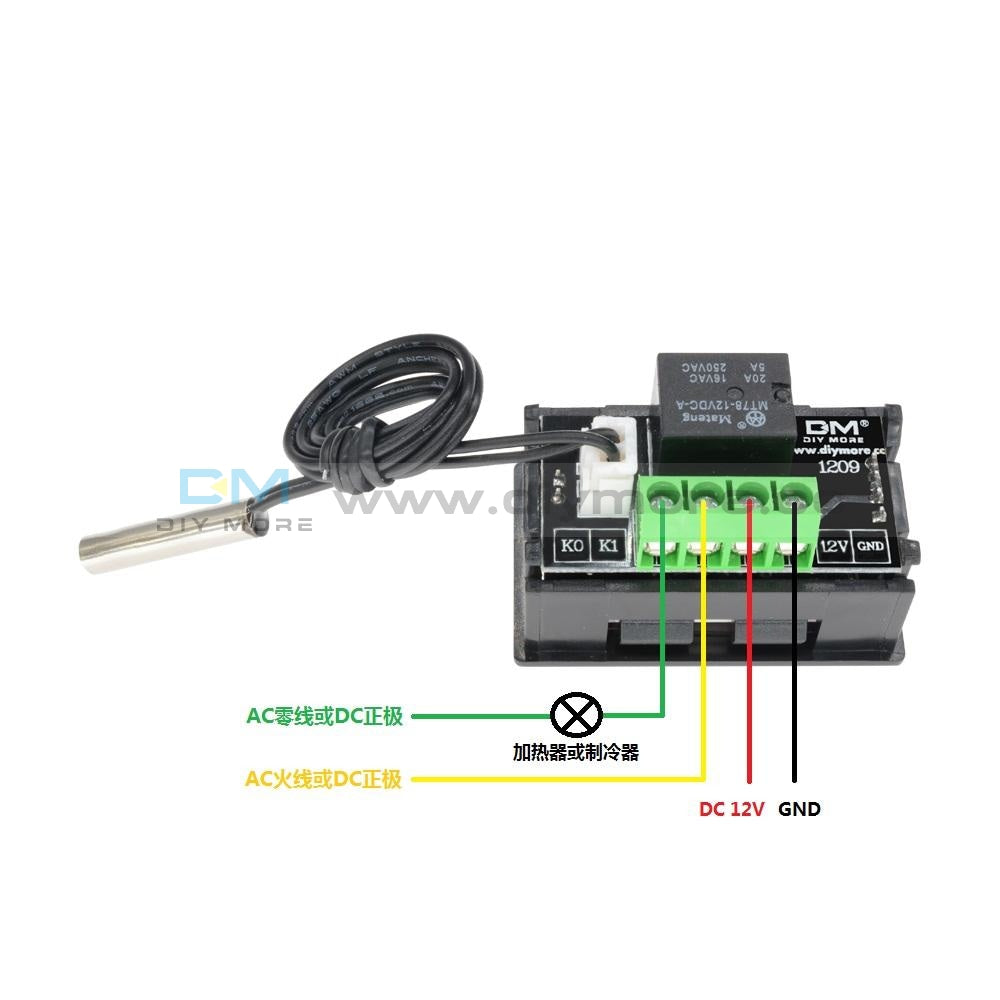

  • Connect the power supply and the load, you can supply to the controller,

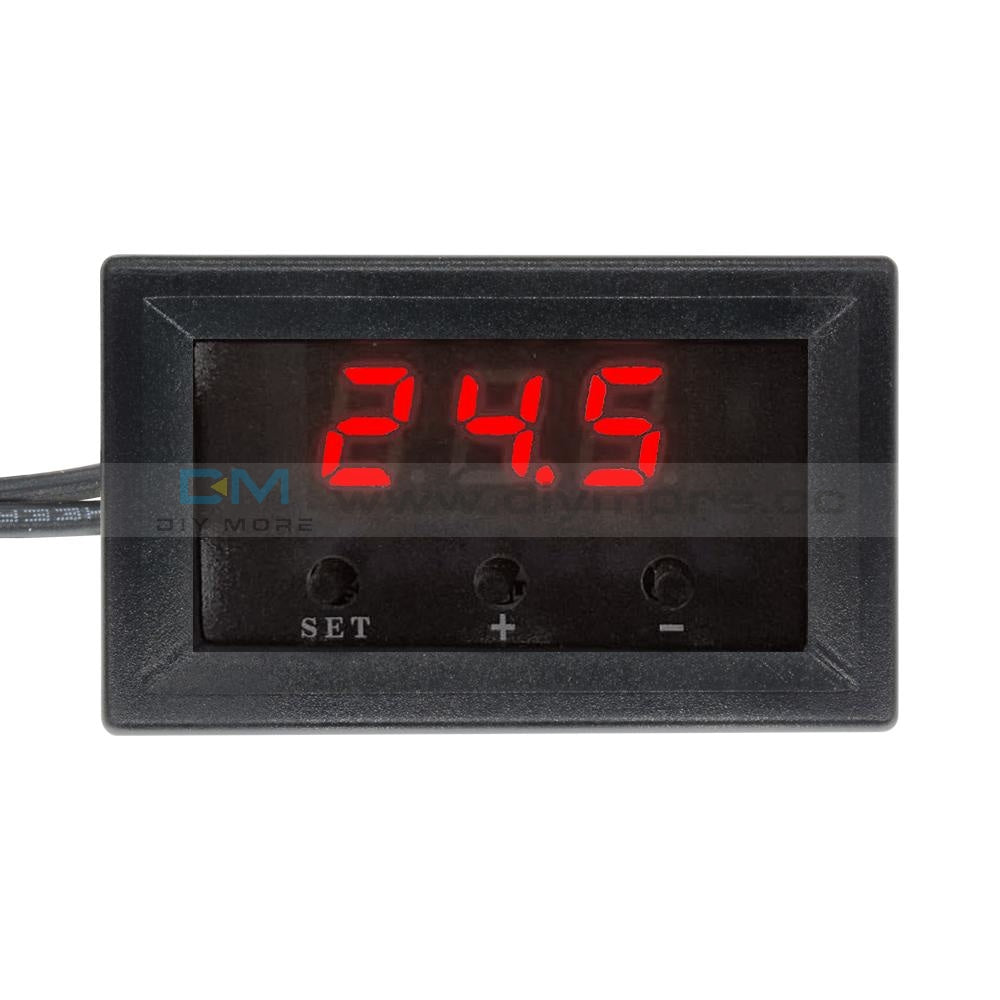

  • Is displayed as a measured temperature,
  • Press the SET button, the display flashes the temperature,
  • Press - to set the desired temperature,
  • After setting press SET to confirm return,
  • The controller automatically performs the relay by setting off!

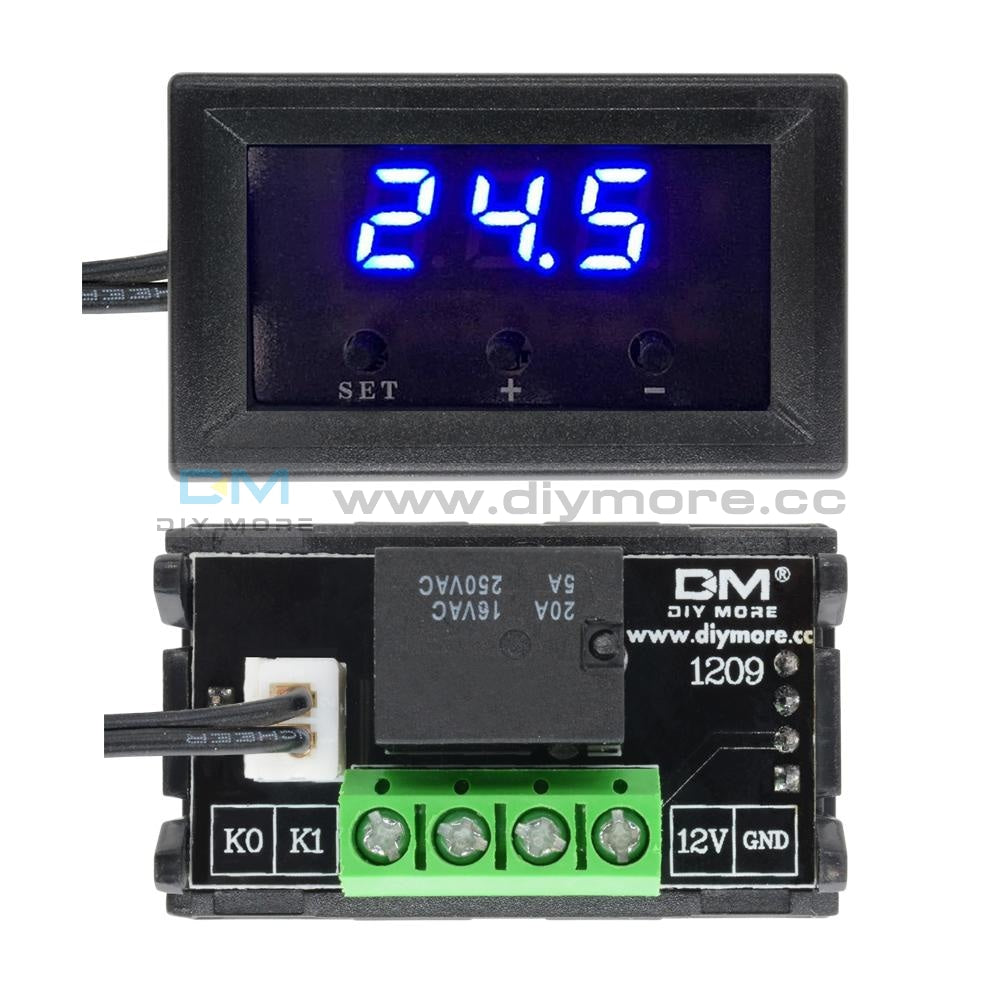

  • Lights, LED status descriptions:
  • Indicator: Off The relay is switched off, Always indicate the relay is closed.
  • LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Package Included:

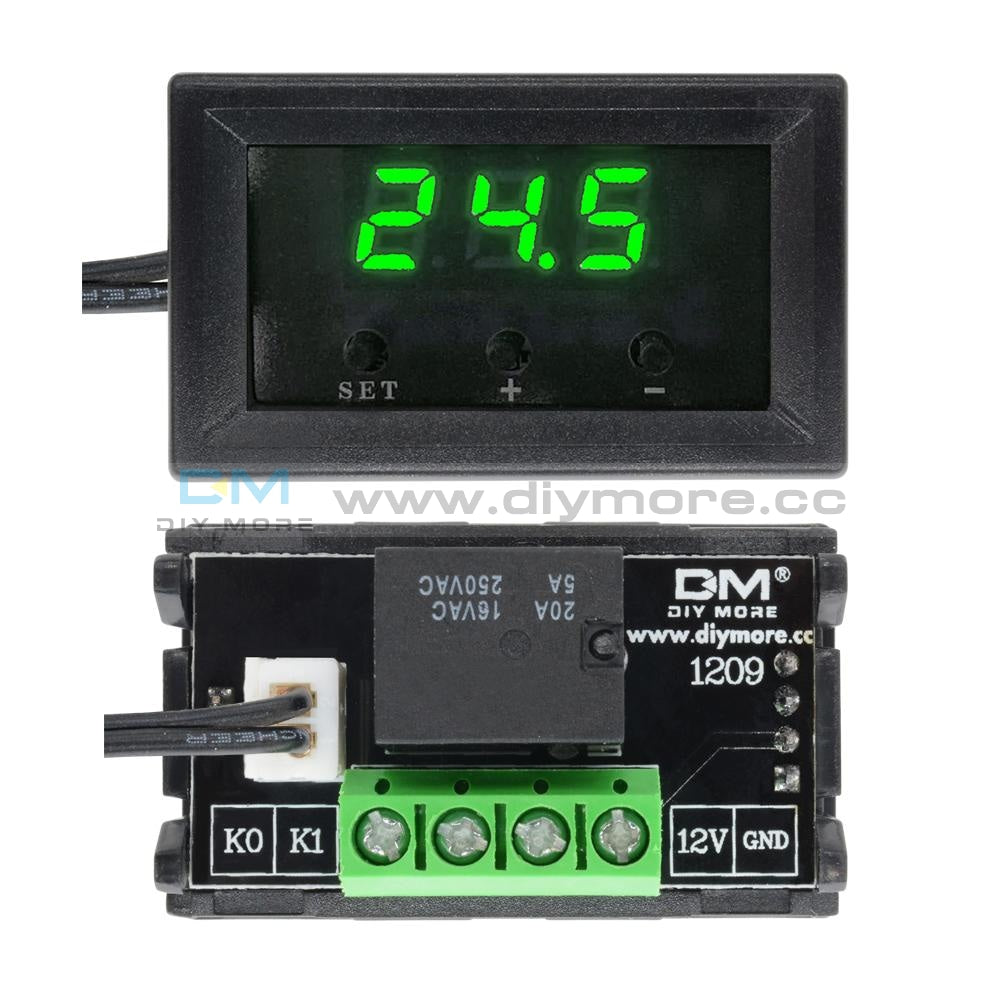

  • 1 x W1209 LED Digital Thermostat Temperature Controller
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Specifications:
  • Temperature range :-30-110 °
  • Temperature control mode: ON / OFF
  • Resolution:When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
  • Control accuracy: 0.1 °
  • Hysteresis accuracy: 0.1°
  • Refresh rate: 0.5S
  • High temperature protection: 0-110°
  • Supply voltage: DC 12V
  • Static current: ≤ 35MA, attract current ≤ 65MA
  • Output voltage: DC 12V
  • Output power: 20A relay
  • Measurement input: NTC (10K 0.5%) Waterproof Sensor
  • Environmental requirements: -10 ~ 60 ° ,Humidity 20% -85%
How to use:
  • Connect the power supply and the load, you can supply to the controller,
  • Is displayed as a measured temperature,
  • Press the SET button, the display flashes the temperature,
  • Press - to set the desired temperature,
  • After setting press SET to confirm return,
  • The controller automatically performs the relay by setting off!
  • Lights, LED status descriptions:
  • Indicator: Off The relay is switched off, Always indicate the relay is closed.
  • LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Package Included:
  • 1 x W1209 LED Digital Thermostat Temperature Controller
