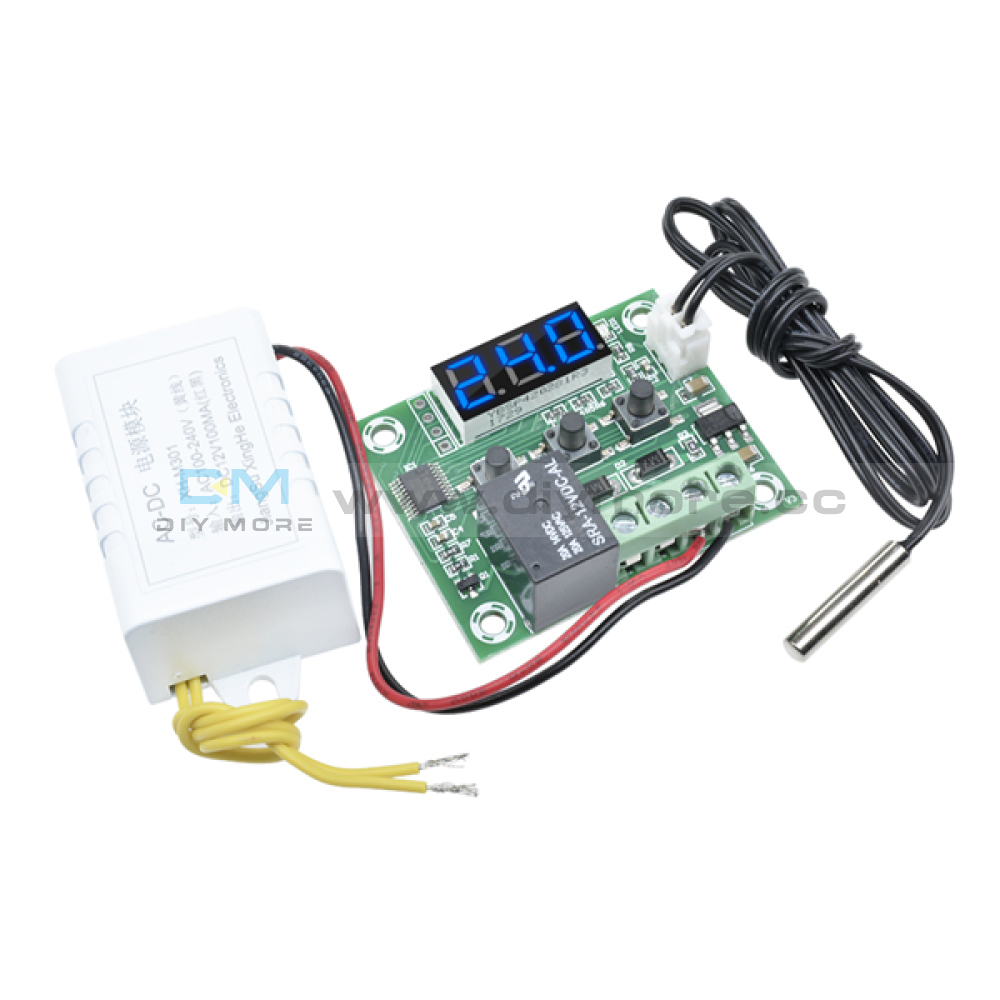

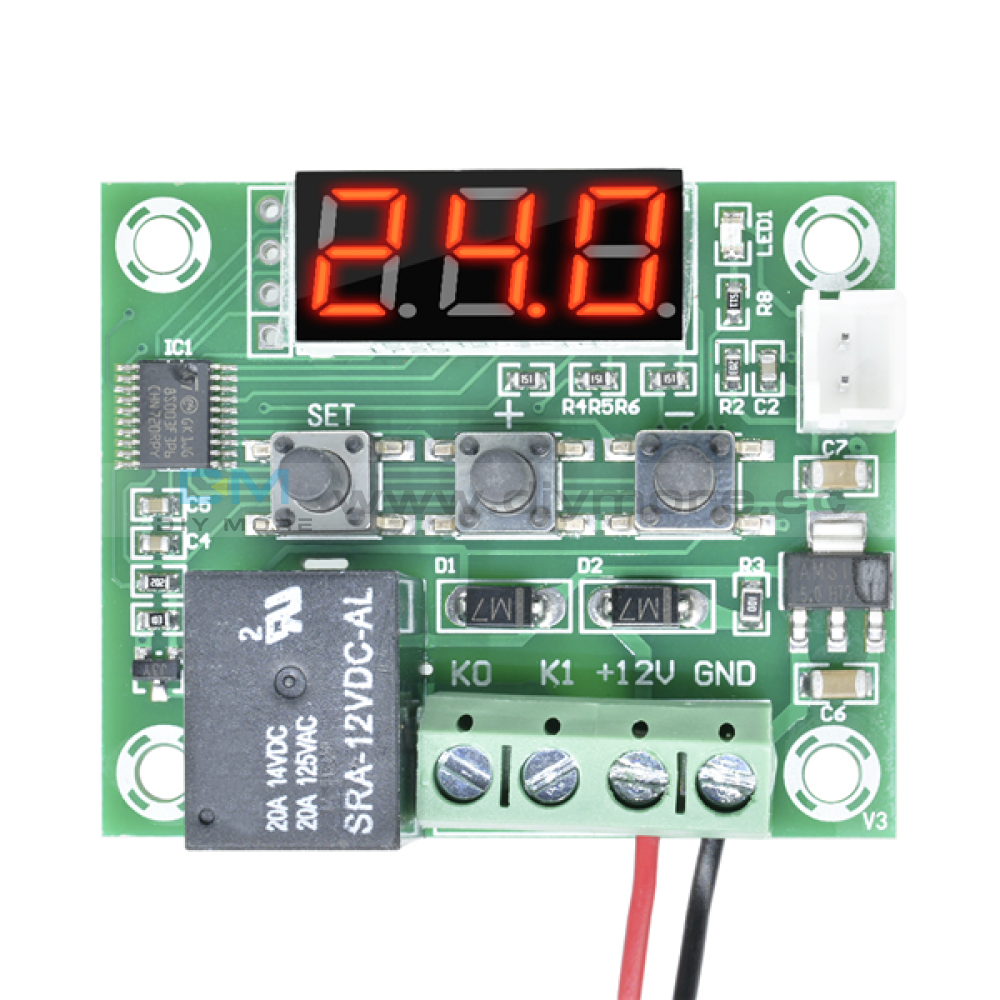

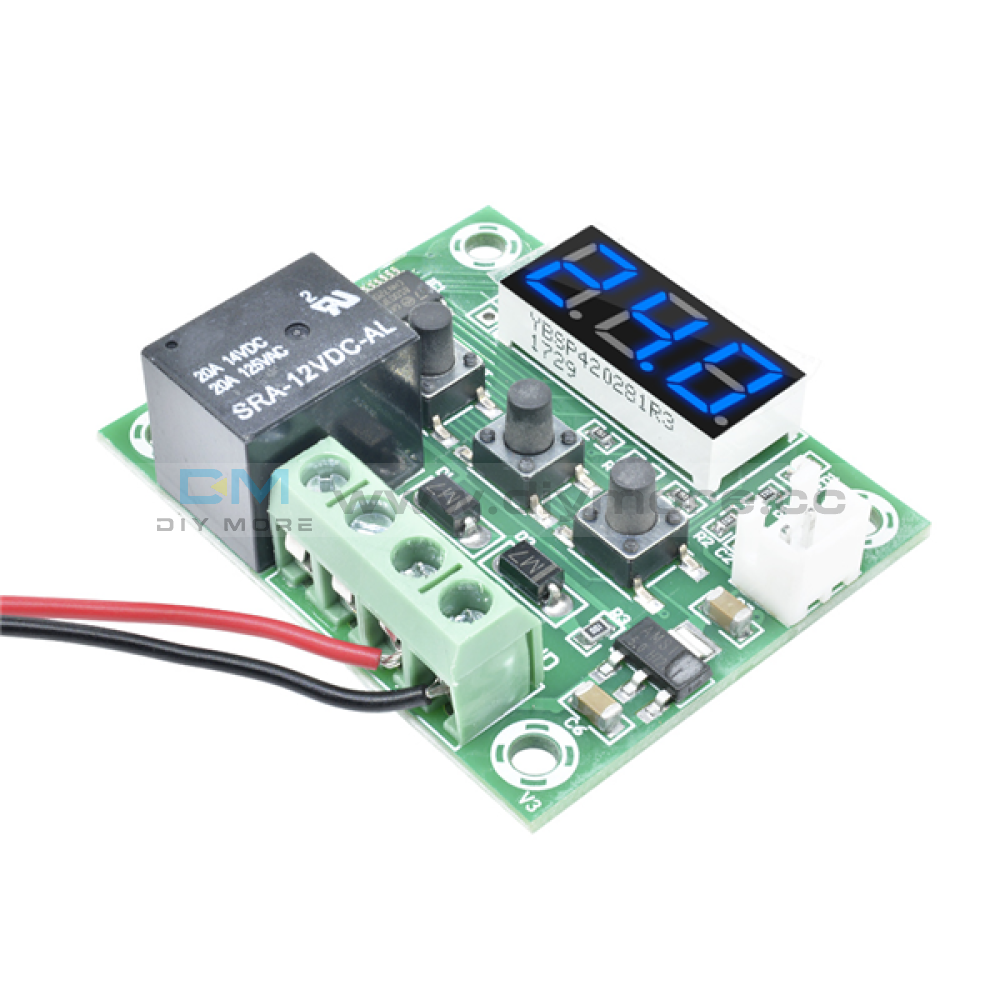

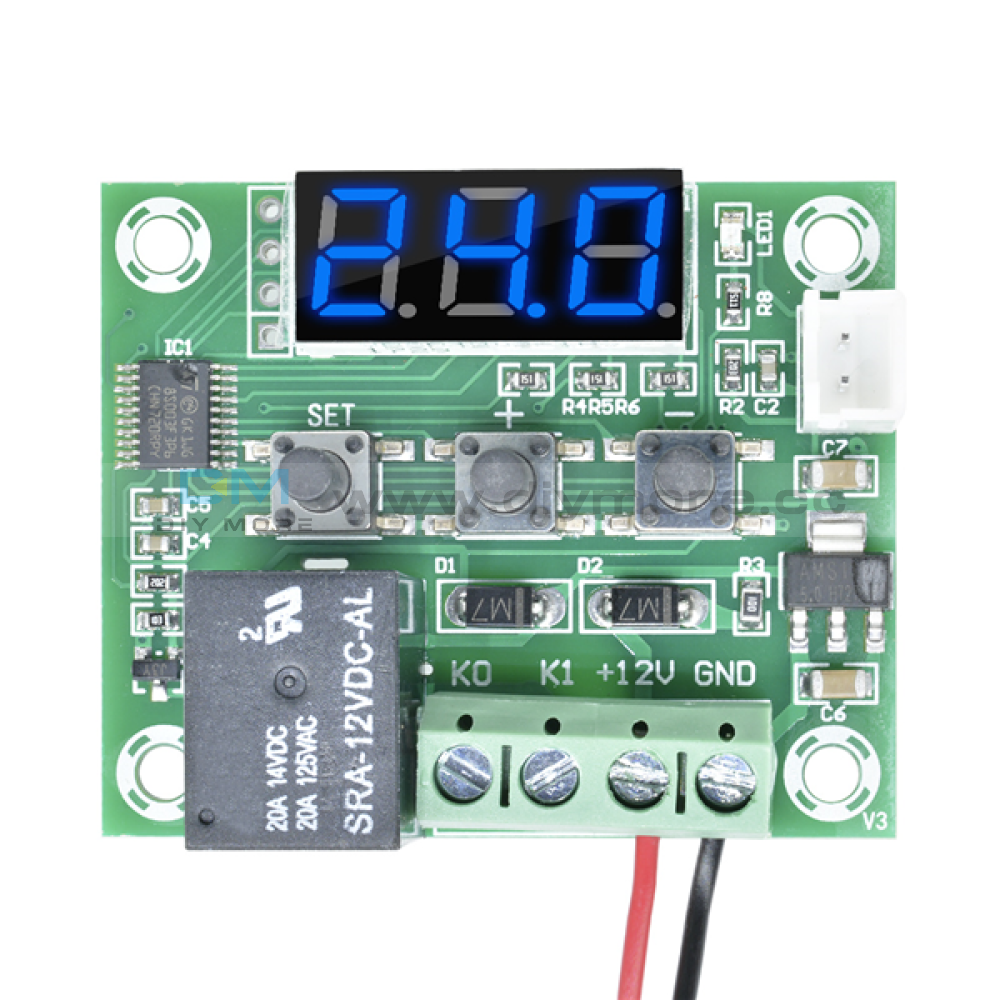

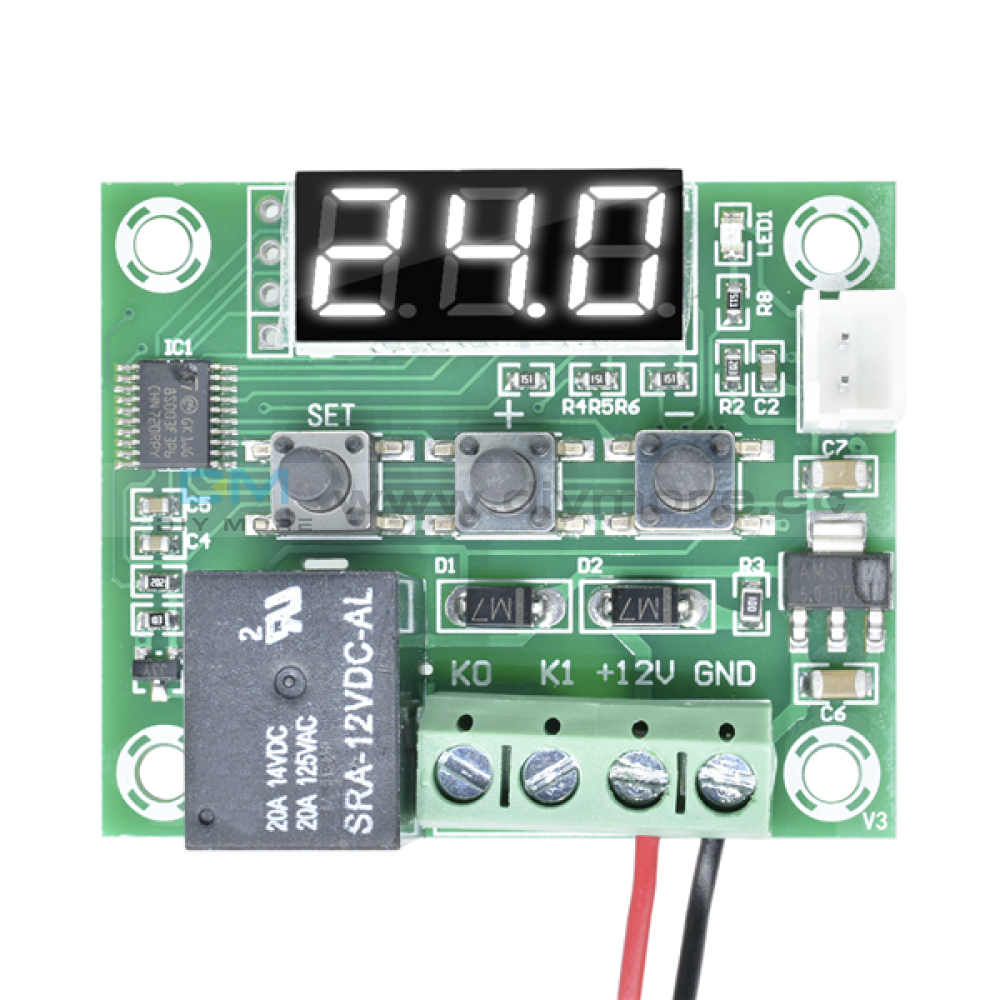

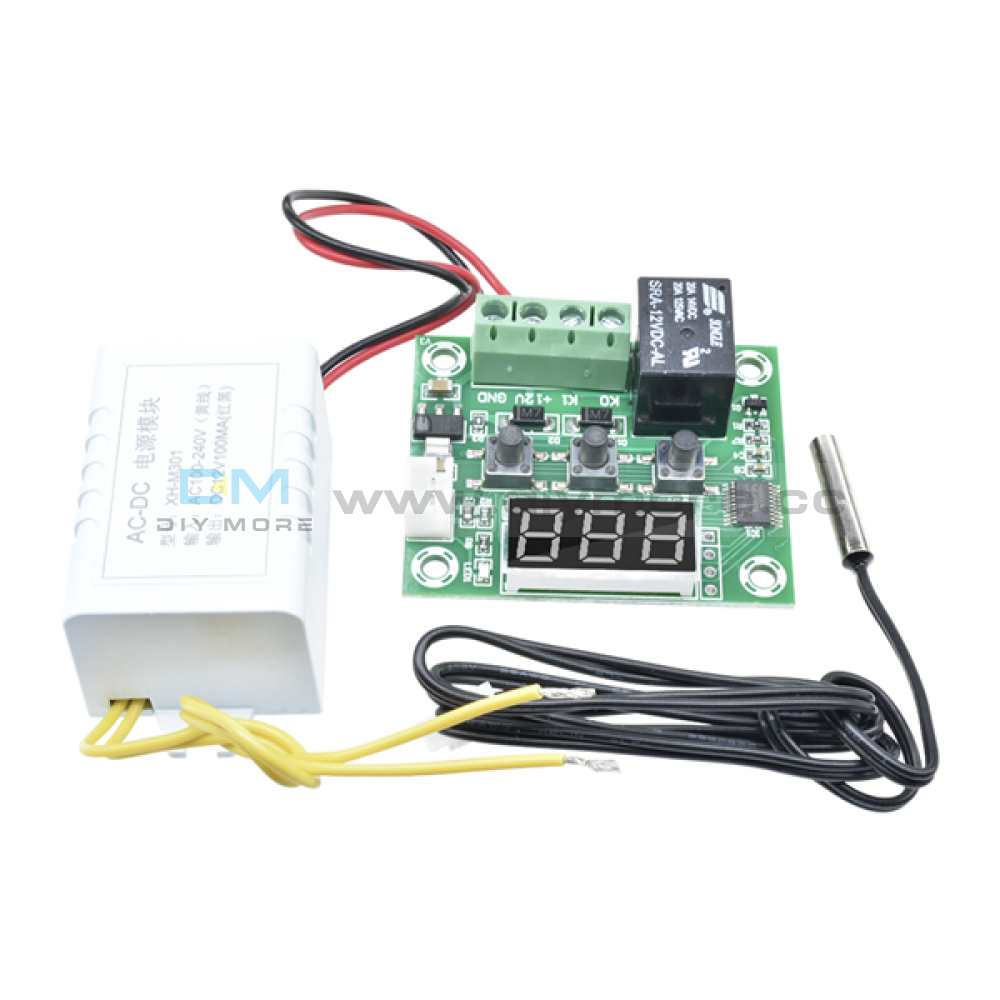

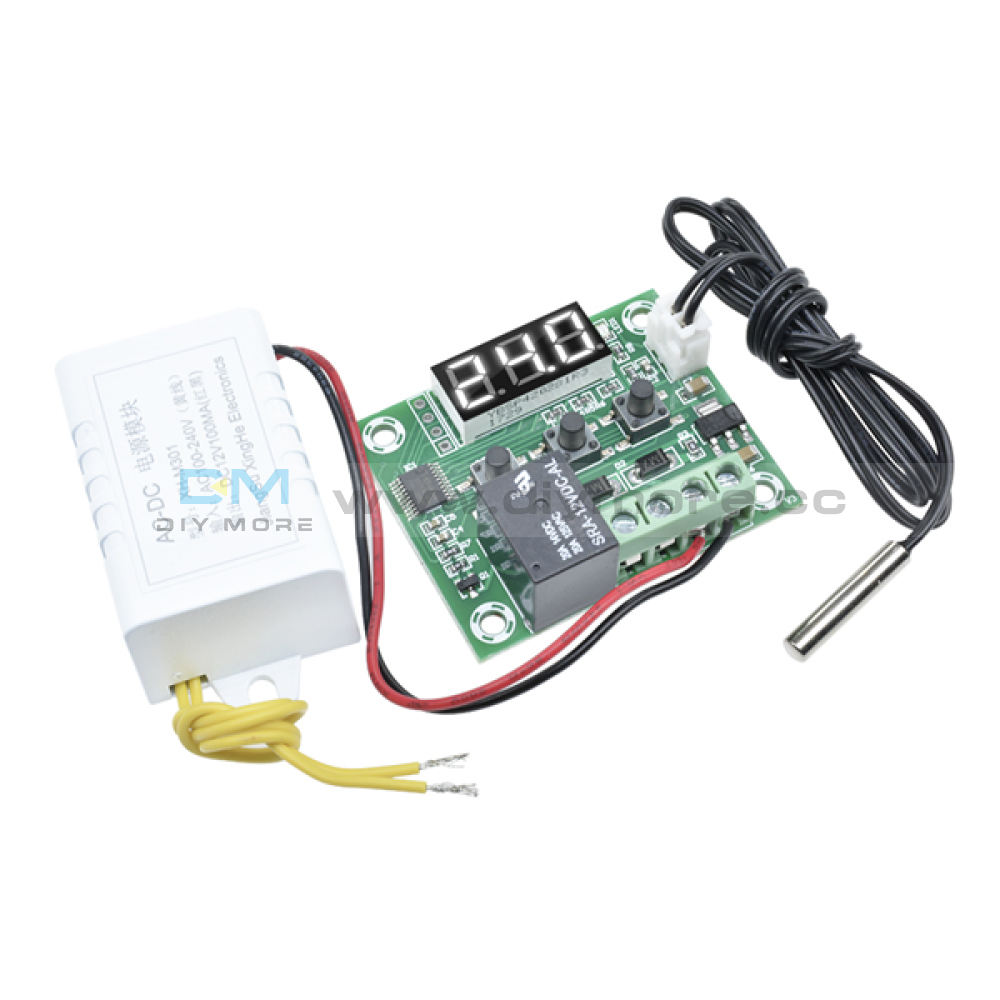

W1209 AC 110-220V Digital LED Thermostat Temprature Controller With Probe Sensor
W1209 AC 110-220V Digital LED Thermostat Temprature Controller With Probe Sensor
SKU:X12871LA
Regular price
$6.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
Color: Red, Green, Blue, White
Temperature range: -50~110°C
Dimensions: 48.5 * 40mm
Temperature control mode: ON/OFF
Resolution: When temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C
Control accuracy: 0.1°C
Hysteresis accuracy: 0.1°C
Refresh rate: 0.5s
High temperature protection： 0~110°C
Supply voltage: AC 110-220V
Static current: ≤35mA, attract current ≤65mA
Output voltage: AC 110-220V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10~60°C ，Humidity 20%-85%
How To Use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Note:
Relay output interface is a switch, when it working ,these two ports are connected,
If not work, these two ports are not connected. Pls know it!!!
Package Included:
1 x W1209 AC110-220V Thermostat (4 Colors Optional)
Color: Red, Green, Blue, White
Temperature range: -50~110°C
Dimensions: 48.5 * 40mm
Temperature control mode: ON/OFF
Resolution: When temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C
Control accuracy: 0.1°C
Hysteresis accuracy: 0.1°C
Refresh rate: 0.5s
High temperature protection： 0~110°C
Supply voltage: AC 110-220V
Static current: ≤35mA, attract current ≤65mA
Output voltage: AC 110-220V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10~60°C ，Humidity 20%-85%
How To Use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Note:
Relay output interface is a switch, when it working ,these two ports are connected,
If not work, these two ports are not connected. Pls know it!!!
Package Included:
1 x W1209 AC110-220V Thermostat (4 Colors Optional)
