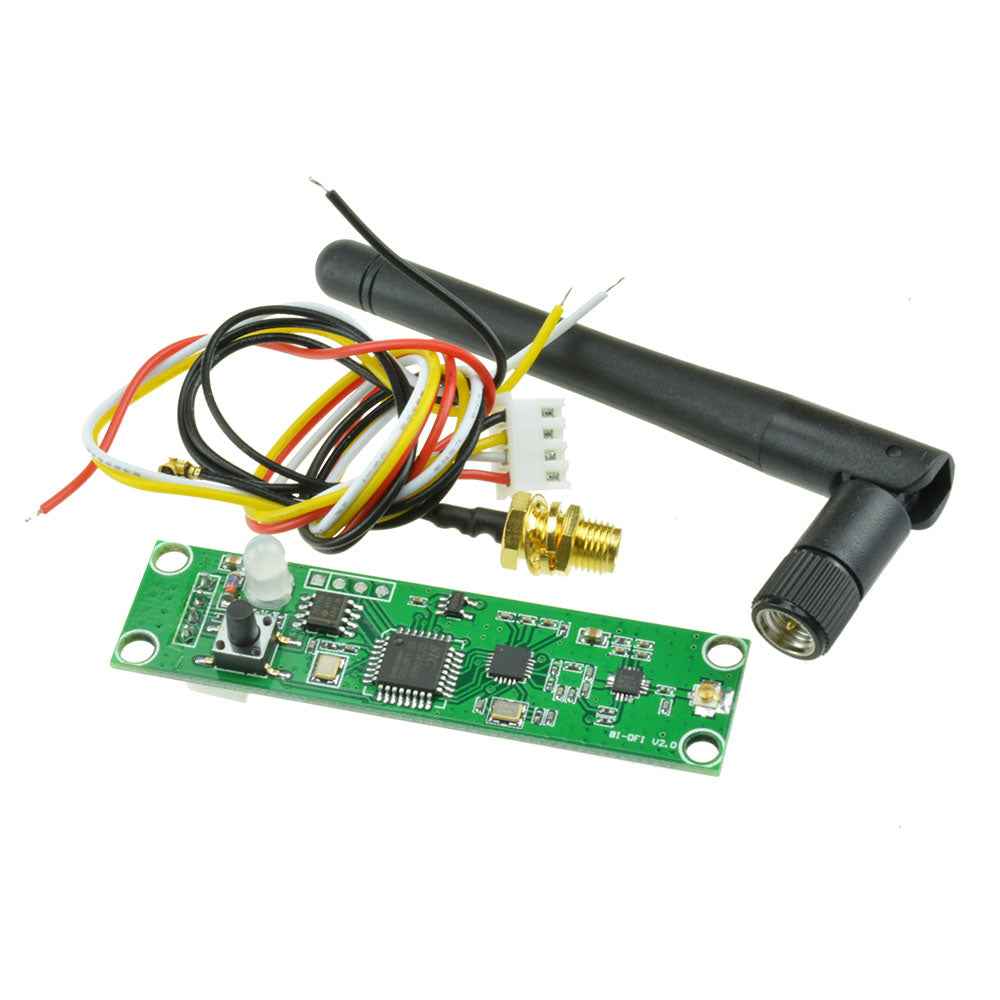

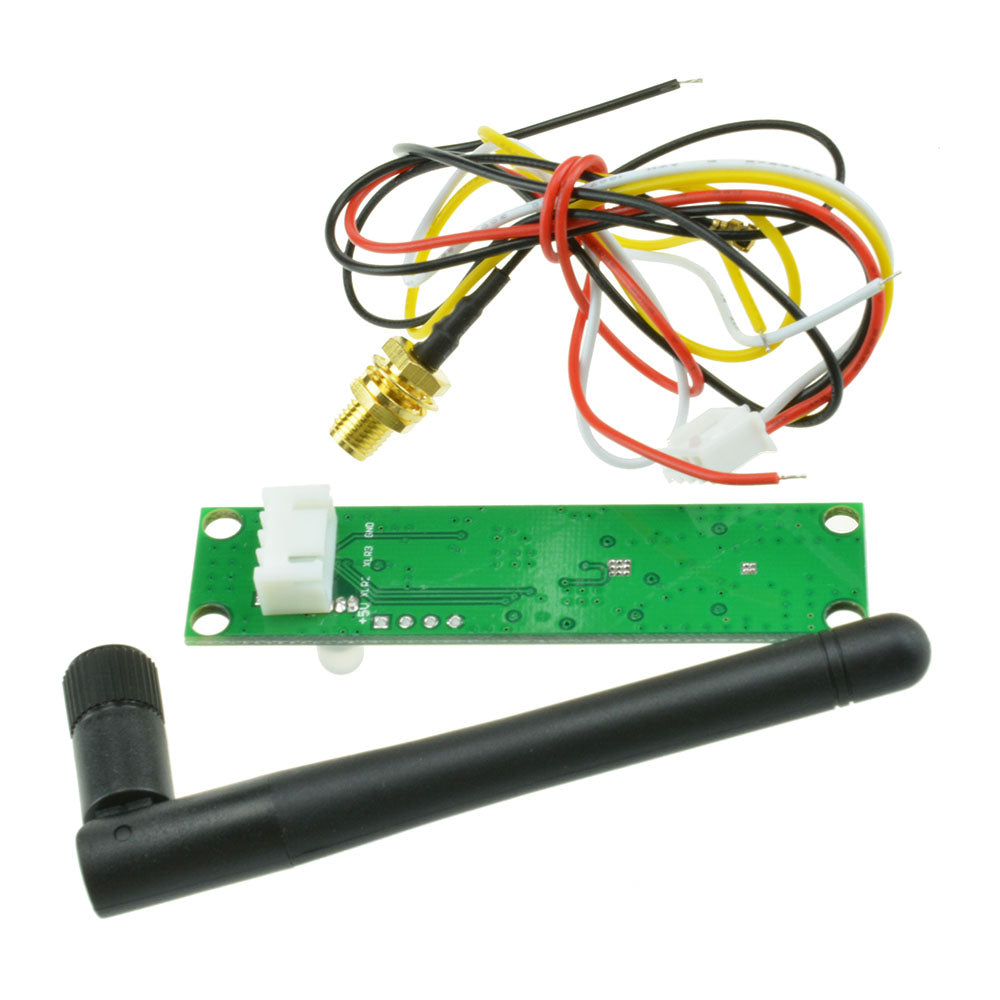

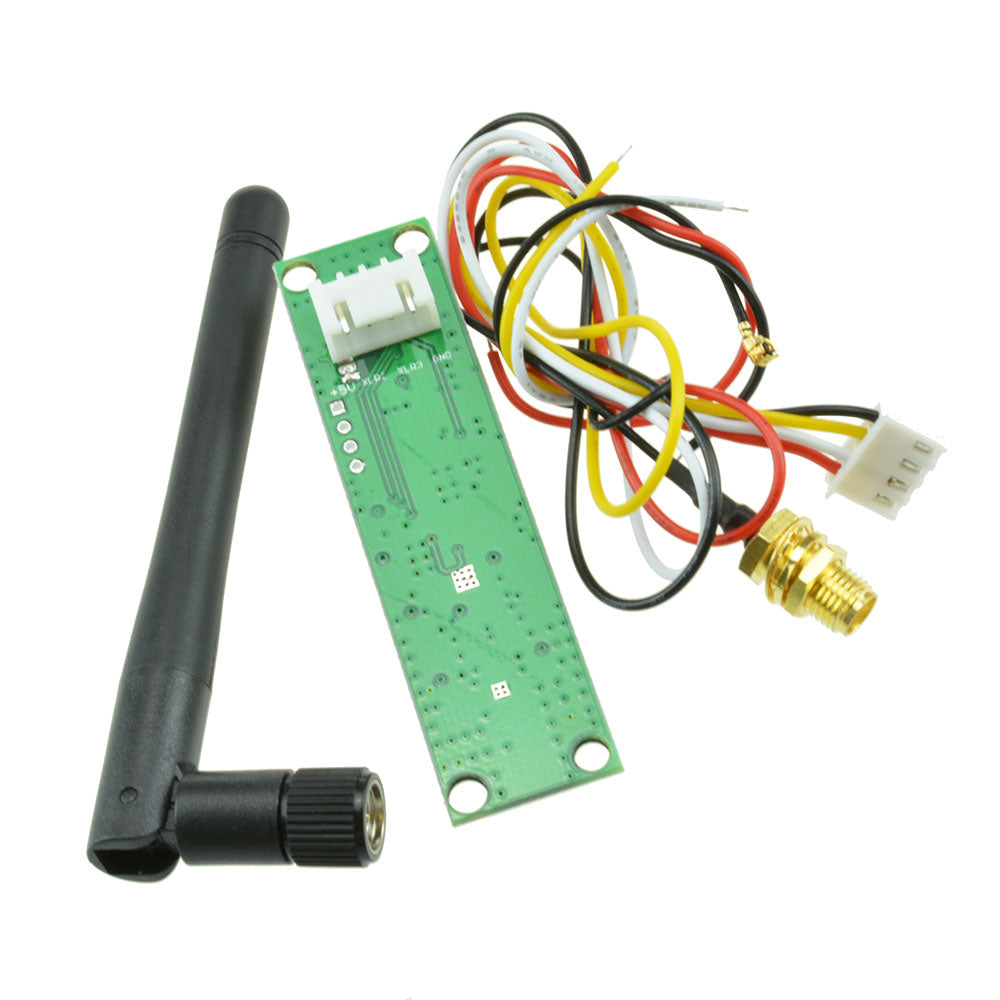

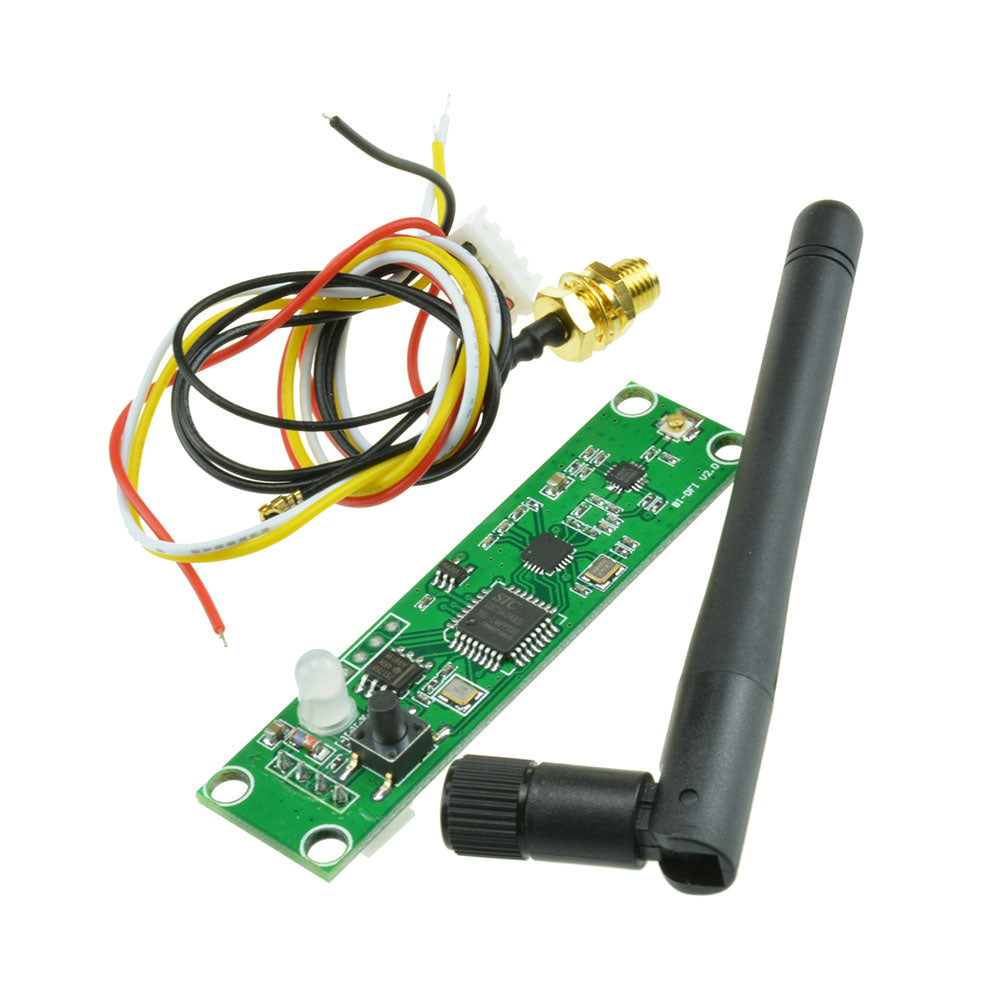

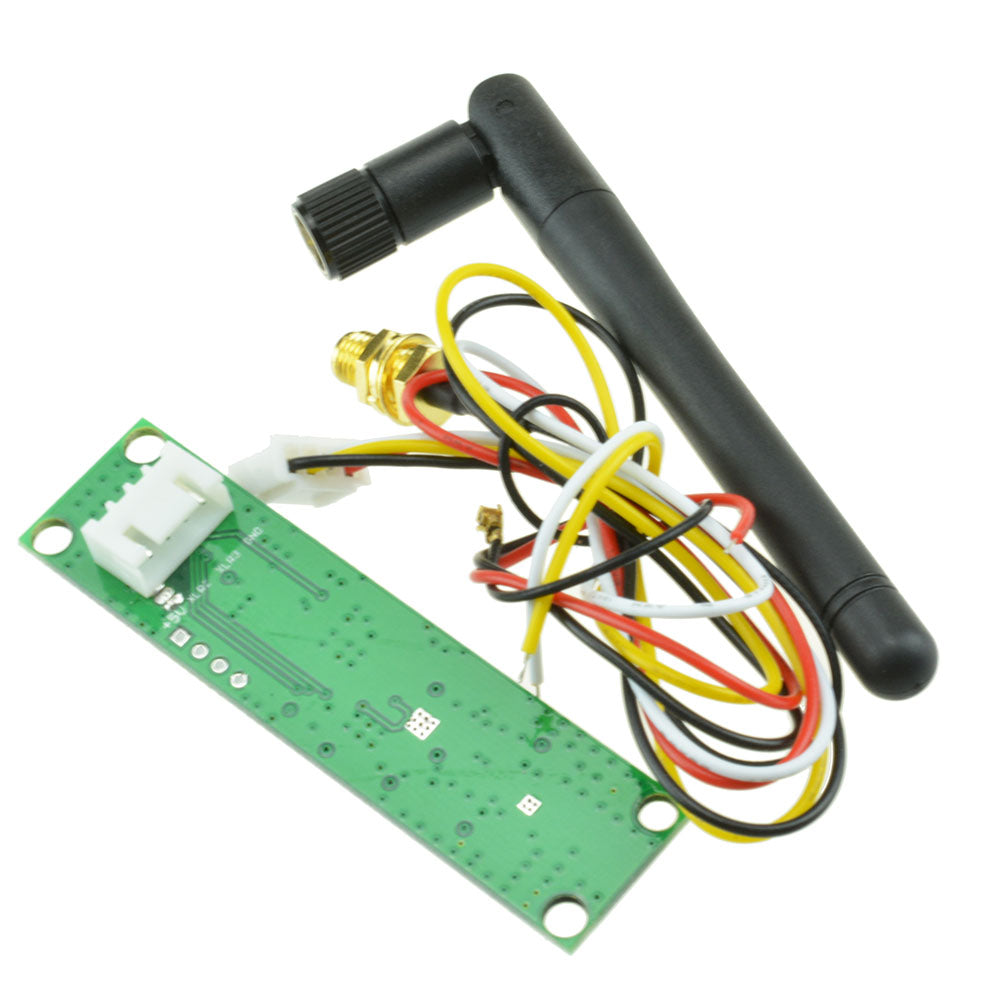

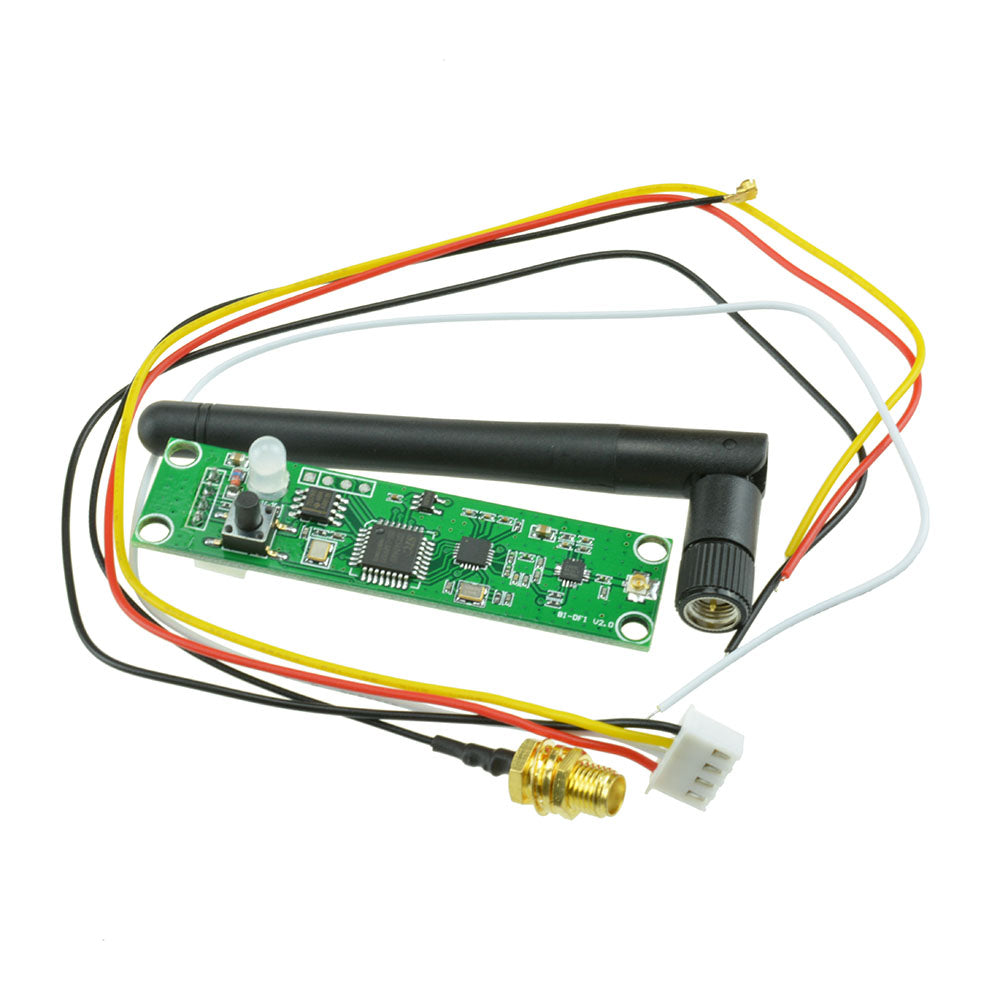

Wireless DMX512 2.4GHz ISM LED Controller Board Transmitter Receiver

Wireless DMX512 2.4GHz ISM LED Controller Board Transmitter Receiver

SKU:040068
Regular price $14.99 USD

Description:

  • Small in size easy to suit for interior of accessed lighting.
  • Single key to operate, tricolor LED displaying.
  • Transmitting standard DMX512 protocol data of controller,
  • also can transmit lighting and lighting DMX512 protocol data.
  • 126 channels automatically jumping frequency,
  • high anti-jamming ability to ensure working reliability.
  • 7 groups ID code settable, user can use 7 groups individual wireless system
  • without any interference with each other in the same place.
  • Input voltage: 5VDC
  • Work frequency section: 2.4GHz ISM band, 126 channels frequency section
  • Max transmitting power rate: 20dBm
  • Receiver sensitive: -94dBm
  • Signal port: RS485 or CPU series port AURT.

Operating manual:

  • ID code and LED color corresponding correlation:
  • RED
  • GREEN
  • RED+GREED = YELLOW
  • BLUE
  • RED+BLUE = PURPLE
  • GREEN+BLUE = CYAN
  • RED+GREED+BLUE = WHITE
  • Press key 1 time to indicate ID setting, Press again to set IC, then ID value adding 1 each time by press.

Working condition:

  • LED constant litght up: no DMX or wireless signal.
  • Red LED flash: transmitting.
  • Green LED flash: Receiving
  • RF frequency------2. 400-2. 525 G, total 126 channels, it is searching automatically.
  • ID Code-------"1-7" groups ID code, press "key" button for setting,
  • it only can work under same ID code of transmitter and receiver.

Establishing Communication:

  • Power on DMX512 wireless received board and transmitted board.
  • Press "key" button to set same ID value of transmitted board and received board,
  • please use different ID value if you need use more than 1 group wireless net at same time in same place.
  • The red LED flashes when transmitter transmits DMX data by no interfered frequency section,
  • then receiver changes communicated frequency section.
  • Green LED flash till received corrected same ID value, LED flash faster once DMX data faster.
  • Communication was established correctly then.

Package Included:

  • 1PCS X Wireless DMX512 PCB Board LED Controller Modules Transmitter Receiver
