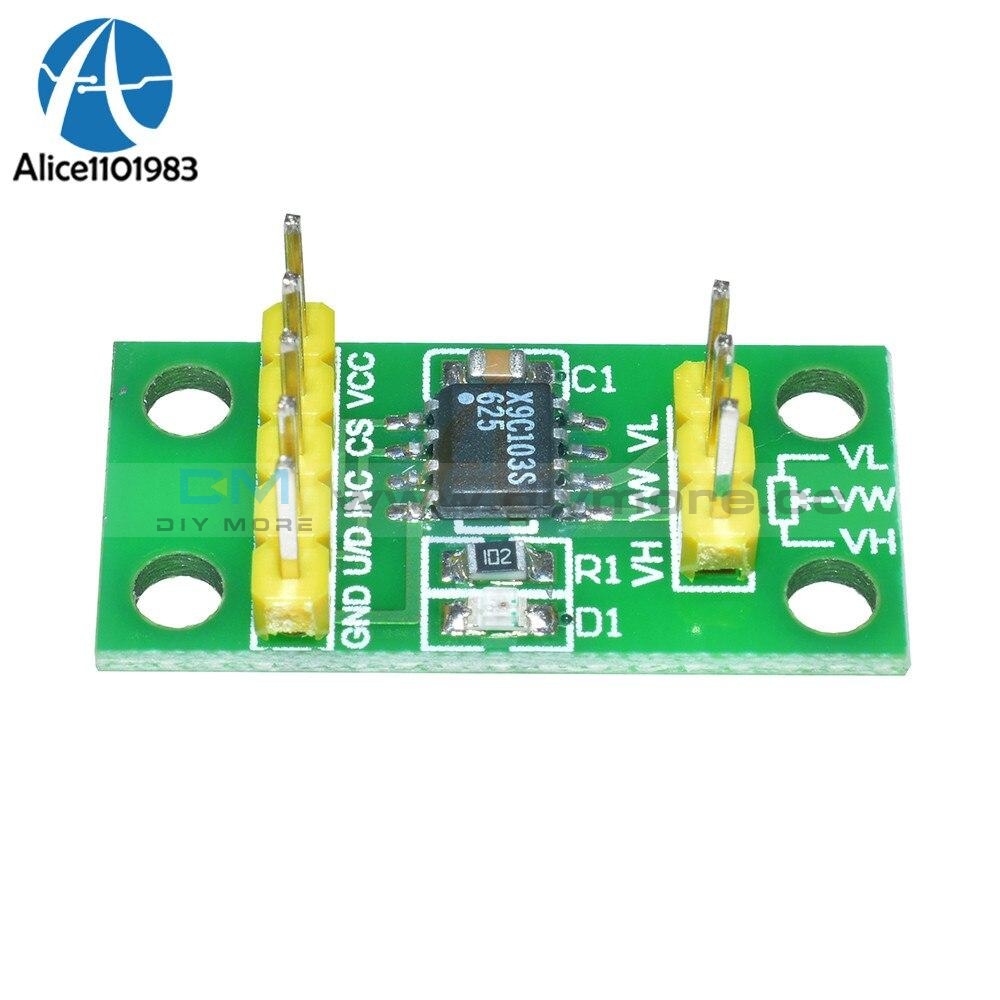

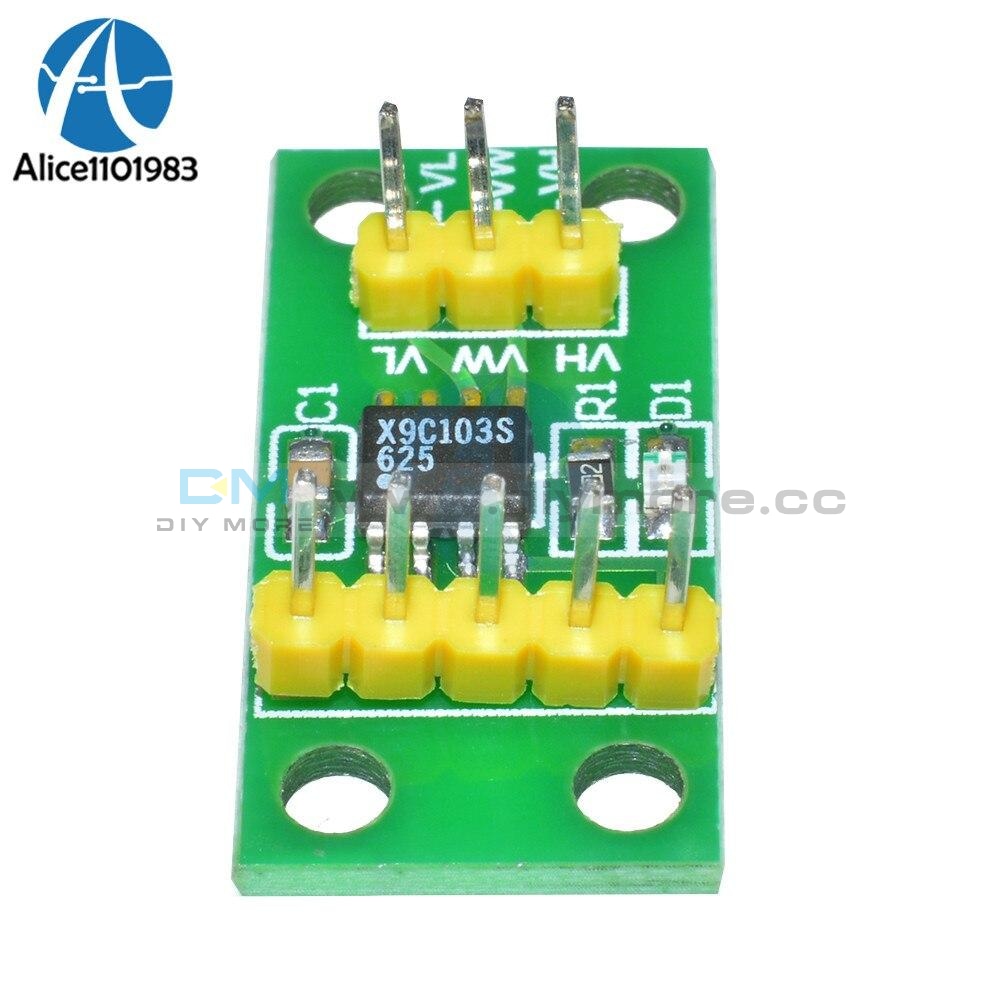

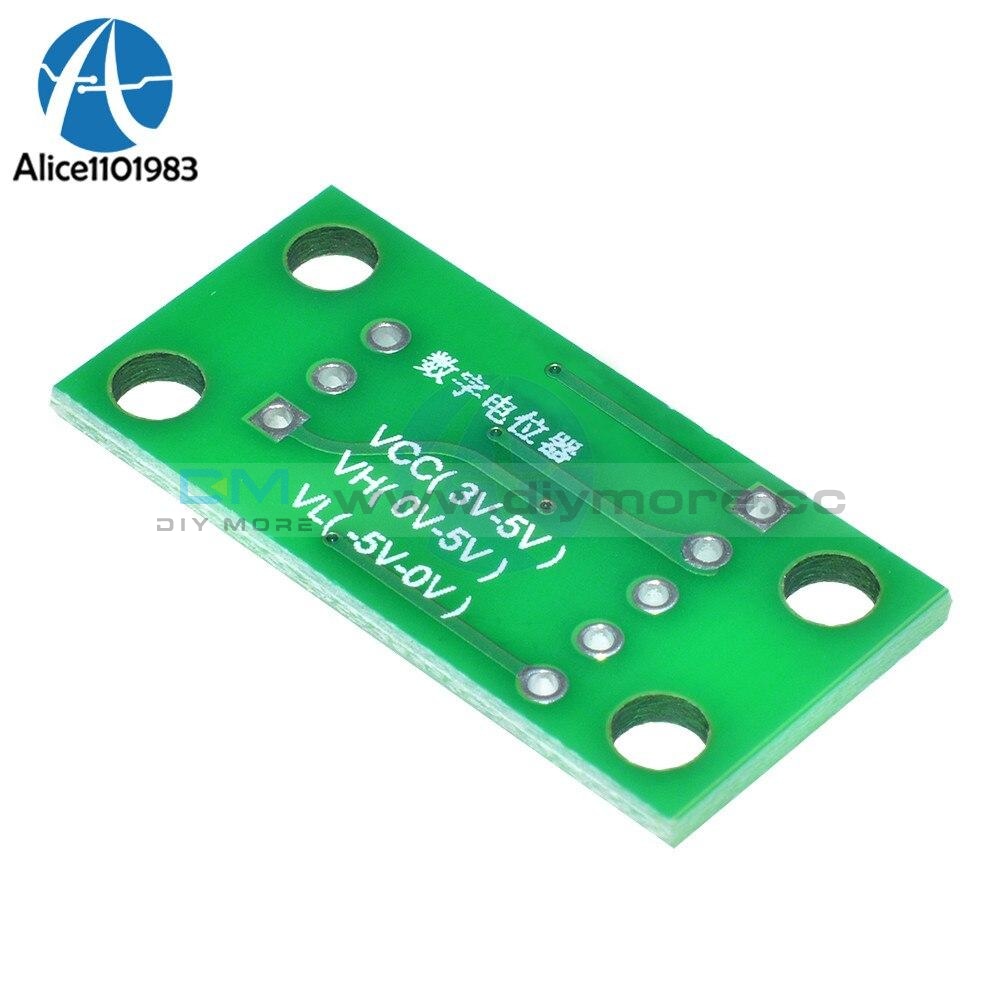

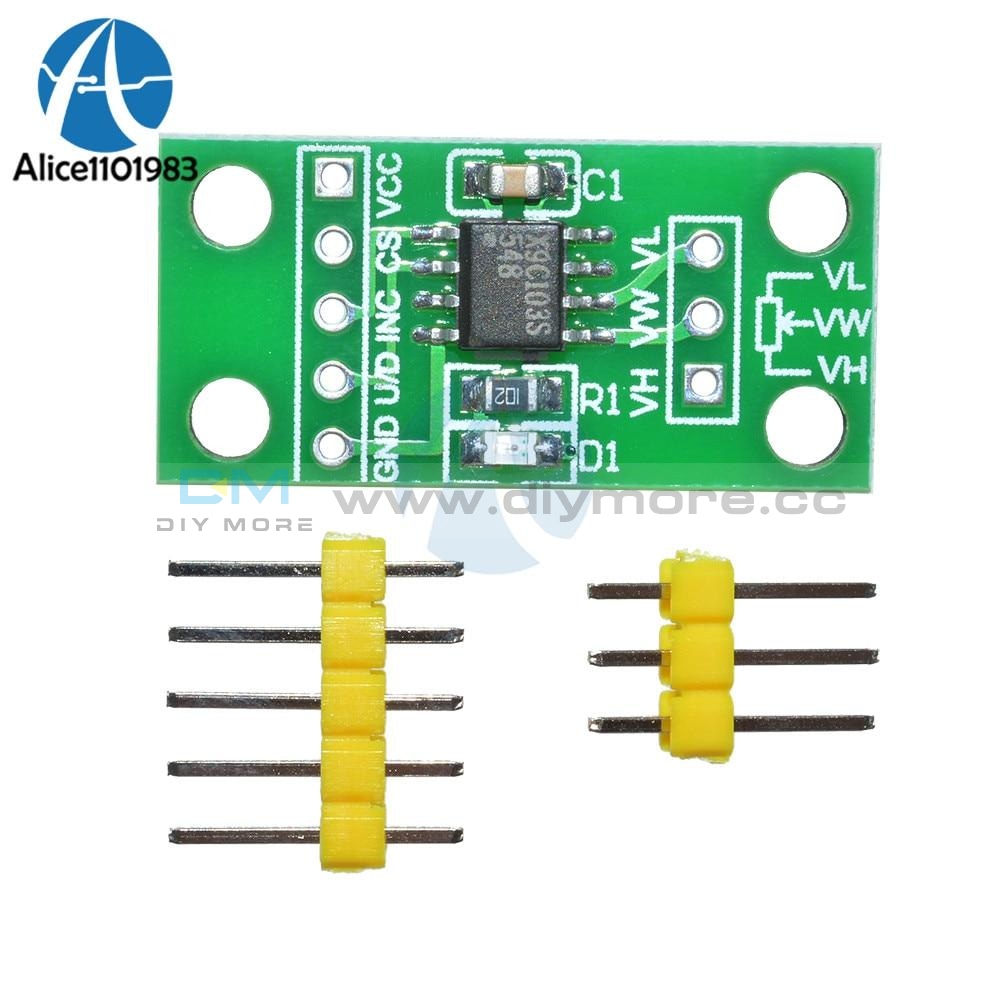

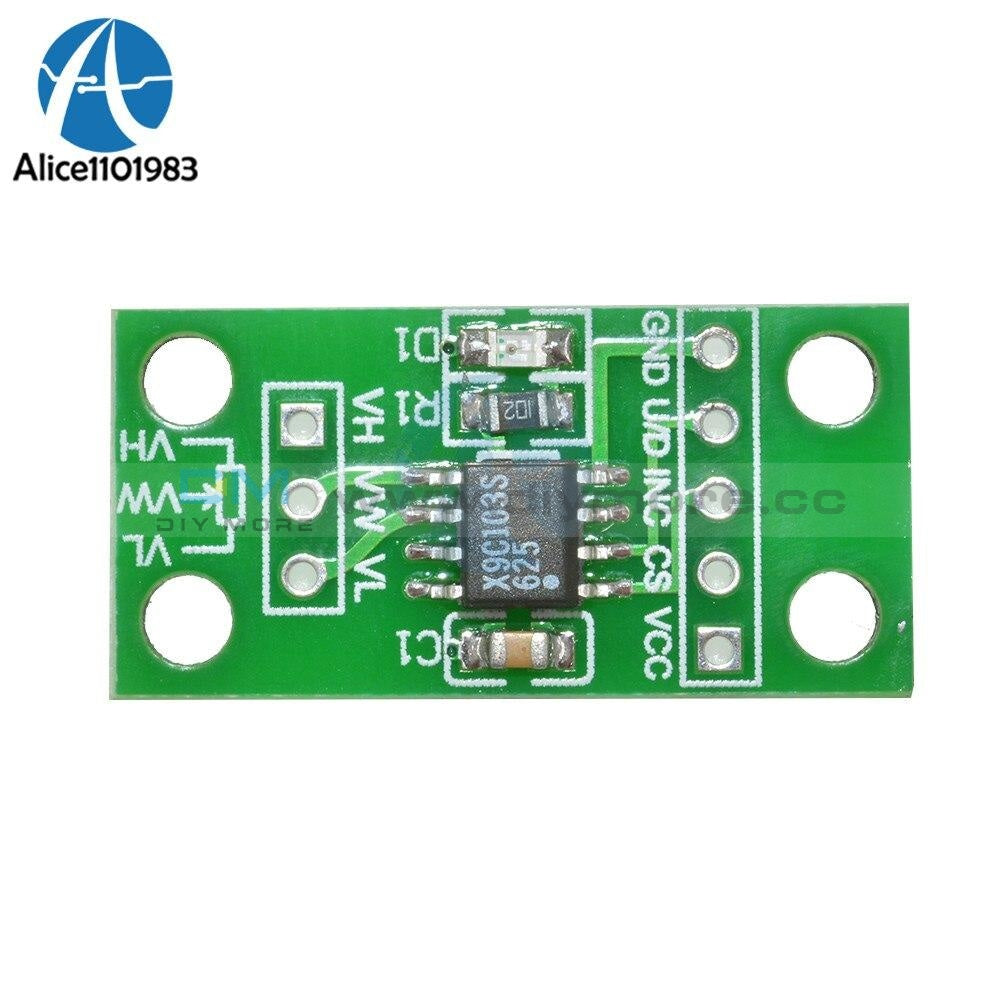

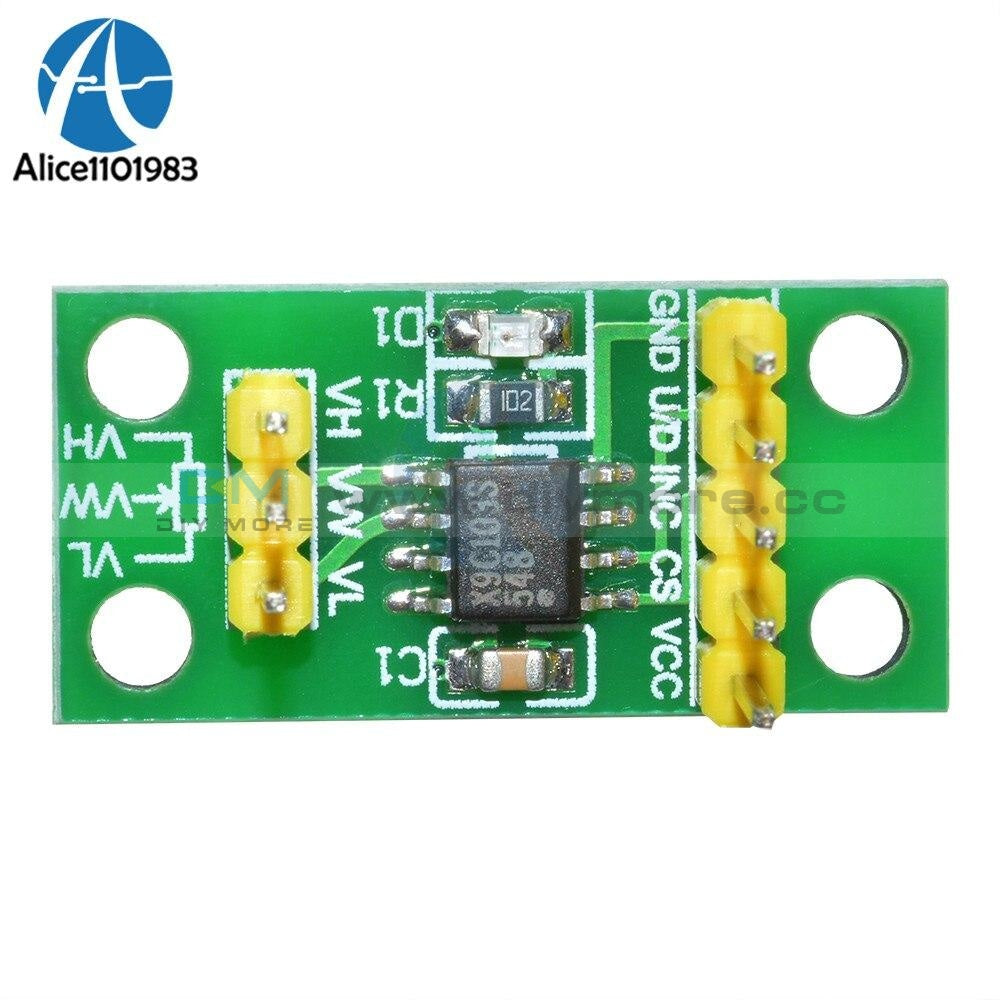

X9C103S Digital Potentiometer Board Module for Arduino DC 3V 5V 10K span potentiometer Diy KIT Electronic PCB Board

X9C103S Digital Potentiometer Board Module for Arduino DC 3V 5V 10K span potentiometer Diy KIT Electronic PCB Board

SKU:011811
Regular price $4.99

Feature:
Supply voltage: 3V-5V
Chip: X9C103S
PCB board size: 2.7 * 1.3CM
10K span potentiometer.
Potentiometer center tap between 0-10k slide in total 100 (potentiometer wiper typical impedance 40 ohms)
VL and VH digital potentiometer sliding rheostat port corresponding to the low-end and high-end, allowing the input voltage range -5V to + 5V.
Package Included:
X9C103S Digital Potentiometer Module
