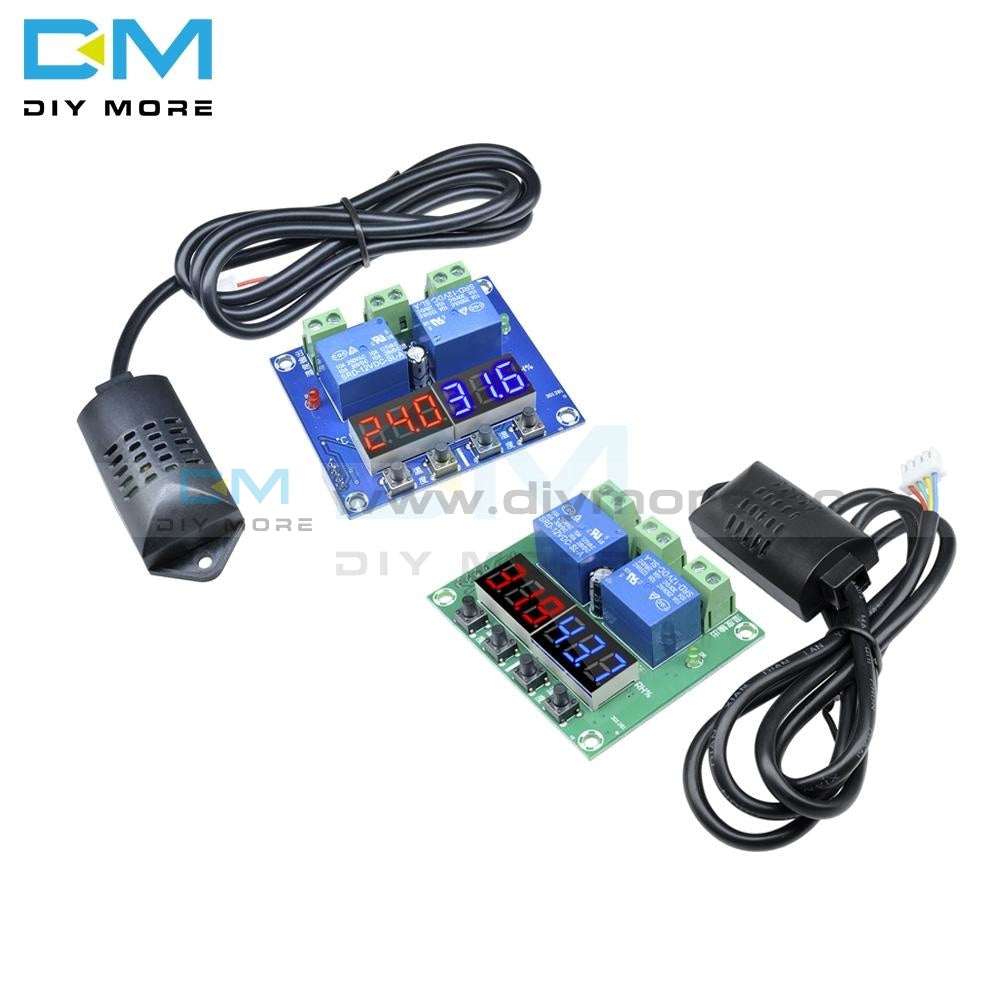

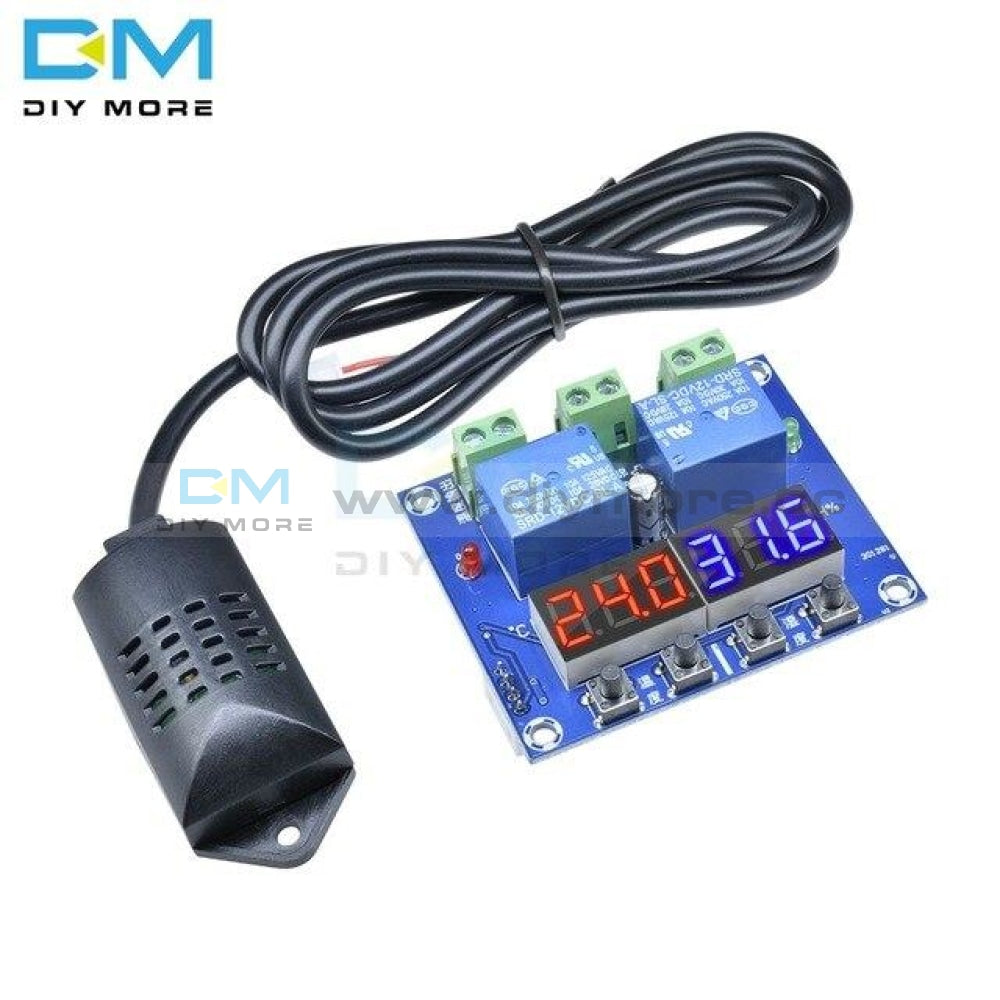

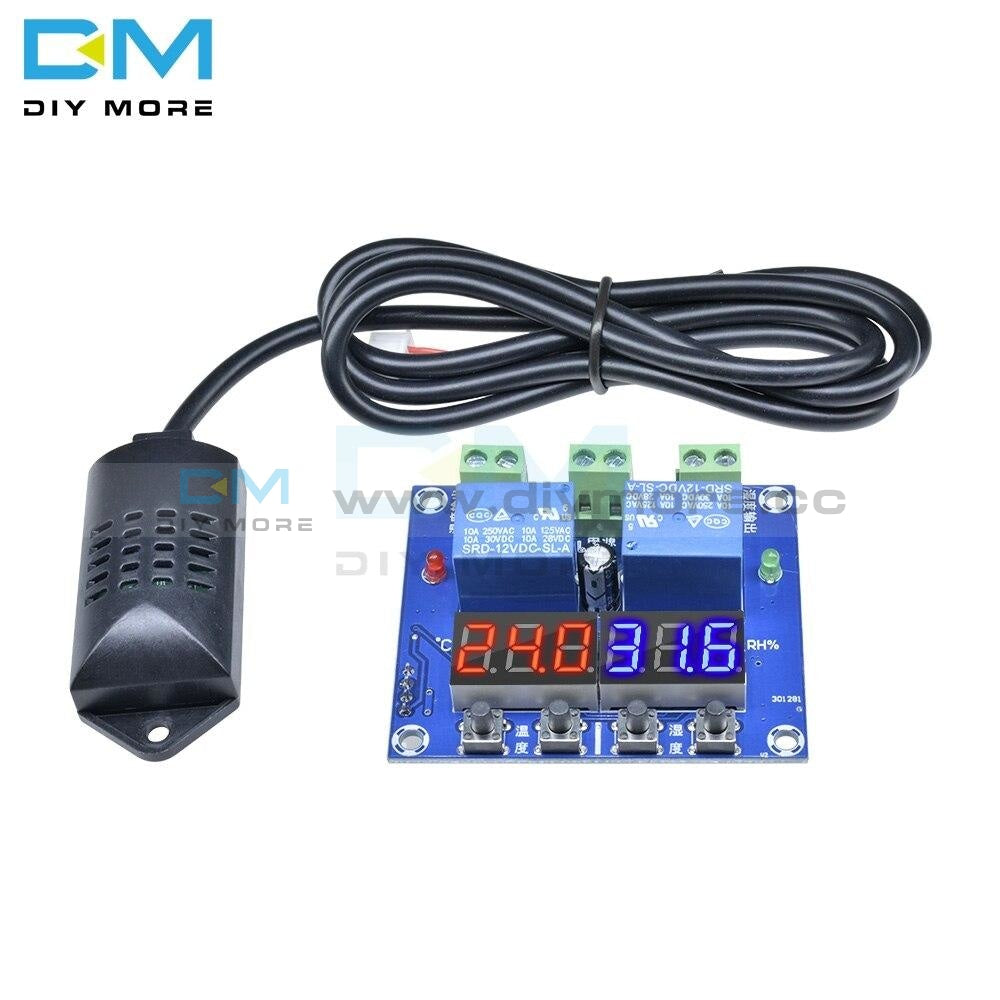

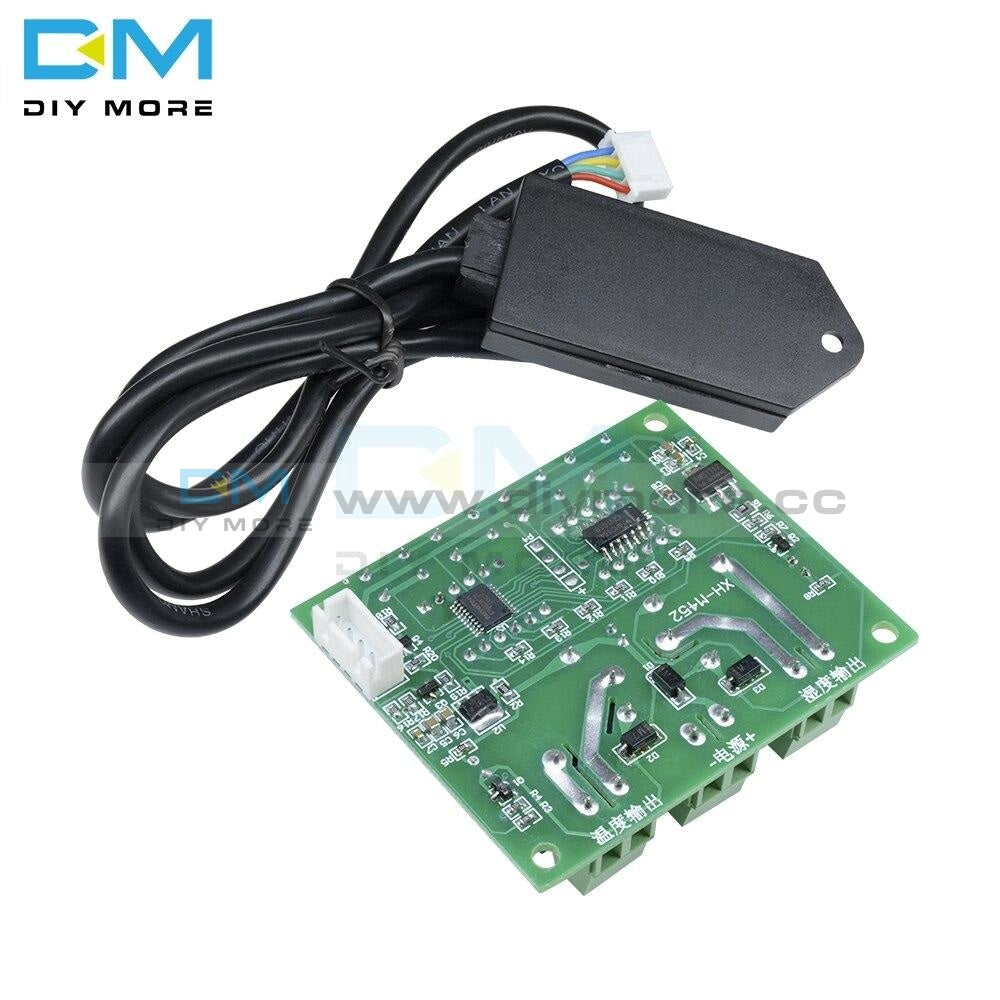

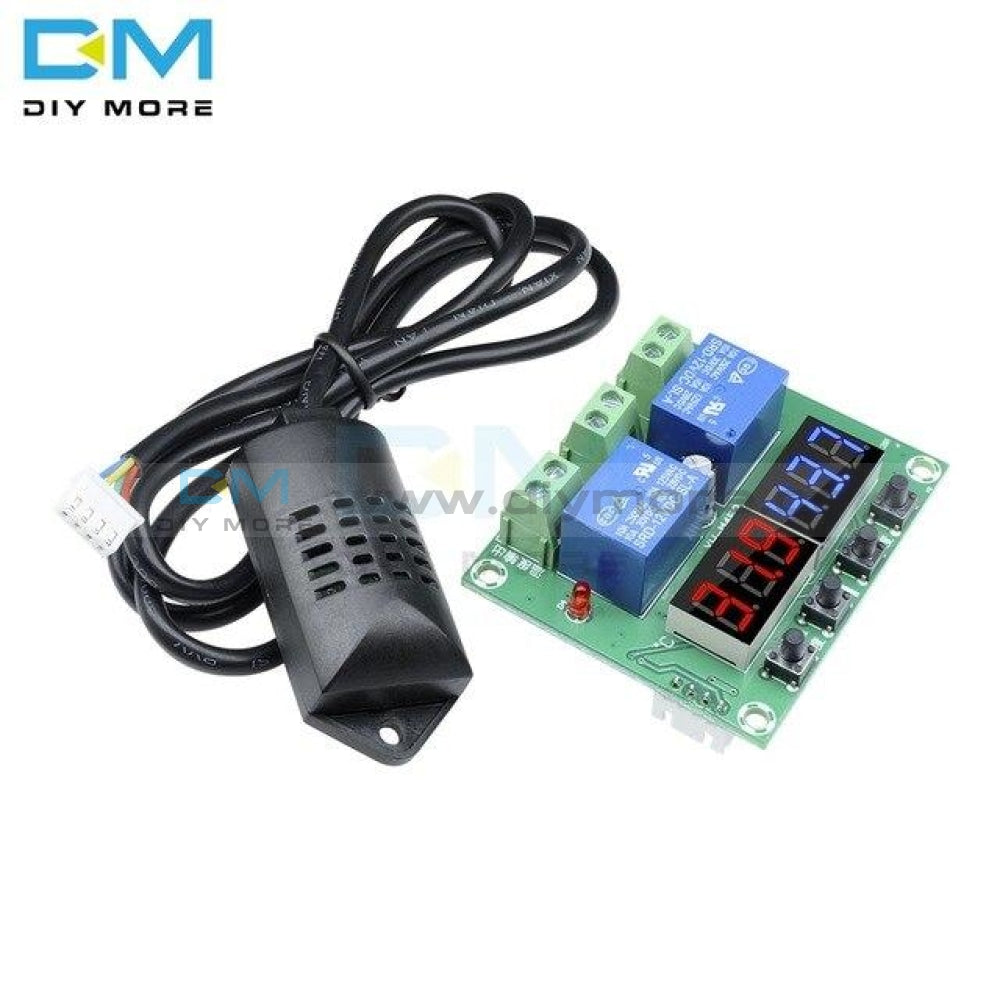

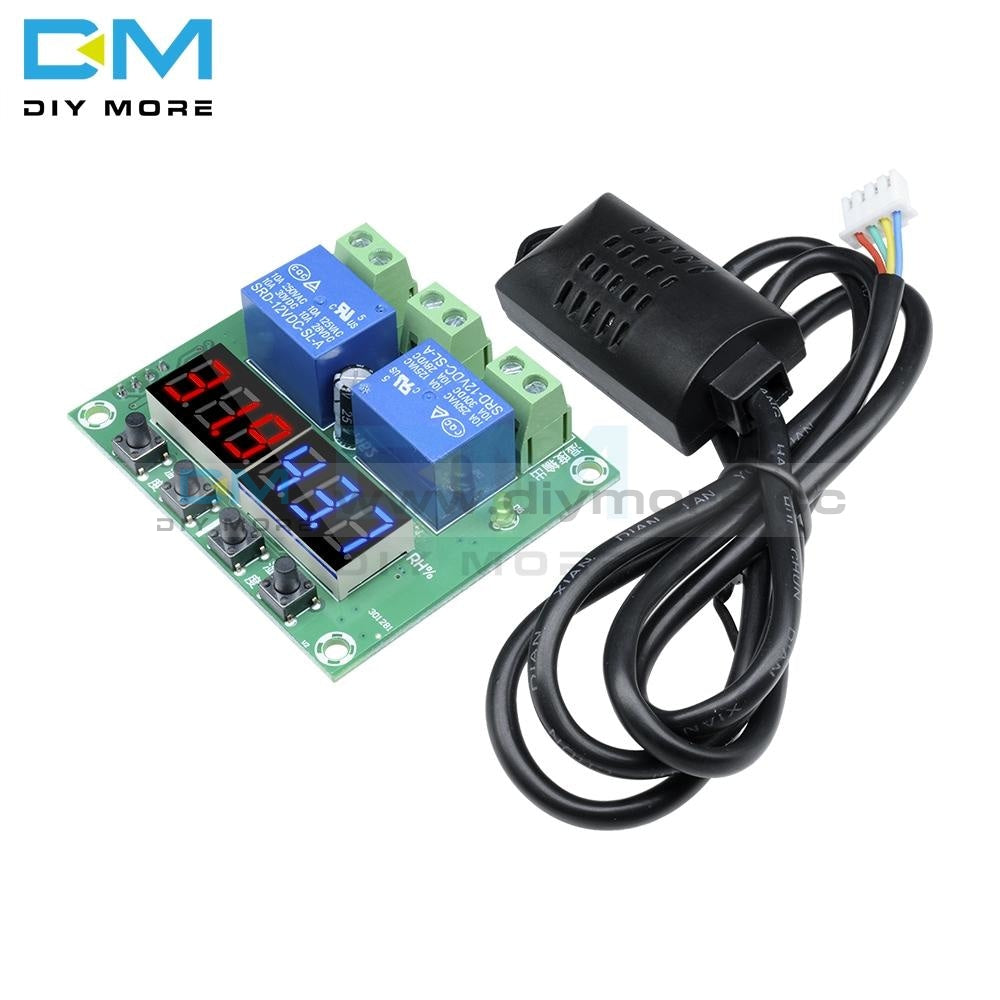

XH-M452 DC 12V Dual Digital LED Temperature & Humidity Control Thermostat +Probe
XH-M452 DC 12V Dual Digital LED Temperature & Humidity Control Thermostat +Probe
SKU:012599
Regular price
Sale price
$13.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Specifications:
• Power supply: DC 12 V
• Temperature measurement range: -40 to 120° (-40 to 248°F)
• Humidity range: 0~100% RH
• Control precision: 0.1°, 0.1% RH
• Test probe: Integrated sensor
• Output: 10A delay
• Dimensions: 65 x 55 x 28 mm
• Temperature measurement range: -40 to 120° (-40 to 248°F)
• Humidity range: 0~100% RH
• Control precision: 0.1°, 0.1% RH
• Test probe: Integrated sensor
• Output: 10A delay
• Dimensions: 65 x 55 x 28 mm
Temperature control:
1) Set the temperature (+): Normal display mode, long press the (+) key for 3 seconds, start temperature numerical flashing, press the + / - key setting values, incorrect operation after 5 seconds, automatically return to detect temperature display
2) Set the temperature (-): Normal display mode, long press (-) button for 3 seconds, stop numerical flashing temperature, press the + / - key set value
3) Restore the factory settings: At the same time long press temperature, and humidity (+) key for 3 seconds, digital display, 888, 888
4) Set the start temperature: Long press the (+) key, start the flashing temperature, set start temperature by + / - key
5) Set stop temperature: Long press (-) button, stop flashing temperature, set stop temperature by + / - key
6) Set to start humidity: Long press the (+) key, start the humidity value flashing, set by + / - key launch humidity value
7) Set stop humidity: long press (-) to stop humidity value, set by + / - key to stop the humidity value
Package Included:
1 x DC 12V XH M452 Dual Output Thermostat Temperature Humidity Hygrometer Controller

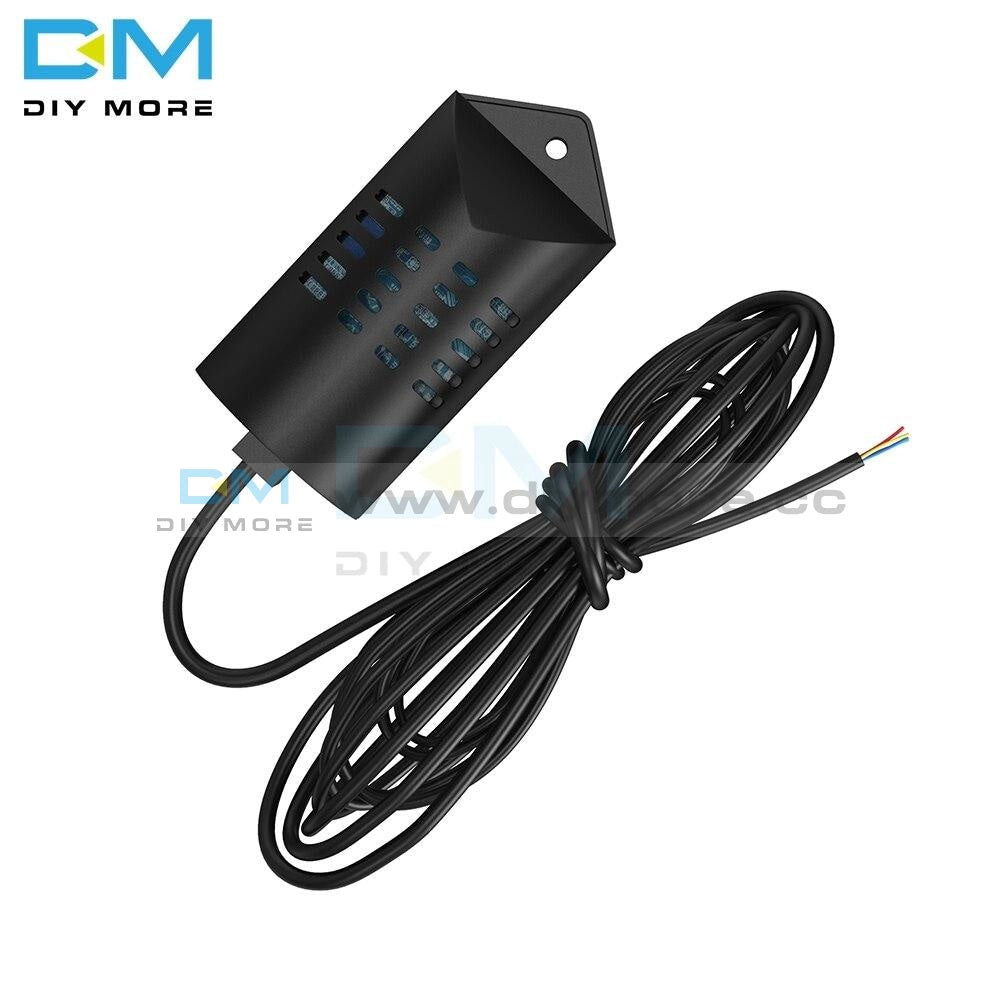

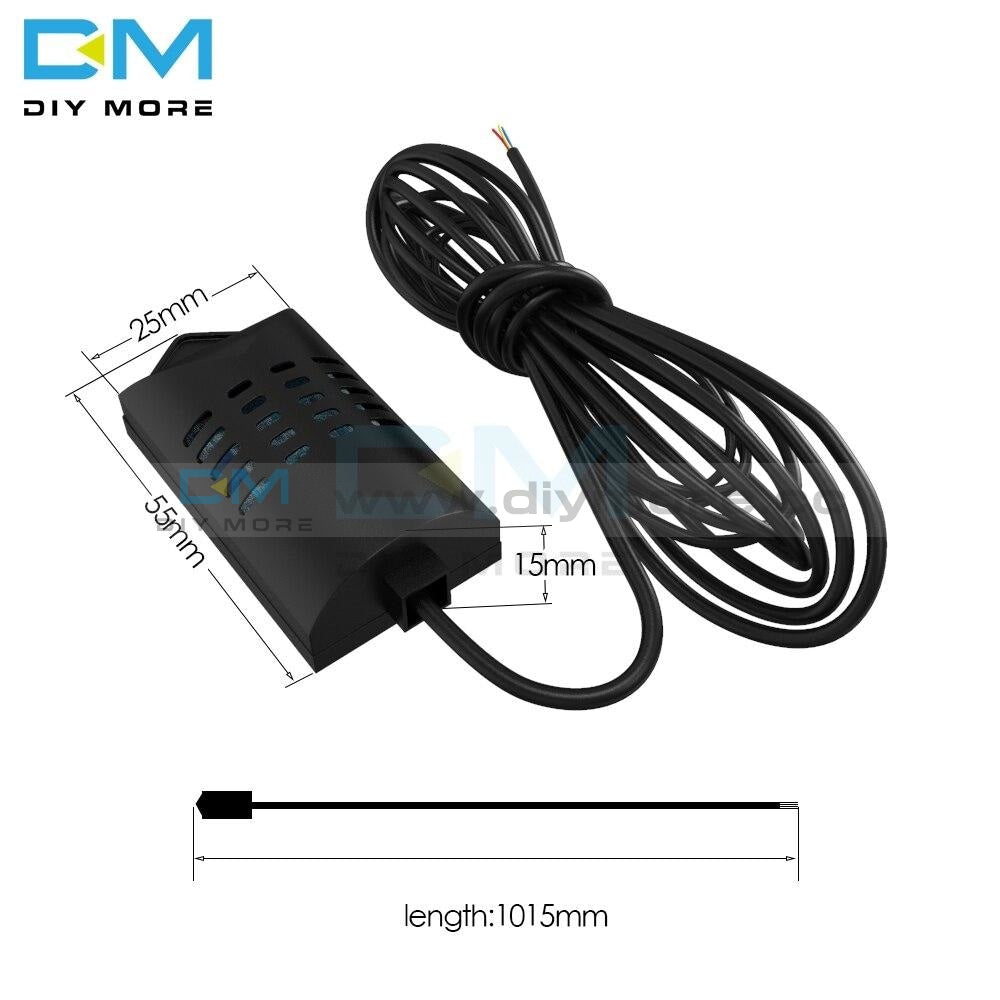

The SHT20 digital temperature and humidity sensor is based on digital sensing technology and offers high reliability and long-term stability. Full-scale calibration, two-wire digital interface, can be directly connected to the microcontroller, greatly reducing development time, simplifying peripheral circuits and reducing costs. In addition, it is small in size, quick in response, low in energy consumption, immersible, strong in anti-interference ability, integrated in temperature and humidity, combined with dew point measurement, and cost-effective, making the product suitable for a variety of applications.
Parameter:
1. Humidity measurement range: 0~100%RH
2. humidity measurement accuracy: ± 3% RH
3. temperature measurement range: -40 ~ 125 ° C
4. temperature measurement accuracy: ± 0.3 ° C
5. working voltage: 2.1 ~ 3.6VDC (please note: do not use 5V power supply!!!)
Package Included:
1PC*SHT20 Digital Temperature and Humidity Sensor
