ZVS Tesla Coil Marx Generator DC 12V 30V 20A 1000W High Voltage Flyback Driver Board Power Supply Boost Induction Heating Module
SKU:012247
Regular price
$11.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:

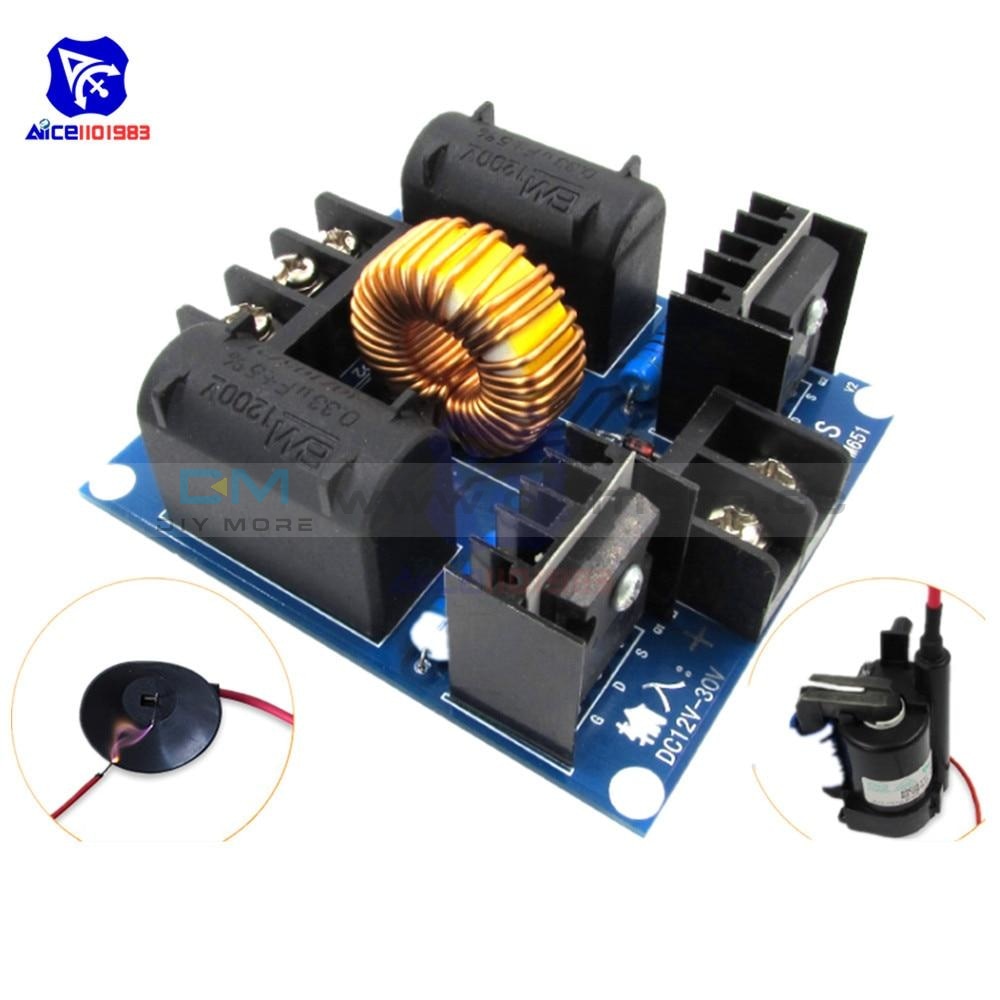

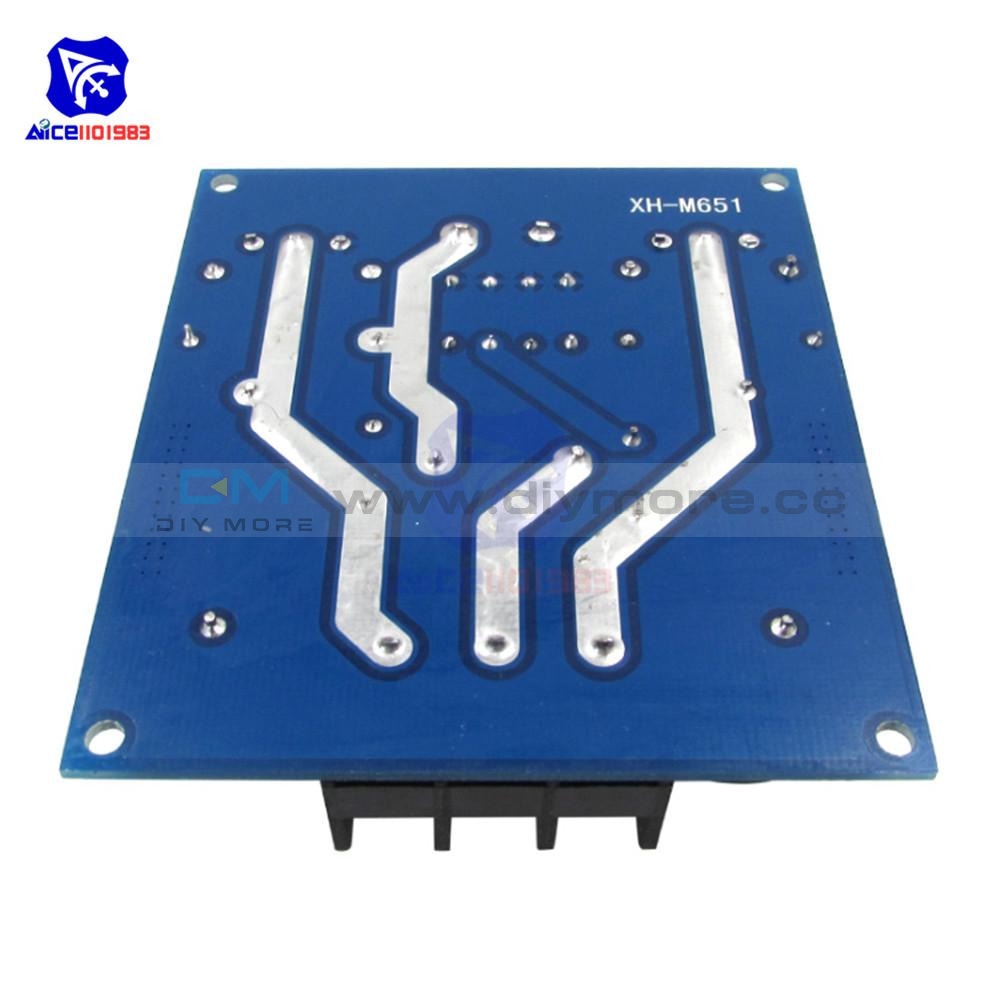

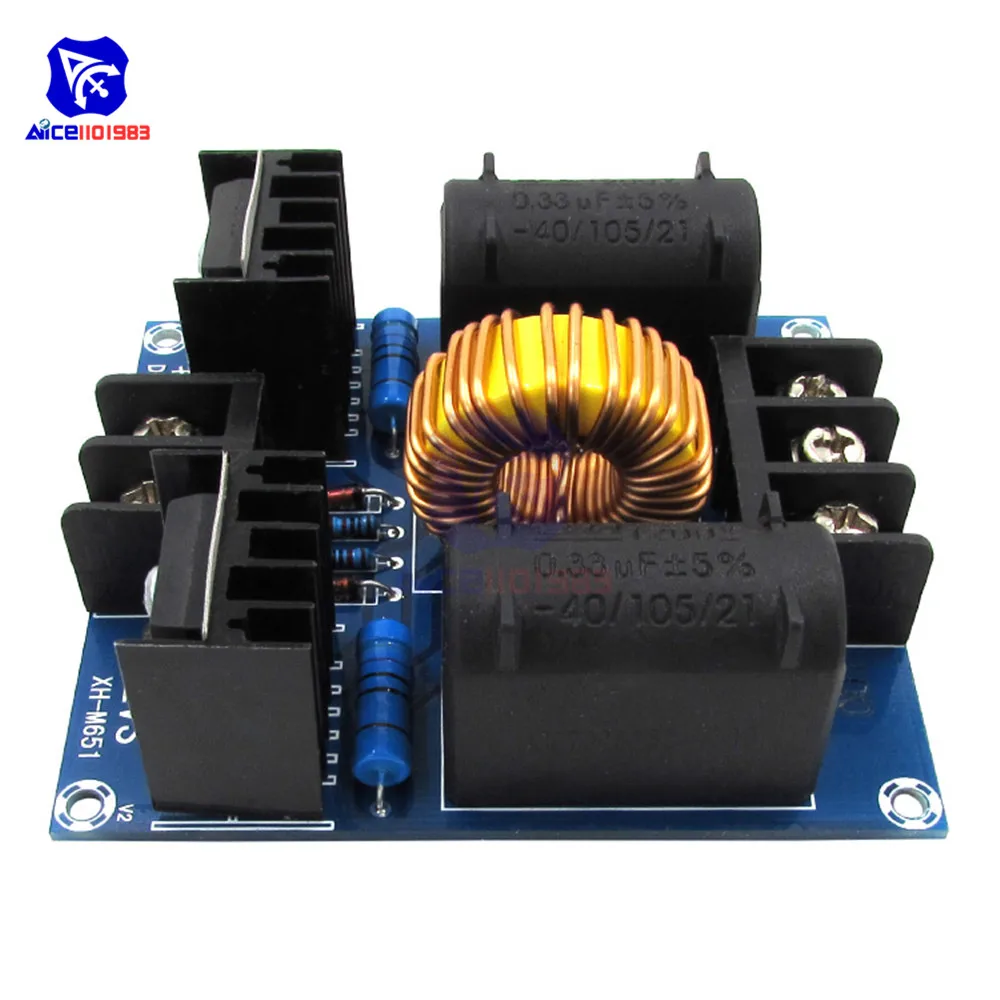

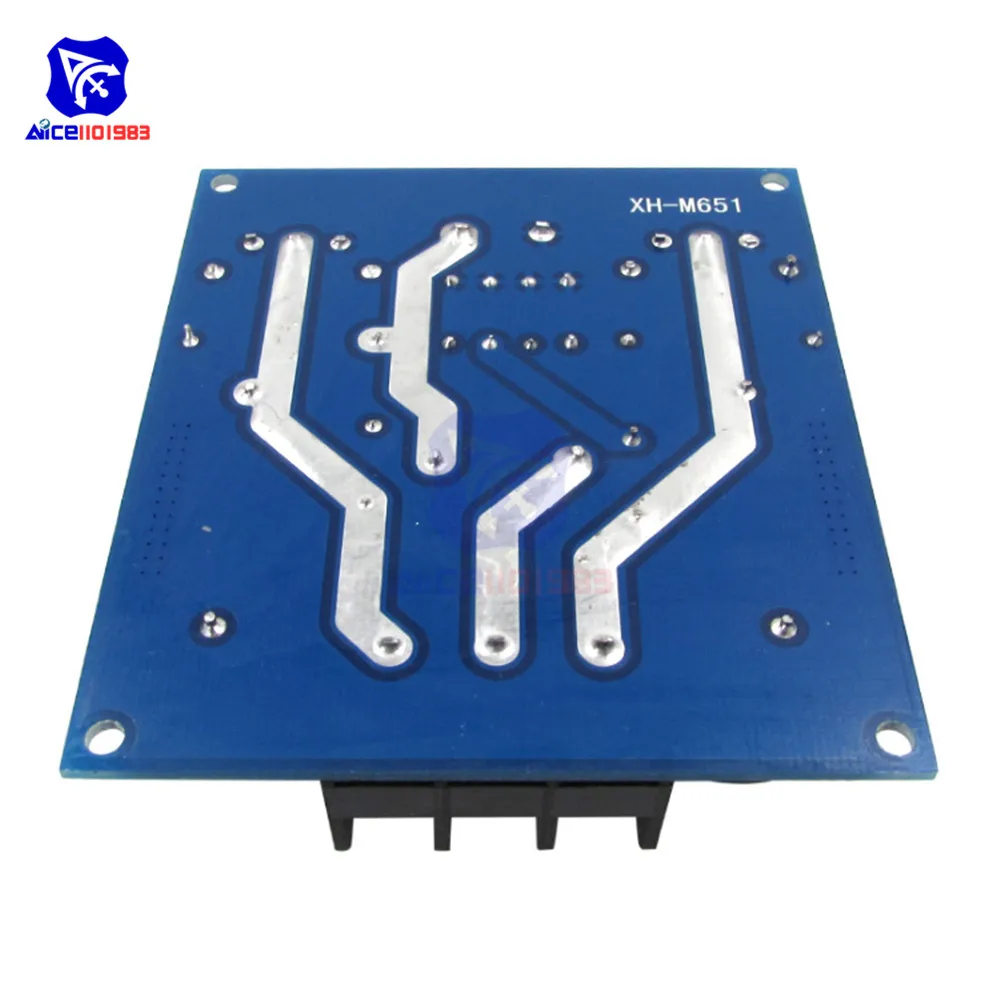

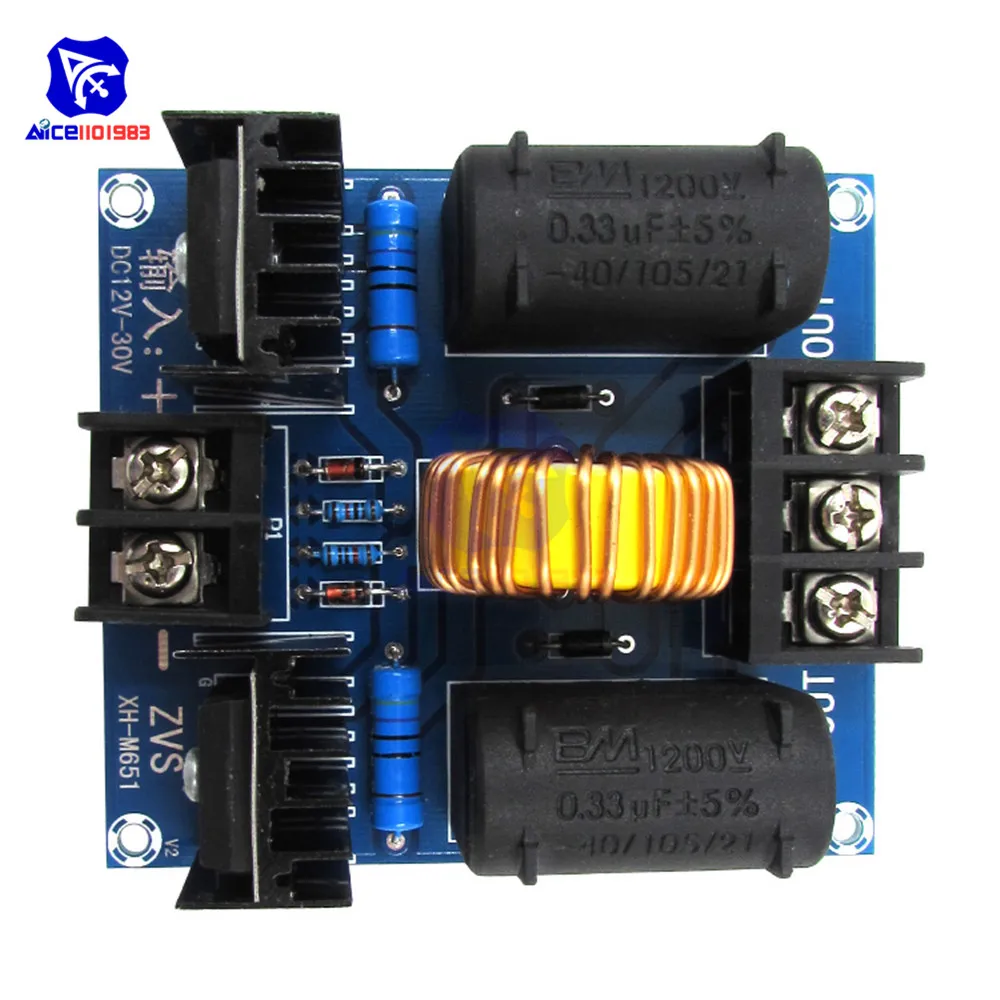

This is Assembled Board
Size: 74mm x 77.8mm
Input Voltage: DC 12V-30V
Power Requirement: Minmium 12V 5A, Maxmium 15V 15A
Operating Frequency: 30KHz-50KHz
About the length of the discharge arc: Input voltage 12V/5A, the high voltage discharge arc distance is about 1-2CM. The greater input voltage and current increases, the greater output power, the longer discharge arc distance, when input the maximum 30V/10A, distance can up to above 5CM. If the arc is too short, please check the input power is sufficient.
About Power: Power output circuit depends on your input power, if you only 30W power supply, even if you want to be a 200W ZVS, is can not up to the output of 100W or 200W, so the input power must be adequate, power = voltage x current
Input Voltage/Current Output Voltage Max Power
12V/5A About 10000V 60W
24V/10A About 20000V 200W
Packing List:
1 x Assembled ZVS Tesla Coil Flyback Driver Board
