ZVS Tesla Coil Marx Generator DC 12V 30V 20A 1000W High Voltage Power Supply Assembled Diy Electronic PCB Drive Driver Board

Zvs Tesla Coil Marx Generator Dc 12V 30V 20A 1000W High Voltage Power Supply Assembled Diy

ZVS Tesla Coil Marx Generator DC 12V 30V 20A 1000W High Voltage Power Supply Assembled Diy Electronic PCB Drive Driver Board

SKU:012247
Regular price $13.68 Sale price $6.84







Description:

100% Brand new and High quality

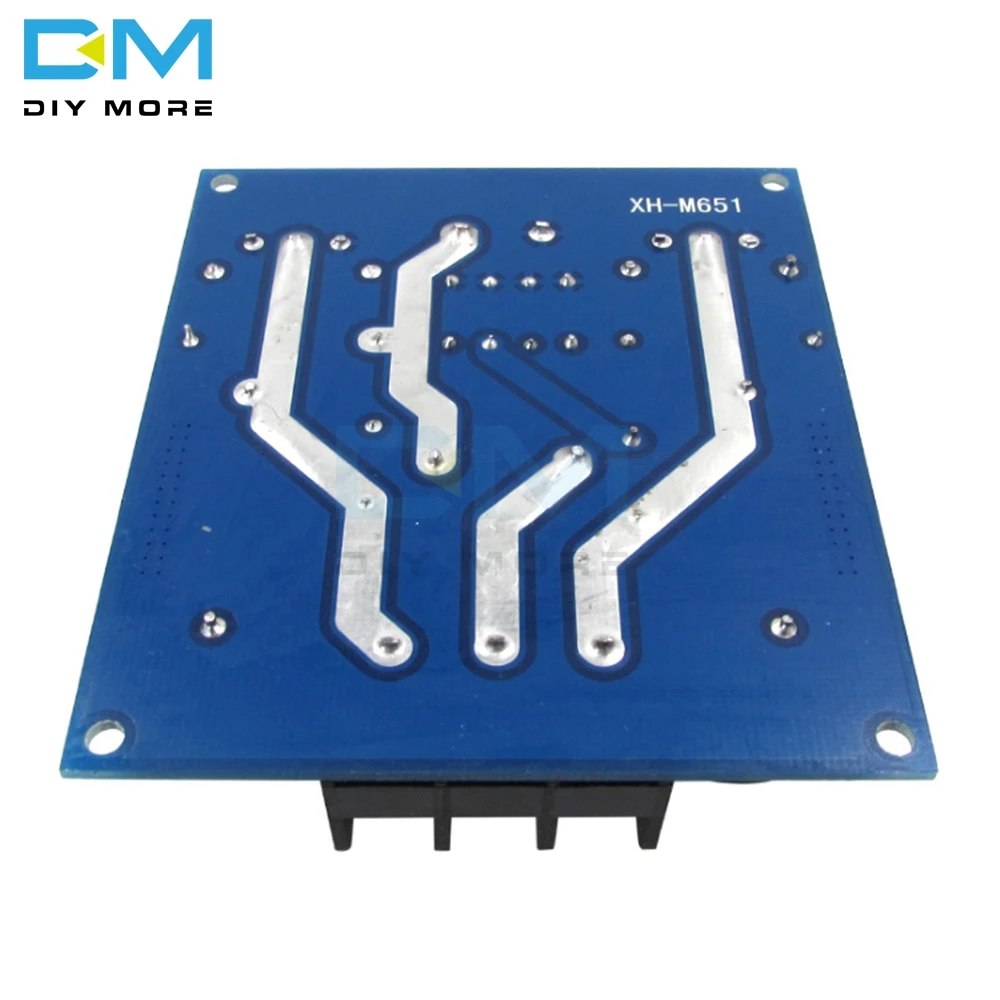

This is Assembled Board
Size: 74mm x 77.8mm
Input Voltage: DC 12V-30V
Power Requirement: Less than 12V≥5A, Above 15V≥15A
Operating Frequency: 30KHz-50KHz adaptive
Secondary Parameters: 5T + 5T

About the length of the discharge arc: Input voltage 12V/5A, the high voltage discharge arc distance is about 1-2CM. The greater input voltage and current increases, the greater output power, the longer discharge arc distance, when input the maximum 30V/10A, distance can up to above 5CM. If the arc is too short, please check the input power is sufficient.

About Power: Power output circuit depends on your input power, if you only 30W power supply, even if you want to be a 200W ZVS, is can not up to the output of 100W or 200W, so the input power must be adequate, power = voltage x current !


Input Voltage/Current            Output Voltage             Max Power
         12V/5A                        About 10000V                 60W
          24V/10A                     About 20000V                200W



Packing List:

1pcs x Assembled ZVS Tesla Coil Driver Board











trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155







Description:

100% Brand new and High quality
This is Assembled Board
Size: 74mm x 77.8mm
Input Voltage: DC 12V-30V
Power Requirement: Less than 12V≥5A, Above 15V≥15A
Operating Frequency: 30KHz-50KHz adaptive
Secondary Parameters: 5T + 5T

About the length of the discharge arc: Input voltage 12V/5A, the high voltage discharge arc distance is about 1-2CM. The greater input voltage and current increases, the greater output power, the longer discharge arc distance, when input the maximum 30V/10A, distance can up to above 5CM. If the arc is too short, please check the input power is sufficient.

About Power: Power output circuit depends on your input power, if you only 30W power supply, even if you want to be a 200W ZVS, is can not up to the output of 100W or 200W, so the input power must be adequate, power = voltage x current !


Input Voltage/Current            Output Voltage             Max Power
         12V/5A                        About 10000V                 60W
          24V/10A                     About 20000V                200W



Packing List:

1pcs x Assembled ZVS Tesla Coil Driver Board
