DC3.6-30V car bluetooth audio receiving module 3.5MM headphone jack in

DC3.6-30V car bluetooth audio receiving module 3.5MM headphone jack input and output b

SKU:XF0097

$10.99

Product introduction:

Stereo smart Bluetooth receiver board/receiver (power amplifier/car audio speaker refitted with Bluetooth receiver board), product design parts layout is neat, reasonable and beautiful, smart stereo Bluetooth receiver. The Bluetooth core uses Vimicro's high-quality Lisheng Bluetooth chip, built-in enhanced signal transmission circuit, Bluetooth receiving distance is stable and continuous tone, built-in AEC echo cancellation and ANC noise cancellation circuit, hands-free calls are ultra-quiet without echo and noise, and external input signals are intelligently converted.

Features:

Wide-voltage power supply smart stereo Bluetooth receiver board/receiver, the default volume is the maximum output after power-on/DIY independent button operation/hands-free call/Bluetooth automatic connection/intelligent automatic conversion of AUX input signal/low noise/low sound when starting POPO/Bluetooth Receive ultra-stable and uninterrupted noise/circuit board design is ultra-small and beautiful and exquisite/reserved to the external antenna interface, wide-voltage power supply with terminal plug-in line to connect power and signal output input, modified power amplifier, car audio is convenient and practical.

Technical Parameters:

Bluetooth specification: Bluetooth V4.O+EDR;
Transmission power: CLASS2;
Support Bluetooth protocol: HFP V1.5 2DP(1.1), AVCRP1.3;
Hands-free agreement: (1.6);
Transmission distance: about 15M (open place);
Power supply voltage: 3.6V to 30V;
Frequency response: >80Hz-22KHz;
Signal to noise ratio: >80dB;
Output power: >600m(-4 dBM)x2CH
Stereo separation: >50dB
Channel balance: less than 2dB

Manual：

Software description: The default Bluetooth function is powered on and the Bluetooth is paired (blue light is flashing). If there is no Bluetooth music signal, it will automatically switch to AUX to input music, and the red light will be on. Bluetooth music is played first, and it will automatically switch to play Bluetooth music as soon as the Bluetooth signal comes out. There is no need to dial out or turn off the external input music without affecting the sound quality of Bluetooth music.
1. Connect the signal output to the input of the amplifier and connect to the power supply (3.6V to 30V). Note: There are two power sockets (choose one, do not connect to two power supplies), one group is connected to 3.6-5V; the other One set is connected to 7-30v, please choose the appropriate connection.
2. Power on and turn on: the horn will emit a buzz-boom tone, and the blue light flashes quickly.
3. Bluetooth connection: After the power is turned on, the Bluetooth will automatically enter the search (blue light flashes) and enter the waiting state for pairing. At this time, set your mobile phone Bluetooth to the on state, turn on the mobile phone Bluetooth function to search, and find the local device LANNI Click, a pairing prompt appears on the Bluetooth device, click on pairing, a beep will sound, the blue light flashes slowly, and the Bluetooth connection is successful. You can use the Bluetooth power amplifier to play the music in the phone and receive calls. This machine has a callback function, After successfully connecting the Bluetooth of the device, turning on the Bluetooth again will automatically connect.
4. Smart AUK external audio playback, connect the AUX audio cable to the computer or other player output, Bluetooth is not connected or connected without playing or pausing the music automatically to the AUX input signal, the red light is on.
5. Power off state: both the blue light and the red light are off.
Key operation instructions (Bluetooth pairing connection is successfully synchronized with the phone keys, and the phone keys can also be operated)
NEXT key: Short press to select the next song being played
PREV key: Short press to select the previous song being played
Play/Pause/Answer: When playing, short press to pause; when pause, short press to play, long press to redial the call; when the Bluetooth connection is successful, when there is an incoming call, short press to answer the call, long press to reject the call Phone, short press to hang up during a call.

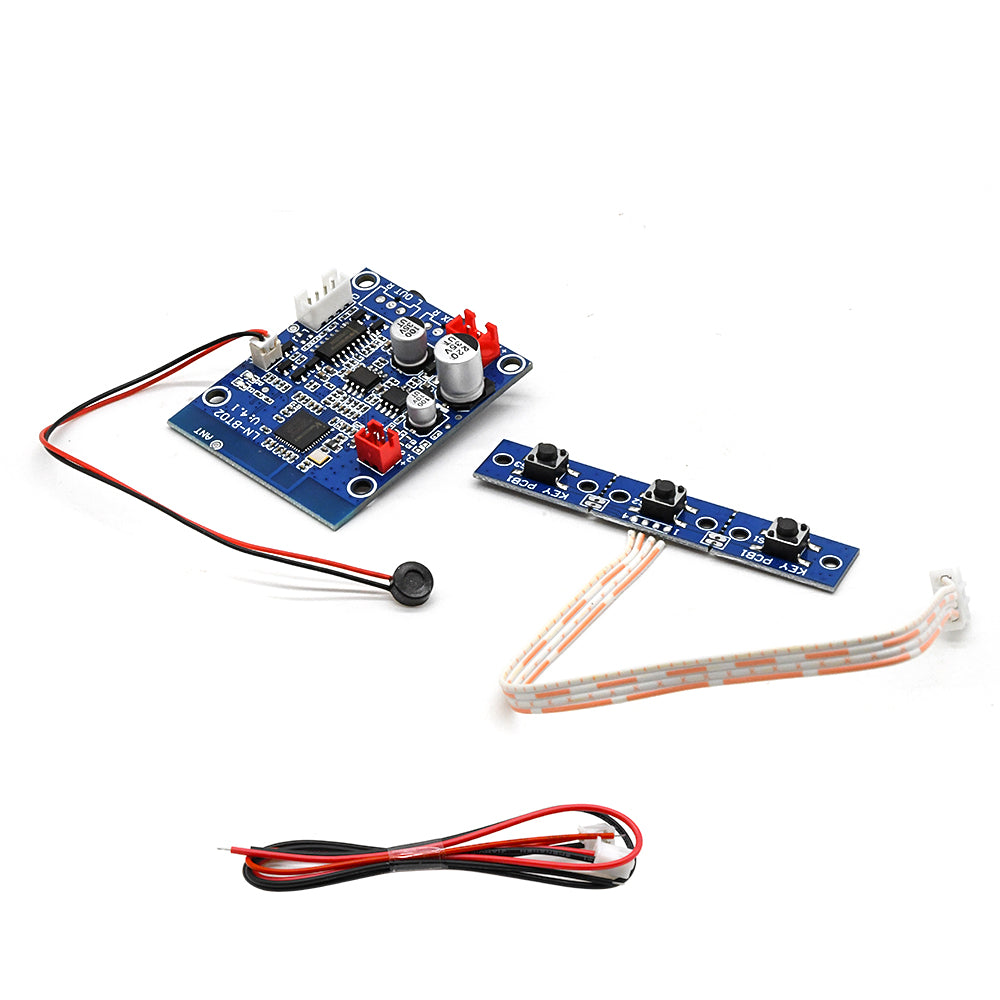

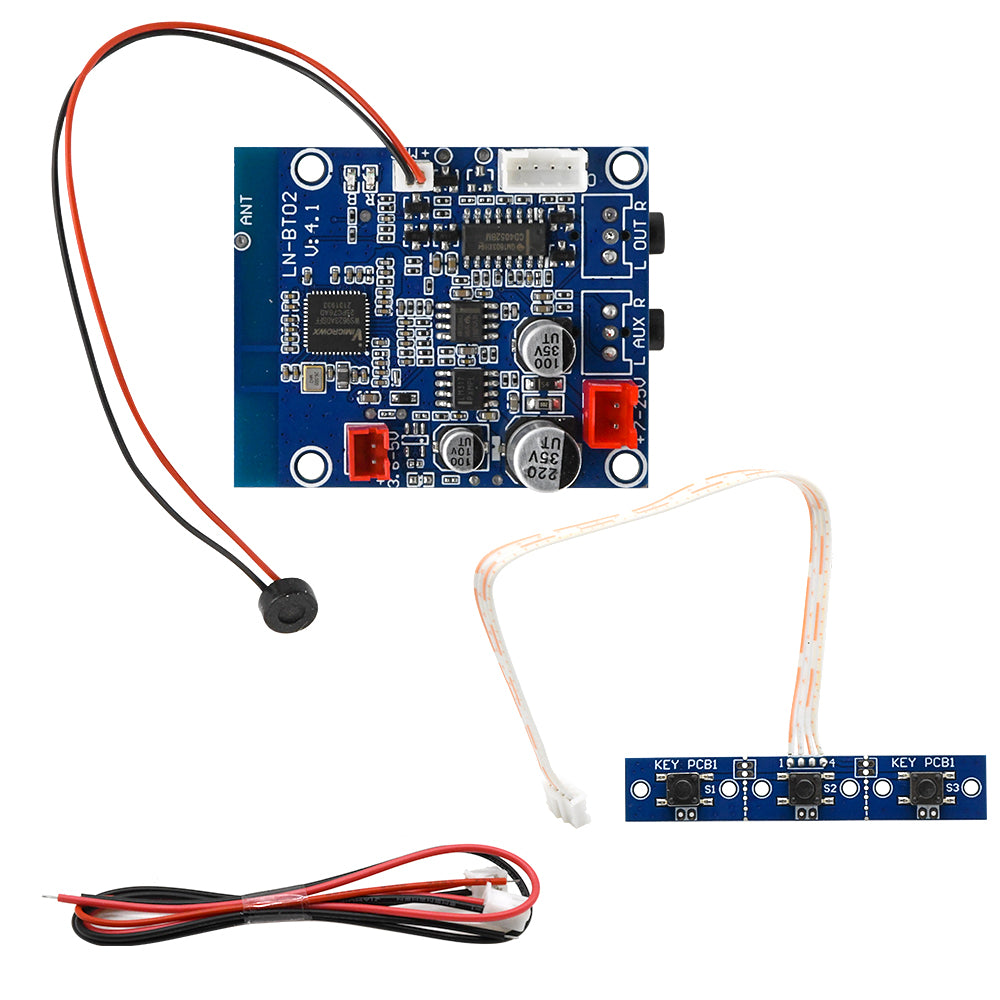

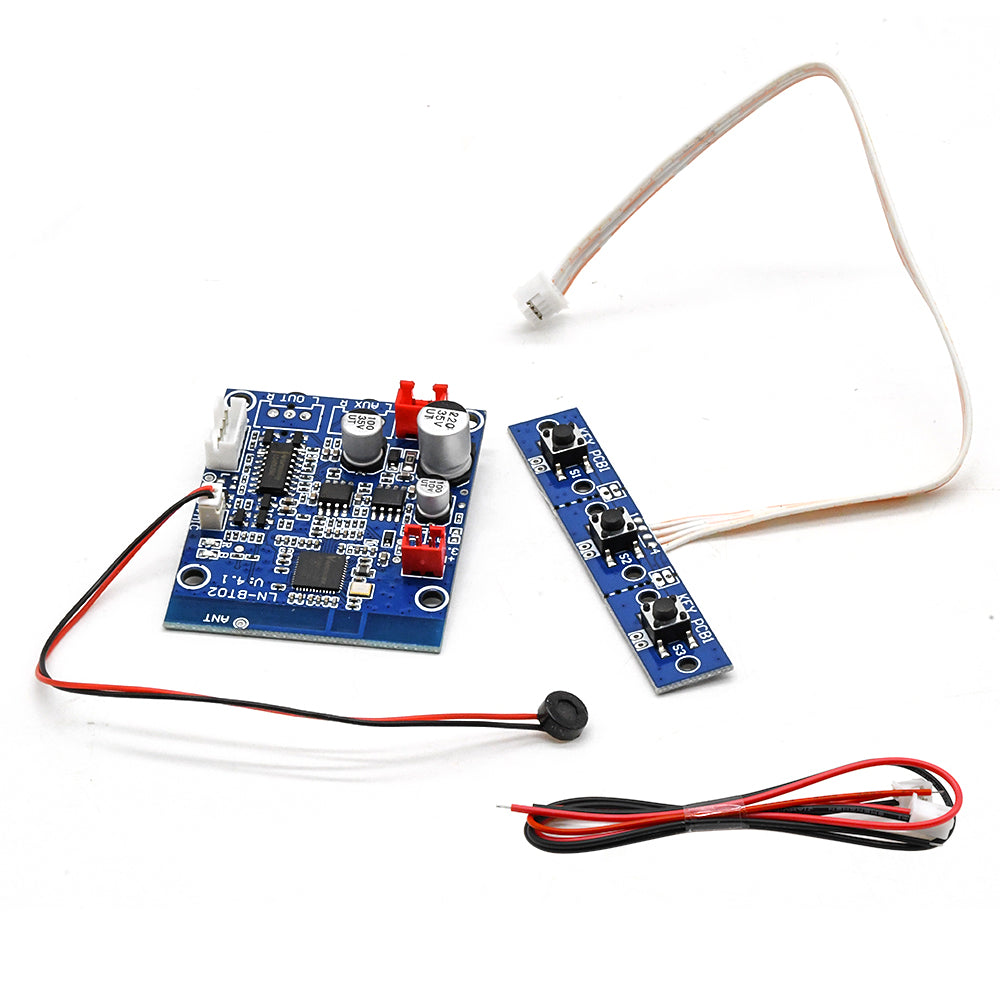

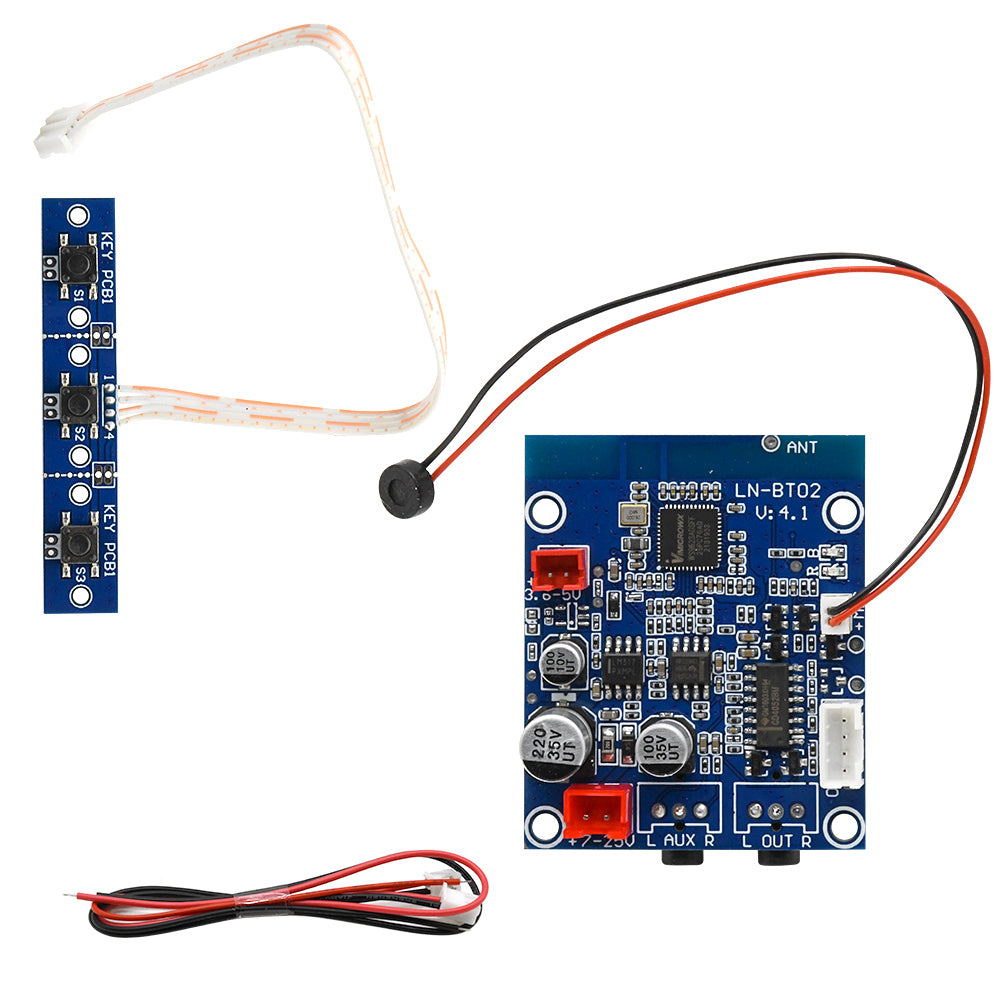

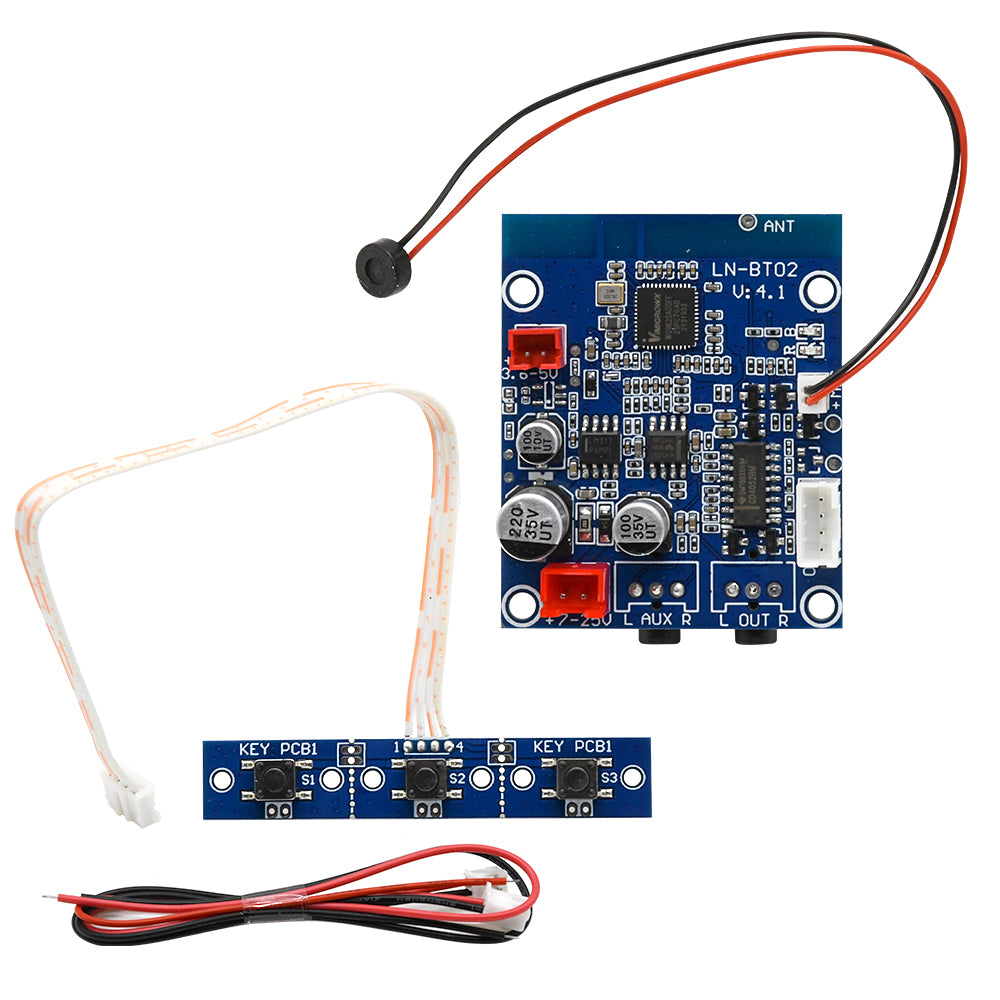

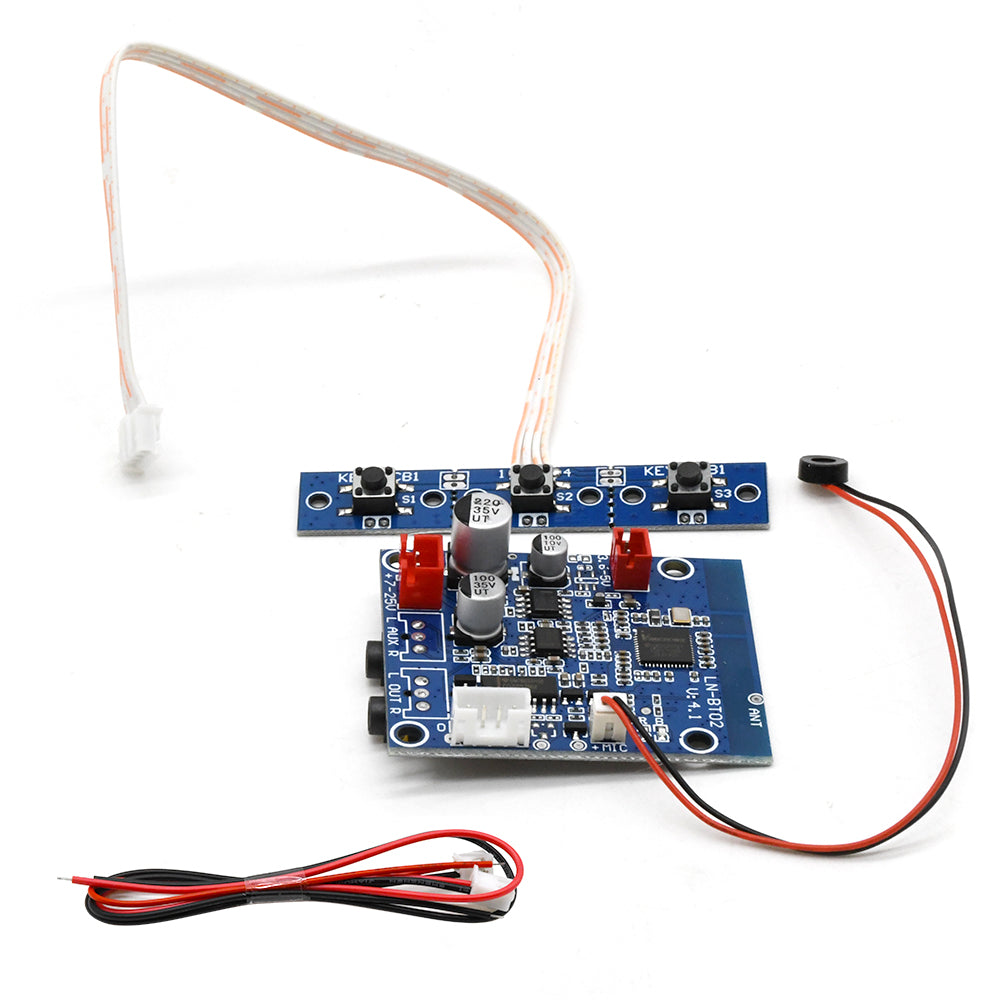

Package Included:

One receiving module
One button board (three buttons), one microphone with line (line length 13CM)
2 power cords
