5V 4 Channel 4CH Relay Module For PIC AVR DSP ARM MSP430 For Arduino Smart Electronic 5V 4 Channel Relay Module 4 Way
5V 4 Channel 4CH Relay Module For PIC AVR DSP ARM MSP430 For Arduino Smart Electronic 5V 4 Channel Relay Module 4 Way
SKU:010139- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

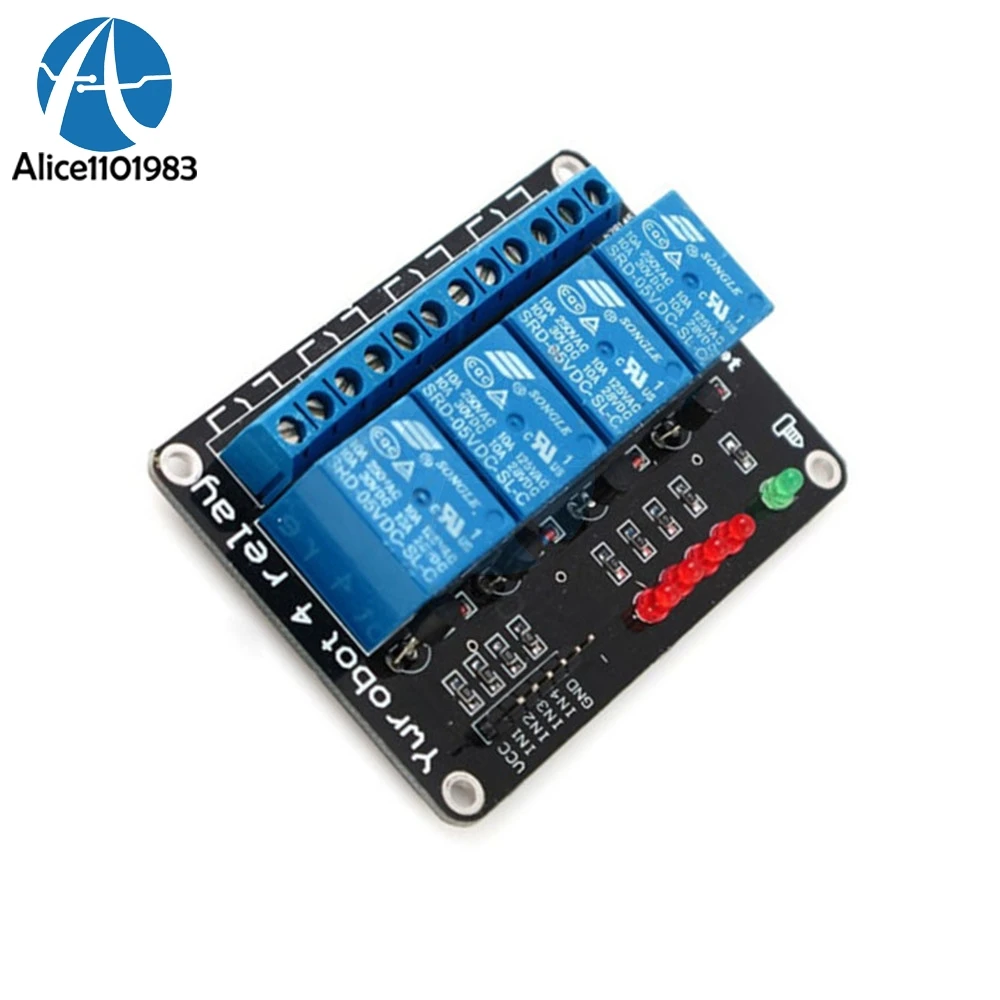

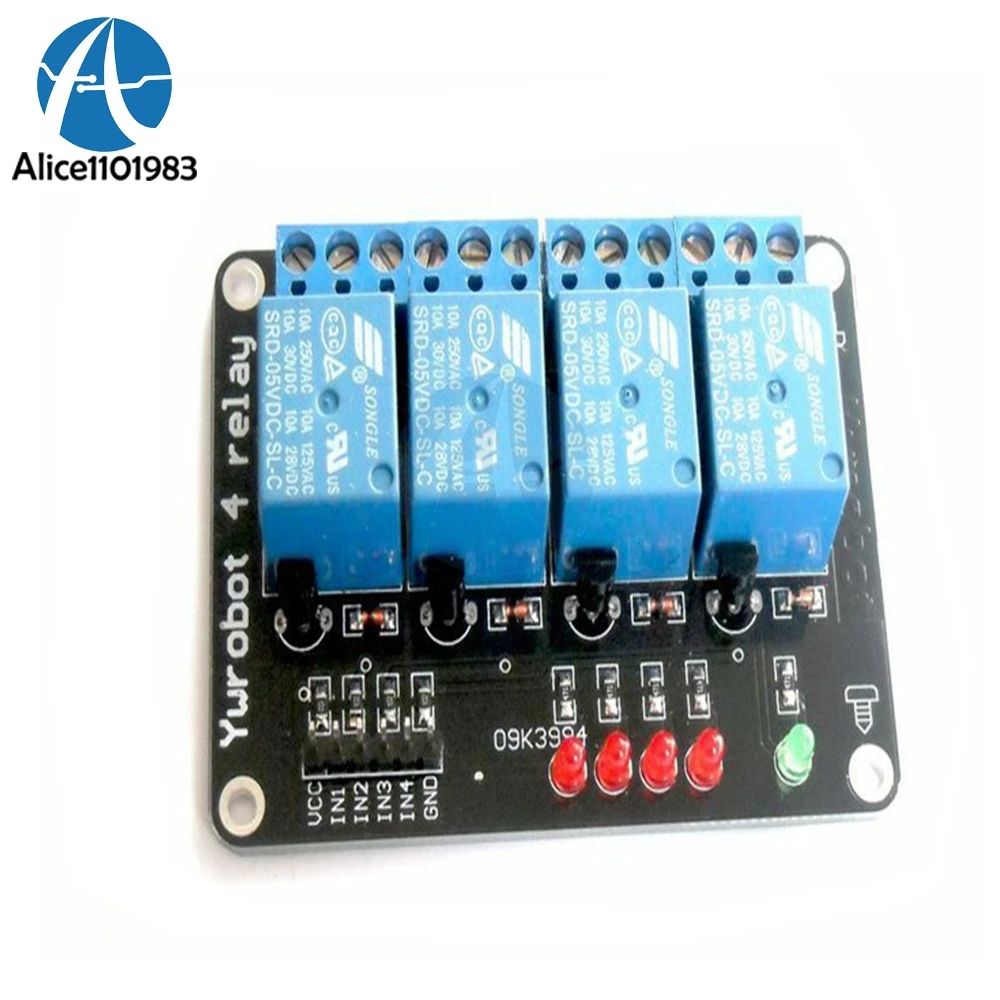

This is a 4-Channel Relay interface board, which can control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller.
Rated voltage: AC220V/DC30V
Coil power: 0.1A 0.5W
Rated current: 10A
Contact switch current: 0.1A
Contact switch voltage: 5V
Protective characteristics: protect
Contact load: 2000W
Applied range: voltage
Contact form: NC/NO
With 4 mounting holes, diameter of each hole is 3.1mm, easy to install
Apply superior SONGLE relay, SPDT(single-pole double-throw), one common port, one NO and one NC
Low level actuation(indicator ON), high level release(indicator OFF)
Maximum output of relay: DC30V 10A, AC250V 10A
Indication LED's for Relay output status
VCC: positive pole of power system
GND: negative pole of power system
IN1--IN4: Controlling port of relay
Size: 77*53*17mm(L*W*H)
Package Included:
- 1PCS*5V Eight 4 Channel Relay Module For PIC AVR DSP ARM For Arduino
