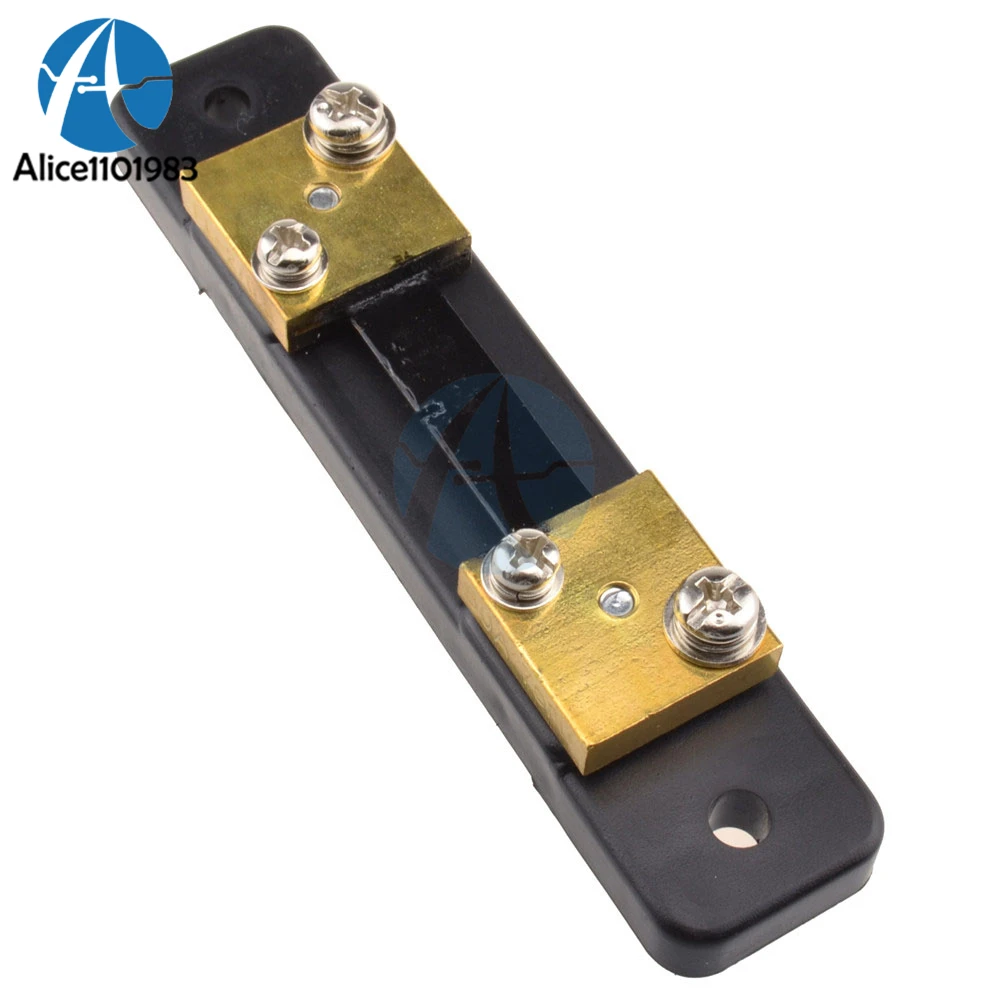

FL 2 DC 75mV 50A Shunt Resistor For Meter Amp Analog Panel Ammeter VoltMeter

FL 2 DC 75mV 50A Shunt Resistor For Meter Amp Analog Panel Ammeter VoltMeter

SKU:030033
Regular price $1.99

The fixed setpoint shunt is a suitable the attached external shunt for measuring DC current in 10kA less directly acting on the analog display instrument together with the use in order to expand the scope of the DC current measurement, or sequentially circuit can be regarded as the current sampling with the standard resistors, a sampling voltage is measured with a current can be regarded as an analog signal.
Specifications:
1.Accuracy level :2-4000A, 0.5 level5000-10000A, 1 level.
2.Environmental conditions: -40 ~ +60 , the relative temperature 95% (35 ° C)
3.Overload performance: 120% of rated current, 2 hours
4.Voltage drop: 75mV
5.Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 ° C; rated current of 50A does not exceed 120 ° C.
Weight: 72g
Dimension (L x W x H): (Approx.) 12cm x 2.6cm x 1.8cm
Pakeage included:
1 x 50A 75mV DC Shunt Resistor
