Arduino 2.4GHZ NRF24L01+Module with wireless Shield SPI to IIC I2C TWI Interface
Arduino 2.4GHZ NRF24L01+Module with wireless Shield SPI to IIC I2C TWI Interface
SKU:ZH0054
Regular price
$4.99
Sale price
$3.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

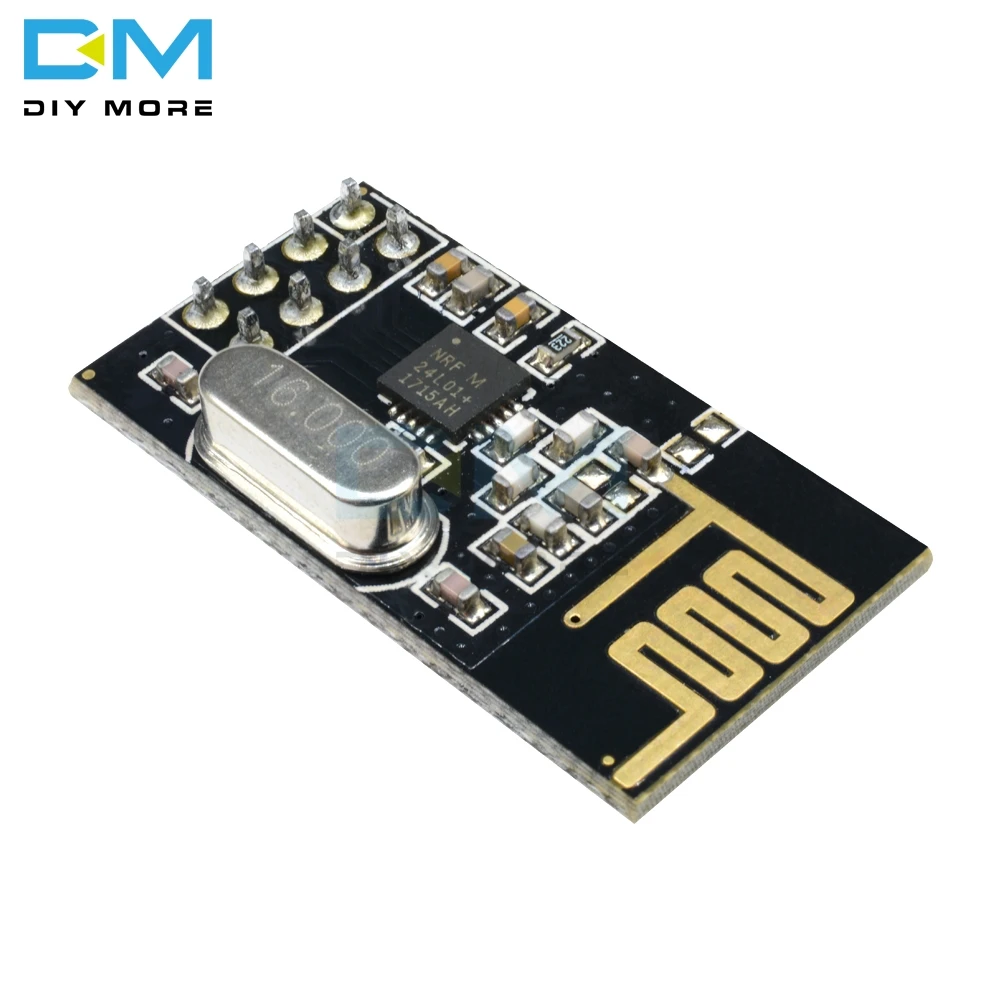

NRF24L01+2.4GHz Wireless Transceiver Module
Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.
125 Channels, Multi-point communication and frequency hopping to meet the communication needs
Built-in hardware CRC error detection, Multipoint communication address control.
Low-power 1.9 ~ 3.6V, only 1uA on Power down mode
Built-in 2.4Ghz antenna
Available software to set the address, only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.
Built-in voltage regulator
Standard DIP Pitch Interface for embedded applications

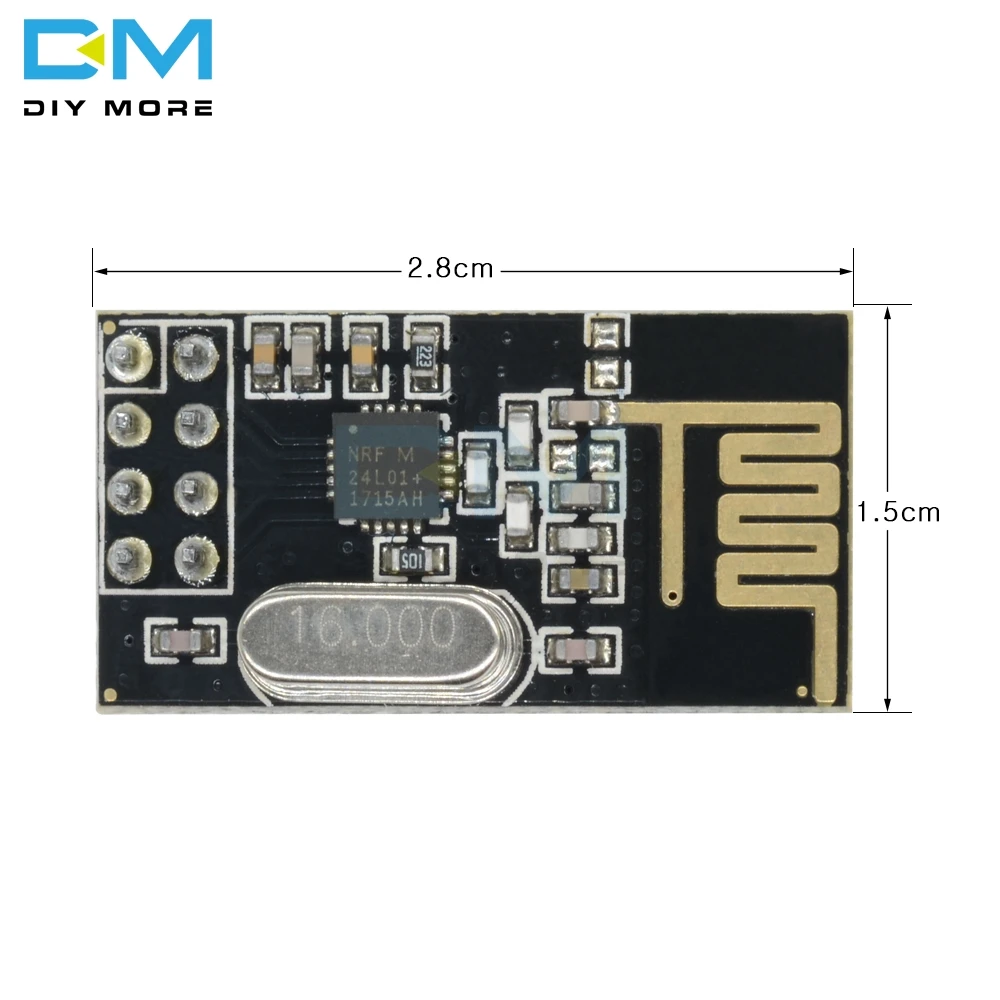

size: 34mm X 17mm X 1mm
NRF24L01 ATMEGA48 MCU Development Board
For Robot control, remote control. Information collection.
Using I2C (TWI) communication protocol, which greatly simplifies the communication process of NRF24L01.
Users do not need to understand the complicated NRF24L01 communication process
which greatly improves the development efficiency.
Adopt NRF24L01 as Wireless communications chip,reliable communication protocol and reducing data loss.
Maximum transmission distance can reach 70m (for reference only).
Specifications:
Operating voltage: 5V
Hold time of Module receives the data:more than 2S
Hold time of Module sends data:more than 300s
Transfer rate: 50Byte / S (theoretical value)
I2C/TWI Address: 0x47 (decimal 35)
NRF24L01 Address: 0x34, 0x43, 0x10, 0x10, 0x01 (from low to high)
Size:44 x 23 x 12mm(L x W x H)
Color:Black
Net weight:6g
Package Included:
1 x NRF24L01 Module
1 x NRF240L01 Development Board
